Parts for 10 Marathon 2-Stroke Carbureted Mercury Outboard Motor Carburetor Assembly (Seapro / Marathon 10)

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 10 Marathon > 0D038000 - 0D279999 - USA > Carburetor Assembly (Seapro / Marathon 10)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Carburetor Assembly (Seapro / Marathon 10)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	42364A92	GASKET SET (1 required per assembly)
		27-42364A92 - Engine Gasket Set [ More info ] $114.69 1 In Stock.
#-	19072T88	POWERHEAD MARINE (1 required per assembly) — Replaces: 19072A88
		19072T88 - Powerhead MARINE,NLA [ More info ] Unavailable
#1	817404T4	CARBURETOR (WMC-40) (1 required per assembly) — Replaces: 817404A3, 817404A4
		1392-817404T 4 - Carburetor [ More info ] Unavailable
#2	19268	VALVE THROTTLE (WMC-33/33A) (1 required per assembly)
		19268 - THROTTLE Valve, NLA [ More info ] Unavailable
#2	823716	VALVE THROTTLE (WMC-40) (1 required per assembly)
		1395-823716 - Throttle Valve [ More info ] $14.89 Available to Order: Shipping delay up to 10 days.
#3	19267	SHAFT THROTTLE (INCLS. SCREW & SPRING) (1 required per assembly)
		19267 - Throttle Shaft [ More info ] $41.99 Available to Order: Shipping delay up to 10 days.
#4	811353	BOWL FUEL (1 required per assembly)
		1395-811353 - Fuel Bowl, NLA [ More info ] $18.31 10+ In Stock.
#5	91691	FLOAT (1 required per assembly) — Replaces: 9169
		1395-9169 1 - Float [ More info ] $13.59 8 In Stock.
#6	803861	VALVE INLET NEEDLE (1 required per assembly) — Replaces: 9855, 879194048
		1395-803861 - Inlet Valve [ More info ] $25.49 10 In Stock.
#7	4215	JET MAIN FUEL (.066) (WMC-33/34A) (1 required per assembly)
		1399-4215 - Jet -.066 [ More info ] $17.19 Available to Order: Shipping delay up to 10 days.
#7	4216	JET (.064) (WMC-40) (1 required per assembly)
		1399-4216 - Jet -.064 [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#8	9171	PLUG JET RETAINER (1 required per assembly)
		1395-9171 - Plug [ More info ] $8.89 1 In Stock.
#9	811352	LEVER THROTTLE (1 required per assembly)
		1395-811352 - Throttle Lever [ More info ] $1.50 $1.28 10+ In Stock.
#10	8113541	SHAFT CHOKE (WMC-40) (1 required per assembly) — Replaces: 811354
		1395-811354 1 - Choke Kit, NLA [ More info ] $17.25 $14.61 6 In Stock.
#11	9702	COVER/FUEL PUMP KIT (1 required per assembly) — Replaces: 15827A1
		1395-9702 - Fuel Pump Kit [ More info ] Unavailable
#12	9643	SCREW FUEL PUMP COVER (5 required per assembly)
		1395-9643 - Screw Assembly [ More info ] $4.99 Available to Order: Shipping delay up to 10 days.
#13	9699	PLATE COVER (1 required per assembly)
		1395-9699 - Cover Plate [ More info ] Unavailable
#14	9696	SCREW COVER PLATE (2 required per assembly)
		1395-9696 - Screw Assembly [ More info ] Unavailable
#15	97611	GASKET/DIAPHRAGM KIT GASKET/DIAPHRAGM KIT (1 required per assembly) — Replaces: 811357
		1395-9761 1 - Gasket and Diaphragm Kit [ More info ] $87.99 8 In Stock.
		18-7212 - Carburetor and Fuel Pump Diaphragm Kit, 1395-9761 1 [ More info ] $64.19 $62.86 10+ In Stock.
		1300-36004 - Carburetor Kit - Mercury 1395-9761 1 [ More info ] $61.99 $47.40 10+ In Stock.
#16	8237072	REPAIR KIT (WMC-40) (1 required per assembly) — Replaces: 811356, 8113561
		1395-823707 2 - Carburetor Repair Kit, Float NOT included [ More info ] $136.99 Available to Order: Shipping delay up to 10 days.
		18-97350 - Carb Kit, Mercury 1395-823707 2, Float Not Included [ More info ] $137.82 $126.28 8 In Stock.

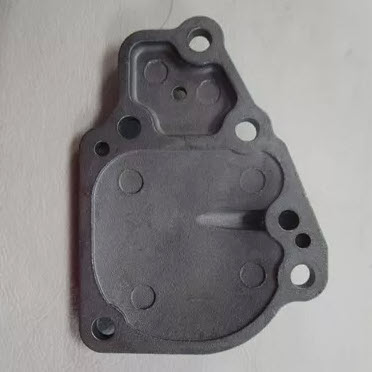

#17	9637	COVER FUEL PUMP (1 required per assembly)
		1395-9637 - Cover [ More info ] $30.79 Available to Order: Shipping delay up to 10 days.
#18	811806	VALVE CHOKE (WMC-33A/40) (1 required per assembly) — Replaces: 811355
		1395-811806 - Choke Valve, NLA [ More info ] $2.50 $2.13 8 In Stock.
#19	192061	GASKET CARBURETOR (1 required per assembly)
		27-19206 1 - Gasket [ More info ] $4.99 6 In Stock.

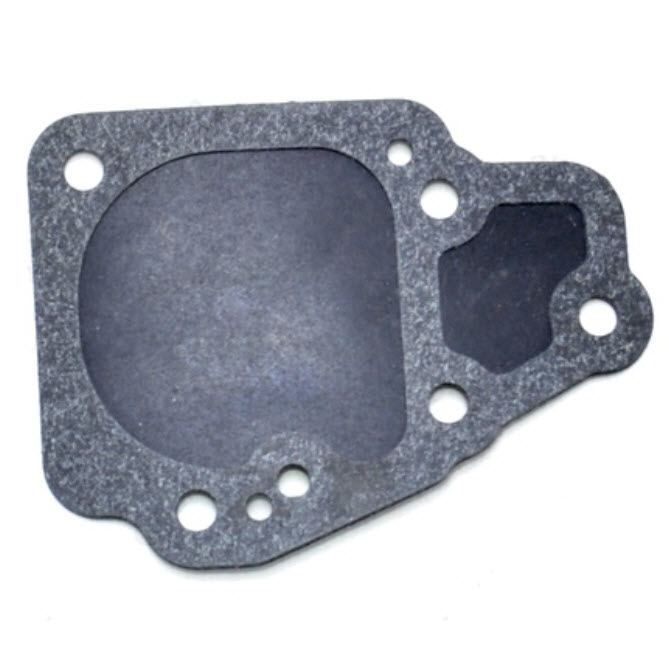

#20	9635	DIAPHRAGM/GASKET (1 required per assembly)
		1395-9635 - Diaphragm [ More info ] $47.11 1 In Stock.
#21	811805	LEVER CHOKE (WMC-33A/40) (1 required per assembly) — Replaces: 817406
		1395-811805 - Choke Lever [ More info ] $4.99 $4.22 10+ In Stock.
#23	17442	COVER (1 required per assembly)
		17442 - Carburetor Cover [ More info ] Unavailable
#24	47579	PLUG @5 (1 required per assembly)
		19-47579 - Plug - Priced Individually [ More info ] $1.60 10+ In Stock.
		18-3232-9 - Plug, 19-47579, 5PK [ More info ] $7.99 Available to Order: Shipping delay up to 10 days.
#25	400018	SCREW @2 (2 required per assembly)
		10-40001 8 - Screw - Priced Individually [ More info ] $1.10 2 In Stock.
#25	40056110	SCREW (2 required per assembly)
		10-40056110 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#26	41750T	INSERT (2 required per assembly) — Replaces: 41750
		41750T - Insert [ More info ] Unavailable
#27	817424	KNOB-CHOKE (1 required per assembly)
		817424 - Choke Knob [ More info ] $22.36 2 In Stock.
#28	12804A1	BEZEL ASSY (1 required per assembly)
		12804A 1 - Bezel Assembly [ More info ] $30.09 Available to Order: Shipping delay up to 10 days.
#29	11278	RING-RETAINING (1 required per assembly)
		53-11278 - Ring - Retaining [ More info ] $6.69 2 In Stock.
#30	817426	INSERT (1 required per assembly)
		817426 - Insert [ More info ] $15.29 Available to Order: Shipping delay up to 10 days.
#31	817425	LINK-CHOKE (1 required per assembly)
		817425 - Choke Link [ More info ] $15.69 Available to Order: Shipping delay up to 10 days.
#32	40056110	SCREW (1 required per assembly)
#33	400211	NUT (1 required per assembly)
		11-40021 1 - Nut [ More info ] $3.59 10+ In Stock.
#4A	811360	SCREW BOWL DRAIN (WMC-40) (1 required per assembly)
		1395-811360 - Screw, NLA [ More info ] $6.00 $5.08 10+ In Stock.
#5A	F10064	SHAFT (1 required per assembly)
		F10064 - Float Support Shaft [ More info ] $4.59 10+ In Stock.
