Parts for 10 Magnum 2-Stroke Carbureted Mercury Outboard Motor Driveshaft Housing

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 10 Magnum > 0P017000 - 0P325499 - Belgium > Driveshaft Housing

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

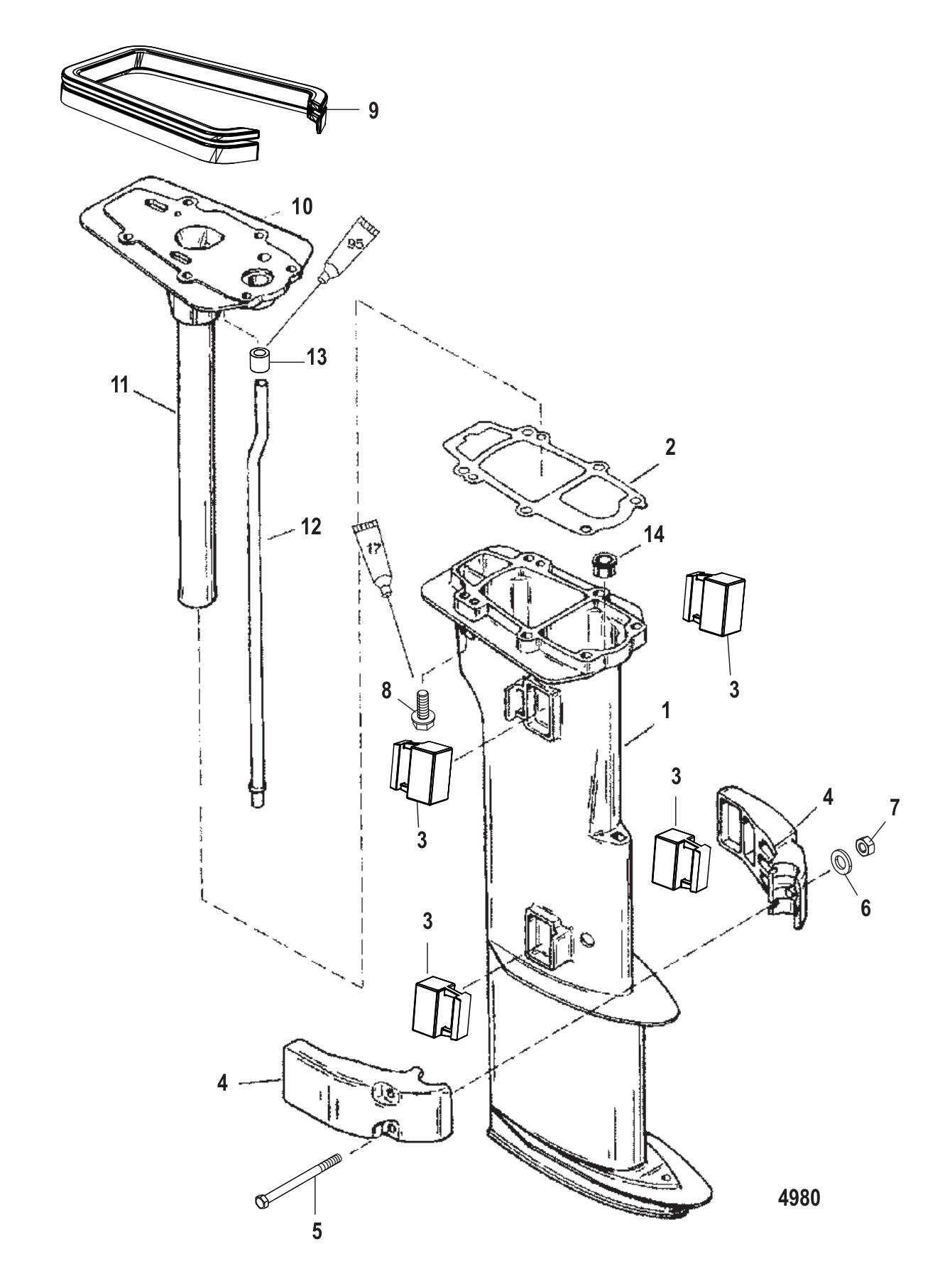

Driveshaft Housing

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	42364A92	GASKET SET (1 required per assembly)
		27-42364A92 - Engine Gasket Set [ More info ] $114.69 1 In Stock.
#1	822154A1	D SHAFT HSG-BLK (Short) (Black) (1 required per assembly)
		1596-822154A 1 - Drive Shaft Housing - Black [ More info ] $418.99 Available to Order: Shipping delay up to 10 days.
#1	822155A1	D SHAFT HSG-BLK-L (Long) (Black) (1 required per assembly)
		1597-822155A 1 - Drive Shaft Housing - Black-l [ More info ] $514.49 Available to Order: Shipping delay up to 10 days.
#2	195992	GASKET DRIVESHAFT HOUSING (1 required per assembly)
		27-19599 2 - Gasket [ More info ] $9.69 5 In Stock.
#3	8M0039074	MOUNT (4 required per assembly) — Replaces: 421892
		8M0039074 - Mount [ More info ] $24.49 Available to Order: Shipping delay up to 10 days.
#4	42374F6	COVER-MOUNT-BLK (Black) (2 required per assembly)
		42374F 6 - Mount Cover [ More info ] $120.49 Available to Order: Shipping delay up to 10 days.
#5	4009238	SCREW (2 required per assembly)
		10-40092 38 - Screw [ More info ] Unavailable
#6	8M0204649	WASHER @10 (2 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#7	400212	NUT (2 required per assembly)
		11-40021 2 - Nut [ More info ] $2.89 2 In Stock.
#8	1993735	SCREW (4 required per assembly)
		10-19937 35 - Screw [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#9	11287001	SEAL (1 required per assembly) — Replaces: 11287
		26-11287001 - Seal [ More info ] $13.99 Available to Order: Shipping delay up to 10 days.
#10	8M0036855	PLATE-ADAPTOR (Without Exhaust Tube) (1 required per assembly) — Replaces: 413449
		8M0036855 - Adaptor Plate [ More info ] $60.99 Available to Order: Shipping delay up to 10 days.
#10	41344T6	PLATE-ADAPTER (With Exhaust Tube) (1 required per assembly)
		41344T 6 - Adapter Plate [ More info ] $138.99 Available to Order: Shipping delay up to 10 days.
#11	NSS	NOT SOLD SEPARATE (EXHAUST TUBE) (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#12	881203A1	WATER TUBE-SHORT (Short) (1 required per assembly) — Replaces: 826835A1
		32-881203A 1 - Water Tube - Short [ More info ] $22.59 Available to Order: Shipping delay up to 10 days.
#12	881203A2	WATER TUBE-LONG (Long) (1 required per assembly) — Replaces: 826836A1
		32-881203A 2 - Water Tube - Long [ More info ] $49.99 Available to Order: Shipping delay up to 10 days.
#13	42380001	SEAL @2 (1 required per assembly) — Replaces: 42380
		26-42380001 - Seal - Priced Individually [ More info ] $11.49 Available to Order: Shipping delay up to 10 days.
#14	445551	BLOCK-BEARING (Long) (1 required per assembly)
		44555 1 - Bearing Block [ More info ] $7.79 Available to Order: Shipping delay up to 10 days.
