Parts for 10 Magnum 2-Stroke Carbureted Mercury Outboard Motor Cylinder Block & Covers

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 10 Magnum > 0D038000 - 0D279999 - USA > Cylinder Block & Covers

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Cylinder Block & Covers

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	42364A92	GASKET SET (1 required per assembly)
		27-42364A92 - Engine Gasket Set [ More info ] $114.69 1 In Stock.
#-	19072T88	POWERHEAD MARINE (1 required per assembly) — Replaces: 19072A88
		19072T88 - Powerhead MARINE,NLA [ More info ] Unavailable
#1	9727T2	CYLINDER BLOCK (1 required per assembly) — Replaces: 9727A2
		881-9727T 2 - Cylinder Block, NLA [ More info ] Unavailable
#2	85171	PIN DOWEL CYLINDER BLOCK (2 required per assembly)
		17-85171 - Dowel Pin , Cylinder Block [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#3	424632	STUD (M8 X 37.1) CARBURETOR (2 required per assembly) — Replaces: 42463
		16-42463 2 - Stud [ More info ] $16.49 Available to Order: Shipping delay up to 10 days.
#4	426982	CHECK VALVE BLEED HOSE (1 required per assembly) — Replaces: 42698, 426981
		21-42698 2 - Check Valve [ More info ] $37.55 1 In Stock.
#5	99130100	TUBING-48 INCH BLEED (1 required per assembly) — Replaces: 1383556, 13835100
		32-99130100 - Tubing - 48 Inch [ More info ] Unavailable
#6	8161949	STUD (M6 X 44) CYLINDER BLOCK (2 required per assembly) — Replaces: 42984, 429845
		16-816194 9 - Stud [ More info ] $12.19 Available to Order: Shipping delay up to 10 days.
#7	421251	SCREW (M8 X 55) CRANKCASE TO CYLINDER BLOCK (6 required per assembly)
		10-42125 1 - Screw [ More info ] $2.99 10+ In Stock.
		10-42125 - SCREW [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#8	40144	NUT (M6) CYLINDER BLOCK STUD (2 required per assembly) — Replaces: 400634, 8268336
		11-40144 - NUT Note: Priced Individually [ More info ] Unavailable
		11-40138 6 - Nut - Priced Individually [ More info ] $5.09 9 In Stock.
#9	191861	GASKET (1 required per assembly)
		27-19186 1 - Gasket [ More info ] $9.69 2 In Stock.
#10	828435A3	REED BLOCK ASSY (1 required per assembly) — Replaces: 42381A2, 828435A1
		828435A 3 - Reed Block Assembly [ More info ] Unavailable
#11	42657A3	CHECK VALVE (1 required per assembly) — Replaces: 42657A1
		21-42657A 3 - Check Valve Assembly [ More info ] $7.29 Available to Order: Shipping delay up to 10 days.
#12	42137	SEAL REED BLOCK (1 required per assembly)
		26-42137 - Seal, NLA [ More info ] Unavailable
#13	195982	GASKET REED BLOCK (1 required per assembly)
		27-19598 2 - Gasket [ More info ] $9.89 2 In Stock.
#14	4000171	SCREW (M6 X 16) REED BLOCK (3 required per assembly)
		10-40001 71 - Screw - Priced Individually [ More info ] $1.10 $0.88 10+ In Stock.
#15	825141	REED (2 required per assembly) — Replaces: 4204410
		34-825141 - Reed [ More info ] $9.89 10 In Stock.
#16	828435A3	REED BLOCK ASSY (2 required per assembly) — Replaces: 179031
#17	4005764	SCREW (M3.5 X 8) REED ATTACHING (6 required per assembly)
		10-40057 64 - Screw, NLA [ More info ] $1.62 10+ In Stock.
#18	400213	NUT (M8) STAINLESS STEEL CARBURETOR STUD (2 required per assembly)
		11-40021 3 - Nut - Priced Individually [ More info ] $2.89 1 In Stock.
#19	8M0048005	COVER EXHAUST MAN EXHAUST (1 required per assembly) — Replaces: 42521, 42521001
		8M0048005 - Cover Exhaust Man [ More info ] $71.99 Available to Order: Shipping delay up to 10 days.
#20	40062129	SCREW (M6 X 25) EXHAUST COVER TO CYLINDER BLOCK (11 required per assembly)
		10-40062129 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#21	19185	GASKET EXHAUST COVER (1 required per assembly)
		27-19185 - Exhaust Cover Gasket [ More info ] $11.79 4 In Stock.
#22	42365	PLATE-BAFFLE (1 required per assembly) — Replaces: 423651
		42365 - Baffle Plate [ More info ] $45.49 Available to Order: Shipping delay up to 10 days.
#23	19184	GASKET BAFFLE PLATE (1 required per assembly)
		27-19184 - Baffle Plate Gasket [ More info ] $10.39 4 In Stock.
#24	19107F1	COVER (Fitting is Installed in Block) (1 required per assembly)
		19107F 1 - Cover [ More info ] $15.99 $13.54 10+ In Stock.
#24	17863A1	INTAKE COVER ASSY (Fitting is Installed in Intake Cover) (1 required per assembly)
		17863A 1 - Intake Cover Assembly, NLA [ More info ] $8.00 $6.78 7 In Stock.
#25	56759	FITTING BARBED (Fitting is installed in Block) (1 required per assembly)
		22-56759 - Fitting [ More info ] $11.59 Available to Order: Shipping delay up to 10 days.
#25	15133	FITTING (Fitting is Installed in Intake Cover) (1 required per assembly)
		22-15133 - Fitting [ More info ] $21.68 1 In Stock.
#26	99130100	TUBING-48 INCH (2 required per assembly) — Replaces: 1383556, 13835100
#27	59169003	FITTING TEE (1 required per assembly) — Replaces: 59169, 591692
		22-59169003 - Fitting - Priced Individually [ More info ] $5.99 2 In Stock.
#28	56762	TIE STRAP (4.00 INCHES) (AR required per assembly)
		56762 - Tie Strap - Priced Individually [ More info ] $0.50 3 In Stock.
#29	192031	GASKET INTAKE COVER (1 required per assembly)
		27-19203 1 - Gasket [ More info ] $6.79 Available to Order: Shipping delay up to 10 days.
#30	40062129	SCREW (M6 X 25) COVER TO CYLINDER BLOCK (3 required per assembly)
#31	8M0047428	HOSE (.25 INCH ID, 57.00 INCHES BULK) TELL TALE (1 required per assembly) — Replaces: 99127109, 830756109
		32-8M0047428 - Hose -57 Inch [ More info ] Unavailable
		32-8M0108355 - Hose, 57 Inch [ More info ] $52.49 In Stock
#32	94848	FITTING TELL TALE HOSE-BOTTON COWL (1 required per assembly)
		22-94848 - Fitting [ More info ] $4.79 1 In Stock.
#33	8906A02	COVER ASSEMBLY (1 required per assembly) — Replaces: 8906A1
		1033-8906A02 - Cover Assembly [ More info ] $88.49 Available to Order: Shipping delay up to 10 days.
#34	19207002	GASKET (1 required per assembly) — Replaces: 192071
		27-19207002 - Cylinder Cover Gasket [ More info ] $9.39 6 In Stock.

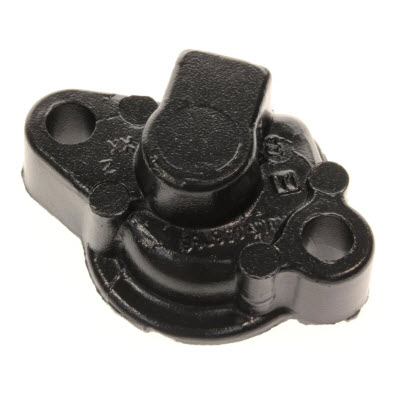

#35	8M0039352	COVER THERMOSTAT (1 required per assembly) — Replaces: 146732
		8M0039352 - Thermostat Cover [ More info ] $21.89 Available to Order: Shipping delay up to 10 days.
#36	19205002	GASKET (1 required per assembly) — Replaces: 192051
		27-19205002 - Thermostat Cover Gasket [ More info ] $2.99 7 In Stock.
#37	40062129	SCREW (M6 X 25) (2 required per assembly)
#38	14586	THERMOSTAT (120 DEGREE) (1 required per assembly)
		14586 - Thermostat, 120 Degrees [ More info ] $40.99 8 In Stock.
		18-3549 - Thermostat, 120 Degrees, 14586 [ More info ] $28.37 10+ In Stock.
#39	8M0204714	GASKET @4 THERMOSTAT (1 required per assembly) — Replaces: 62386, 62386001
		27-8M0204714 - Thermostat Gasket, Priced Individually [ More info ] $2.89 4 In Stock.
#40	291112	FITTING (STRAIGHT) (1 required per assembly) — Replaces: 29111, 291111
		0291112 - Exhaust Gasket (291112) [ More info ] Unavailable
#41	40062129	SCREW (M6 X 25) COVER ATTACHING (6 required per assembly)
#7A	17866	PIN GROOVE (1 required per assembly)
		17-17866 - Pin, Groove [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
