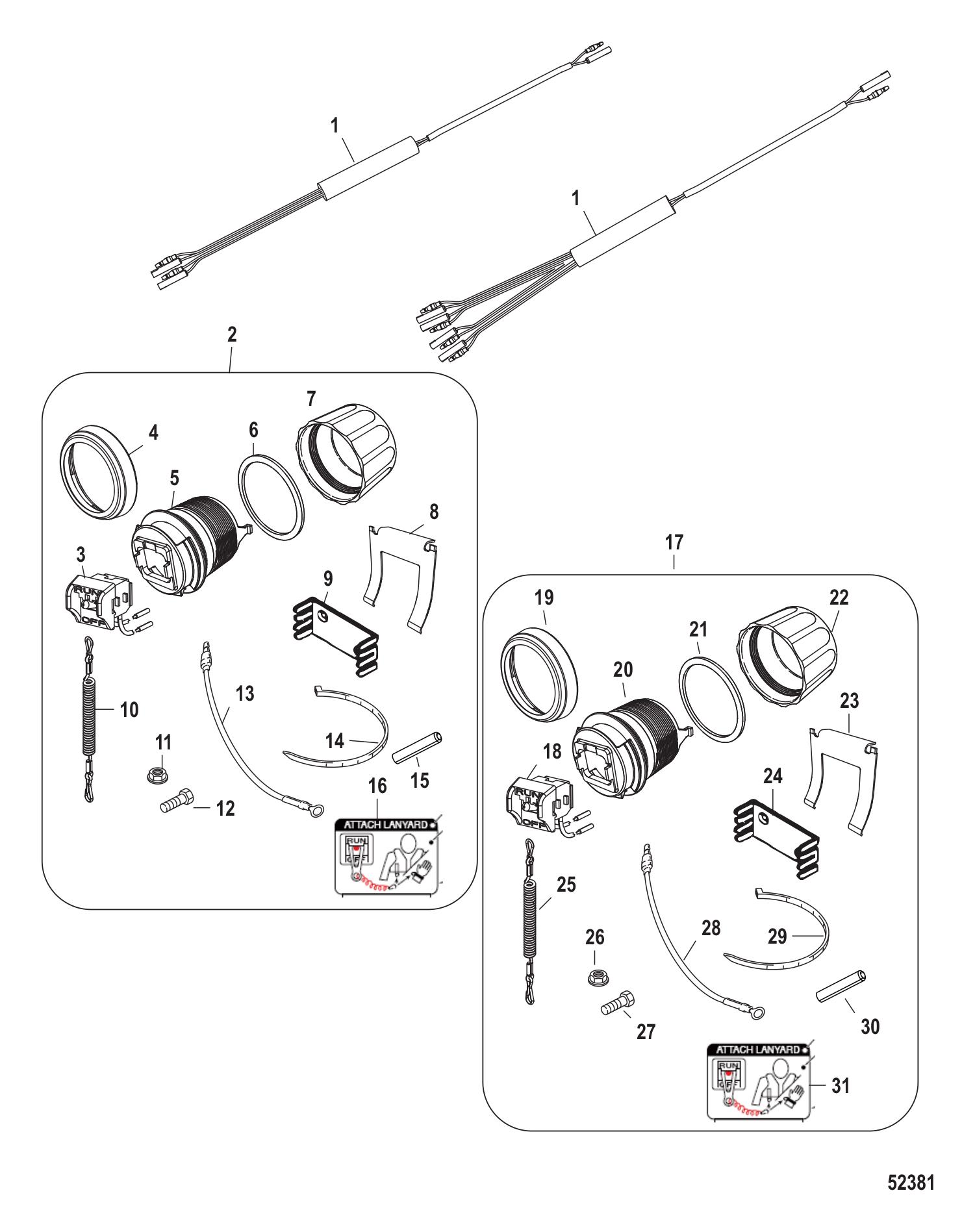

Stop Switch / Lanyard Kit-- Dash Mount

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	19674A13	LANYRD KT-BZL DUL (1 required per assembly)
		87-19674A13 - Lanyard Kit -bzl Dul [ More info ] Unavailable
#-	19674A15	LANYRD KT-BZ T/QD (1 required per assembly)
		87-19674A15 - Lanyard Kit -bz T/Qd [ More info ] Unavailable
#1	898289A72	DIODE KIT-LANYARD DUAL Dual Application (1 required per assembly) — Replaces: 8M0080014
		84-898289A72 - Lanyard Diode Kit [ More info ] $65.38 Available to Order: Shipping delay up to 10 days.
#1	8M0080176	DIODE HARNESS ASSEMBLY TRIPLE/QUAD ERC Triple/Quad Application (1 required per assembly)
		848M0080176 - Harness Assembly -Diode [ More info ] Unavailable
#2	19674A08	SWITCH/LANYARD KIT (1 required per assembly)
		87-19674A08 - Switch/Lanyard Kit Ob [ More info ] $85.94 Available to Order: Shipping delay up to 10 days.
#3	133982	SWITCH ASSEMBLY STOP (1 required per assembly)
		87-13398 2 - Switch [ More info ] $67.17 Available to Order: Shipping delay up to 10 days.
#4	8798711	BEZEL (52 MM) BLACK (1 required per assembly)
		879871 1 - Bezel - BL52MM - Priced Individually [ More info ] $6.71 2 In Stock.
#5	NSS	NOT SOLD SEPARATE HOUSING (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#6	879925	WASHER (52 MM) (1 required per assembly)
		12-879925 - Washer -52MM - Priced Individually [ More info ] $3.14 $2.99 3 In Stock.
#7	8M0204699	NUT-52MM @2 (1 required per assembly) — Replaces: 879900
		11-8M0204699 - NUT-52MM @2 [ More info ] Unavailable
#8	8M0032846	RETAINER BRASS (1 required per assembly)
		8M0032846 - Brass Retainer [ More info ] $4.61 Available to Order: Shipping delay up to 10 days.
#9	79146	RETAINER (1 required per assembly)
		79146 - Retainer [ More info ] $5.59 2 In Stock.
#10	15920Q54	LANYARD ASSEMBLY (1 required per assembly)
		15920Q54 - Stop Switch Lanyard- Priced Individually [ More info ] Unavailable
#11	27164	NUT AND LOCKWASHER (#10-32) (1 required per assembly)
		11-27164 - Nut And Lockwasher (#10-32) [ More info ] $1.00 1 In Stock.
#12	24231	SCREW (#10-32 X .250) (1 required per assembly)
		10-24231 - Screw - Priced Individually [ More info ] $1.10 $0.88 5 In Stock.
#13	11149A3	CABLE ASSEMBLY (1 required per assembly)
		84-11149A 3 - Cable Assembly [ More info ] $4.69 1 In Stock.
#14	816311T	TIE STRAP (8.00 INCHES) (7 required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#15	623594	INSULATOR (2.00 INCH) (1 required per assembly)
		85-62359 4 - Insulator [ More info ] $0.40 $0.32 10 In Stock.
#16	8M0087765	DECAL LANYARD, WHITE (1 required per assembly)
		568M0087765 - Decal-Lanyard WHT [ More info ] $3.11 1 In Stock.
#17	19674A06	SWTCH/LNYRD KT MC (1 required per assembly)
		87-19674A06 - Switch/Lanyard Kit Mc [ More info ] $86.03 Available to Order: Shipping delay up to 10 days.
#18	133983	SWITCH ASSEMBLY STOP (1 required per assembly)
		87-13398 3 - Switch [ More info ] $67.17 Available to Order: Shipping delay up to 10 days.
#19	8798711	BEZEL (52 MM) BLACK (1 required per assembly)
#20	NSS	NOT SOLD SEPARATE HOUSING (1 required per assembly)
#21	879925	WASHER (52 MM) (1 required per assembly)
#22	8M0204699	NUT-52MM @2 (1 required per assembly) — Replaces: 879900
#23	8M0032846	RETAINER BRASS (1 required per assembly)
#24	79146	RETAINER (1 required per assembly)
#25	15920Q54	LANYARD ASSEMBLY (1 required per assembly)
#26	27164	NUT AND LOCKWASHER (#10-32) (1 required per assembly)
#27	24231	SCREW (#10-32 X .250) (1 required per assembly)
#28	11149A3	CABLE ASSEMBLY (1 required per assembly)
#29	816311T	TIE STRAP (8.00 INCHES) (7 required per assembly)
#30	623594	INSULATOR (2.00 INCH) (1 required per assembly)
#31	8M0087765	DECAL LANYARD, WHITE (1 required per assembly)
