Mercury Marine Key Switches / Harnesses & Connectors Electrical Key Switch Kit (88107A13)

Revise Search: Accessories 1994 & Up > Electrical > Key Switches / Harnesses & Connectors > 1994 & Up > Key Switch Kit (88107A13)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

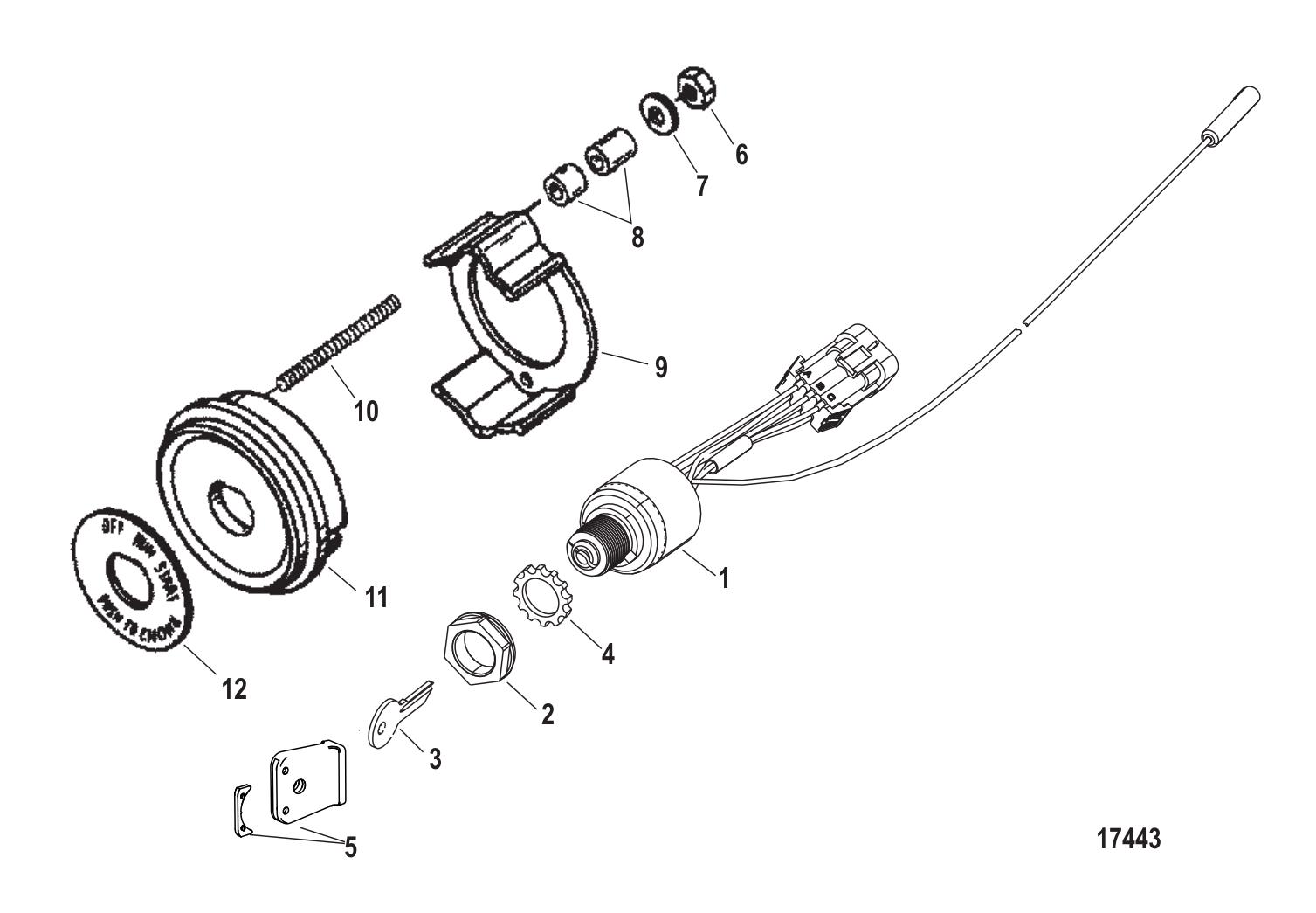

Key Switch Kit (88107A13)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	88107A13	KEY SWITCH KIT WITH CHOKE (Non DTS Application) (1 required per assembly)
		87-88107A13 - Key Switch Kit [ More info ] $64.80 Available to Order: Shipping delay up to 10 days.
#1	88107T12	KEY SWITCH ASSEMBLY KEY WITH CHOKE (1 required per assembly)
		87-88107T12 - Switch Assembly -key [ More info ] $143.99 Available to Order: Shipping delay up to 10 days.
#2	879755	NUT SPECIAL - BLACK NYLON (1 required per assembly)
		11-879755 - Nut, (black Nylon) [ More info ] $6.09 Available to Order: Shipping delay up to 10 days.
#3	89491_	KEY SWITCH IGNITION (1A THRU 2F SERIES) (See Key Chart-Ignition Switch 89491 and 30431 Series) (AR required per assembly)
		89491_ - KEY Switch Igniti [ More info ] Unavailable
#4	89989	LOCKWASHER INTERNAL (.818) (1 required per assembly)
		13-89989 - LockWasher [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#5	90468A1	COVER ASSEMBLY KEY (1 required per assembly)
		90468A 1 - Cover Assembly [ More info ] $4.86 Available to Order: Shipping delay up to 10 days.
		90468 - Cover, NLA [ More info ] $1.67 $1.42 4 In Stock.
#6	68219	NUT (#10-32) STAINLESS STEEL (2 required per assembly)
		11-68219 - Nut (#10-32) [ More info ] $2.99 10+ In Stock.
#7	24676	WASHER (.200 X .440 X .032) (2 required per assembly)
		12-24676 - Washer, (.200 X .440 X .032) [ More info ] $1.50 10+ In Stock.
#8	812711	SPACER (.250) (2 required per assembly)
		23-812711 - Spacer - .25 [ More info ] $4.19 $3.36 5 In Stock.
#8	8127111	SPACER (.375) (2 required per assembly)
		23-812711 1 - Spacer - (.375) [ More info ] $4.19 $3.36 8 In Stock.
#9	76424	BRACKET (1 required per assembly)
		76424 - Bracket [ More info ] $15.69 Available to Order: Shipping delay up to 10 days.
#10	55422	STUD (#10-32 X 2.00) (2 required per assembly)
		16-55422 - Stud - Priced Individually [ More info ] $6.79 10+ In Stock.
#11	816479A3	PLATE KIT (1 required per assembly)
		816479A 3 - Mount Plate Kit [ More info ] $39.99 Available to Order: Shipping delay up to 10 days.
#12	90311	INSERT SWITCH PLATE (OFF-RUN-START)(PUSH TO CHOKE) (1 required per assembly)
		38-90311 - Insert- Switch [ More info ] $1.99 Available to Order: Shipping delay up to 10 days.
