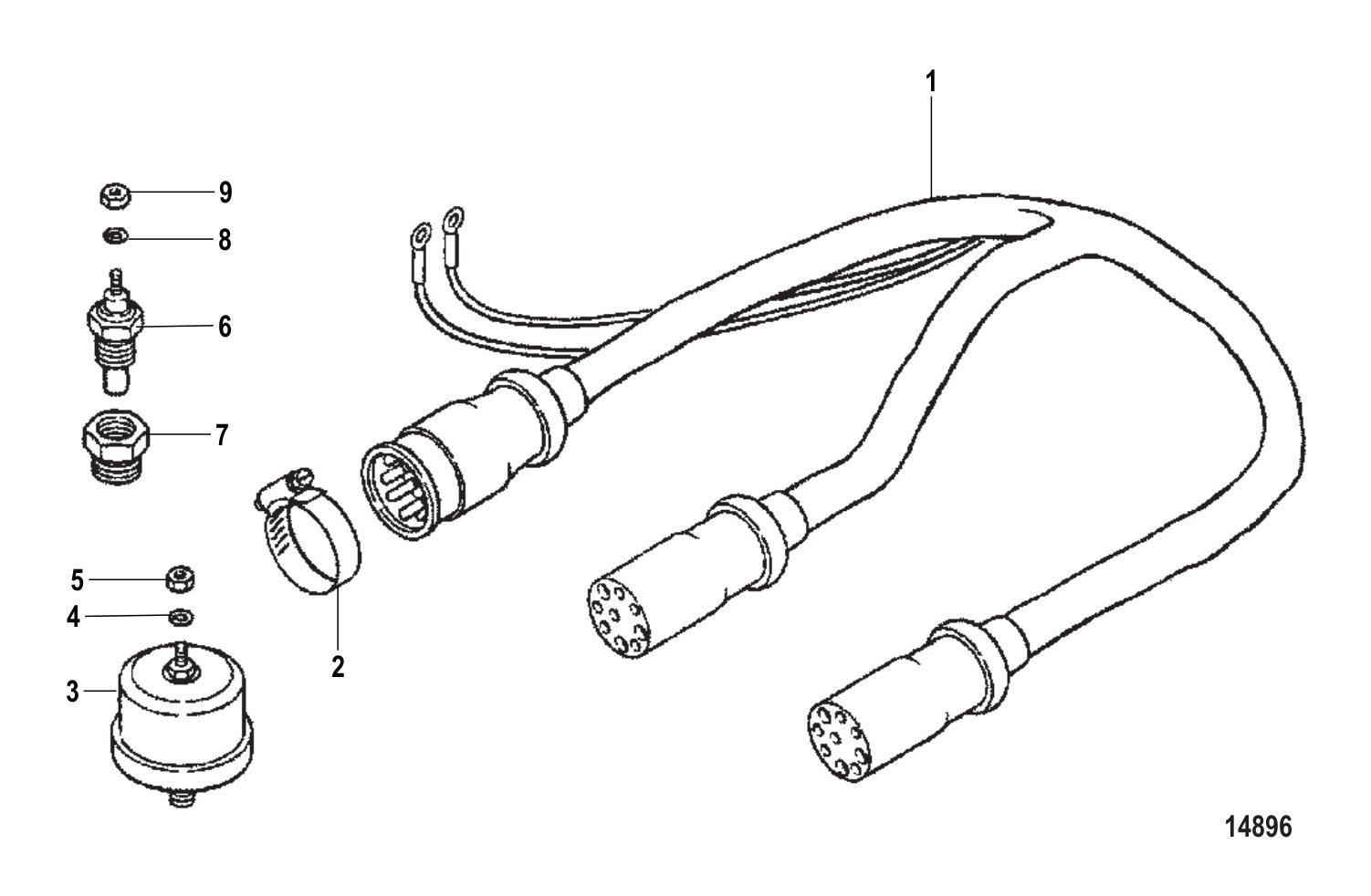

Harness Kit (Instrumentation-Dual)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	91942A4	INSTR KIT-DUAL (1 required per assembly)
		84-91942A 4 - Instrument Kit - Dual [ More info ] $443.74 Available to Order: Shipping delay up to 10 days.
#2	815504220	CLAMP WORM GEAR (2 required per assembly)
		54-815504220 - Clamp [ More info ] $7.59 Available to Order: Shipping delay up to 10 days.
#3	37293T	SENDER ASSEMBLY (Dual Oil Pressure) (1 required per assembly) — Replaces: 37293
		37293T - Oil Pressure Sender [ More info ] $205.99 In Stock
#4	26996	LOCKWASHER (#10) STAINLESS STEEL (1 required per assembly)
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 Available to Order: Shipping delay up to 10 days.
#5	68219	NUT (#10-32) STAINLESS STEEL (1 required per assembly)
		11-68219 - Nut (#10-32) [ More info ] $2.99 10+ In Stock.
#6	49734	SENDER (Dual Water Temperature) (1 required per assembly) — Replaces: 49734A1
		49734 - Sender Assembly [ More info ] $90.49 Available to Order: Shipping delay up to 10 days.
#7	52382	BUSHING REDUCER (1 required per assembly)
		22-52382 - Fitting [ More info ] $8.49 $1.70 10+ In Stock.
#8	26996	LOCKWASHER (#10) STAINLESS STEEL (1 required per assembly)
#9	68219	NUT (#10-32) STAINLESS STEEL (1 required per assembly)
