Mercury Marine Battery Systems Electrical Ignition Stator Kit 3 Cylinder (832075A19)

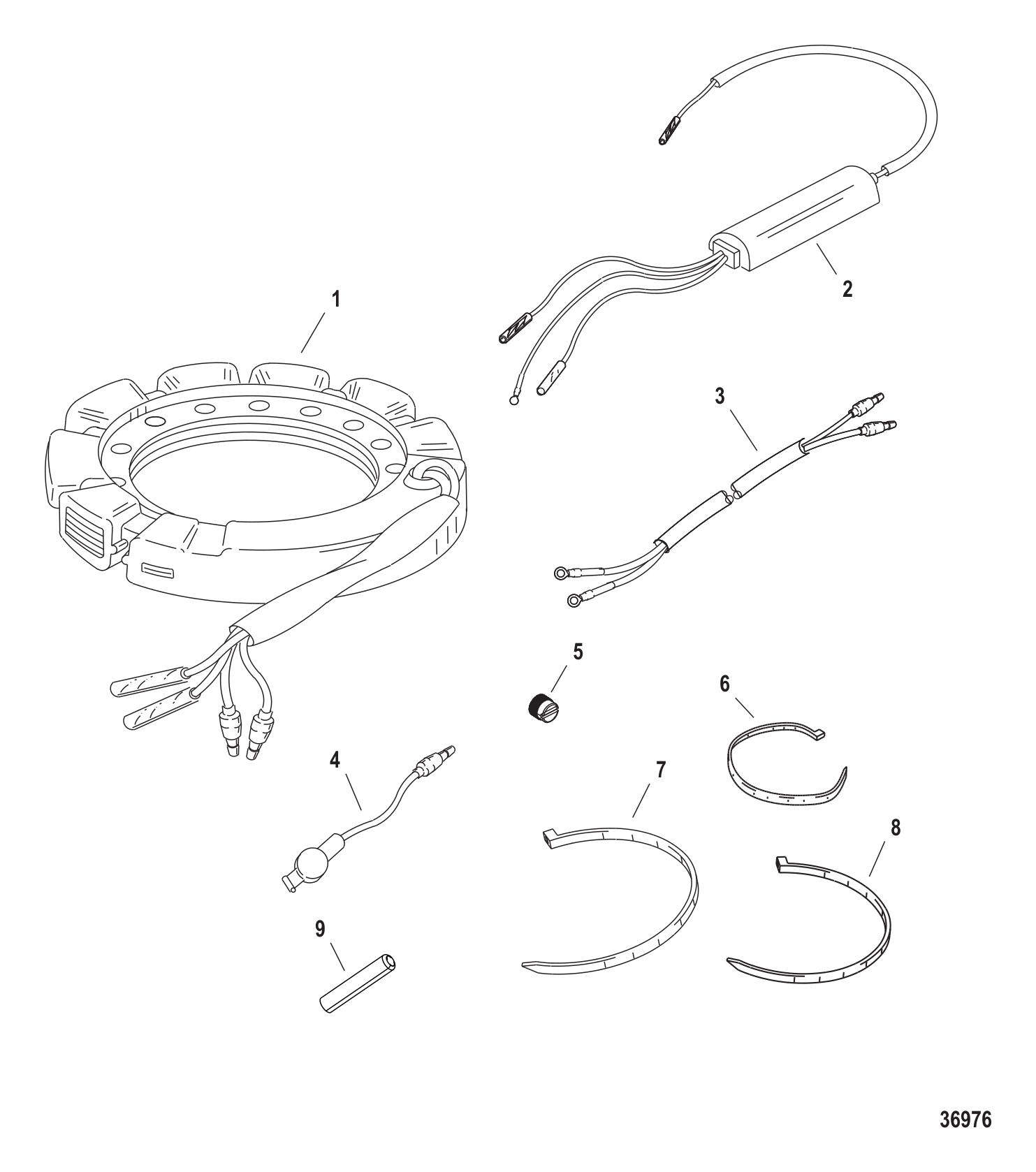

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 832075A19 | IGNITION STATOR KIT 3 CYLINDER, 9 AMP (1 required per assembly) |
  |
|
398-832075A19 - Stator Kit -3 Cyl [ More info ]
|
  |
|
18-99596 - Stator, Mercury 398-832074A11, CDI 174-2075K1 [ More info ]
|
  |
|
18-99162 - Stator, Mercury 174-9710K 1, 398-9710K1 16AMP, NOT for use with Flywheels with Bolted-In Magnets [ More info ]
|
| #1 | 832075T18 | STATOR ASSEMBLY (1 required per assembly) |
  |
|
398-832075T18 - Stator Assembly [ More info ]
|
  |
|
18-5870-1 - Stator, 16 AMP , Mercury 398-832075A21 [ More info ]
|
| #2 | 879346T31 | ADAPTOR KIT 3 CYLINDER (1 required per assembly) — Replaces: 8M0021546 |
  |
|
879346T31 - Adaptor Kit [ More info ]
|
| #3 | 850001A3 | HARNESS ASSEMBLY (15.5 INCHES) (1 required per assembly) — Replaces: 850001A1 |
  |
|
84-850001A 3 - Harness Assembly [ More info ]
|
| #4 | 11149A22 | CABLE ASSEMBLY ADAPTER, BLUE (1 required per assembly) |
  |
|
84-11149A22 - Cable Assembly [ More info ]
|
| #5 | 813938 | CAP NUT (#10-32) (1 required per assembly) |
  |
|
11-813938 - Capnut [ More info ]
|
| #6 | 56762 | TIE STRAP (4.00 INCHES) (5 required per assembly) |
  |
|
56762 - Tie Strap - Priced Individually [ More info ]
|
| #7 | 850181 | TIE STRAP (11.750 INCHES) (2 required per assembly) |
  |
|
54-850181 - Cable Tie [ More info ]
|
| #8 | 816311T | TIE STRAP (8.00 INCHES) (4 required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #9 | 13540 | CAP FEMALE (2 required per assembly) |
  |
|
13540 - Plug - Priced Individually [ More info ]
|
