Parts for Mercury 95XR (Jet Drive) Drive Housing Components

Revise Search: Mercury Jet Drive & SportJet > 95XR (Jet Drive) > 1996 0E145580 - 0E151579 - USA > Drive Housing Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Drive Housing Components

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	809175A2	SEAL/GASKET SET DRIVE HOUSING (1 required per assembly)
		26-809175A 2 - Seal/Gasket Kit [ More info ] $186.28 1 In Stock.
#-	828907A1	HOUSING KIT JET DRIVE (Complete) (Painted) (No Impeller) (1 required per assembly)
		1500-828907A 1 - Housing Assembly - Comp-95, NLA [ More info ] Unavailable
#-	818153A66	PH 95 JET 97 (1 required per assembly) — Replaces: 818153A45
		800-818153A66 - PH 95 JET 97,NLA [ More info ] Unavailable
#1	828907A1	HOUSING KIT DRIVE (Complete) (Painted) (No Impeller) (1 required per assembly)
#1	828907A3	HOUSING ASSEMBLY DRIVE (Painted) (1 required per assembly)
		1500-828907A 3 - HSG ASSY-BASIC,NLA [ More info ] Unavailable
#2	826359	PIN DOWEL (2 required per assembly)
		17-826359 - Pin, Dowel [ More info ] $11.29 Available to Order: Shipping delay up to 10 days.
#3	94038	SEAL OIL (2 required per assembly)
		26-94038 - Seal - Priced Individually [ More info ] $18.49 $17.76 9 In Stock.
		18-2007 - Seal 26-94038 [ More info ] $15.99 $14.69 2 In Stock.
#4	820292	BEARING BALL (1 required per assembly)
		30-820292 - Ball Bearing [ More info ] $68.99 Available to Order: Shipping delay up to 10 days.
#5	8M0051043	RETAINING RING (1 required per assembly) — Replaces: 23721
		53-8M0051043 - Retainer Ring [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#6	831976	FOAM EXHAUST DEFLECTOR [0E151580] THRU [0E288445] (2 required per assembly) — Replaces: 823611
		831976 - Foam - Deflector [ More info ] Unavailable
#7	8202581	GASKET DRIVE HOUSING (1 required per assembly)
		27-820258 1 - Gasket [ More info ] $53.99 Available to Order: Shipping delay up to 10 days.
#8	8233581	STUD (M10 X 72) (5 required per assembly)
		16-823358 1 - Stud, NLA [ More info ] $3.00 $2.54 10+ In Stock.
#9	826292	NUT (M10) BRASS/NICKEL PLATED (8 required per assembly)
		11-826292 - Nut (M10) [ More info ] $4.19 $3.36 10+ In Stock.
#10	826365	NUT (M8) (4 required per assembly)
		11-826365 - Nut (M8) [ More info ] $5.89 10+ In Stock.
#11	820640	STUD (M10 X 55) (2 required per assembly)
		16-820640 - Stud - Priced Individually [ More info ] $9.69 Available to Order: Shipping delay up to 10 days.
#12	820639	STUD (M10 X 98) (1 required per assembly)
		16-820639 - Stud, NLA [ More info ] $2.50 $2.13 10+ In Stock.
#13	63186	FITTING (.125-27) SYPHON DRAIN HOSE (2 required per assembly)
		22-63186 - Connector - Priced Individually [ More info ] $5.82 2 In Stock.
#14	4010716	SCREW (3 required per assembly)
		10-40107 16 - Screw [ More info ] $4.49 1 In Stock.
#15	8204631	BRACKET STEERING (Painted) (1 required per assembly)
		820463 1 - Steering Bracket, NLA [ More info ] $7.55 10+ In Stock.
#16	8205911	TAB LOCKING (1 required per assembly)
		14-820591 1 - Tab- Locking, NLA [ More info ] $2.50 $2.13 10+ In Stock.
#17	827587	SCREW @2 (2 required per assembly)
		10-827587 - Screw, NLA [ More info ] $4.00 $3.39 6 In Stock.
#18	832811	BAFFLE ASSEMBLY EXHAUST [0E151580] THRU [0E288445] (2 required per assembly) — Replaces: 827433
		832811 - Baffle Assembly [ More info ] Unavailable
#19	826365	NUT (2 required per assembly)
#20	828906T	SCREEN INLET (Painted) (1 required per assembly)
		828906T - Inlet Screen,NLA [ More info ] Unavailable
#21	824829	SCREW (With Nylon Patch) (2 required per assembly)
		10-824829 - Screw [ More info ] $1.70 10+ In Stock.
#22	824830	SCREW (With Nylon Patch) [0E145580] THRU [0E151579] (4 required per assembly)
		10-824830 - Screw [ More info ] $6.89 10 In Stock.
#22	832838	SCREW (With Nylon Patch) [0E151580] THRU [0E288445] (4 required per assembly)
		10-832838 - Screw [ More info ] Unavailable
		108M0199587 - SCREW [ More info ] $1.20 Available to Order: Shipping delay up to 10 days.
#23	79953Q04	SCREW-DRAIN @2 (2 required per assembly) — Replaces: 79953A2, 79953Q2
		10-79953Q04 - Screw Kit - Priced Individually [ More info ] $7.49 10+ In Stock.
		18-2244 - Plug Kit, 10-79953A2 [ More info ] $3.79 10+ In Stock.
		10-79953K04 - Drain Screw - Priced Individually [ More info ] $8.19 10+ In Stock.
#24	191833	SEAL SEALING (2 required per assembly) — Replaces: 19183, 191832
		12-19183 3 - Seal -Blue - Priced Individually [ More info ] Unavailable
		18-2945-9 - Gasket 12-19183 2-Pack [ More info ] $2.41 10+ In Stock.
		12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ] $6.69 10+ In Stock.
		12-19183K02 - Seal, Pack of 4 [ More info ] $7.29 10+ In Stock.
		12-8M0187157 - SEAL-BLUE, Sold Individually [ More info ] $1.49 10+ In Stock.
		12-02108-1 - Drain Gasket (1 piece) [ More info ] $1.20 $0.85 10+ In Stock.
#25	825406A3	RIDE PLATE KIT (Painted) [0E151580] THRU [0E288445] (1 required per assembly) — Replaces: 825406A2
		825406A 3 - Ride Plate Kit [ More info ] Unavailable
#26	8301231	SEAL RIDE PLATE [0E151580] THRU [0E288445] (1 required per assembly) — Replaces: 820489T1
		830123 1 - Seal [ More info ] Unavailable
#27	824829	SCREW (M6 X 20) (With Nylon Patch) (2 required per assembly)
#28	824830	SCREW (M6 X 13) (With Nylon Patch) [0E145580] THRU [0E151579] (8 required per assembly)
#28	832838	SCREW (M6 X 20) (With Nylon Patch) [0E151580] THRU [0E288445] (8 required per assembly)
#29	35280	WASHER (OPT required per assembly)

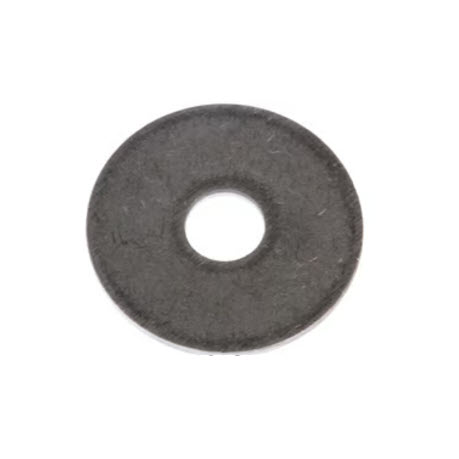

		12-35280 - Washer, (.255 X .620 X .030) Stainless Steel [ More info ] $3.19 $2.56 10+ In Stock.
#30	820244A6	COVER KIT DRIVE HOUSING (Painted) (1 required per assembly)
		820244A 6 - Cover Kit [ More info ] Unavailable
#31	33145	O-RING (1.984 X .139) (1 required per assembly)
		25-33145 - O-ring, (1.984 X .139) [ More info ] Unavailable
		18-7162-9 - (PK5) O-Ring 25-33145 [ More info ] $17.00 Available to Order: Shipping delay up to 10 days.

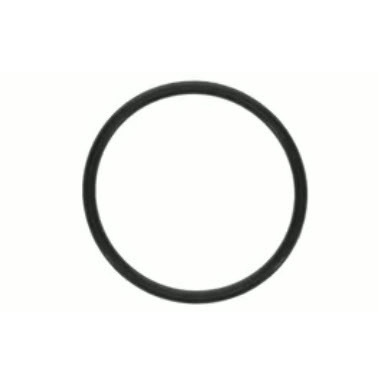

		25-8M0214923 - O RING, sold individually [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#32	8204511	STUD (M8 X 55) (4 required per assembly)
		16-820451 1 - Stud [ More info ] $8.79 Available to Order: Shipping delay up to 10 days.
#33	824015	CUP BARREL RETAINER BARREL RETAINER (1 required per assembly)
		824015 - Barrel Retainer Cup [ More info ] $6.99 4 In Stock.
#34	828091	FITTING SYPHON HOSE (2 required per assembly)
		22-828091 - Fitting, NLA [ More info ] $5.00 $4.24 3 In Stock.
#35	820448	HOSE ASSEMBLY WATER INLET (1 required per assembly)
		32-820448 - Hose Assembly, NLA [ More info ] Unavailable
#36	98889	LATCH CONTROL CABLE (1 required per assembly)
		98889 - Latch [ More info ] $3.79 9 In Stock.
#37	8204521	FITTING WATER HOSE (1 required per assembly) — Replaces: 820452
		22-820452 1 - Fitting [ More info ] $4.00 $3.39 10+ In Stock.
#38	856774	WASHER @5 (10 required per assembly) — Replaces: 45175
		12-856774 - Washer, (.406 X .750 X .105) Stainless Steel [ More info ] Unavailable
		128M0214963 - WASHER Note: Priced Individually [ More info ] $2.59 10+ In Stock.
#39	35047	SCREW @2 (10 required per assembly)
		10-35047 - Screw - Priced Individually [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#40	38101	O RING @2 (1 required per assembly)
		25-38101 - O-ring, (.674 X .103) [ More info ] $1.80 10+ In Stock.
#41	8202421	PLATE ADAPTER (Painted) (1 required per assembly)
		820242 1 - PLATE-SPACER,NLA [ More info ] Unavailable
#42	820339	BRACKET TOWERSHAFT BEARING (1 required per assembly)
		820339 - Bracket, NLA [ More info ] $2.50 $2.13 2 In Stock.
#43	F40689-1	BEARING LOWER TOWERSHAFT (1 required per assembly)
		23-F40689-1 - Bearing - Towershaft Lower [ More info ] $2.59 10+ In Stock.
#44	4010610	SCREW (2 required per assembly)
		10-40106 10 - Screw [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#45	415825	CLAMP @5 (2 required per assembly)
		54-41582 5 - Clamp - Priced Individually [ More info ] $3.09 10 In Stock.
#46	8M0038468	HOSE (9.00 FEET)(108.00 IN.) BULK SYPHON (Cut to 18.00 Inch Length) (2 required per assembly) — Replaces: 1678978, 85861079
		32-8M0038468 - Fuel Line -9FT [ More info ] $43.49 Available to Order: Shipping delay up to 10 days.
#47	23567	CLIP SYPHON HOSE (2 required per assembly)
		54-23567 - Clip [ More info ] $5.79 $1.17 10+ In Stock.
#48	816311T	TIE STRAP @100 (4 required per assembly) — Replaces: 816311
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#49	858456	SIPHON BREAK (2 required per assembly) — Replaces: 826702
		22-858456 - Siphon Break [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#50	41582Q7	CLAMPS-(4) @2 (2 required per assembly) — Replaces: 415827
		54-41582Q 7 - Clamps [ More info ] $8.39 2 In Stock.
		18-8020-9 - Snapper Clamp, 10PK [ More info ] $19.89 $13.18 Available to Order: Shipping delay up to 10 days.
		54-41582T 7 - Clamps [ More info ] $9.29 3 In Stock.
#51	8M0038468	HOSE (9.00 FEET)(108.00 IN.) BULK SYPHON (Cut to 42.00 Inch Length) (2 required per assembly) — Replaces: 1678978, 85861079
#52	8348084	STRAINER SYPHON HOSE (2 required per assembly) — Replaces: 826703
		35-834808 4 - Strainer [ More info ] $21.29 Available to Order: Shipping delay up to 10 days.
#53	820663250	GROMMET (.250) PUMP MOUNT (AR required per assembly)
		25-820663250 - Grommet-Pump Mount [ More info ] $173.49 Available to Order: Shipping delay up to 10 days.
#53	820663375	GROMMET (.375) PUMP MOUNT (AR required per assembly)
		25-820663375 - Grommet-pump Mount [ More info ] $29.99 $25.39 2 In Stock.
#53	820663500	GROMMET (.500) PUMP MOUNT (AR required per assembly)
		25-820663500 - Grommet-pump Mount [ More info ] $124.49 Available to Order: Shipping delay up to 10 days.
