Parts for Mercury 90 (Powerhead - Non Oil Injection) Ignition Components (Ser. #'s 0E023150 - 0E033710)

Revise Search: Mercury Jet Drive & SportJet > 90 (Powerhead - Non Oil Injection) > 1994 0E033711 - 0E066619 > Ignition Components (Ser. #'s 0E023150 - 0E033710)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Ignition Components (Ser. #'s 0E023150 - 0E033710)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	F1968	NUT (1 required per assembly)
		11-F1968 - Nut (3/4-16) [ More info ] $19.69 10+ In Stock.
#2	859241T8	FLYWHEEL (1 required per assembly) — Replaces: 817494A2, 859241T4
		200-859241T 8 - Flywheel [ More info ] Unavailable
		200-859241T10 - Flywheel [ More info ] $745.99 Available to Order: Shipping delay up to 10 days.
#3	825149A1	DECAL KIT SHIFT TO NEUTRAL (1 required per assembly) — Replaces: FA609853
		37-825149A 1 - Decal Kit [ More info ] Unavailable
#4	817029A3	TRIGGER ASY-3 CYL (1 required per assembly)
		817029A 3 - Trigger Assembly -3 Cylinder [ More info ] Unavailable
		18-99419 - Trigger, 3 Cylinder, 817029A3, A9, 134-7029-3 [ More info ] $144.79 $140.92 1 In Stock.
#5	F2442	WASHER WAVE (1 required per assembly)
		13-F2442 - Wave Washer, NLA [ More info ] $9.12 10+ In Stock.
#6	819111	GUARD IGNITION HARNESS (1 required per assembly)
		819111 - Guard, NLA [ More info ] $6.00 $5.08 3 In Stock.
#7	817441A1	HARNESS ASY-3 CYL (Coil To Switchbox) (1 required per assembly)
		84-817441A 1 - Harness Assembly -3 Cylinder, NLA [ More info ] $7.61 $6.45 3 In Stock.
#8	816311T	TIE STRAP @100 (2 required per assembly) — Replaces: 816311
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#9	19637	SOCKET (1 required per assembly)
		88-19637 - Socket [ More info ] $39.08 Available to Order: Shipping delay up to 10 days.
#10	826393	STUD (With Dry Loc) (3 required per assembly)
		16-826393 - Stud, NLA [ More info ] Unavailable
#11	819992	SPACER (.340 X .750 X .375) ELEC BRACKET (6 required per assembly)
		23-819992 - SPACER,NLA [ More info ] Unavailable
#12	8172686	PLATE IGNITION MOUNTING (Painted) (1 required per assembly) — Replaces: 8172685
		817268 6 - Ignition Mount Plate, NLA [ More info ] $34.50 7 In Stock.
#13	7778A12	SWITCHBOX ASSY (1 required per assembly)
		332-7778A12 - Switch Box [ More info ] $400.49 $395.64 In Stock
		18-5775-1 - Switch Box, 332-7778A3, 12, 14, 114-7778 [ More info ] $261.42 $254.57 In Stock
		18-5775-1 - Switch Box, 332-7778A3, 12, 14, 114-7778 [ More info ] $270.49 $254.57 10+ In Stock.
		300-01852 - Switch Box [ More info ] $239.99 $210.27 In Stock
#14	88807A34	CABLE ASSY (1 required per assembly)
		84-88807A34 - Cable Assembly [ More info ] Unavailable
#15	812987	SCREW (2 required per assembly)
		10-812987 - Screw [ More info ] $1.00 $0.21 10+ In Stock.
#16	94304	SPACER (2 required per assembly)
		23-94304 - Spacer - Switch Box Screw [ More info ] $39.49 $37.52 10 In Stock.
#17	91912	BUSHING (2 required per assembly)
		23-91912 - Bushing [ More info ] Unavailable
#18	45076	NUT @10 (10 required per assembly)
		11-45076 - Nut (#10-32) (brass) [ More info ] $1.80 10+ In Stock.
#19	817492	TERMINAL BLOCK 4 POST TERMINAL (1 required per assembly)
		817492 - Terminal Block-4 Post [ More info ] $3.99 $3.37 1 In Stock.
#20	418051	SCREW (#10-24 X .620) MERCURY SWITCH AND COVER (5 required per assembly) — Replaces: 41805
		10-41805 1 - Screw [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#21	88807A29	CABLE ASSEMBLY BLACK (1 required per assembly)
		84-88807A29 - Cable Assembly [ More info ] Unavailable
#22	19926100	SCREW @5 (6 required per assembly) — Replaces: 76566
		10-19926100 - Screw - Priced Individually [ More info ] $4.99 Available to Order: Shipping delay up to 10 days.
#23	26996	LOCKWASHER @15 (6 required per assembly)
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 Available to Order: Shipping delay up to 10 days.
#24	31247	WASHER (1 required per assembly)
		12-31247 - Washer, NLA [ More info ] $1.96 10+ In Stock.
#25	43542	COVER COIL (1 required per assembly)
		43542 - Coil Cover [ More info ] Unavailable
#26	817458	SCREW (6 required per assembly)
		10-817458 - Screw, NLA [ More info ] $1.25 $1.06 7 In Stock.
#27	832757A4	COIL KIT IGNITION (3 required per assembly) — Replaces: 7370A23, 832757A3
		339-832757A 4 - Ignition Coil [ More info ] Unavailable
		18-5186 - Ignition Coil 339-7370A13 [ More info ] $61.99 $58.62 9 In Stock.
		8M0230859 - Ignition Coil [ More info ] $124.33 2 In Stock.
#28	45076	NUT @10 (6 required per assembly)
#29	8M0204646	NUT @5 (3 required per assembly) — Replaces: F7006, 26484
		11-8M0204646 - NUT @5 [ More info ] Unavailable
#30	63153	J CLIP (2 required per assembly)
		54-63153 - J Clip [ More info ] $0.90 Available to Order: Shipping delay up to 10 days.
#31	817491	GROMMET (1 required per assembly)
		25-817491 - Grommet, (.56 Inside Diameter) [ More info ] $5.89 Available to Order: Shipping delay up to 10 days.
#32	821945T28	CABLE ASSY HIGH TENSION (3 required per assembly) — Replaces: 821945A28
		84-821945T28 - Cable Assembly [ More info ] $15.09 6 In Stock.
#33	896329827	SP #L76V @4 (Champion # L-76V) (3 required per assembly) — Replaces: 827C
		33-896329827 - Spark Plug - L76V - Priced Individually [ More info ] Unavailable
		L76V - Champion Spark Plug ( #827M) [ More info ] $15.33 10+ In Stock.
#33	896329898	SP #QL76V @4 RFI (Champion # QL-76V) (OPT required per assembly) — Replaces: 898
		33-896329898 - Spark Plug - QL76V - Priced Individually [ More info ] Unavailable
		QL76V - Champion Spark Plug ( #898M) [ More info ] $23.44 10+ In Stock.
#34	815279T3	VOLT/REG-RING (Design I) (1 required per assembly) — Replaces: 817411, 815279T2
		815279T 3 - Voltage Regulator - Ring [ More info ] $99.99 1 In Stock.
		830179A 2 - Voltage Regulator Kit [ More info ] $352.99 Available to Order: Shipping delay up to 10 days.
		18-5743-1 - Voltage Regulator, Mercury [ More info ] $199.66 $184.76 Available to Order: Shipping delay up to 10 days.
#34	854515	REGULATOR-VOLTAGE (Design II) (Use With Red Stator) (1 required per assembly) — Replaces: 8152795, 8301792
		854515 - Voltage Regulator [ More info ] Unavailable
		854515T 1 - Voltage Regulator [ More info ] Unavailable
		883072T - Voltage Regulator [ More info ] Unavailable
		8M0084173 - Voltage Regulator [ More info ] $285.99 In Stock
		18-5743 - Voltage Regulator, 815279-3, 81527 [ More info ] $216.99 $204.88 10+ In Stock.
		300-76382 - Rectifier/Regulator, Mercury Mariner, EMP [ More info ] $134.99 $103.22 1 In Stock.
#34	830179A2	VOLT/REG KIT-RING (Design II) (Ring Terminal) (1 required per assembly) — Replaces: 815279T3
#35	817504	SCREW (.250-20 X 1.500) STAINLESS STEEL (2 required per assembly)
		10-817504 - Screw [ More info ] $4.79 2 In Stock.
#35	817505	SCREW (For 817411 Regulator) (2 required per assembly)
		10-817505 - Screw [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.

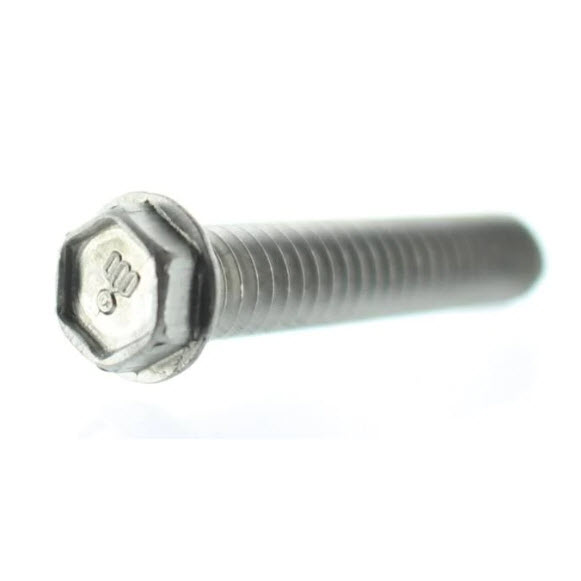

#35	18699	SCREW (Use With Design II - 815279--5) (2 required per assembly)
		10-18699 - Screw, NLA [ More info ] $3.79 $0.77 10+ In Stock.
#36	812619	FUSE-YELLOW-20AMP (1 required per assembly)
		88-812619 - Fuse - Yellow - 20 Amp [ More info ] $4.69 10+ In Stock.
#37	9873A35	HIGH OUTPUT ALTERNATOR KIT BLACK (Marked A24) (Refer To Parts Bulletin No 96-1) (1 required per assembly)
		398-9873A35 - REF OB PB 96-0,NLA [ More info ] Unavailable
		18-99162 - Stator, Mercury 174-9710K 1, 398-9710K1 16AMP, NOT for use with Flywheels with Bolted-In Magnets [ More info ] $514.70 $464.78 In Stock
#37	8778A10	STATOR ASSEMBLY BLACK (Marked A16) (Refer To Parts Bulletin No 96-1) (1 required per assembly)
		398-8778A10 - REF PARTSBU,NLA [ More info ] Unavailable
#37	832075A21	STATOR ASSEMBLY RED (Marked A3) (1 required per assembly) — Replaces: 832075A4
		398-832075A21 - Stator Assembly [ More info ] $402.99 In Stock
		18-5870-1 - Stator, 16 AMP , Mercury 398-832075A21 [ More info ] $309.91 2 In Stock.
		18-5870 - Stator, 398-832075A4 [ More info ] $324.99 $299.10 10+ In Stock.
#38	62545A6	CABLE ASSEMBLY RED (1 required per assembly)
		84-62545A 6 - Cable Assembly, NLA [ More info ] Unavailable
#39	11149A9	CABLE ASSY (Use With Design II) (1 required per assembly)
		84-11149A 9 - Cable Assembly, NLA [ More info ] $5.00 $4.24 10+ In Stock.
#40	850001A3	HARNESS ASSY (Used With Red Stator) (1 required per assembly) — Replaces: 850001A1
		84-850001A 3 - Harness Assembly [ More info ] $88.49 Available to Order: Shipping delay up to 10 days.
#41	8M0021546	ADAPTOR KIT (Used With Red Stator) (1 required per assembly) — Replaces: 834949A1, 834949A3
		8M0021546 - Adaptor Kit [ More info ] Unavailable
		879346T31 - Adaptor Kit [ More info ] $177.49 Available to Order: Shipping delay up to 10 days.
#42	11149A22	CABLE ASSY (Used With Red Stator) (1 required per assembly)
		84-11149A22 - Cable Assembly [ More info ] $8.69 1 In Stock.
#--	818153R31	POWERHEAD-REMAN (Non Oil Injection) (1 required per assembly) — Replaces: 817608A14, 818153A32
		800-818153R31 - Powerhead-REMAN,NLA [ More info ] Unavailable
#NS	11149A19	CABLE ASSEMBLY (4 required per assembly)
		84-11149A19 - Harness Assembly [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#NS	56762	TIE STRAP @5 (2 required per assembly)
		56762 - Tie Strap - Priced Individually [ More info ] $0.50 3 In Stock.
