Parts for Mercury 240 EFI M2 Jet Drive (Pump) Crankshaft / Pistons / Connecting Rods

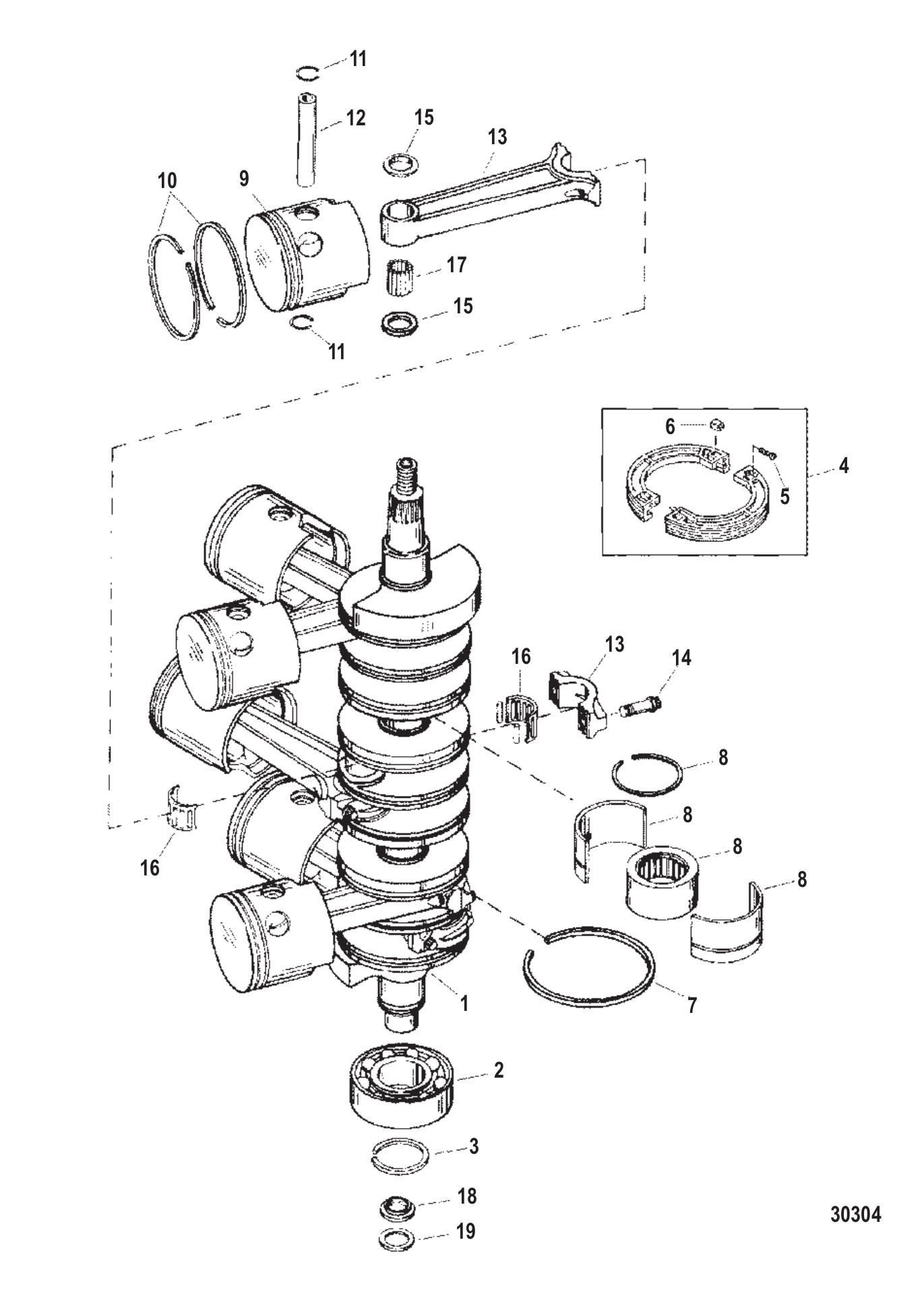

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 858257T21 | PH 240 SJ EFI 3L (1 required per assembly) — Replaces: 858257T15, 858257T18 |
  |
884-858257T21 - PH 240 SJ EFI 3L [ More info ] Unavailable |
|
  |
|
884-858257T24 - Powerhead Sj 240EFI [ More info ] Unavailable |
| #1 | 834980T3 | CRANKSHAFT ASSY (1 required per assembly) |
  |
|
455-834980T 3 - CrankShaft Assembly [ More info ] Unavailable |
| #2 | 67923T | BEARING BALL LOWER (1 required per assembly) |
  |
|
30-67923T - Ball Bearing [ More info ]
|
| #3 | 67446 | RING RETAINING (1 required per assembly) |
  |
|
53-67446 - Ring - Retaining [ More info ]
|
| #4 | 14513A09 | GEAR ASSY-DRIVE - Design II (2 required per assembly) — Replaces: 14513A2 |
  |
|
43-14513A09 - Drive Gear Assembly [ More info ]
|
| #5 | 813073 | SCREW (#6-32 X .620) SOCKET HEAD - Design I (2 required per assembly) |
  |
|
10-813073 - Screw [ More info ] Unavailable |
| #5 | 854812 | SCREW (#6-32 X .630) SOCKET BUTTON HEAD - Design II (2 required per assembly) |
  |
|
10-854812 - Screw [ More info ]
|
| #6 | 813134 | NUT (#6-32) SPECIAL - Design I (2 required per assembly) |
  |
|
11-813134 - Nut, (#6-32) [ More info ] Unavailable |
| #6 | 854811 | NUT SPECIAL (#6-32) - Design II (2 required per assembly) |
  |
|
11-854811 - Nut, (#6-32 Special) [ More info ]
|
| #7 | 67377T | RING SEALING CRANKSHAFT (7 required per assembly) — Replaces: 67377 |
  |
|
39-67377T - Seal Ring - Priced Individually [ More info ]
|
| #8 | 16756A6 | BEARING KIT CRANKSHAFT - CENTER MAIN (2 required per assembly) |
  |
|
31-16756A 6 - Bearing Kit [ More info ]
|
| #9 | 841089T1 | PISTON STARBOARD (3 required per assembly) — Replaces: 9738T11 |
  |
|
785-841089T 1 - Piston - Stbd [ More info ]
|
| #9 | 841088T1 | PISTON PORT (3 required per assembly) — Replaces: 9737T11 |
  |
|
785-841088T 1 - Piston - Port [ More info ]
|
| #10 | 848202A12 | RING SET 12 RINGS (1 required per assembly) |
  |
|
39-848202A12 - Rings - Standard [ More info ]
|
| #11 | 857196 | LOCK RING (12 required per assembly) — Replaces: 52035 |
  |
|
53-857196 - Lock Ring - Priced Individually [ More info ]
|
| #12 | NSS | NOT SOLD SEPARATE PIN - PISTON (6 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #13 | 818141A13 | CONN ROD ASSY (6 required per assembly) — Replaces: 818141A2 |
  |
|
644-818141A13 - Connecting Rod Kit [ More info ]
|
| #14 | 763491 | SCREW (.312-24 X .875) CONNECTING ROD (12 required per assembly) |
  |
|
0763491 - Speedometer Cap/Jumper (763491) [ More info ]
|
| #15 | 8M0012298 | THRUST WASHER NEEDLE LOCATING (12 required per assembly) — Replaces: 812876 |
  |
|
12-8M0012298 - Thrust Washer [ More info ]
|
| #16 | 8M0045428 | BEARING KIT ROLLER - 2 PER KIT (6 required per assembly) — Replaces: 17514A2 |
  |
|
31-8M0045428 - 31-8M0045428 - BEARING KIT [ More info ] Unavailable Replaced by -8M0234886 |
  |
|
8M0234886 CAGE BEARING [ More info ]
|
| #17 | 8M0204691 | BRG-NEEDLE @200 PISTON END (174 required per assembly) — Replaces: 822553 |
  |
|
298M0204691 - Bearing needle [ More info ]
|
| #18 | 54196A6 | CARRIER ASSY (1 required per assembly) |
  |
|
54196A 6 - Carrier Assembly [ More info ]
|
| #19 | 65800 | PACKING CARRIER (1 required per assembly) |
  |
|
|
