Parts for Mercury 240 EFI M2 Jet Drive (Powerhead) Expansion Chamber & Adaptor Plates

Revise Search: Mercury Jet Drive & SportJet > 240 EFI M2 Jet Drive (Powerhead) > 0E406400 & Up - USA > Expansion Chamber & Adaptor Plates

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

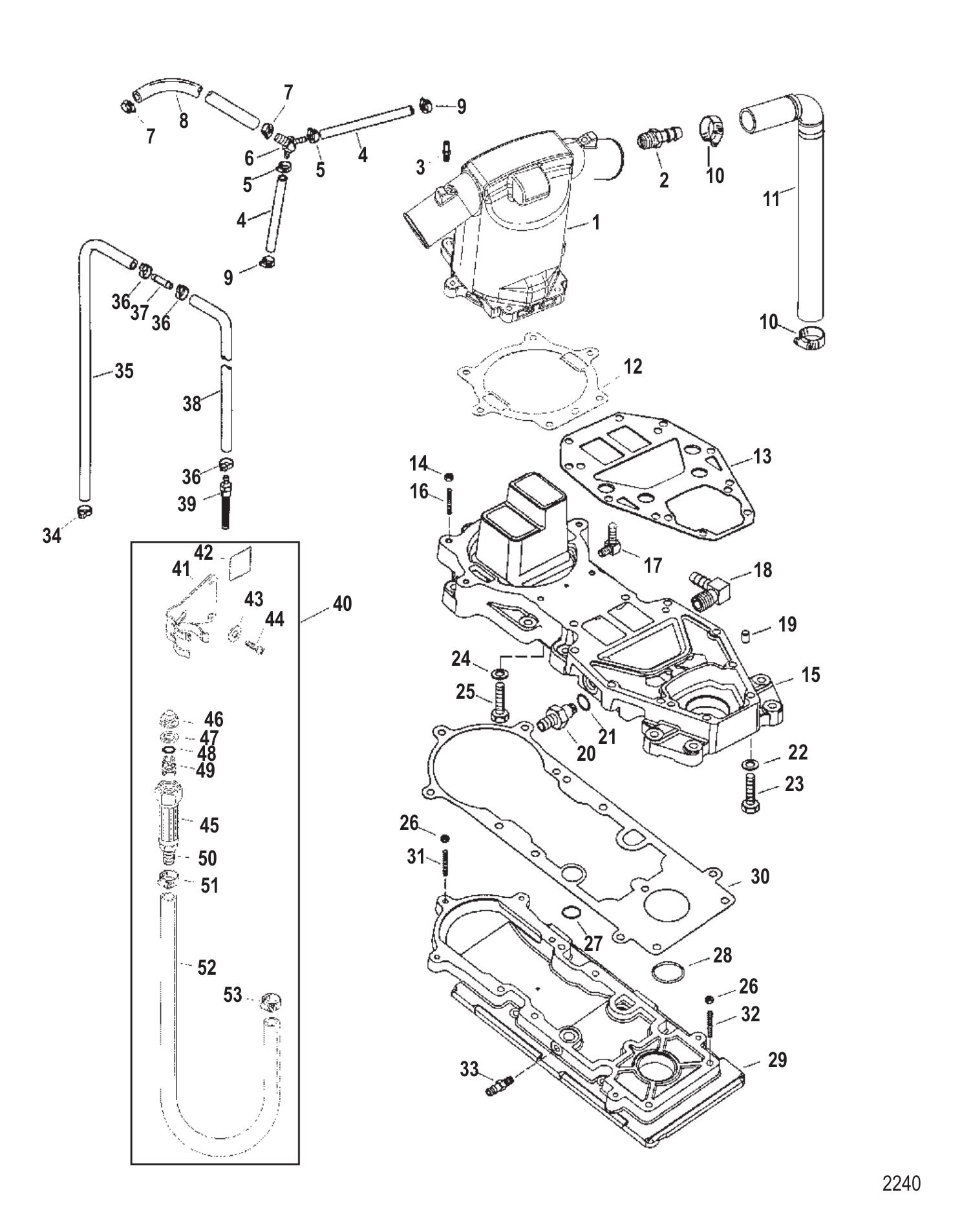

Expansion Chamber & Adaptor Plates

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	885214A1	GASKET/SEAL SET POWERHEAD - NOTE: See Gasket/Seal Set - Powerhead Section For Parts Breakdown (1 required per assembly)
		27-885214A 1 - Powerhead Gasket Set [ More info ] $360.49 Available to Order: Shipping delay up to 10 days.
#-	883264A1	SEAL/GASKET SET JET DRIVE HOUSING - NOTE: See Seal/Gasket Set - Jet Drive Housing Section For Parts Breakdown (1 required per assembly) — Replaces: 877896A1
		26-883264A 1 - Seal/Gasket Set [ More info ] $357.99 Available to Order: Shipping delay up to 10 days.
#-	858961T30	PH SJ 240 EFI [0E414100] & Up (1 required per assembly) — Replaces: 858961A26
		884-858961T30 - Powerhead Sj 240 Efi [ More info ] Unavailable
#1	879890A3	CHAMBER KIT EXPANSION (1 required per assembly)
		879890A 3 - Chamber Kit -expan [ More info ] $1,247.99 Available to Order: Shipping delay up to 10 days.
#2	42683	CONNECTOR (1 required per assembly)
		22-42683 - Connector [ More info ] $31.32 10 In Stock.
#3	16604	FITTING (2 required per assembly)
		22-16604 - Fitting [ More info ] $11.49 1 In Stock.
#4	8M0108349	HOSE (70 INCHES BULK) CUT 6.00 INCHES (2 required per assembly) — Replaces: 830757130, 8M0047448
		32-8M0108349 - Hose-70 Inch [ More info ] $66.31 1 In Stock.
#5	815504104	CLAMP (2 required per assembly)
		54-815504104 - Clamp [ More info ] $6.79 $5.44 10+ In Stock.
#6	877539	FITTING (1 required per assembly)
		22-877539 - Fitting [ More info ] $15.89 Available to Order: Shipping delay up to 10 days.
#7	815504206	CLAMP (2 required per assembly)
		54-815504206 - Clamp [ More info ] $6.79 Available to Order: Shipping delay up to 10 days.
#8	85525884	HOSE-32 INCH (1 required per assembly)
		32-855258 84 - Hose -32 Inch [ More info ] $33.29 Available to Order: Shipping delay up to 10 days.
#9	815504104	CLAMP (2 required per assembly)
#10	815504310	CLAMP (2 required per assembly)
		54-815504310 - Clamp [ More info ] $17.99 1 In Stock.
#11	42850A1	HOSE ASSY (1 required per assembly)
		32-42850A 1 - Hose [ More info ] $17.89 Available to Order: Shipping delay up to 10 days.
#12	880738	GASKET EXPANSION CHAMBER TO ADAPTOR PLATE (1 required per assembly)
		27-880738 - Expansion Chamber Gasket [ More info ] $26.99 Available to Order: Shipping delay up to 10 days.
#13	8231423	GASKET CYLINDER BLOCK TO EXPANSION CHAMBER (1 required per assembly)
		27-823142 3 - Gasket [ More info ] $68.77 1 In Stock.
#14	826365	NUT (6 required per assembly)
		11-826365 - Nut (M8) [ More info ] $5.89 10+ In Stock.
#15	859395T	ADAPTER ENGINE (1 required per assembly)
		859395T - Adaptor [ More info ] $1,680.49 Available to Order: Shipping delay up to 10 days.
#16	884824	STUD (6 required per assembly)
		16-884824 - Stud [ More info ] $7.99 Available to Order: Shipping delay up to 10 days.
#17	629101	ELBOW (1 required per assembly)
		22-62910 1 - Elbow [ More info ] $13.39 Available to Order: Shipping delay up to 10 days.
#18	860346	ELBOW (1 required per assembly)
		22-860346 - Elbow [ More info ] $44.99 Available to Order: Shipping delay up to 10 days.
#19	43044	PIN DOWEL - WITHOUT HOLE (.375 X .625) LOCATING (2 required per assembly)
		17-43044 - Pin -Dowel-solid [ More info ] $2.49 1 In Stock.
#20	877311	FITTING STRAINER (1 required per assembly)
		22-877311 - Fitting [ More info ] $54.99 Available to Order: Shipping delay up to 10 days.
#21	45711	O-RING (.612 X .103) STRAINER FITTING (1 required per assembly)
		25-45711 - Valve Cover O-Ring, Priced Individually [ More info ] $1.80 8 In Stock.
#22	37828	WASHER (8 required per assembly)
		12-37828 - Washer, (.390 X .625 X .062) Stainless Steel [ More info ] $0.80 2 In Stock.
#23	35787	SCREW @5 (8 required per assembly)
		10-35787 - Screw - Priced Individually [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#24	37828	WASHER (2 required per assembly)
#25	72094	SCREW (2 required per assembly)
		10-72094 - Screw [ More info ] $5.49 Available to Order: Shipping delay up to 10 days.
#26	826292	NUT (11 required per assembly)
		11-826292 - Nut (M10) [ More info ] $4.19 $3.36 10+ In Stock.
#27	8M0204673	O RING TOP COVER (1 required per assembly) — Replaces: 90196
		258M0204673 - O RING [ More info ] $4.99 Available to Order: Shipping delay up to 10 days.
#28	20826	O-RING (2.230 X .139) TOP COVER (1 required per assembly)
		25-20826 - O-ring, (2.230 X .139) [ More info ] $5.29 10+ In Stock.
#29	859396A1	COVER ASSEMBLY TOP OF DRIVE HOUSING (1 required per assembly)
		859396A 1 - Cover Assembly [ More info ] $1,039.99 Available to Order: Shipping delay up to 10 days.
#30	859398	GASKET ENGINE ADAPTOR PLATE TO TOP COVER (1 required per assembly)
		27-859398 - Engine Adaptor Gasket [ More info ] $47.99 Available to Order: Shipping delay up to 10 days.
#31	853303	STUD (M10 X 53) (5 required per assembly)
		16-853303 - Stud [ More info ] $7.49 Available to Order: Shipping delay up to 10 days.
#32	859764	STUD (M10 X 101) (6 required per assembly)
		16-859764 - Stud [ More info ] $29.49 Available to Order: Shipping delay up to 10 days.
#33	70146	CONNECTOR BARBED (.250-18) (1 required per assembly)
		22-70146 - Connector [ More info ] $8.29 Available to Order: Shipping delay up to 10 days.
#34	816311T	TIE STRAP @100 (1 required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#35	8M0038468	HOSE (9.00 FEET)(108.00 IN.) BULK CUT 42.00 INCHES - SIPHON (1 required per assembly) — Replaces: 85861079
		32-8M0038468 - Fuel Line -9FT [ More info ] $43.49 Available to Order: Shipping delay up to 10 days.
#36	816311T	TIE STRAP @100 (3 required per assembly)
#37	858456	SIPHON BREAK (1 required per assembly)
		22-858456 - Siphon Break [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#38	8M0038468	HOSE (9.00 FEET)(108.00 IN.) BULK CUT 18.00 INCHES - SIPHON (1 required per assembly) — Replaces: 85861079
#39	8348084	STRAINER SIPHON HOSE - NYLON (1 required per assembly)
		35-834808 4 - Strainer [ More info ] $21.29 Available to Order: Shipping delay up to 10 days.
#40	820543A6	ADAPTOR KIT FLUSHING COMPLETE - NOTE: 240 EFI Models Only (1 required per assembly)
		22-820543A 6 - Adaptor Kit -Flush [ More info ] $120.49 Available to Order: Shipping delay up to 10 days.
#41	820543A6	ADAPTOR KIT FLUSHING FLUSHING ASSEMBLY HOLDER (1 required per assembly) — Replaces: 850160
#42	850390	DECAL FLUSHING ADAPTER (1 required per assembly)
		37-850390 - Decal -Flush Info [ More info ] $0.90 Available to Order: Shipping delay up to 10 days.
#43	4002314	WASHER (3 required per assembly)
		12-40023 14 - Washer - Priced Individually [ More info ] $3.69 $2.96 10+ In Stock.
#44	88417	SCREW (#12-24 X .620) (3 required per assembly)
		10-88417 - Screw - Priced Individually [ More info ] $1.80 2 In Stock.
#45	820543A5	ADAPTER ASSEMBLY FLUSHING (1 required per assembly)
		22-820543A 5 - Adaptor Assembly [ More info ] $32.09 Available to Order: Shipping delay up to 10 days.
#46	821908	PLUG TOP (1 required per assembly)
		19-821908 - Plug [ More info ] $7.39 Available to Order: Shipping delay up to 10 days.
#47	821915	WASHER (1 required per assembly)
		12-821915 - Washer [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#48	30641	O-RING (.299 X .103) (1 required per assembly)
		25-30641 - O-ring, (.299 X .103) [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#49	8219631	CHECK VALVE (1 required per assembly)
		821963 1 - Check Valve [ More info ] $18.29 Available to Order: Shipping delay up to 10 days.
#50	33066	CONNECTOR (.500-14) STRAIGHT - BRASS (1 required per assembly)
		22-33066 - Connector [ More info ] $19.55 10+ In Stock.
#51	815504206	CLAMP WORM GEAR (1 required per assembly)
#52	855258112	HOSE (60.00 INCHES BULK) CUT AS REQUIRED (1 required per assembly)
		32-855258112 - Hose -60 Inch [ More info ] $44.99 Available to Order: Shipping delay up to 10 days.
#53	815504206	CLAMP WORM GEAR (1 required per assembly)
