Parts for Mercury 120XR2 (Powerhead) Manifold Assembly

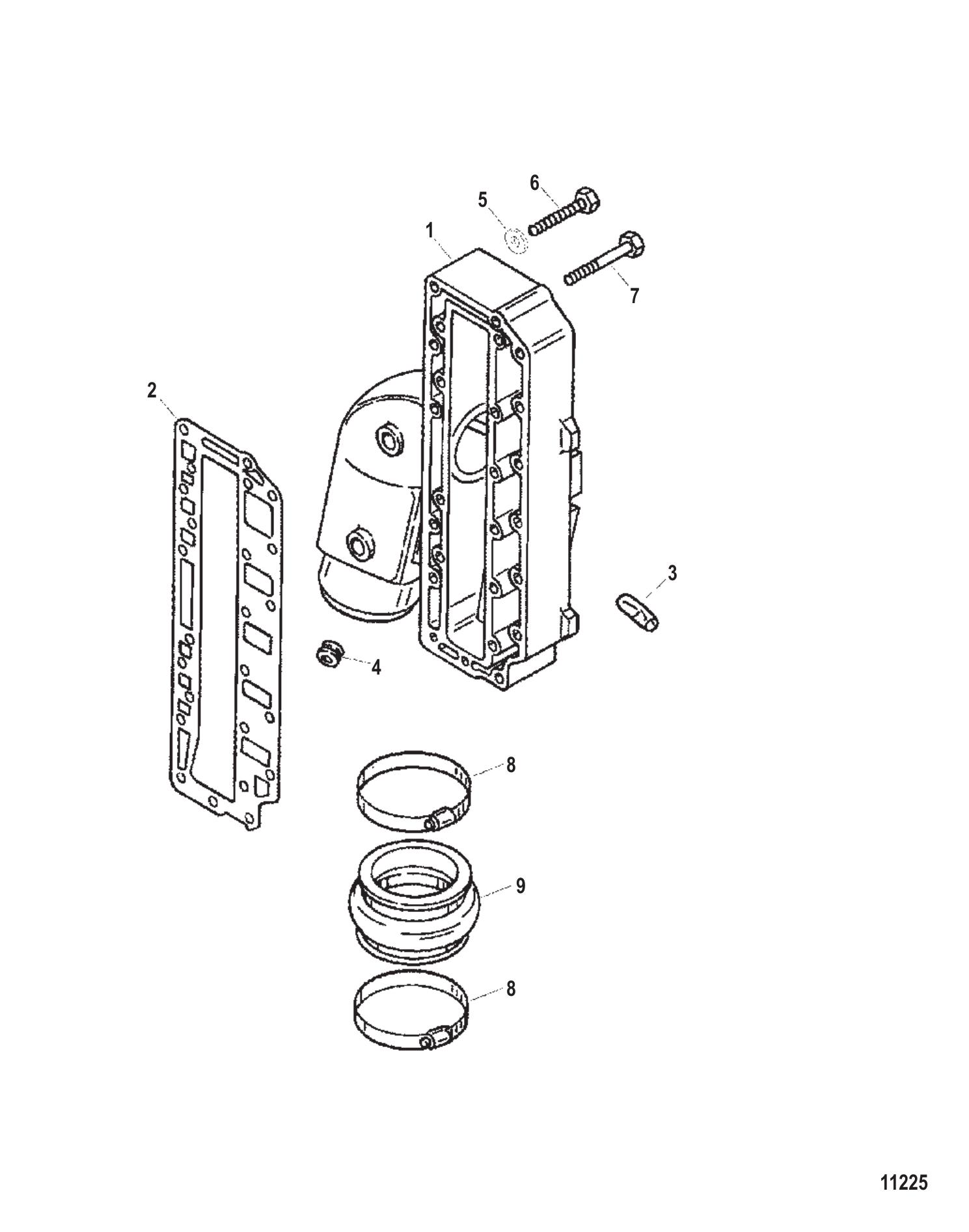

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 809817A1 | GASKET SET POWERHEAD (1 required per assembly) |
  |
|
27-809817A 1 - Powerhead Gasket Set [ More info ]
|
| #- | 818154R52 | PH 120XR2 SJ -RM (1 required per assembly) — Replaces: 818154A52 |
  |
|
800-818154R52 - PH 120XR2 SJ -RM [ More info ] Unavailable |
| #1 | 819313A2 | MANIFOLD KIT (Painted) (1 required per assembly) |
  |
|
819313A 2 - Manifold, Merc SportJet and Force L-Drive [ More info ] Unavailable |
| #2 | 8197112 | GASKET EXHAUST (1 required per assembly) |
  |
|
27-819711 2 - Gasket [ More info ]
|
| #3 | 852966 | TUBE STRAINER (1 required per assembly) |
  |
|
35-852966 - Tube - Strainer [ More info ] Unavailable |
| #4 | 8M0204679 | PLUG-PIPE (4 required per assembly) — Replaces: 428611 |
  |
|
22-8M0204679 - Exhaust Manifold Pipe Plug [ More info ]
|
| #5 | 8M0204649 | WASHER @10 (25 required per assembly) — Replaces: 29245 |
  |
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
| #6 | 828824300 | SCREW @21 (21 required per assembly) |
  |
|
10-828824300 - Screw - Priced Individually [ More info ]
|
| #7 | 828824400 | SCREW @4 (4 required per assembly) |
  |
|
10-828824400 - Screw, NLA [ More info ]
|
| #8 | F695649 | CLAMP EXHAUST BELLOWS (2 required per assembly) |
  |
|
54-F695649 - Clamp [ More info ] Unavailable |
| #9 | 820082 | BELLOWS EXHAUST (1 required per assembly) |
  |
|
820082 - Bellows [ More info ]
|
