Parts for Mercury 120XR2 (Jet Drive) Starter Assembly

Revise Search: Mercury Jet Drive & SportJet > 120XR2 (Jet Drive) > 2000 0E369300 - 0E379999 - USA > Starter Assembly

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Starter Assembly

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	898265003	STARTER MOTOR (1 required per assembly) — Replaces: 8199684, 819968T4
		50-898265003 - Starter Motor [ More info ] Unavailable
		18-5618 - Starter, 50-8199681 [ More info ] $274.52 1 In Stock.
		7325 - Starter, 50-819968 4 [ More info ] $257.91 In Stock

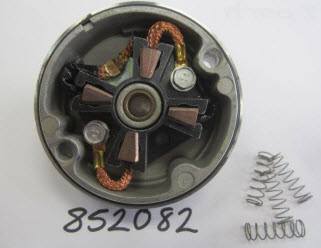

#2	852082	COMM CAP ASSEMBLY (1 required per assembly)
		852082 - Comm Cap Assembly [ More info ] $19.43 $16.46 10+ In Stock.
#3	F15190	BRUSH/SPRING KIT (1 required per assembly)
		F15190 - Brush and Spring Kit [ More info ] $39.99 $26.88 10+ In Stock.
		BK900 - Brush Kit [ More info ] $29.15 In Stock
#4	F15158	SCREW (2 required per assembly)
		F15158 - Screw [ More info ] Unavailable
#5	804700	WASHER INSULATOR (1 required per assembly) — Replaces: F15160
		12-804700 - Washer, NLA [ More info ] $1.59 $1.34 10+ In Stock.
#6	38933	O-RING (5 required per assembly)
		25-38933 - O-Ring, Lower Shift Control Shaft [ More info ] $1.50 2 In Stock.
		18-7120 - O-Ring 322598 [ More info ] $1.07 5 In Stock.
#7	37998	WASHER (2 required per assembly)
		12-37998 - Washer - Priced Individually [ More info ] $0.70 4 In Stock.
#8	F15178	THRU BOLT (2 required per assembly)
		F15178 - Thru Bolt [ More info ] Unavailable
#9	F15162	NUT (2 required per assembly)
		F15162 - Nut (1/4-20) NLA [ More info ] $1.29 $1.09 6 In Stock.
#10	820585	ARMATURE (1 required per assembly)
		820585 - Armature [ More info ] $61.19 $51.82 10+ In Stock.
#11	852083	END CAP ASSEMBLY DRIVE (With Seal) (1 required per assembly)
		852083 - Drive Cap Assembly, NLA [ More info ] Unavailable
#12	802640T	DRIVE ASSY (1 required per assembly) — Replaces: 802640
		802640T - Drive Assembly, NLA [ More info ] $14.00 $11.86 4 In Stock.
		DV325 - Starter Drive, 802640T [ More info ] $31.76 $25.77 1 In Stock.
#13	820620	DRIVE KIT (1 required per assembly)
		820620 - Drive Retainer Kit [ More info ] $55.50 Available to Order: Shipping delay up to 10 days.
#14	F15155	WASHER THRUST THRUST (1 required per assembly)
		F15155 - Thrust Washer [ More info ] Unavailable
#15	852084	O-RING (2 required per assembly)
		852084 - O Ring,NLA [ More info ] Unavailable
#16	828451	NUT (2 required per assembly)
		11-828451 - Nut (.250-28) [ More info ] $7.19 10+ In Stock.
#17	93388A6	CABLE ASSEMBLY (5.500 INCHES) STARTER LEAD (1 required per assembly)
		84-93388A 6 - Cable Assembly [ More info ] $15.09 Available to Order: Shipping delay up to 10 days.
#18	F616675	BRACKET STARTER MOUNT (1 required per assembly)
		F616675 - Bracket [ More info ] $12.17 10+ In Stock.
#19	19932062	SCREW @5 (With Dri Loc) (1 required per assembly)
		10-19932062 - Screw, NLA [ More info ] $3.96 10+ In Stock.
#20	19932062	SCREW @5 (With Dri Loc) (1 required per assembly)
#21	881865	DECAL CAUTION-START IN GEAR START IN GEAR (1 required per assembly) — Replaces: 825064
		37-881865 - Decal -Caution [ More info ] $8.19 Available to Order: Shipping delay up to 10 days.
#22	8272822	DECAL WARNING HIGH VOLTAGE (1 required per assembly)
		37-827282 2 - Decal - Warning [ More info ] $2.09 Available to Order: Shipping delay up to 10 days.
