Parts for Mercury 120XR2 (Jet Drive) Ignition Components

Revise Search: Mercury Jet Drive & SportJet > 120XR2 (Jet Drive) > 2000 0E369300 - 0E379999 - USA > Ignition Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Ignition Components

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	818154R52	PH 120XR2 SJ -RM (1 required per assembly) — Replaces: 818154A52
		800-818154R52 - PH 120XR2 SJ -RM [ More info ] Unavailable
#1	832075A21	STATOR ASSY (1 required per assembly) — Replaces: 832075A4
		398-832075A21 - Stator Assembly [ More info ] $402.99 In Stock
		18-5870-1 - Stator, 16 AMP , Mercury 398-832075A21 [ More info ] $329.38 2 In Stock.
		18-5870 - Stator, 398-832075A4 [ More info ] $324.99 $299.10 10+ In Stock.
#2	19926100	SCREW @5 (With Dri Loc) (6 required per assembly)
		10-19926100 - Screw - Priced Individually [ More info ] $4.99 Available to Order: Shipping delay up to 10 days.
#3	828303A1	TRIGGER ASY-4 CYL (1 required per assembly)
		828303A 1 - Trigger Assembly -4 Cylinder [ More info ] Unavailable
		18-99428 - CDM Trigger, Mercury 4 Cylinder 828303A1, 134-8303-4 [ More info ] $152.63 4 In Stock.
#4	828298A2	HARNESS ASSEMBLY IGNITION (1 required per assembly)
		84-828298A 2 - Harness Assembly [ More info ] Unavailable
#5	8283121	PLATE IGNITION COMPONENTS (1 required per assembly)
		828312 1 - Ignition Mount Plate, NLA [ More info ] Unavailable
#6	401386	NUT @5 (2 required per assembly) — Replaces: 8268336, 40144
		11-40138 6 - Nut - Priced Individually [ More info ] $5.09 9 In Stock.
#7	820437	CLIP HARNESS RETAINER (2 required per assembly)
		54-820437 - Clip, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#8	8302281	STUD (3 required per assembly) — Replaces: 830228
		16-830228 1 - Stud [ More info ] Unavailable
#9	828791	CLIP HARNESS HOLD DOWN (1 required per assembly)
		828791 - Clip [ More info ] $2.79 2 In Stock.
#10	92753	RETAINER HARNESS (1 required per assembly)
		92753 - Harness Retainer [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#11	828297A2	HARNESS ASSY (1 required per assembly)
		84-828297A 2 - Harness Assembly [ More info ] Unavailable
#12	13541	PLUG MALE (1 required per assembly)
		13541 - Plug [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#13	812619	FUSE YELLOW - 20 AMPERE (1 required per assembly)
		88-812619 - Fuse - Yellow - 20 Amp [ More info ] $4.69 10+ In Stock.
#14	828054	COVER FUSE FUSE HOUSING (1 required per assembly)
		828054 - Fuse Cover [ More info ] $5.89 Available to Order: Shipping delay up to 10 days.
#15	828991T	CLIP FUSE HOLDER (1 required per assembly) — Replaces: 828991
		54-828991T - Clip [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#16	82239312	SCREW (2 required per assembly)
		10-822393 12 - SCREW (M5 x 12) [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#17	F717096	RING RETAINING RETAINING (Thermoswitch to Cylinder Head) (1 required per assembly)
		53-F717096 - Ring - Retaining [ More info ] Unavailable
#18	819502	THERMOSWITCH (1 required per assembly)
		87-819502 - ThermoSwitch [ More info ] $78.60 1 In Stock.

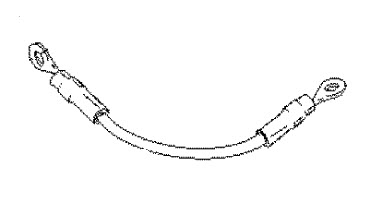

#19	856583A1	CABLE ASSEMBLY BLACK (1 required per assembly)
		84-856583A 1 - Cable Assembly, NLA [ More info ] Unavailable
#20	82129140	SCREW (2 required per assembly)
		10-821291 40 - Screw [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#21	54457	J CLIP (2 required per assembly)
		54-54457 - J Clip [ More info ] $4.79 Available to Order: Shipping delay up to 10 days.
#22	883071A1	REG KIT-VOLT-BULL VOLTAGE (1 required per assembly) — Replaces: 854514A1
		883071A 1 - Voltage Regulator [ More info ] $372.49 Available to Order: Shipping delay up to 10 days.
		18-5743-1 - Voltage Regulator, Mercury [ More info ] $199.66 $184.76 Available to Order: Shipping delay up to 10 days.
#23	822002	GROMMET (3 required per assembly)
		25-822002 - Grommet [ More info ] $8.69 Available to Order: Shipping delay up to 10 days.
#24	828836	GROMMET (1 required per assembly)
		25-828836 - Grommet, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#25	4010620	SCREW (2 required per assembly)
		10-40106 20 - Screw [ More info ] Unavailable
#26	82129116	SCREW @5 (6 required per assembly)
		10-821291 16 - Screw - Priced Individually [ More info ] $2.39 $1.34 10+ In Stock.
#27	822003	BUSHING (3 required per assembly)
		23-822003 - Bushing [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#28	4002316	WASHER @5 (3 required per assembly)
		12-40023 16 - Washer - Priced Individually [ More info ] $1.17 3 In Stock.
		128M0214930 - WASHER Note: Must be ordered in multiples of 5 [ More info ] $1.00 1 In Stock.
#29	828451	NUT (3 required per assembly)
		11-828451 - Nut (.250-28) [ More info ] $7.19 10+ In Stock.
#30	896329821	SP #L77JC4 @4 (Champion # L77JC4) (4 required per assembly) — Replaces: 821C
		33-896329821 - Spark Plug - L77JC4 - Priced Individually [ More info ] Unavailable
		L77JC4 - Champion Spark Plug ( #821M) [ More info ] $5.19 10+ In Stock.
#30	896329828	SP #QL77JC4 @4 RFI (Champion # QL77JC4) (OPT required per assembly) — Replaces: 828C
		33-896329828 - Spark Plug - QL77JC4 - Priced Individually [ More info ] Unavailable
		QL77JC4 - Champion Spark Plug ( #828M) [ More info ] $7.73 10+ In Stock.
#31	827509A10	CDM MODULE ASSEMBLY IGNITION (Cut Wire As Required) (4 required per assembly)
		827509A10 - CDM Module Assembly [ More info ] Unavailable
		18-99161 - CDI Module MERCURY 114-7509 827509A10 [ More info ] $126.84 $124.52 10+ In Stock.
#32	821945A61	CABLE ASSEMBLY HI TENSION (Black-7MM Cable) (Cut As Required) (1 required per assembly)
		84-821945A61 - Cable Assembly - Black [ More info ] $17.49 10+ In Stock.
#32	857124A1	CABLE ASSEMBLY HI-TENSION (Gray-8MM Cable) (Cut As Required) (1 required per assembly)
		84-857124A 1 - Cable Assembly - Gray [ More info ] $17.59 8 In Stock.
#33	63709A1	BOOT/TERMINAL KIT CABLE (Black - For 7MM Cable) (1 required per assembly)
		85-63709A 1 - Boot Kit - Black - Priced Individually [ More info ] $8.19 9 In Stock.
#33	857074A1	BOOT/TERMINAL KIT CABLE (Gray - For 8MM Cable) (1 required per assembly)
		85-857074A 1 - Boot Kit - Gray [ More info ] $17.19 Available to Order: Shipping delay up to 10 days.
#34	816311T	TIE STRAP @100 (AR required per assembly) — Replaces: 816311
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#35	56762	TIE STRAP @5 (AR required per assembly)
		56762 - Tie Strap - Priced Individually [ More info ] $0.50 4 In Stock.
#36	821889A51	REV LIMITER ASSY (1 required per assembly)
		821889A51 - Rev Limiter Assembly [ More info ] $104.99 Available to Order: Shipping delay up to 10 days.
		18-99211 - RPM Rev Limiter Mercury Force 144-1889-51 [ More info ] $104.96 $103.04 1 In Stock.
#37	82129125	SCREW (2 required per assembly)
		10-821291 25 - Screw [ More info ] Unavailable
#38	11149A17	HARNESS ASSEMBLY BROWN (1 required per assembly)
		84-11149A17 - Harness Assembly, NLA [ More info ] $5.43 $4.60 10 In Stock.
#39	11149A18	HARNESS ASSEMBLY BLACK/YELLOW (1 required per assembly)
		84-11149A18 - Harness Assembly, NLA [ More info ] $5.00 $4.24 2 In Stock.
#40	8M0204649	WASHER @10 (1 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#41	89302	WASHER @5 (1 required per assembly)
		12-89302 - Washer (.203 X .406 X .040) [ More info ] $1.80 10+ In Stock.
