Parts for Mercury 120XR2 (Jet Drive) Accessories
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #NS | 802755 | REMOTE CONTROL (Aft/Forward Cable Entry) (See Remote Control Section For Service Parts Breakdown) (AR required per assembly) — Replaces: 850696 |
  |
|
802755 - Remote Control [ More info ] Unavailable |
| #NS | 850699 | HELM STEERING (270 Wheel Rotation - .312-24) (AR required per assembly) |
  |
|
850699 - Helm - Steer -270 [ More info ]
|
| #NS | 809485 | BEZEL KIT STEERING (270 Wheel Rotation - .312-24) (AR required per assembly) |
  |
|
809485 - Bezel Kit - (.312) [ More info ]
|
| #NS | 835457A11 | CABLE ASSEMBLY (11 FEET) STEERING (270 Wheel Rotation - .312-24) (AR required per assembly) |
  |
|

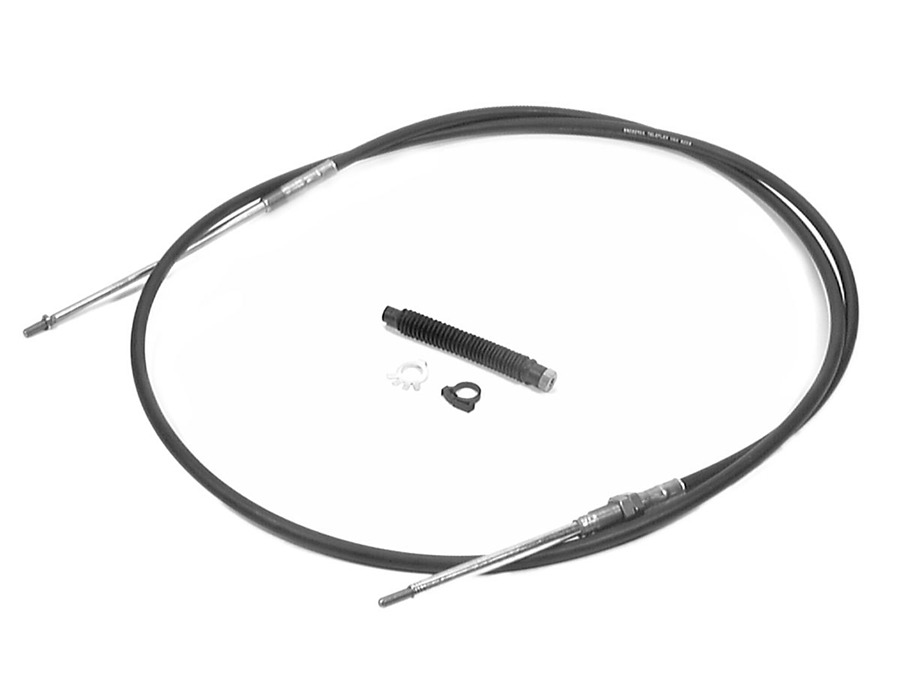

64-835457A11 - Cable - Steer -11 Ft [ More info ]
|
| #NS | 835457A13 | CABLE ASSEMBLY (13 FEET) STEERING (270 Wheel Rotation - .312-24) (AR required per assembly) |
  |
|
64-835457A13 - Cable - Steer -13 Ft [ More info ]
|
| #NS | 835457A15 | CABLE ASSEMBLY (15 FEET) STEERING (270 Wheel Rotation - .312-24) (AR required per assembly) |
  |
|
64-835457A15 - Cable - Steer -15 Ft [ More info ]
|
| #NS | 835457A17 | CABLE ASSEMBLY (17 FEET) STEERING (270 Wheel Rotation - .312-24) (AR required per assembly) |
  |
|
64-835457A17 - Cable - Steer -17 Ft [ More info ]
|
| #NS | 835457A19 | CABLE ASSEMBLY (19 FEET) STEERING (270 Wheel Rotation - .312-24) (AR required per assembly) |
  |
|
64-835457A19 - Cable - Steer -19 Ft [ More info ]
|
| #NS | 835457A21 | CABLE ASSEMBLY (21 FEET) STEERING (270 Wheel Rotation - .312-24) (AR required per assembly) |
  |
|
64-835457A21 - Cable - Steer -21 Ft [ More info ] Unavailable |
| #NS | 835457A23 | CABLE ASSEMBLY (23 FEET) STEERING (270 Wheel Rotation - .312-24) (AR required per assembly) |
  |
|
64-835457A23 - Cable - Steer -23 Ft [ More info ]
|
| #NS | 835457A25 | CABLE ASSEMBLY (25 FEET) STEERING (270 Wheel Rotation - .312-24) (AR required per assembly) |
  |
|
64-835457A25 - Cable - Steer -25 Ft [ More info ] Unavailable |
| #NS | 877581A4 | BELLOWS KIT STEERING CABLE (Outside Transom) (AR required per assembly) — Replaces: 834752A1 |
  |
|
877581A 4 - Steering Cable Bellows Kit [ More info ]
|
| #NS | 415829 | CLAMP (1 required per assembly) |
  |
|
54-41582 9 - Clamp [ More info ]
|
| #NS | 832983 | TAB WASHER (1 required per assembly) |
  |
|
14-832983 - Tab Washer [ More info ]
|
| #NS | 883053A1 | END KIT-(.312) (Steering Cable Rod - .312-24) (AR required per assembly) — Replaces: 809477A1 |
  |
|
883053A 1 - End Kit - (.312) [ More info ]
|
| #NS | 859766A1 | SCREW AND NUT KIT (1 required per assembly) — Replaces: 803902A1 |
  |
|
10-859766A 1 - Screw/Nut Kit [ More info ]
|
| #NS | 8267098 | NUT (.250-20) STAINLESS STEEL (1 required per assembly) — Replaces: 56374 |
  |
|
11-826709 8 - Nut - Priced Individually [ More info ]
|
| #NS | 858342A8 | CABLE ASSEMBLY (8 FEET) SHIFT (.250-28) (40 Series) (AR required per assembly) |
  |
|
858342A 8 - Shift Cable -8 Ft [ More info ] Unavailable |
| #NS | 858342A10 | CABLE ASSEMBLY (10 FEET) SHIFT (.250-28) (40 Series) (AR required per assembly) |
  |
|
858342A10 - Shift Cable, 10 Feet [ More info ]
|
| #NS | 858342A12 | CABLE ASSEMBLY (12 FEET) SHIFT (.250-28) (40 Series) (AR required per assembly) |
  |
|
858342A12 - Shift Cable -12 Ft [ More info ]
|
| #NS | 858342A14 | CABLE ASSEMBLY (14 FEET) SHIFT (.250-28) (40 Series) (AR required per assembly) |
  |
|
858342A14 - Shift Cable -14 Ft [ More info ]
|
| #NS | 858342A16 | CABLE ASSEMBLY (16 FEET) SHIFT (.250-28) (40 Series) (AR required per assembly) |
  |
|
858342A16 - Shift Cable -16 Ft [ More info ]
|
| #NS | 858342A18 | CABLE ASSEMBLY (18 FEET) SHIFT (.250-28) (40 Series) (AR required per assembly) |
  |
|
858342A18 - Shift Cable -18 Ft [ More info ]
|
| #NS | 858342A20 | CABLE ASSEMBLY (20 FEET) SHIFT (.250-28) (40 Series) (AR required per assembly) |
  |
|
858342A20 - Shift Cable -20 Ft [ More info ]
|
| #NS | 858342A22 | CABLE ASSEMBLY (22 FEET) SHIFT (.250-28) (40 Series) (AR required per assembly) |
  |
|
858342A22 - Shift Cable -22 Ft [ More info ]
|
| #NS | 877581A5 | BELLOWS ASSEMBLY SHIFT CABLE (Outside Transom) (AR required per assembly) — Replaces: 834752A3 |
  |
|
877581A 5 - Shift Bellows Assembly [ More info ]
|
| #NS | 816311T | TIE STRAP (8.00 INCHES) (1 required per assembly) — Replaces: 816311 |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #NS | 850697A2 | BELLOWS KIT THRU HULL (Inside Transom) (Used With Shift Cable 858342A8 Thru A22) (AR required per assembly) — Replaces: 850697A1 |
  |
|
850697A 2 - Hull Bellows Kit [ More info ]
|
| #NS | 8M0082580 | CABLE T/S SA 8 FT THROTTLE (AR required per assembly) — Replaces: 820676A8, 897979A08 |
  |
|
8M0082580 - Throttle/Shift Cable SA 8 FT [ More info ]
|
| #NS | 8M0082582 | CABLE T/S SA 10FT THROTTLE (AR required per assembly) — Replaces: 820676A10, 897979A10 |
  |
|
8M0082582 - Throttle/Shift Cable SA 10FT [ More info ]
|
| #NS | 8M0082584 | CABLE T/S SA 12FT THROTTLE (AR required per assembly) — Replaces: 820676A12, 897979A12 |
  |
|
8M0082584 - Throttle/Shift Cable SA 12FT [ More info ]
|
| #NS | 8M0082586 | CABLE T/S SA 14FT THROTTLE (AR required per assembly) — Replaces: 820676A14, 897979A14 |
  |
|
8M0082586 - Throttle/Shift Cable SA 14FT [ More info ]
|
| #NS | 8M0082588 | CABLE T/S SA 16FT THROTTLE (AR required per assembly) — Replaces: 820676A16, 897979A16 |
  |
|
8M0082588 - Throttle/Shift Cable SA 16FT [ More info ]
|
| #NS | 8M0082590 | CABLE T/S SA 18FT THROTTLE (AR required per assembly) — Replaces: 820676A18, 897979A18 |
  |
|
8M0082590 - Throttle/Shift Cable SA 18FT [ More info ]
|
| #NS | 892790A01 | ADAPTOR KIT (Throttle Cable Connector) (AR required per assembly) — Replaces: 12505A1 |
  |
|
64-892790A01 - Adaptor Kit [ More info ]
|
| #NS | 820675 | FITTING ASSEMBLY BULKHEAD WITH NUT (.250 Steering Cable) (AR required per assembly) |
  |
|
820675 - Steering Fitting [ More info ]
|
| #NS | 850005A2 | BELLOWS KIT BULKHEAD WITH NUT (.312 Steering Cable) (AR required per assembly) — Replaces: 809483A1 |
  |
|
850005A 2 - Hull Bellows Kit [ More info ]
|
| #NS | 820677A1 | FITTING KIT-SHIFT (Shift Cable) (AR required per assembly) |
  |
|
820677A 1 - Shift Fitting Kit [ More info ]
|
| #NS | 809171 | NUT SPECIAL (AR required per assembly) |
  |
|
11-809171 - Nut, NLA [ More info ]
|
| #NS | 816626A2 | HARNESS ASSY (Ignition-Choke-Horn) (See Key Switch Assembly Section For Service Parts Breakdown) (AR required per assembly) |
  |
|
84-816626A 2 - Harness Assembly [ More info ]
|
| #NS | 816626A15 | HARNESS ASSY (Ignition-Choke-Horn) (See Key Switch Assembly Section For Service Parts Breakdown) (AR required per assembly) |
  |
|
84-816626A15 - Harness Assembly [ More info ]
|
| #NS | 816626A20 | HARNESS ASSY (Ignition-Choke-Horn) (See Key Switch Assembly Section For Service Parts Breakdown) (AR required per assembly) |
  |
|
84-816626A20 - Harness Assembly [ More info ]
|
| #NS | 816626A25 | HARNESS ASSY (Ignition-Choke-Horn) (See Key Switch Assembly Section For Service Parts Breakdown) (AR required per assembly) |
  |
|
84-816626A25 - Harness Assembly [ More info ]
|
| #NS | 19674Q2 | SWITCH/LANYARD KIT STOP (See Lanyard Switch Kit Section For Service Parts Breakdown) (AR required per assembly) — Replaces: 19674A2 |
  |
|
87-19674Q 2 - Switch and Lanyard Kit [ More info ]
|
| #NS | 820543A1 | FLUSHING KIT ENGINE (See Flushing Kit Section For Service Parts Breakdown) (AR required per assembly) |
  |
|
22-820543A 1 - Flush Kit -sp Jet [ More info ]
|
| #NS | 852962T | SCREEN INLET (AR required per assembly) |
  |
|
852962T - Inlet Screen [ More info ]
|
| #NS | 830116A2 | WEEDRAKE ASSY-JET (AR required per assembly) |
  |
|
830116A 2 - WEEDRAKE ASSY-JE,NLA [ More info ] Unavailable |
| #NS | 830603 | STORAGE CLIPS WEED RAKE (AR required per assembly) |
  |
|
67-830603 - STORAGE CLIP,NLA [ More info ] Unavailable |
