Parts for Mercury 120 (Jet Drive) Pinion & Impeller Shaft (Splined Drive)

Revise Search: Mercury Jet Drive & SportJet > 120 (Jet Drive) > 1995 0E080400 - 0E145579 > Pinion & Impeller Shaft (Splined Drive)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

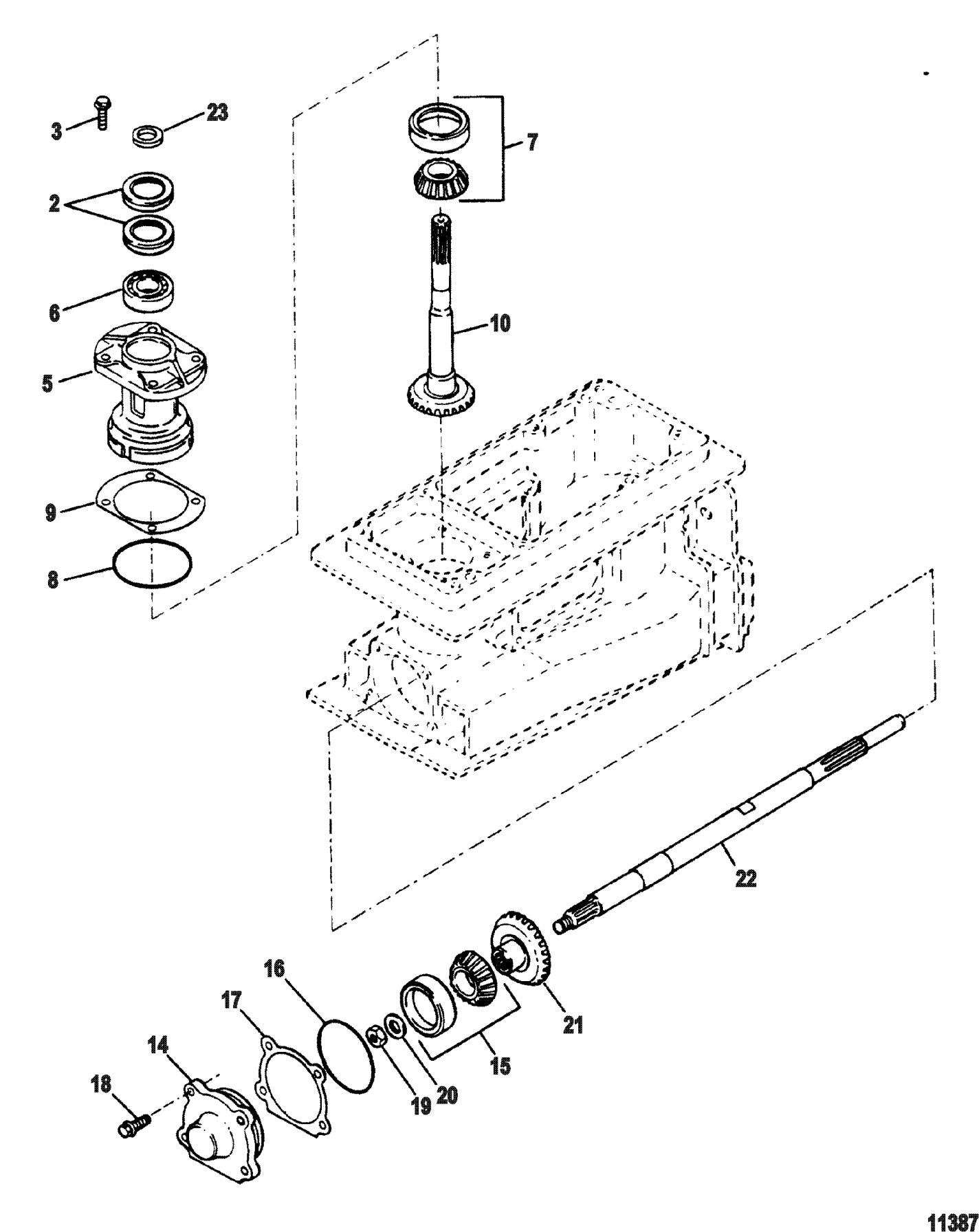

Pinion & Impeller Shaft (Splined Drive)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	809175A2	SEAL/GASKET SET DRIVE HOUSING (1 required per assembly) — Replaces: 809175A1
		26-809175A 2 - Seal/Gasket Kit [ More info ] $186.28 1 In Stock.
#-	820238A11	HOUSING KIT DRIVE (Complete) (Painted) (No Impeller) (1 required per assembly)
		1500-820238A11 - HSG ASY-COMP-120,NLA [ More info ] Unavailable
#2	826210	SEAL PINION SHAFT (2 required per assembly)
		26-826210 - Seal [ More info ] $24.49 4 In Stock.
#3	4010725	SCREW (4 required per assembly)
		10-40107 25 - Screw [ More info ] $5.79 Available to Order: Shipping delay up to 10 days.
#5	826126A1	HOUSING ASSEMBLY PINION SHAFT (Painted) (1 required per assembly)
		1100-826126A 1 - Housing Assembly, NLA [ More info ] Unavailable
#6	820292	BEARING BALL (1 required per assembly)
		30-820292 - Ball Bearing [ More info ] $68.99 Available to Order: Shipping delay up to 10 days.
#7	8M0103473	BEARING ASSEMBLY TAPERED ROLLER (Cup And Cone) (1 required per assembly) — Replaces: 86748A1
		31-8M0103473 - Upper Drive Shaft Bearing BRVZZ [ More info ] $53.99 In Stock
#8	54030	O-RING (2.987 X .103) (1 required per assembly)
		25-54030 - O-ring, (2.987 X .103) [ More info ] $5.89 Available to Order: Shipping delay up to 10 days.
#9	820327020	SHIM YELLOW (.020) (AR required per assembly)
		15-820327020 - Shim -.020-Yellow, NLA [ More info ] $6.00 $5.08 10+ In Stock.
#9	820327010	SHIM BROWN (.010) (AR required per assembly)
		15-820327010 - Shim -.010-Brown, NLA [ More info ] $7.02 10+ In Stock.
#9	820327007	SHIM FROST (.0075) (AR required per assembly)
		15-820327007 - Shim -.0075-Frost, NLA [ More info ] $7.19 10+ In Stock.
#9	820327005	SHIM BLUE (.005) (AR required per assembly)
		15-820327005 - Shim -.005-Blue, NLA [ More info ] $7.25 $6.14 10+ In Stock.
#9	820327004	SHIM BEIGE (.004) (AR required per assembly)
		15-820327004 - Shim -.004-Beige, NLA [ More info ] $6.67 $5.65 10+ In Stock.
#9	820327002	SHIM RED (.002) (AR required per assembly)
		15-820327002 - Shim -.002-RED, NLA [ More info ] $7.19 10+ In Stock.
#10	826534T	GEAR/SHAFT ASSEMBLY PINION (1 required per assembly)
		43-826534T - Gear/Shaft Assembly [ More info ] Unavailable
#14	820241A3	COVER ASSEMBLY IMPELLER SHAFT (Painted) (1 required per assembly) — Replaces: 820241A2
		820241A 3 - Cover Assembly [ More info ] $75.46 1 In Stock.
#15	8M0103473	BEARING ASSEMBLY TAPERED ROLLER (Cup And Cone) (1 required per assembly) — Replaces: 86748A1
#16	62700	O-RING (3.237 X .103) (1 required per assembly)
		25-62700 - O-Ring [ More info ] $3.99 1 In Stock.
		18-0860-9 - O-Ring 25-62700 2-Pack [ More info ] $7.29 Available to Order: Shipping delay up to 10 days.
#17	820321020	SHIM YELLOW (.020) (AR required per assembly)
		15-820321020 - Shim -.020-Yellow, NLA [ More info ] $6.00 $5.08 10+ In Stock.
#17	820321010	SHIM BROWN (.010) (AR required per assembly)
		15-820321010 - Shim -.010-Brown, NLA [ More info ] $7.02 10+ In Stock.
#17	820321007	SHIM FROST (.0075) (AR required per assembly)
		15-820321007 - Shim -.0075-Frost, NLA [ More info ] $10.31 $8.73 10+ In Stock.
#17	820321005	SHIM BLUE (.005) (AR required per assembly)
		15-820321005 - Shim -.005-Blue, NLA [ More info ] $7.61 $6.45 10+ In Stock.
#17	820321004	SHIM BEIGE (.004) (AR required per assembly)
		15-820321004 - Shim -.004-Beige, NLA [ More info ] $6.00 $5.08 10+ In Stock.
#17	820321002	SHIM RED (.002) (AR required per assembly)
		15-820321002 - Shim -.002-RED, NLA [ More info ] $6.00 $5.08 10+ In Stock.
#18	4010725	SCREW (4 required per assembly)
#19	818591	NUT (1 required per assembly)
		11-818591 - Nut (M14) [ More info ] $3.59 Available to Order: Shipping delay up to 10 days.
#20	820335	WASHER (1 required per assembly)
		12-820335 - Washer, NLA [ More info ] Unavailable
#21	826535T	GEAR IMPELLER SHAFT (1 required per assembly)
		43-826535T - Impeller Gear [ More info ] $256.17 Available to Order: Shipping delay up to 10 days.
#22	820505	SHAFT IMPELLER (SPLINED) (1 required per assembly)
		44-820505 - Impeller Shaft [ More info ] Unavailable
#23	30271	RING RUBBER RUBBER (1 required per assembly)
		25-30271 - Ring - Priced Individually [ More info ] Unavailable
		18-7426-9 - O-Ring (PK2) 25-30271 [ More info ] $4.39 Available to Order: Shipping delay up to 10 days.
		25-8M0214918 - WATER PUMP HSG RUBBER RING O/B [ More info ] $1.99 6 In Stock.
