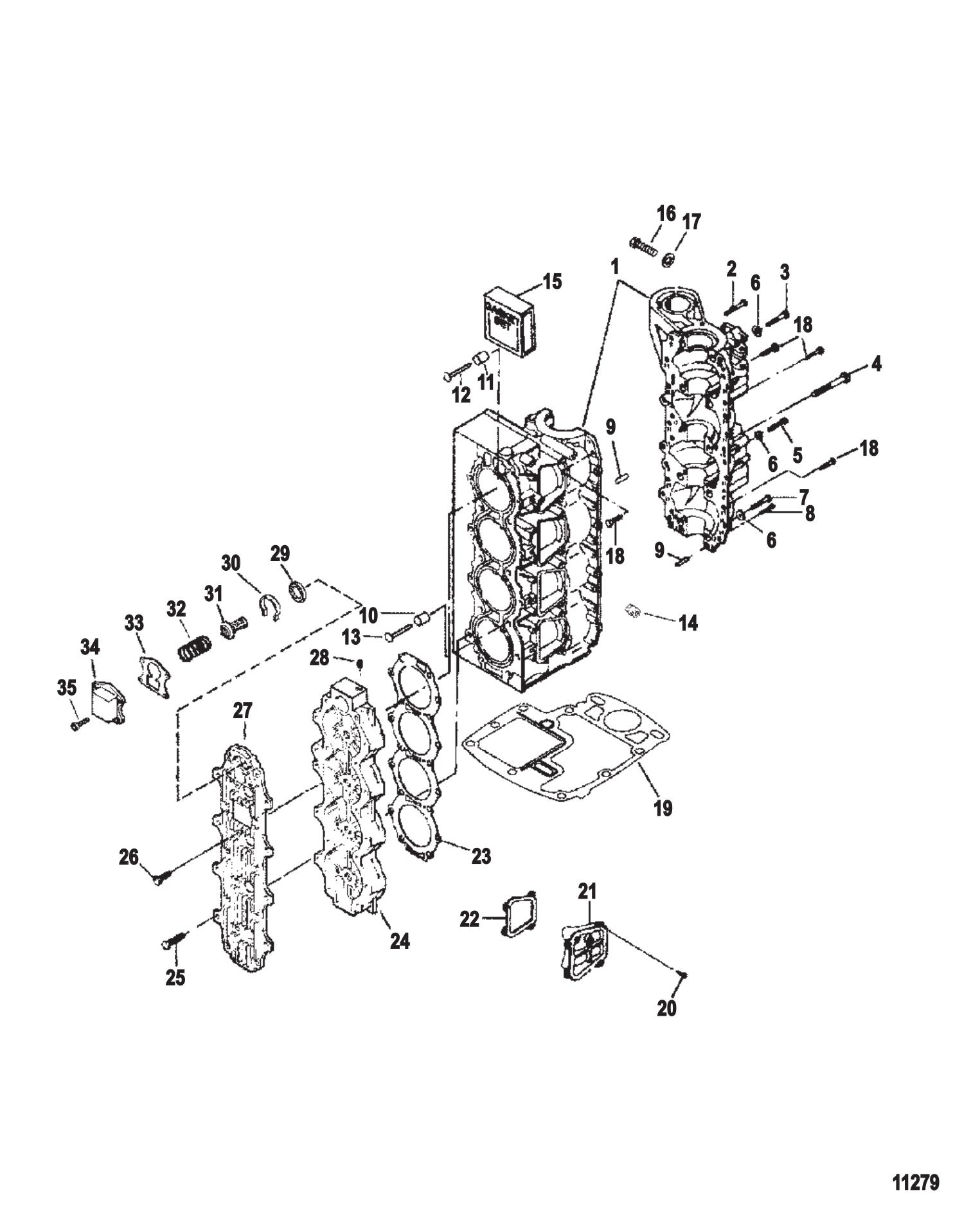

Cylinder Block Assembly (800-818154A35 / 800-818154A50)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	818154A52	ORD 800-818154R52 (Design I - Reference Crankshaft/Piston Section) (1 required per assembly) — Replaces: 818154A35, 818154A50
		800-818154A52 [ More info ] Unavailable
#1	818154R52	PH 120XR2 SJ -RM (Design II - Reference Crankshaft/Piston Section) (1 required per assembly) — Replaces: 818154A50, 818154A52
		800-818154R52 - PH 120XR2 SJ -RM [ More info ] Unavailable
#1	818154A33	CYLINDER KIT (1 required per assembly)
		800-818154A33 - Cylinder Kit, NLA [ More info ] Unavailable
#2	F1874	SCREW (.375-16 X 3.125) (1 required per assembly)
		10-F1874 - Screw, NLA [ More info ] Unavailable
#3	47688	SCREW (.375-16 X 2.750) (1 required per assembly)
		10-47688 - Screw [ More info ] $3.59 Available to Order: Shipping delay up to 10 days.
#4	53734	SCREW (.375-16 X 3.00) (2 required per assembly)
		10-53734 - Screw [ More info ] $0.50 $0.43 10+ In Stock.
#5	94207	SCREW (.375-16 X 2.00) (4 required per assembly)
		10-94207 - Screw [ More info ] $1.00 $0.85 10+ In Stock.
#6	828271	WASHER (10 required per assembly)
		12-828271 - Washer [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#7	32132	SCREW (.375-16 X 1.750) (2 required per assembly)
		10-32132 - Screw [ More info ] $2.99 4 In Stock.
#8	820589	SCREW (.250-20 X 1.250) (2 required per assembly)
		10-820589 - Screw [ More info ] $9.99 Available to Order: Shipping delay up to 10 days.
#9	43044	PIN DOWEL - WITHOUT HOLE (.375 X .625) (2 required per assembly)
		17-43044 - Pin -Dowel-solid [ More info ] $2.49 1 In Stock.
#10	F719418	TUBE WATER JACKET (3 required per assembly)
		32-F719418 - Water Tube Jacket [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#11	F719943	TUBE WATER JACKET (Top) (1 required per assembly)
		32-F719943 - Water Tube Jacket [ More info ] $3.10 $2.63 10+ In Stock.
#12	F691372	PIN WATER JACKET TUBE (Top) (1 required per assembly)
		17-F691372 - Pin, Water Jacket Tube [ More info ] $1.63 10+ In Stock.
#13	F719372	PIN WATER JACKET TUBE (3 required per assembly)
		17-F719372 - Pin, Water Jacket Tube [ More info ] $1.70 $1.45 10+ In Stock.
#14	47945	PLUG PIPE (Early Version Only) (1 required per assembly)
		22-47945 - Pipe Plug [ More info ] Unavailable
#15	809817A1	GASKET SET POWERHEAD (1 required per assembly)
		27-809817A 1 - Powerhead Gasket Set [ More info ] $333.99 Available to Order: Shipping delay up to 10 days.
#16	39349	SCREW @5 (Ground) (1 required per assembly)
		10-39349 - Screw - Priced Individually [ More info ] $1.80 $1.44 10+ In Stock.
#17	53166	LOCKWASHER @5 (Ground) (1 required per assembly)
		13-53166 - LockWasher - Priced Individually [ More info ] $1.80 10+ In Stock.
#18	819110088	SCREW @5 (24 required per assembly)
		10-819110088 - Screw - Priced Individually [ More info ] $0.70 Available to Order: Shipping delay up to 10 days.
#19	8237002	GASKET SPACER PLATE (1 required per assembly)
		27-823700 2 - Gasket [ More info ] $35.49 Available to Order: Shipping delay up to 10 days.
#20	819110062	SCREW (12 required per assembly)
		10-819110062 - Screw [ More info ] $2.59 $2.08 6 In Stock.
#21	8197374	COVER-T FER PORT TRANSFER PORT (# 1 Cylinder) (1 required per assembly) — Replaces: 8197372
		819737 4 - COVER-T FER PORT,NLA [ More info ] Unavailable
#21	8197373	COVER TRANSFER PORT (# 2 And # 4 Cylinders) (2 required per assembly)
		819737 3 - COVER-T FER PORT,NLA [ More info ] Unavailable
#22	8205002	GASKET TRANSFER PORT COVERS (3 required per assembly)
		27-820500 2 - Gasket [ More info ] $5.89 Available to Order: Shipping delay up to 10 days.
#23	8246152	GASKET CYLINDER HEAD (1 required per assembly) — Replaces: 8246151, 824615
		27-824615 2 - Gasket [ More info ] $78.49 Available to Order: Shipping delay up to 10 days.
		18-3857 - Gasket 27-824615, 27-82461 [ More info ] $58.99 $57.80 2 In Stock.
#24	819777T4	HEAD-CYLINDER (1 required per assembly) — Replaces: 8197772, 8197774
		900-819777T 4 - Cylinder Head [ More info ] Unavailable
#25	79654	SCREW (18 required per assembly)
		10-79654 - Screw [ More info ] Unavailable
#26	819110062	SCREW (4 required per assembly)
#27	F665995	COVER CYLINDER HEAD (1 required per assembly)
		F665995 - COVER-Cylinder Head [ More info ] $108.16 $91.61 4 In Stock.
#28	F722109-1	PLUG (NYLON) NYLON (Cylinder Head) (1 required per assembly)
		22-F722109-1 - Plug - (Nylon), NLA [ More info ] $7.81 10+ In Stock.
#29	F664914	SEAL THERMOSTAT (1 required per assembly)
		26-F664914 - Seal [ More info ] $22.36 2 In Stock.
#30	8283111	SPACER THEROSTAT (1 required per assembly) — Replaces: 828311
		23-828311 1 - Spacer [ More info ] $7.09 4 In Stock.
#31	F664068	THERMOSTAT-130 (1 required per assembly)
		F664068 - Thermostat -130 Degrees [ More info ] $41.99 5 In Stock.
#32	F692268	SPRING RED (1 required per assembly)
		24-F692268 - Spring, NLA [ More info ] Unavailable
#33	828319	GASKET THERMOSTAT COVER (1 required per assembly)
		27-828319 - Thermostat Cover Gasket [ More info ] $4.49 7 In Stock.
		18-0854-9 - Gasket 27-828319 2-Pack [ More info ] $8.99 $8.01 Available to Order: Shipping delay up to 10 days.
#34	819693	COVER THERMOSTAT (1 required per assembly)
		819693 - Thermostat Cover [ More info ] Unavailable
#35	19932075	SCREW (With Dri Loc) (4 required per assembly)
		10-19932075 - Screw [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
