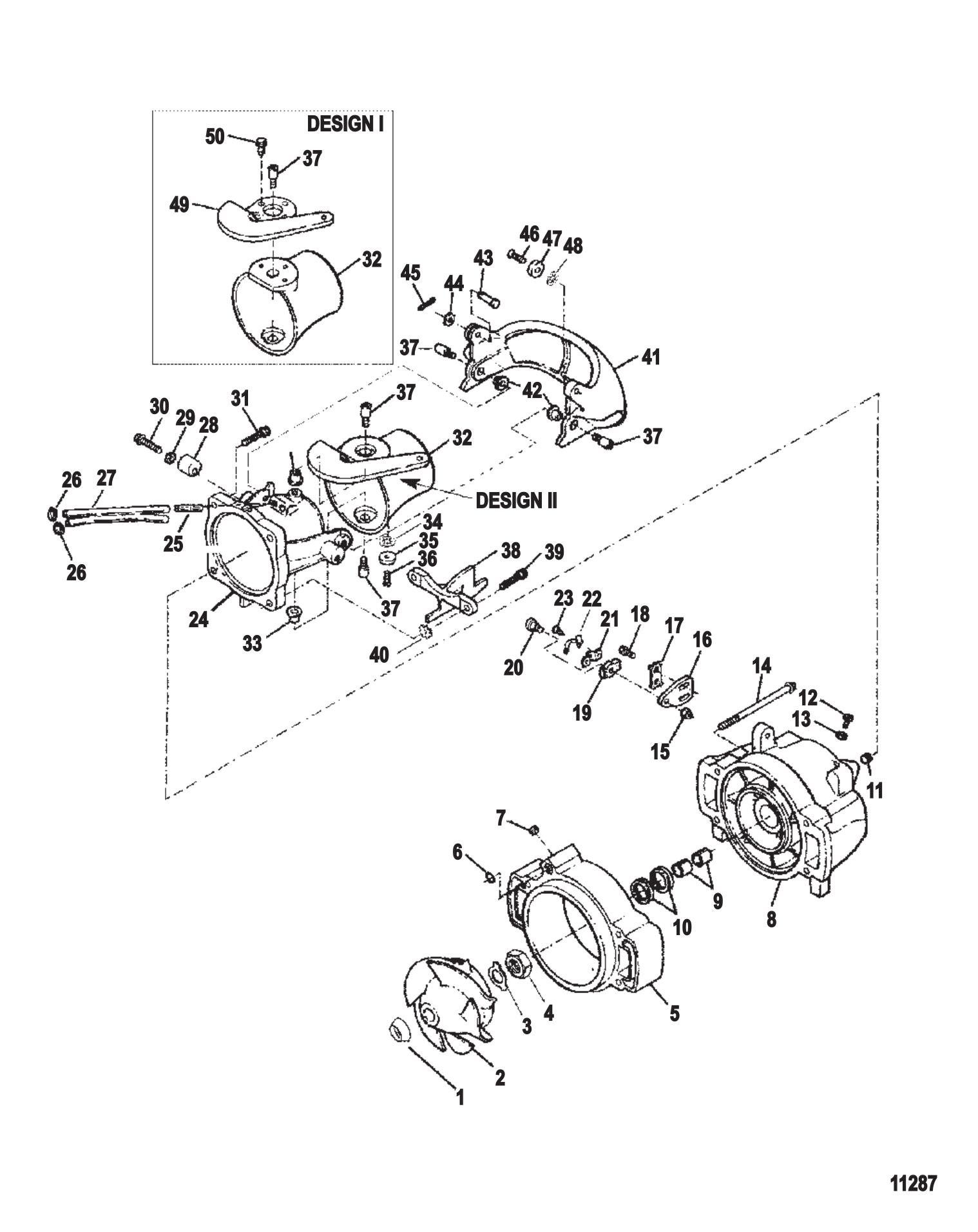

Nozzle / Rudder Components

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	809175A2	SEAL/GASKET SET DRIVE HOUSING (1 required per assembly)
		26-809175A 2 - Seal/Gasket Kit [ More info ] $186.28 1 In Stock.
#-	828907A5	HOUSING KIT DRIVE (Complete) (Painted) (No Impeller) (1 required per assembly)
		1500-828907A 5 - Housing Assembly - Comp-120, NLA [ More info ] $1,099.99 $931.68 2 In Stock.
#1	828917	WASHER THRUST (1 required per assembly)
		12-828917 - WASHER,NLA [ More info ] Unavailable
#2	828989T1	IMPELLER (Splined) (1 required per assembly) — Replaces: 828989T, 828989
		47-828989T 1 - Impeller [ More info ] $484.66 Available to Order: Shipping delay up to 10 days.
#3	820509	WASHER IMPELLER SHAFT (1 required per assembly)
		14-820509 - Tab Washer, NLA [ More info ] $11.70 10+ In Stock.
#4	820508	NUT IMPELLER SHAFT (1 required per assembly)
		11-820508 - Nut-impeller Shaft,NLA [ More info ] $14.31 10+ In Stock.
#5	820243T2	RING KIT WEAR (Painted) (1 required per assembly) — Replaces: 820243T1
		820243T 2 - Ring Kit - Wear [ More info ] $915.49 Available to Order: Shipping delay up to 10 days.
#6	201951	O RING (1 required per assembly) — Replaces: 20195
		25-20195 1 - O-Ring [ More info ] $1.99 Available to Order: Shipping delay up to 10 days.
		18-7134-9 - O-Ring (PK5) 339543 [ More info ] $10.47 Available to Order: Shipping delay up to 10 days.
#7	8M0180564	PLUG @5 (1 required per assembly) — Replaces: 73379
		22-8M0180564 - Plug, Sold Individually [ More info ] $7.59 3 In Stock.
#8	830035A1	STATOR KIT (Painted) (1 required per assembly)
		300-830035A 1 - Stator Kit [ More info ] $324.99 $275.26 10+ In Stock.
#9	820430	BUSHING STATOR REAR (2 required per assembly)
		23-820430 - Bushing [ More info ] $19.19 Available to Order: Shipping delay up to 10 days.
#10	819396	SEAL CRANKSHAFT LOWER (2 required per assembly)
		26-819396 - Seal [ More info ] $11.49 2 In Stock.
#11	8M0180564	PLUG @5 (1 required per assembly) — Replaces: 73379
#12	79953Q04	SCREW KIT DRAIN (1 required per assembly) — Replaces: 79953A2, 79953Q2
		10-79953Q04 - Screw Kit - Priced Individually [ More info ] $7.49 6 In Stock.
		18-2244 - Plug Kit, 10-79953A2 [ More info ] $3.79 10+ In Stock.
		10-79953K04 - Drain Screw - Priced Individually [ More info ] $8.19 10+ In Stock.
#13	191833	SEAL SEALING (1 required per assembly) — Replaces: 19183, 191832
		12-19183 3 - Seal -Blue - Priced Individually [ More info ] Unavailable
		18-2945-9 - Gasket 12-19183 2-Pack [ More info ] $2.41 10+ In Stock.
		12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ] $6.69 10+ In Stock.
		12-19183K02 - Seal, Pack of 4 [ More info ] $7.29 10+ In Stock.
		12-8M0187157 - SEAL-BLUE, Sold Individually [ More info ] $1.49 10+ In Stock.
		12-02108-1 - Drain Gasket (1 piece) [ More info ] $1.20 $0.85 10+ In Stock.
#14	8M0012503	SCREW (4 required per assembly) — Replaces: 40108100
		10-8M0012503 - Screw [ More info ] $12.99 Available to Order: Shipping delay up to 10 days.
#15	8M0207776	NUT (1 required per assembly) — Replaces: 814101
		118M0207776 - NUT [ More info ] $7.09 Available to Order: Shipping delay up to 10 days.
#16	820531	BRACKET SHIFT (Painted) (1 required per assembly)
		820531 - Bracket, NLA [ More info ] $33.54 5 In Stock.
#17	820599	TAB LOCKING (1 required per assembly)
		14-820599 - Tab Washer [ More info ] $4.07 $3.45 10+ In Stock.
#18	75677	SCREW (2 required per assembly)
		10-75677 - Screw [ More info ] $1.60 8 In Stock.
#19	8200281	SWIVEL CABLE CLAMP (1 required per assembly)
		820028 1 - Swivel [ More info ] $79.99 Available to Order: Shipping delay up to 10 days.
#20	F405457	SCREW PIVOT (1 required per assembly)
		10-F405457 - Screw, NLA [ More info ] $8.39 10+ In Stock.
#21	846341	BRACKET CABLE (1 required per assembly)
		54-846341 - Bracket - Cable [ More info ] $12.59 10+ In Stock.
#22	820601	TAB LOCKING BOLT (1 required per assembly)
		14-820601 - Tab Washer, NLA [ More info ] $3.06 $2.59 10+ In Stock.
#23	F2217-1	SCREW-W/LW (2 required per assembly)
		10-F2217-1 - 10-F2217-1 - SCREW (10-24 x .3 [ More info ] Unavailable Replaced by 10-F2217-1
#24	830052A1	NOZZLE ASSY (Painted) (1 required per assembly)
		830052A 1 - Nozzle Assembly [ More info ] $99.99 $84.68 4 In Stock.
#25	826701	FITTING NOZZLE (2 required per assembly)
		22-826701 - Fitting - Priced Individually [ More info ] $15.19 Available to Order: Shipping delay up to 10 days.
#26	816311T	TIE STRAP @100 (2 required per assembly) — Replaces: 816311
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#27	826700	HOSE SYPHON (1 required per assembly)
		32-826700 - Hose -syphon, NLA [ More info ] $8.00 $6.78 10+ In Stock.
#28	820564	STOP REVERSE GATE (2 required per assembly)
		820564 - Stop [ More info ] $37.04 4 In Stock.
#29	36001	WASHER @3 (2 required per assembly)
		12-36001 - Washer - Priced Individually [ More info ] $1.50 10+ In Stock.
		18-4270 - Washer 12-36001 [ More info ] $1.25 $0.91 2 In Stock.
#30	4007154	SCREW (2 required per assembly)
		10-40071 54 - Screw [ More info ] $3.04 $0.88 5 In Stock.
#31	4010835	SCREW (2 required per assembly)
		10-40108 35 - Screw [ More info ] $7.29 Available to Order: Shipping delay up to 10 days.
#32	828909A1	RUDDER KIT (Painted) (Design II) (1 required per assembly) — Replaces: 820343A4
		828909A 1 - Rudder Kit, NLA [ More info ] Unavailable
#33	825158	BUSHING PIVOT (2 required per assembly)
		23-825158 - Bushing [ More info ] Unavailable
#34	78968	LOCKWASHER INTERNAL (.250) (1 required per assembly)
		13-78968 - LockWasher - Priced Individually [ More info ] $1.80 10+ In Stock.
#35	8205031	ANODE (1 required per assembly)
		978205031 - Anode [ More info ] $11.89 Available to Order: Shipping delay up to 10 days.
#36	824830	SCREW (M6 X 13) (1 required per assembly)
		10-824830 - Screw [ More info ] $6.89 10 In Stock.
#37	820336	BOLT PIVOT (4 required per assembly)
		820336 - Bolt [ More info ] $25.59 Available to Order: Shipping delay up to 10 days.
#38	828913T	ANODE (1 required per assembly) — Replaces: 820444T1
		828913T - Anode [ More info ] Unavailable
#39	4010845	SCREW (2 required per assembly)
		10-40108 45 - Screw [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#40	806210	LOCKWASHER @5 (2 required per assembly)
		13-806210 - LockWasher - Priced Individually [ More info ] $1.80 1 In Stock.
#41	828914A1	GATE ASSY (Painted) (1 required per assembly)
		828914A 1 - Gate Assembly [ More info ] Unavailable
#42	825158	BUSHING PIVOT (2 required per assembly)
#43	824467	PIN CLEVIS (1 required per assembly)
		17-824467 - Clevis Pin [ More info ] $2.70 10+ In Stock.
#44	8M0204649	WASHER @10 (1 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#45	210711	COTTER PIN (1 required per assembly) — Replaces: 21071
		0210711 [ More info ] Unavailable Replaced by 0210710
		[ More info ] Unavailable
#46	824830	SCREW (M6 X 13) (1 required per assembly)
#47	8205031	ANODE (1 required per assembly)
#48	78968	LOCKWASHER INTERNAL (.250) (1 required per assembly)
#49	828909A1	RUDDER KIT STEERING (Painted) (Design I) (1 required per assembly) — Replaces: 820462, 820462T
#50	4010725	SCREW (M8 X 25) (M8 X 25) (Design I) (3 required per assembly)
		10-40107 25 - Screw [ More info ] $5.79 Available to Order: Shipping delay up to 10 days.
