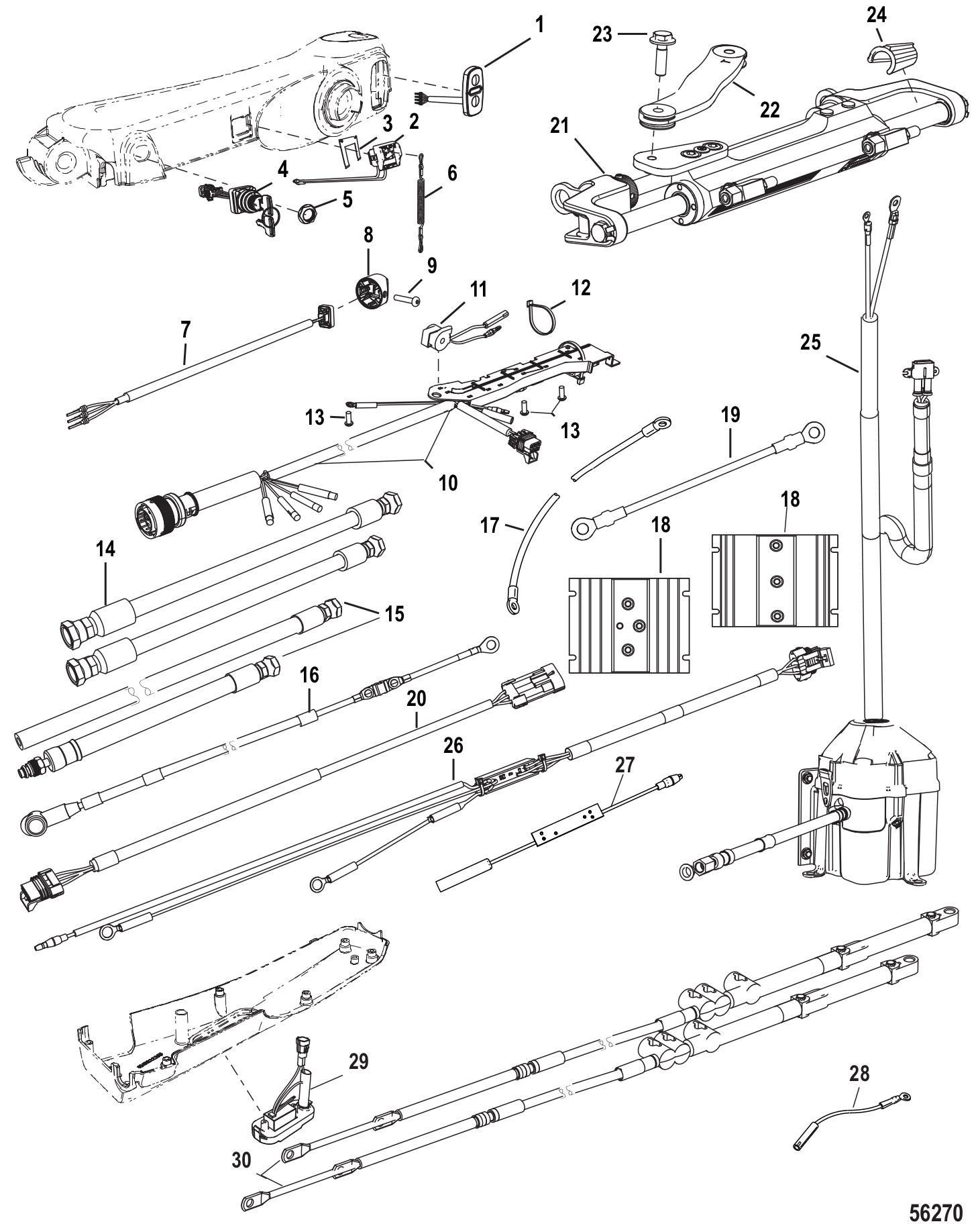

Mercury Marine Mechanical Big Tiller Tiller Steering Systems Steering Systems & Components Tiller Handle Kit (Big Tiller-2.5 / 3.0L Opti-to 250hp)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 8M0063659 | MANUAL-OPER B-TIL (AR required per assembly) — Replaces: 899988002 |
  |
|
MANUAL-OPER B-TIL [ More info ] Unavailable |
| #- | 8M0151561 | BT ARM ASY-MECH (1 required per assembly) — Replaces: 8M0094637, 8M0134607 |
  |
|
98-8M0151561 - BT ARM ASY-MECH [ More info ] Unavailable |
| #- | 8M0134607 | TILLER ARM PS/MEC (1 required per assembly) — Replaces: 879291A01, 8M0094637 |
  |
|
8M0134607 - Tiller Arm PS/MEC [ More info ] Unavailable |
| #1 | 8M0083437 | CONTROL KIT TROLLING (1 required per assembly) — Replaces: 897978T01 |
  |
|
878M0083437 - Control Assembly [ More info ]
|
| #2 | 879347A01 | EMERGENCY STOP SWITCH (1 required per assembly) |
  |
|
879347A01 - Switch -Emergency Stop [ More info ]
|
| #3 | 8M0032846 | RETAINER BRASS (1 required per assembly) — Replaces: 120441 |
  |
|
8M0032846 - Brass Retainer [ More info ]
|
| #4 | 897716K01 | SWITCH KIT IGNITION (3 POSITION) WITH KEYS See Switch Kit parts breakdown for replacement keys. (1 required per assembly) |
  |
|
87-897716K01 - Switch Kit, 3 Position [ More info ]
|
| #5 | 897716001 | NUT PLASTIC-KEY SWITCH (1 required per assembly) |
  |
|
11-897716001 - Nut, Plastic-Key Switch [ More info ]
|
| #6 | 8M0165957 | LANYARD 70 INCH (1 required per assembly) — Replaces: 8M0092851 |
  |
|
8M0165957 - LANYARD 70 INCH [ More info ] Unavailable |
| #6 | 8M0044351 | LANYARD ASSEMBLY STOP SWITCH - 70 INCH (1 required per assembly) |
  |
|
87-8M0044351 - 8M0092851 [ More info ] Unavailable |
| #7 | 8M0125238 | TRIM SWITCH ASSEMBLY (1 required per assembly) — Replaces: 879347A02 |
  |
|
8M0125238 - Trim Switch Assembly [ More info ]
|
| #8 | 8M0030401 | CAP HANDLE TRIM SWITCH (1 required per assembly) |
  |
|
8M0030401 - Handle Trim Switch Cap [ More info ]
|
| #9 | 4005685 | SCREW (M4 X 10) (2 required per assembly) |
  |
|
10-40056 85 - Screw [ More info ]
|
| #10 | 879347A03 | HARNESS AND PLATE ASSEMBLY (1 required per assembly) |
  |
|
879347A03 - Electric Plat Assembly [ More info ]
|
| #11 | 8M0144930 | ALARM ASSEMBLY AUDIO WARNING (1 required per assembly) — Replaces: 816492A1, 8M3001068 |
  |
84-8M0144930 - Alarm [ More info ] Unavailable |
|
  |
|
84-8M0210763 - ALARM ASSY [ More info ] In Stock |
| #12 | 816311T | TIE STRAP (8.00 INCHES) (3 required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #13 | 4005685 | SCREW (M4 X 10) (3 required per assembly) |
| #14 | 8M0177173 | HOSE KIT-32/24 IN (1 required per assembly) — Replaces: 897982K25, 8M0055386 |
  |
|
32-8M0177173 - HOSE KIT-32/24 IN [ More info ] Unavailable |
| #15 | 8M0150613 | PUMP TO BULKHEAD/HELM KIT 10 FT (1 required per assembly) — Replaces: 892438K10 |
  |
|
328M0150613 - Hose Kit 10FT [ More info ]
|
| #16 | 898289T55 | HARNESS ASSEMBLY FUSE, 60 INCHES (2 required per assembly) |
  |
|
84-898289T55 - Fuse Harness Assembly [ More info ]
|
| #17 | 88439A28 | CABLE ASSEMBLY BATTERY - BLACK (1 required per assembly) |
  |
|
84-88439A28 - Battery Cable Assembly [ More info ]
|
| #18 | 8M6005583 | BATTERY ISOLATOR 80 AMPERE (1 required per assembly) — Replaces: 809621, 8M6001343 |
  |
|
878M6005583 - Battery Isolator [ More info ]
|
| #19 | 898289T38 | CABLE ASSEMBLY ISOLATOR (1 required per assembly) |
  |
|
84-898289T38 - Cable Assembly [ More info ] Unavailable |
| #20 | 8M0138676 | SIGNAL HARNESS POWER STEERING, 10 FOOT. (1 required per assembly) — Replaces: 893371T10 |
  |
|
848M0138676 - Harness-PWRSTR10F [ More info ]
|
| #21 | 8M0184536 | KIT-STR ACTUATOR See seperate parts breakdown for replacement parts. (1 required per assembly) — Replaces: 898349A15 |
  |
|
8M0184536 - KIT-STR ACTUATOR [ More info ] Unavailable |
| #22 | 898082A04 | LINK ASSEMBLY STEERING - CURVED ARM (1 required per assembly) |
  |
|
898082A04 - LINK ASSEMBLY Ste [ More info ] Unavailable |
| #23 | 875273138 | SCREW (.375-24 X 1.38) (1 required per assembly) |
  |
10-875273138 - Screw [ More info ] Unavailable |
|
  |
|
10-8M0214980 - SCREW [ More info ] Unavailable |
| #24 | 891762A04 | STABILIZER CLIP (2 required per assembly) |
  |
|
64-891762A04 - Stablzr Clps - Priced Individually [ More info ]
|
| #25 | 8M0148159 | POWER STEERING PUMP GEN C See seperate parts breakdown for replacement parts for pump. (1 required per assembly) — Replaces: 8M0122660, 8M0131261 |
  |
|
8M0148159 - Power Steering Pump GENC [ More info ] Unavailable |
| #25 | 8M0131261 | PUMP KIT POWER STEERING (4 FEET) See seperate parts breakdown for replacement parts for pump. (1 required per assembly) — Replaces: 8M0080199, 8M0122660 |
  |
|
8M0131261 - Pump Kit-P/S 4 FT [ More info ] Unavailable |
| #26 | 8M0103448 | ADAPTER/MODULE POWER STEERING (1 required per assembly) — Replaces: 898289T19 |
  |
|
8M0103448 - P/S ADAPTR MODULE [ More info ]
|
| #27 | 8M0095931 | ADAPTER POWER STEERING 2.1L (1 required per assembly) |
  |
|
8M0095931 - Adapter-2.1L [ More info ]
|
| #28 | 8M0094651 | CABLE ASSEMBLY BATTERY ISOLATOR (1 required per assembly) |
  |
|
848M0094651 - Cable [ More info ] Unavailable |
| #29 | 897978T02 | SWTCH & LIGHT ASY Optional - Order Separate (1 required per assembly) |
  |
|
87-897978T02 - Switch & Light Assembly [ More info ]
|
| #30 | 8M0083238 | CABLE KT-T/S OPTI Order Separate-Mechanical Application (AR required per assembly) — Replaces: 8M0082867 |
  |
|
8M0083238 - Cable Kit-T/S OPTI [ More info ] Unavailable |
| #30 | 8M0082353 | CABLE KT-T/S OPTI Order Separate-Mechanical Application (AR required per assembly) — Replaces: 897978K03 |
  |
|
8M0082353 - Cable Kit-T/S OPTI [ More info ]
|
| #30 | 8M0082352 | CABLE KT-T/S GEN2 Order Separate-Mechanical Application (AR required per assembly) — Replaces: 897978K02 |
  |
|
8M0082352 - Throttle Cable Kit [ More info ]
|
| #30 | 8M0082351 | CABLE KT-T/S GEN2 Order Separate-Mechanical Application (AR required per assembly) — Replaces: 897978K01 |
  |
|
8M0082351 - Cable Kit - T/S GEN2 [ More info ]
|
| #30 | 8M0083500 | CABLE KT-T/S 4-S Order Separate-Mechanical Application (AR required per assembly) — Replaces: 8M0090686 |
  |
|
8M0083500 - Cable Kit-T/S 4-S [ More info ]
|
