Tiller Handle Assembly (Big Tiller-2.5 / 3.0L Opti-to 250hp)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0151561	BT ARM ASY-MECH (1 required per assembly) — Replaces: 8M0094637, 8M0134607
		98-8M0151561 - BT ARM ASY-MECH [ More info ] Unavailable
#-	8M0134607	TILLER ARM PS/MEC (1 required per assembly) — Replaces: 879291A01, 8M0094637
		8M0134607 - Tiller Arm PS/MEC [ More info ] Unavailable
#1	8M0144909	HOUSING STEERING HANDLE, UPPER (1 required per assembly) — Replaces: 879346T02
		8M0144909 - Housing(UPPER) [ More info ] $271.31 Available to Order: Shipping delay up to 10 days.
#2	879346A01	SHIFT HANDLE ASSEMBLY (1 required per assembly)
		879346A01 - Shift Handle Assembly [ More info ] $64.09 Available to Order: Shipping delay up to 10 days.
#3	40011130	SCREW (M6 X 30) STAINLESS STEEL (1 required per assembly)
		10-40011130 - Screw [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#4	8M0103813	SCREW (M8 X 30) (1 required per assembly) — Replaces: 88552630
		108M0103813 - Screw [ More info ] $4.09 1 In Stock.
#5	879346T15	COVER SHIFT HANDLE-MERCURY (1 required per assembly)
		879346T15 - Cover [ More info ] $25.02 Available to Order: Shipping delay up to 10 days.
#6	8M0165596	GRIP THROTTLE (1 required per assembly) — Replaces: 879346T05
		8M0165596 - GRIP THROTTLE [ More info ] $168.39 Available to Order: Shipping delay up to 10 days.
#7	879346T06	GRIP RUBBER (1 required per assembly)
		879346T06 - Rubber Grip [ More info ] $13.30 Available to Order: Shipping delay up to 10 days.
#8	8M0034107	NUT (1 required per assembly)
		11-8M0034107 - Nut [ More info ] $8.89 Available to Order: Shipping delay up to 10 days.
#9	8M0024573	WASHER (1 required per assembly)
		12-8M0024573 - Washer [ More info ] $2.62 Available to Order: Shipping delay up to 10 days.
#10	8M0022037	GROMMET (1 required per assembly)
		8M0022037 - Grommet [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#11	879346T08	CHASSIS THROTTLE GRIP (1 required per assembly)
		879346T08 - Grip Chassis [ More info ] $100.36 Available to Order: Shipping delay up to 10 days.
#12	8M0030401	CAP HANDLE TRIM SWITCH (1 required per assembly)
		8M0030401 - Handle Trim Switch Cap [ More info ] $9.35 Available to Order: Shipping delay up to 10 days.
#13	4005685	SCREW (M4 X 10) (2 required per assembly)
		10-40056 85 - Screw [ More info ] $1.82 $1.74 1 In Stock.
#14	8M0021535	BUSHING (2 required per assembly)
		23-8M0021535 - Bushing [ More info ] $2.62 Available to Order: Shipping delay up to 10 days.
#15	86724	PIN (1 required per assembly)
		17-86724 - Pin [ More info ] $5.99 Available to Order: Shipping delay up to 10 days.
#16	879346T09	LINK ROD (1 required per assembly)
		879346T09 - Link Rod [ More info ] $13.91 Available to Order: Shipping delay up to 10 days.
#17	8M0022092	NUT (.250-28, LEFT HAND) (1 required per assembly)
		8M0022092 - NUT (.250-28, Lef [ More info ] Unavailable
#18	8M0020939	TURNBUCKLE (1 required per assembly)
		8M0020939 - Turnbuckle [ More info ] Unavailable
#19	F2015	NUT (.250-28) STAINLESS STEEL (1 required per assembly)
		11-F2015 - Nut, (.250-28) Stainless Steel [ More info ] $2.39 10+ In Stock.
#20	879346T07	MANIFOLD ASSEMBLY (1 required per assembly)
		879346T07 - Manifold Assembly [ More info ] $870.45 Available to Order: Shipping delay up to 10 days.
#21	892519	FITTING (9/16 -18) STRAIGHT (STAINLESS STEEL) (2 required per assembly)
		22-892519 - Fitting [ More info ] $25.25 Available to Order: Shipping delay up to 10 days.
#22	8M0161199	FITTING (2 required per assembly) — Replaces: 8M0033226
		22-8M0161199 - FITTING [ More info ] Unavailable
#23	8M0103818	SCREW (M8 X 75) (1 required per assembly) — Replaces: 88552675
		108M0103818 - Screw - Priced Individually [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#24	8M0035136	BUSHING (2 required per assembly)
		23-8M0035136 - Bushing [ More info ] $5.68 Available to Order: Shipping delay up to 10 days.
#25	8M0045301	GROMMET (1 required per assembly) — Replaces: 8M0011098
		8M0045301 - Grommet [ More info ] $11.79 1 In Stock.
#26	8M0085515	SCREW (#8 - 32 X .375) (2 required per assembly) — Replaces: 8222151
		10-8M0085515 - Screw [ More info ] $6.06 Available to Order: Shipping delay up to 10 days.
#27	8M0028230	RETAINER (2 required per assembly)
		8M0028230 - Retainer [ More info ] $4.81 Available to Order: Shipping delay up to 10 days.
#28	82130010	SCREW (M6 X 10) (2 required per assembly)
		10-821300 10 - Screw [ More info ] $5.09 2 In Stock.
#29	879346T17	BRACKET SHIFT MOUNT (1 required per assembly)
		879346T17 - Bracket -shft Mnt [ More info ] $19.19 Available to Order: Shipping delay up to 10 days.
#30	823567105	SCREW (M10 X 105) HEX FLANGE - STAINLESS STEEL (1 required per assembly)
		10-823567105 - Screw [ More info ] $11.59 Available to Order: Shipping delay up to 10 days.
#31	4002319	WASHER (1 required per assembly)
		12-40023 19 - Washer (M10) [ More info ] $3.19 7 In Stock.
#32	12024	WASHER (.402 X .787 X .039 BELLEVI) (1 required per assembly)
		12-12024 - Washer, (.402 X .787 X .039 ) [ More info ] $5.89 Available to Order: Shipping delay up to 10 days.
#33	8M0031370	BUSHING (1 required per assembly)
		23-8M0031370 - Bushing [ More info ] $17.83 Available to Order: Shipping delay up to 10 days.
#34	879346T13	BRACKET (1 required per assembly)
		879346T13 - Mounting Bracket [ More info ] $98.75 Available to Order: Shipping delay up to 10 days.
#35	826292	NUT (M10) BRASS/NICKEL PLATED (1 required per assembly)
		11-826292 - Nut (M10) [ More info ] $4.19 $3.36 10+ In Stock.
#36	879346T14	ADAPTER PLATE (1 required per assembly)
		879346T14 - Adapter [ More info ] $205.53 Available to Order: Shipping delay up to 10 days.
#37	875273138	SCREW (.375-24 X 1.38) (2 required per assembly)
		10-875273138 - Screw [ More info ] Unavailable
		10-8M0214980 - SCREW [ More info ] Unavailable
#38	8M0204726	NUT-BRASS @3 (2 required per assembly) — Replaces: 826709113, 8M0042636
		118M0204726 - NUT-BRASS Note: Priced Individually [ More info ] $1.80 10 In Stock.
#39	879346T12	TILT LOCK ASSEMBLY (1 required per assembly)
		879346T12 - Tilt Lock Assembly [ More info ] $52.60 Available to Order: Shipping delay up to 10 days.
#40	879346T11	HANDLE (1 required per assembly)
		879346T11 - Handle C [ More info ] $7.84 Available to Order: Shipping delay up to 10 days.

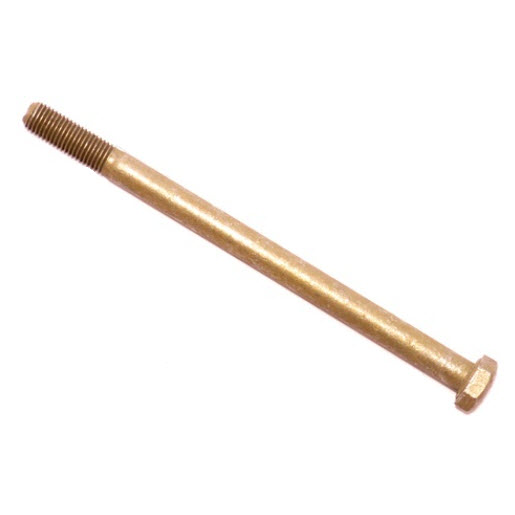

#41	8M0028288	SCREW (.312-24HX HD CAP X 5.0) (2 required per assembly)
		10-8M0028288 - Screw [ More info ] $4.81 Available to Order: Shipping delay up to 10 days.
#42	42981	TAB WASHER (2 required per assembly)
		14-42981 - Tab Washer [ More info ] $7.39 Available to Order: Shipping delay up to 10 days.
#43	34437	WASHER (2 required per assembly)
		12-34437 - Washer (5/16 In. I.d.) [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#44	8M0033313	DECAL ON-OFF-START (1 required per assembly)
		37-8M0033313 - Decal -on/Off/Strt [ More info ] $3.55 Available to Order: Shipping delay up to 10 days.
#45	8M0029029	DECAL THROTTLE (1 required per assembly)
		37-8M0029029 - Decal - Throttle [ More info ] $10.04 Available to Order: Shipping delay up to 10 days.
#46	8M0029030	DECAL R-N-F (1 required per assembly)
		37-8M0029030 - Decal R/N/F [ More info ] $2.23 Available to Order: Shipping delay up to 10 days.
#47	879347T07	GEAR PLATE ASSEMBLY (1 required per assembly)
		879347T07 - Gear Plate Assembly [ More info ] $442.97 Available to Order: Shipping delay up to 10 days.
#48	879347A04	SHIFT ARM AND GEAR ASSEMBLY (1 required per assembly)
		879347A04 - Shift Arm & Gear [ More info ] Unavailable
#49	8M0022826	BUSHING (2 required per assembly)
		23-8M0022826 - Bushing [ More info ] $10.04 Available to Order: Shipping delay up to 10 days.
#50	29641	E RING (1 required per assembly)
		53-29641 - E Ring - Priced Individually [ More info ] $1.80 8 In Stock.
#51	879347A05	THROTTLE GEAR ASSEMBLY (1 required per assembly)
		879347A05 - Throttle Gear Assembly [ More info ] Unavailable
#52	29641	E RING (1 required per assembly)
#53	8M0028305	PIN (1 required per assembly)
		17-8M0028305 - Pin [ More info ] Unavailable
#54	8M0028543	SHIM (.040) (AR required per assembly)
		15-8M0028543 - Shim [ More info ] Unavailable
#54	8M0028542	SHIM (.020) (AR required per assembly)
		15-8M0028542 - Shim [ More info ] Unavailable
#54	8M0028541	SHIM (.010) (AR required per assembly)
		15-8M0028541 - Shim [ More info ] Unavailable
#54	8M0028540	SHIM (.005) (AR required per assembly)
		15-8M0028540 - Shim [ More info ] Unavailable
#55	8M0027443	PILLOW BLOCK (1 required per assembly)
		23-8M0027443 - Pillow Block [ More info ] $5.95 Available to Order: Shipping delay up to 10 days.
#56	8M0103808	SCREW (M6 X 30 MM) STAINLESS STEEL (2 required per assembly) — Replaces: 88552530
		108M0103808 - Screw (M6 x 30 MM) Stai [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#57	8M0028294	BUSHING (2 required per assembly)
		23-8M0028294 - Shim [ More info ] Unavailable
#58	NSS	NOT SOLD SEPARATE THROTTLE SHAFT (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#59	8M4501323	BLOCK FRICTION (1 required per assembly) — Replaces: 8M0035550
		8M4501323 - Friction Block [ More info ] $11.72 Available to Order: Shipping delay up to 10 days.
#60	8M0031550	SCREW (M4 X 0.7 X 16) (3 required per assembly)
		10-8M0031550 - Screw [ More info ] Unavailable
#61	879347A08	SPRING AND GUIDE KIT (1 required per assembly)
		879347A08 - Spring/Guide Kit [ More info ] $27.24 Available to Order: Shipping delay up to 10 days.
#62	8M0028323	RETAINER (1 required per assembly)
		8M0028323 - Retainer [ More info ] $51.56 Available to Order: Shipping delay up to 10 days.
#63	879347T06	SWITCH NEUTRAL (1 required per assembly)
		84-879347T06 - Switch [ More info ] $34.35 Available to Order: Shipping delay up to 10 days.
#64	8M0034874	SCREW (M3 X 0.5) (2 required per assembly)
		10-8M0034874 - Screw [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#65	8M0034875	NUT (M3 X 0.5 HEX) (2 required per assembly)
		11-8M0034875 - Nut, (M3 X 0.5 Hex) [ More info ] $0.10 Available to Order: Shipping delay up to 10 days.
#66	8M0085515	SCREW (#8 - 32 X .375) NOT INCLUDED IN GEAR PLATE ASSEMBLY (2 required per assembly) — Replaces: 8222151
#67	879346T16	BEARING CAP (1 required per assembly)
		879346T16 - Bearing Cap [ More info ] Unavailable
#68	88552514	SCREW (M6 X 14 MM) STAINLESS STEEL (3 required per assembly)
		10-885525 14 - Screw [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#69	879346T04	COVER STEERING HANDLE, LOWER (1 required per assembly)
		879346T04 - Cover [ More info ] $56.25 Available to Order: Shipping delay up to 10 days.
#70	4001991	SCREW (M4 X 35) (2 required per assembly)
		10-40019 91 - Screw [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#71	879346T10	COVER SWITCH/LIGHT (1 required per assembly)
		879346T10 - Cover [ More info ] $10.37 Available to Order: Shipping delay up to 10 days.
#72	828249	GROMMET (1 required per assembly)
		25-828249 - Grommet [ More info ] $17.09 $13.68 4 In Stock.
#73	879346A03	THROTTLE FRICTION KNOB ASSEMBLY (1 required per assembly)
		879346A03 - Throttle Knob Assembly [ More info ] $54.31 Available to Order: Shipping delay up to 10 days.
#74	29641	E RING (1 required per assembly)
#75	4001987	SCREW (M4 X 16) (6 required per assembly)
		10-40019 87 - Screw [ More info ] $1.80 5 In Stock.
#NS	8M0063659	MANUAL-OPER B-TIL (1 required per assembly) — Replaces: 899988001, 899988002
		MANUAL-OPER B-TIL [ More info ] Unavailable
#NS	8M0079275	MANUAL-INSTALL BT (1 required per assembly) — Replaces: 899984002, 8M0063652
		90-8M0079275 - 90-8M0079275 - MANUAL-INSTALL BT [ More info ] Unavailable Replaced by 90-8M0082858
		908M0082858 - 908M0093582 [ More info ] Unavailable
		90-8M0093582 - 90-8M0093582 - INSTALLATION MANU [ More info ] Unavailable Replaced by -8M0146284
		INSTALL MNL-BT [ More info ] $28.50 Available to Order: Shipping delay up to 10 days.
