Parts for 1550 Qc4v 9.0L (552 Cu In) V8 MerCruiser Engines - Gas Cylinder Head Bearing Plate Cover

Revise Search: Sterndrive > MerCruiser Engines - Gas > 9.0L (552 Cu In) V8 > 1550 Qc4v > 0M973231 & Up > Cylinder Head Bearing Plate Cover

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

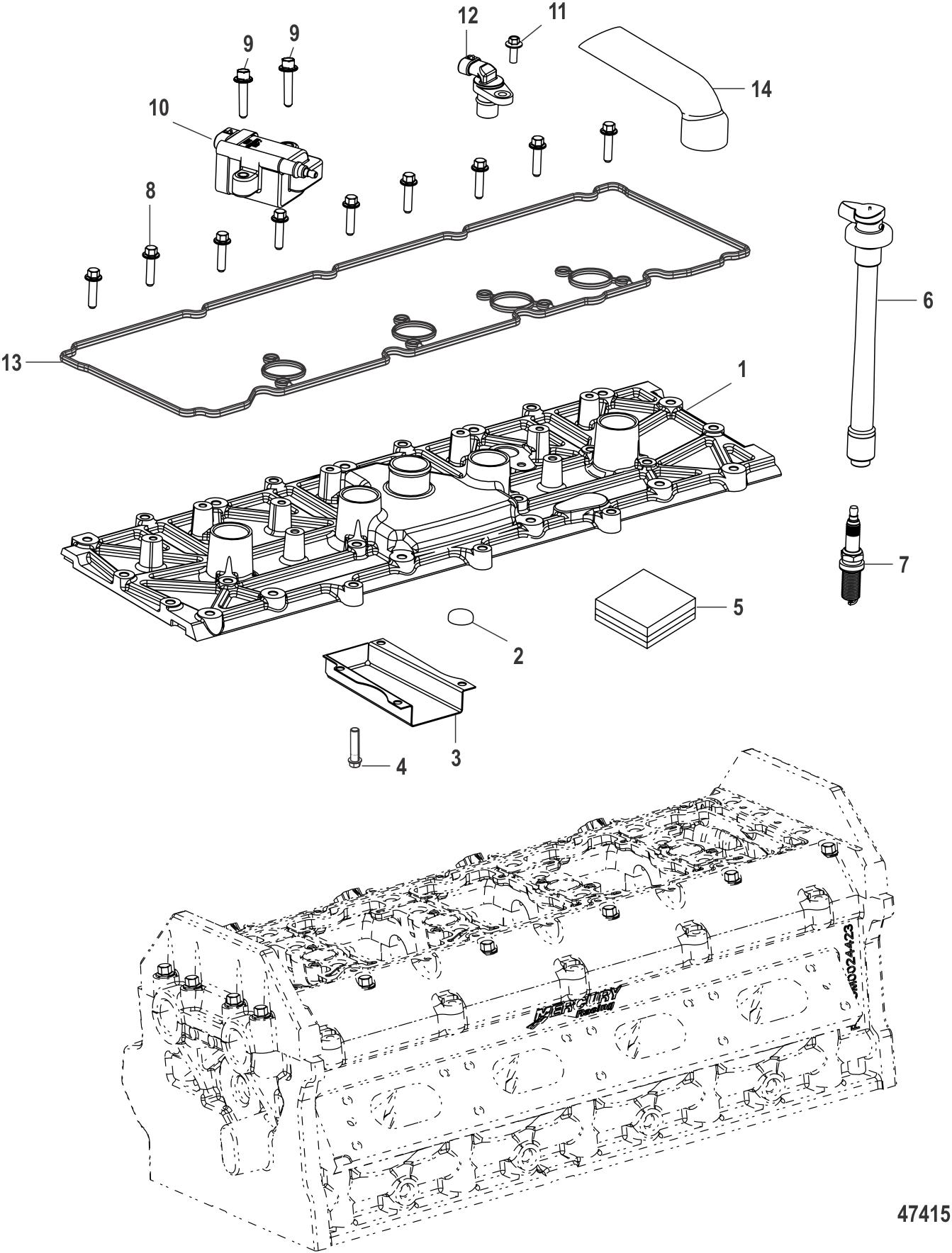

Cylinder Head Bearing Plate Cover

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	NA	NOT AVAILABLE CYLINDER HEAD ASSEMBLY Starboard (1 required per assembly)
		NA - NOT AVAILABLE [ More info ] Unavailable
#-	8M0078872	LONG BLOCK-QC4 (1 required per assembly)
		8008M0078872 - LONG BLOCK-QC4 [ More info ] Unavailable
#1	8M0058926	COVER ASSEMBLY Port (1 required per assembly)
		8M0058926 - Cover Assembly [ More info ] $930.43 Available to Order: Shipping delay up to 10 days.
#1	8M0058927	COVER ASSEMBLY Starboard (1 required per assembly)
		8M0058927 - Cover Assembly [ More info ] $912.85 Available to Order: Shipping delay up to 10 days.
#2	NSS	NOT SOLD SEPARATE PLUG (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#3	8M0050565	BAFFLE BREATHER (1 required per assembly)
		8M0050565 - Baffle [ More info ] $17.71 Available to Order: Shipping delay up to 10 days.
#4	40056103	SCREW (M5 X 6) (4 required per assembly)
		10-40056103 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#5	8M0050721	FILTER (1 required per assembly)
		8M0050721 - Filter [ More info ] $11.57 Available to Order: Shipping delay up to 10 days.
#6	8M0084452	BOOT/LEAD ASSY (8 required per assembly)
		848M0084452 - Boot/Lead Assembly [ More info ] $225.92 Available to Order: Shipping delay up to 10 days.
#7	8M0045681	NGK R7437-9 @4 (8 required per assembly)
		338M0045681 - NGK Spark Plug R7437-9 , Priced Individually [ More info ] $79.37 Available to Order: Shipping delay up to 10 days.
#8	897657025	SCREW (60 required per assembly)
		10-897657025 - Screw [ More info ] $6.69 Available to Order: Shipping delay up to 10 days.
#9	8M0103808	SCREW @2 (16 required per assembly)
		108M0103808 - Screw (M6 x 30 MM) Stai [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#10	8M0077473	IGNITION COIL (8 required per assembly)
		339-8M0077473 - Ignition Coil [ More info ] $179.49 $178.99 Available to Order: Shipping delay up to 10 days.
#11	82130012	SCREW @5 (1 required per assembly)
		10-821300 12 - Screw - Priced Individually [ More info ] $1.80 4 In Stock.
#12	8M0011987	SENSOR (1 required per assembly)
		8M0011987 - Sensor [ More info ] In Stock
		8M0233140 - SENSOR [ More info ] In Stock
#13	8M0041094	GASKET BEARING PLATE (1 required per assembly)
		278M0041094 - Gasket [ More info ] $98.79 Available to Order: Shipping delay up to 10 days.
#14	8M0045795	HOSE (1 required per assembly)
		328M0045795 - Hose [ More info ] $7.94 Available to Order: Shipping delay up to 10 days.
#NS	816311T	TIE STRAP @100 (2 required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
