Parts for 500 Bulldog GM 540 V-8 8.8L (540 Cu In) V8 MerCruiser Engines - Gas Cylinder Block & Camshaft

Revise Search: Sterndrive > MerCruiser Engines - Gas > 8.8L (540 Cu In) V8 > 500 Bulldog GM 540 V-8 > 1990-1996 0C577254 - 0F745405 - Belgium > Cylinder Block & Camshaft

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

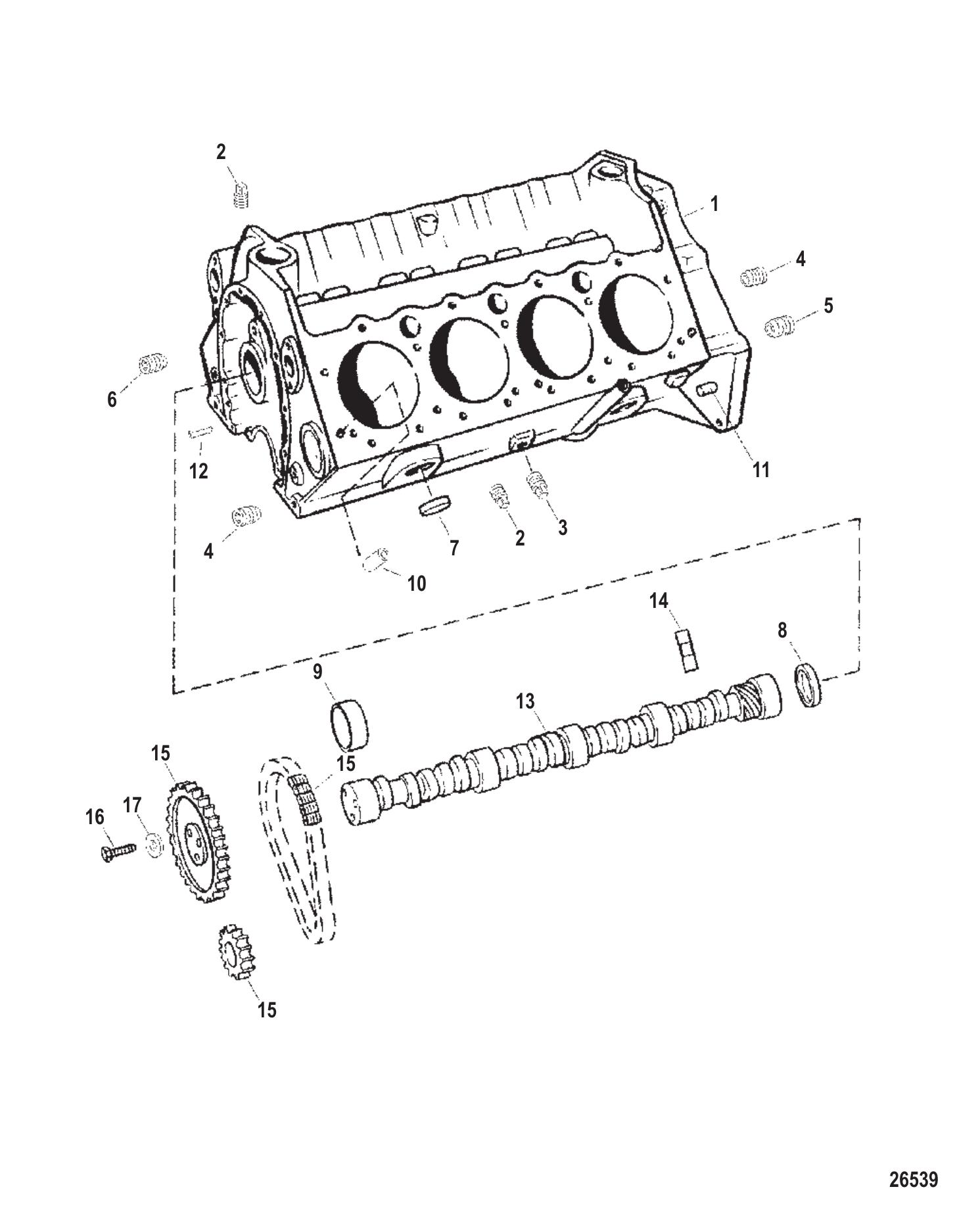

Cylinder Block & Camshaft

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	816475A26	PARTIAL ENG-500BD (BRAVO MODELS - SEE NOTE #2) (INCLUDES INTERNAL PARTS AND CYLINDER HEADS) (INTERNAL BALANCED) (SEE NOTE #3) (1 required per assembly) — Replaces: 816475A18, 816475A21
		816475A26 - PARTIAL ENG-500B,NLA [ More info ] Unavailable
#1	42112A17	BLOCK ASSEMBLY CYLINDER (1 required per assembly)
		42112A17 - BLOCK ASSY,NLA [ More info ] Unavailable
#2	328022	PLUG PIPE (.125-27) BRASS HEX HEAD-BRASS (4 required per assembly) — Replaces: 328021
		22-32802 2 - Brass Pipe Plug, Priced Individually [ More info ] $7.59 1 In Stock.
		18-4263 - Pipe Plug, 1/8-27 NPT, Brass [ More info ] $5.30 10+ In Stock.
#3	36382	FITTING (.250-18 X .62) BRASS HEX HEAD (3 required per assembly)
		22-36382 - Plug [ More info ] $5.49 4 In Stock.
		18-8111-9 - Pipe Plug, 1/4 Inch, (Pack of 3) [ More info ] $12.29 Available to Order: Shipping delay up to 10 days.
		18-4256 - Plug, 1/4 Inch Brass, Sold Individually [ More info ] $2.46 2 In Stock.
#4	8M0204652	PLUG @2 SOCKET HEAD-STEEL (3 required per assembly) — Replaces: 32561
		22-8M0204652 - PLUG @2 [ More info ] Unavailable
#5	8M0204657	PLUG (2 required per assembly) — Replaces: 36373
		228M0204657 - PLUG [ More info ] $5.69 Available to Order: Shipping delay up to 10 days.
#6	8M0044324	PLUG (1/4 INCH) SPECIAL-OIL GALLEY (2 required per assembly) — Replaces: 42534, 845606
		22-8M0044324 - Plug [ More info ] $4.79 Available to Order: Shipping delay up to 10 days.
#7	69300	EXPANSION PLUG (1.750 DIAMETER) EXPANSION (8 required per assembly)
		22-69300 - Plug [ More info ] $17.56 $10.82 10+ In Stock.
#8	94140	EXPANSION PLUG (1 required per assembly)
		19-94140 - Plug [ More info ] $4.99 $1.01 3 In Stock.
#9	85684	BEARING SET (SET) (1 required per assembly)
		23-85684 - Bearing Unit - Camshaft [ More info ] $127.49 1 In Stock.
#10	52190	PIN DOWEL (4 required per assembly)
		17-52190 - Pin -Dowel [ More info ] $10.89 $8.72 5 In Stock.
#11	8M0092110	PIN DOWEL BELL HOUSING (2 required per assembly) — Replaces: 72382, 843379
		178M0092110 - DOWEL [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#12	843378	PIN DOWEL TIMING COVER (2 required per assembly) — Replaces: 35312
		17-843378 - Pin, Dowel (.250) [ More info ] $15.99 1 In Stock.
#13	816709	CAMSHAFT (1 required per assembly)
		485-816709 - Camshaft [ More info ] Unavailable
#14	93722T	LIFTER (16 required per assembly) — Replaces: 93722
		93722T - Lifter [ More info ] $128.38 Available to Order: Shipping delay up to 10 days.
#15	77531	GEAR AND CHAIN KIT TIMING (1 required per assembly)
		77531 - Gear & Chain Kit [ More info ] Unavailable
#16	34505	SCREW (3 required per assembly)
		10-34505 - Screw [ More info ] Unavailable
#17	848136	WASHER (3 required per assembly)
		12-848136 - Washer, (.328 X .680 X .190) [ More info ] $24.79 Available to Order: Shipping delay up to 10 days.
