Parts for 502 Mag. Bravo (Gen. V) GM 502 V-8 8.2L (502 Cu In) V8 GM MerCruiser Engines - Gas Power Steering Components

Revise Search: Sterndrive > MerCruiser Engines - Gas > 8.2L (502 Cu In) V8 GM > 502 Mag. Bravo (Gen. V) GM 502 V-8 > 1992-1993 0D824589 - 0F114528 - Canada > Power Steering Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

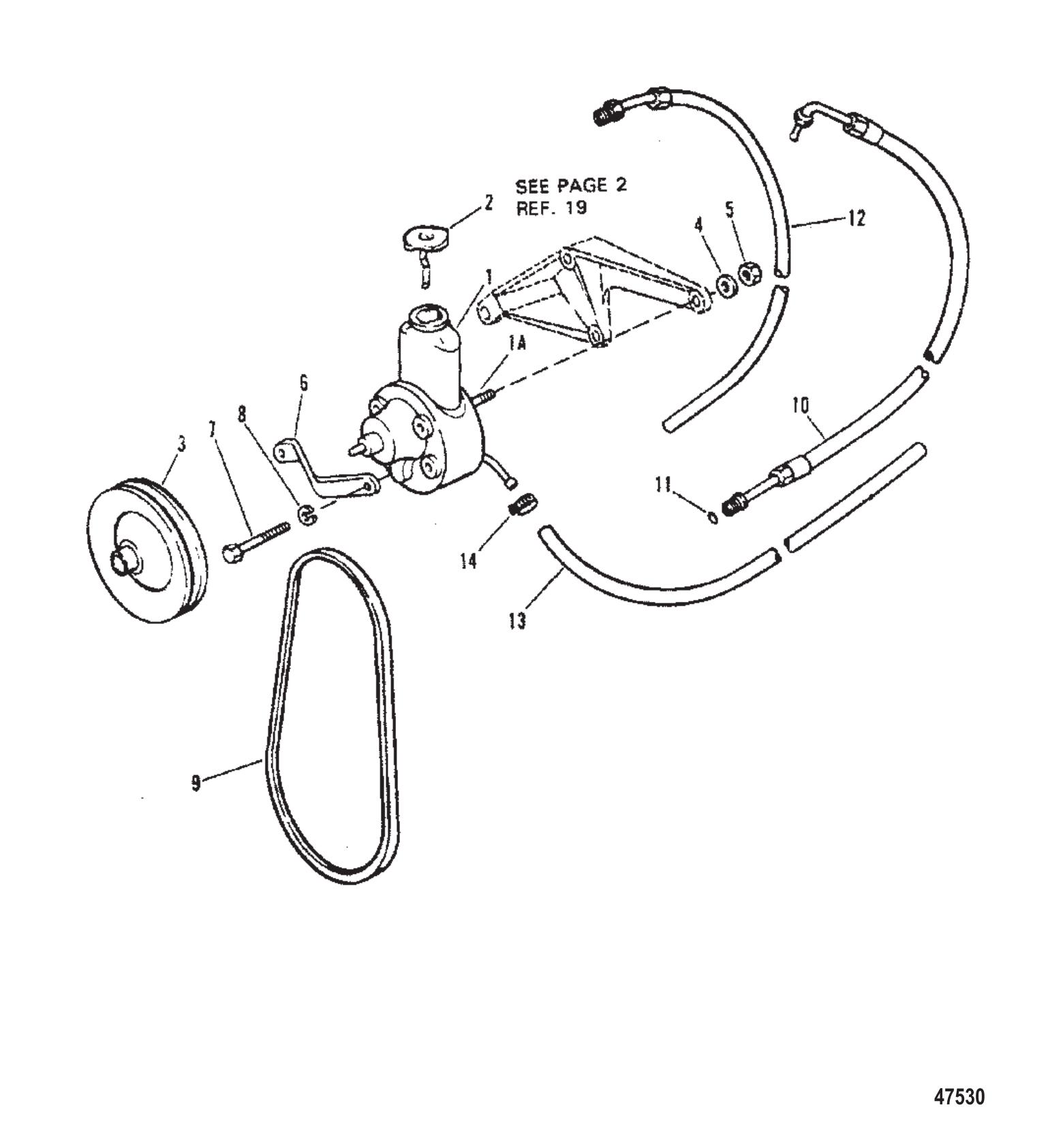

Power Steering Components

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	16792A39	PUMP P/S-W/O PLLY (1 required per assembly) — Replaces: 16792A1
		16792A39 - Power Steering Pump without Pulley [ More info ] $957.49 In Stock
		18-7508 - Power Steering Pump Assembly, 16792A39 [ More info ] $860.99 $749.12 3 In Stock.
#2	95805	CAP (1 required per assembly)
		36-95805 - Cap [ More info ] $29.49 Available to Order: Shipping delay up to 10 days.
#3	73873A1	PULLEY (1 required per assembly)
		73873A 1 - Pulley (Black) [ More info ] $221.49 Available to Order: Shipping delay up to 10 days.
#4	72057	SPACER (2 required per assembly)
		23-72057 - Spacer - Pump Screw [ More info ] $7.99 Available to Order: Shipping delay up to 10 days.
#5	90517	NUT (2 required per assembly)
		11-90517 - Nut, (M10) [ More info ] $2.69 Available to Order: Shipping delay up to 10 days.
#6	98813F1	BRACKET (1 required per assembly) — Replaces: 98813A1
		98813F 1 - Bracket [ More info ] Unavailable
#7	40001189	SCREW (1 required per assembly) — Replaces: 40001188
		10-40001189 - Screw [ More info ] $5.39 Available to Order: Shipping delay up to 10 days.
#8	400248	LOCKWASHER @2 (1 required per assembly)
		13-40024 8 - LockWasher [ More info ] $1.70 $1.36 1 In Stock.
#9	812427Q	V BELT, 56 LGTH (1 required per assembly) — Replaces: 812427T
		57-812427Q - V-Belt, 56 Lgth [ More info ] $63.49 In Stock
#10	90494	HOSE (FITTINGS ON BOTH ENDS) (1 required per assembly)
		32-90494 - Hose - 60 Inch [ More info ] $196.99 $194.53 In Stock
#11	89879	O-RING (.301 X .064) (1 required per assembly)
		25-89879 - O-ring, (.301 X .064) [ More info ] $1.60 Available to Order: Shipping delay up to 10 days.
#12	9884339	HOSE ASSEMBLY (72.00 INCHES BULK) (FITTINGS ON ONE END) (1 required per assembly)
		32-98843 39 - Hose -72 Inch [ More info ] $97.99 Available to Order: Shipping delay up to 10 days.
#13	8M0062341	HOSE (53.00 INCHES BULK) PUMP TO OIL COOLER (1 required per assembly) — Replaces: 5251915, 5251914
		32-8M0062341 - Hose -53 Inch [ More info ] $54.99 In Stock
#14	815504206	CLAMP (3 required per assembly)
		54-815504206 - Clamp [ More info ] $6.79 Available to Order: Shipping delay up to 10 days.
#1A	41877	STUD (M10) (2 required per assembly)
		16-41877 - Stud [ More info ] Unavailable
