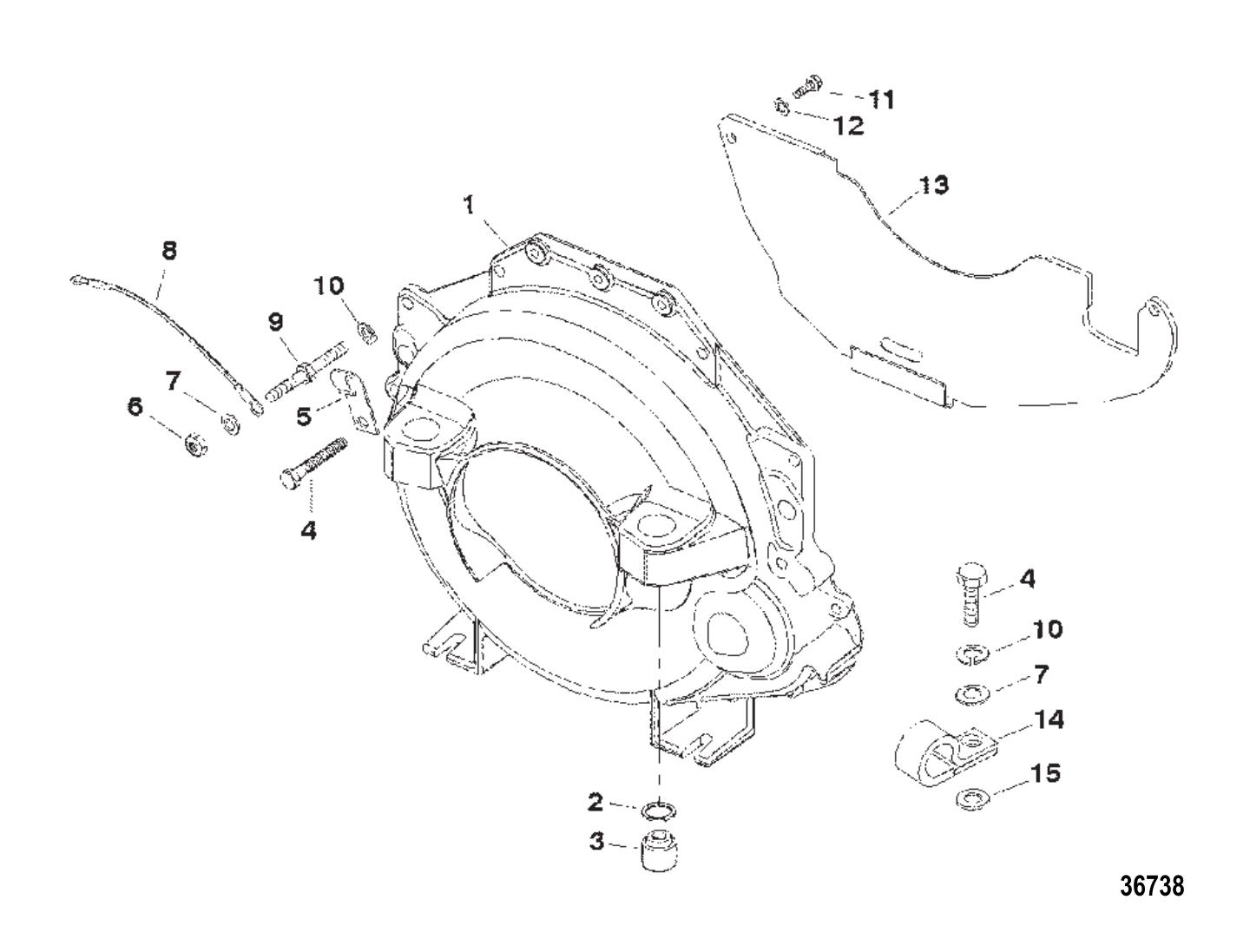

Flywheel Housing (Bravo Plug-In)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	865657A04	HSG ASSY-FLYWHEEL (1 required per assembly) — Replaces: 12675A7
		865657A04 - Flywheel Housing Assembly [ More info ] $1,095.99 Available to Order: Shipping delay up to 10 days.
#2	99322	SPACER RUBBER MOUNT (2 required per assembly)
		23-99322 - Spacer - Ruber Mount [ More info ] $6.69 10+ In Stock.
#3	865330A02	MOUNT KIT RUBBER (2 required per assembly) — Replaces: 88791T, 88791A1
		865330A02 - Mount Kit [ More info ] $169.99 In Stock
#4	37612	SCREW @5 (3 required per assembly)
		10-37612 - Screw - Priced Individually [ More info ] $2.49 3 In Stock.
#4	32132	SCREW (1 required per assembly)
		10-32132 - Screw [ More info ] $2.99 4 In Stock.
#5	78945	J CLAMP FLYWHEEL HOUSING STUD (2 required per assembly)
		54-78945 - J Clamp [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#6	32219	NUT @5 (2 required per assembly)
		11-32219 - Nut (3/8-16) [ More info ] $2.79 10+ In Stock.
#7	20553	WASHER @5 (6 required per assembly)
		12-20553 - Washer - Priced Individually [ More info ] $1.50 8 In Stock.
#8	62826T06	CABLE ASSY (1 required per assembly) — Replaces: 62826A6
		84-62826T06 - Cable Assembly [ More info ] $16.99 Available to Order: Shipping delay up to 10 days.
#9	861316	STUD (2 required per assembly) — Replaces: 64066
		16-861316 - Stud [ More info ] $15.09 Available to Order: Shipping delay up to 10 days.
#10	35048	LOCKWASHER @5 (2 required per assembly)
		13-35048 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#11	455611	SCREW (2 required per assembly)
		10-45561 1 - Screw [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#12	8M0204649	WASHER @10 (2 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#13	807260A2	COVER KIT FLYWHEEL (PLASTIC) (1 required per assembly)
		807260A 2 - Cover Assembly [ More info ] $96.49 In Stock
#14	62494	CLIP WATER HOSE (1 required per assembly)
		54-62494 - Clip [ More info ] $7.49 Available to Order: Shipping delay up to 10 days.
#15	856774	WASHER @5 (6 required per assembly)
		12-856774 - Washer, (.406 X .750 X .105) Stainless Steel [ More info ] Unavailable
		128M0214963 - WASHER Note: Priced Individually [ More info ] $2.59 10+ In Stock.
