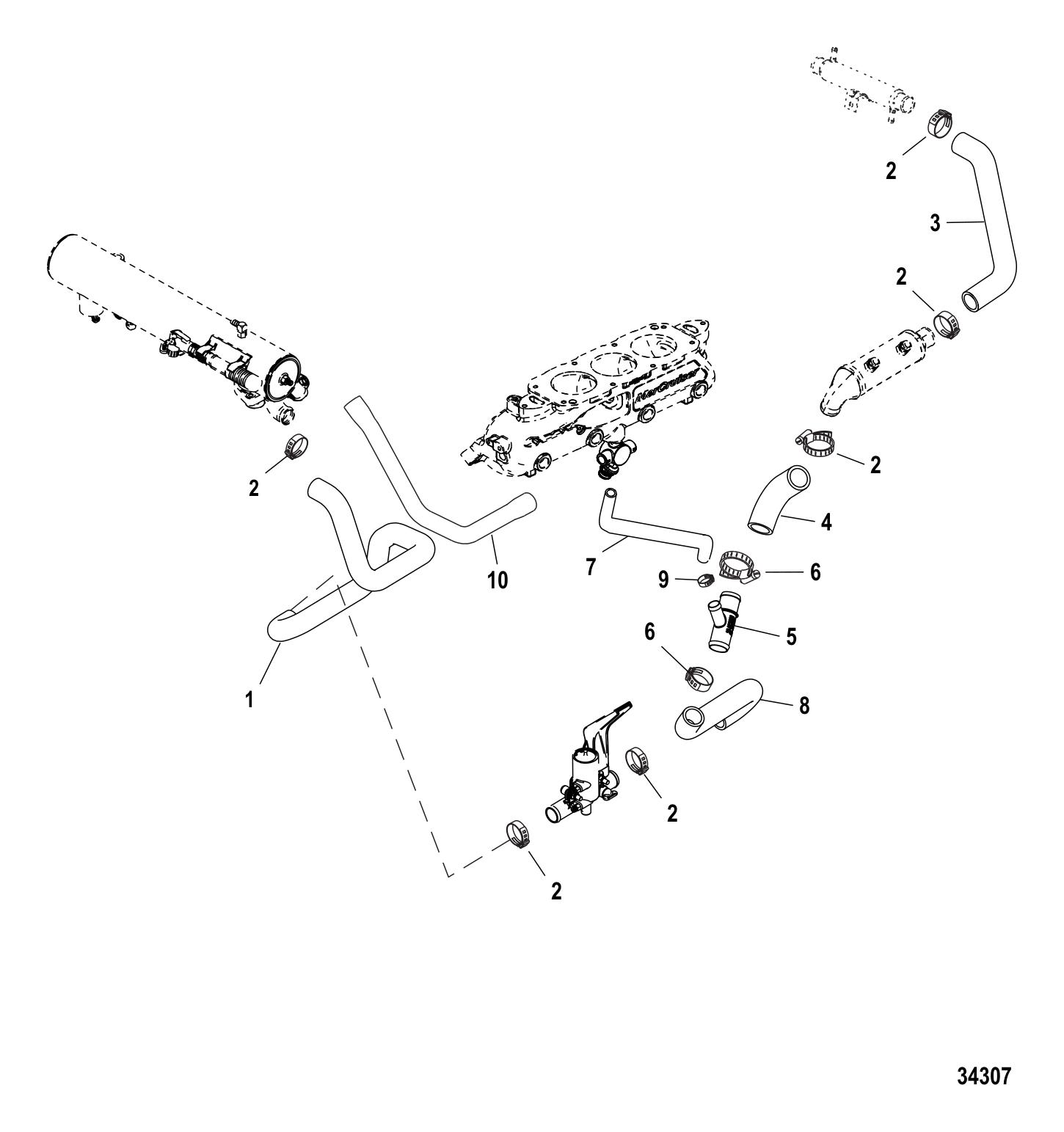

Parts for 496 Mag Ec (Base Model) 8.1L (496 Cu In) V8 GM MerCruiser Engines - Gas Cooling System Raw Water Components, Port
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 863051 | HOSE WATER DRAIN TO HEAT EXCHANGER (1 required per assembly) |
  |
|
32-863051 - Hose - Water Drain To Heat Exchanger [ More info ]
|
| #2 | 815504228 | CLAMP (AR required per assembly) |
  |
|
54-815504228 - Clamp [ More info ]
|
  |
|
54-8M0232395 - CLAMP HOSE [ More info ] Unavailable |
| #3 | 863894 | HOSE POWER STEERING COOLER TO OIL COOLER (1 required per assembly) |
  |
|
32-863894 - Molded Hose [ More info ]
|
| #4 | 8M2004467 | HOSE TO OIL COOLER (1 required per assembly) |
  |
|
32-8M2004467 - Hose - To Oil Cooler [ More info ]
|
| #5 | 862993 | FITTING-WATER (1 required per assembly) |
  |
|
22-862993 - Fitting - Water [ More info ]
|
| #6 | 815504228 | CLAMP (2 required per assembly) |
| #7 | 8M2004488 | HOSE TO DRAIN (1 required per assembly) |
  |
|
32-8M2004488 - Hose - To Drain [ More info ]
|
| #8 | 8M2004471 | HOSE TO DRAIN HOUSING (1 required per assembly) |
  |
|
32-8M2004471 - Hose - To Drain Housing [ More info ]
|
| #9 | 815504216 | CLAMP (1 required per assembly) |
  |
|
54-815504216 - Clamp [ More info ] Unavailable |
| #10 | 8M2004608 | HOSE HEAT EXCHANGER TO POPPET (1 required per assembly) |
  |
|
32-8M2004608 - Hose - Heat Exchanger [ More info ]
|
