Parts for 496 Mag Ec (Base Model) 8.1L (496 Cu In) V8 GM MerCruiser Engines - Gas Axius Steering High Pressure Filter Conversion Kit, Gen I

Revise Search: Sterndrive > MerCruiser Engines - Gas > 8.1L (496 Cu In) V8 GM > 496 Mag Ec (Base Model) > 1A066166 - 1A350440 > Axius Steering High Pressure Filter Conversion Kit, Gen I

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

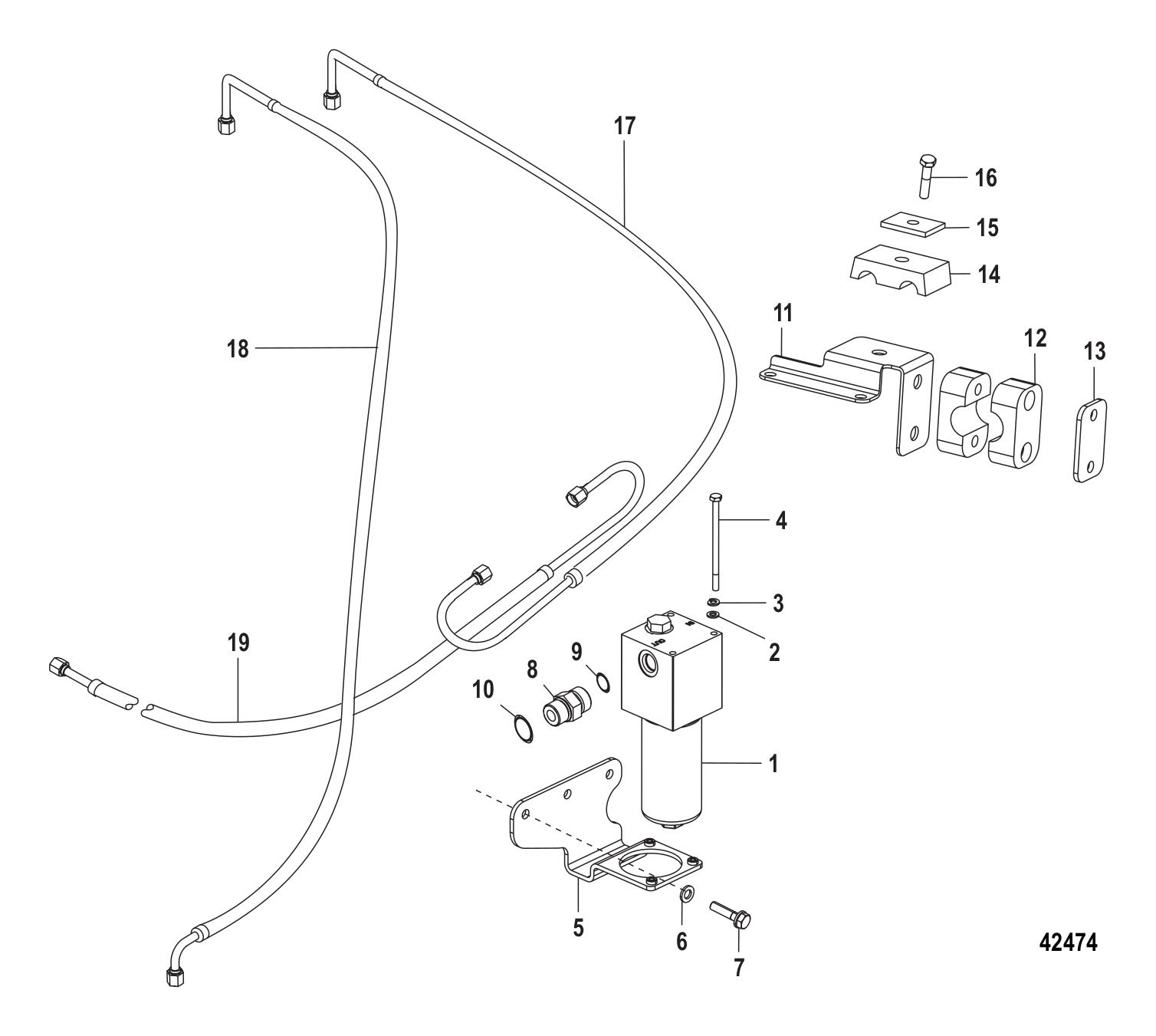

Axius Steering High Pressure Filter Conversion Kit, Gen I

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M8024873	FILTER KIT HIGH PRESSURE CONVERSION (1 required per assembly)
		8M8024873 - Filter Kit -hp [ More info ] $1,508.99 Available to Order: Shipping delay up to 10 days.
#-	879172A19	DUST CAP KIT (Refer to Service Bulletin SMC-09-06) (1 required per assembly)
		879172A19 - DUST CAP Kit [ More info ] $70.75 Available to Order: Shipping delay up to 10 days.
#1	879288T	FILTER HIGH PRESSURE (1 required per assembly)
		35-879288T - Filter [ More info ] $863.49 Available to Order: Shipping delay up to 10 days.
#2	8M0204649	WASHER @10 (3 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#3	26992	LOCKWASHER (.250) STAINLESS STEEL (3 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#4	844886	SCREW (.250-20 X 4.250) (3 required per assembly)
		10-844886 - Screw [ More info ] $6.63 Available to Order: Shipping delay up to 10 days.
#5	879172T	BRACKET (1 required per assembly)
		879172T - Bracket [ More info ] $121.49 Available to Order: Shipping delay up to 10 days.
#6	72521	LOCKWASHER INTERNAL TOOTH (3 required per assembly)
		13-72521 - LockWasher [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#7	816585	SCREW (.312-18 X .875) (3 required per assembly)
		10-816585 - Screw [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
#8	8M2015982	FITTING ADAPTER (-6ORF TO -8ORB) (2 required per assembly)
		22-8M2015982 - Fitting [ More info ] $67.49 Available to Order: Shipping delay up to 10 days.
#9	NSS	NOT SOLD SEPARATE O-RING (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#10	NSS	NOT SOLD SEPARATE O-RING (1 required per assembly)
#11	879194T	BRACKET (1 required per assembly)
		879194T - Bracket [ More info ] $18.79 Available to Order: Shipping delay up to 10 days.
#12	8M2017128	PLATE (1 required per assembly)
		8M2017128 - Plate [ More info ] $8.29 Available to Order: Shipping delay up to 10 days.
#13	8M2017127	CLAMP (2 required per assembly)
		54-8M2017127 - Clamp [ More info ] $4.99 Available to Order: Shipping delay up to 10 days.
#14	8M2017031	CLAMP (2 required per assembly)
		54-8M2017031 - Clamp [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#15	8M2017033	PLATE (1 required per assembly)
		8M2017033 - Plate [ More info ] $7.99 Available to Order: Shipping delay up to 10 days.
#16	4000332	SCREW (M6 X 35) (1 required per assembly)
		10-40003 32 - Screw [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#17	8M2016704	HOSE CYLINDER TO FILTER (Refer to Service Bulletin SMC-09-06) (1 required per assembly)
		32-8M2016704 - Hose - Cylinder To Filter [ More info ] $236.99 Available to Order: Shipping delay up to 10 days.
#18	8M2016700	HOSE CYLINDER TO COOLER (Refer to Service Bulletin SMC-09-06) (1 required per assembly)
		32-8M2016700 - Hose - Cylinder To Cooler [ More info ] $199.49 Available to Order: Shipping delay up to 10 days.
#19	8M2016702	HOSE PUMP TO FILTER (1 required per assembly)
		32-8M2016702 - Hose - Pump To Filter [ More info ] $719.49 Available to Order: Shipping delay up to 10 days.
