Parts for 7.4L Bravo (MPI) (Gen. VI) GM 454 V-8 7.4L (454 Cu In) V8 GM MerCruiser Engines - Gas Alternator (Mando)

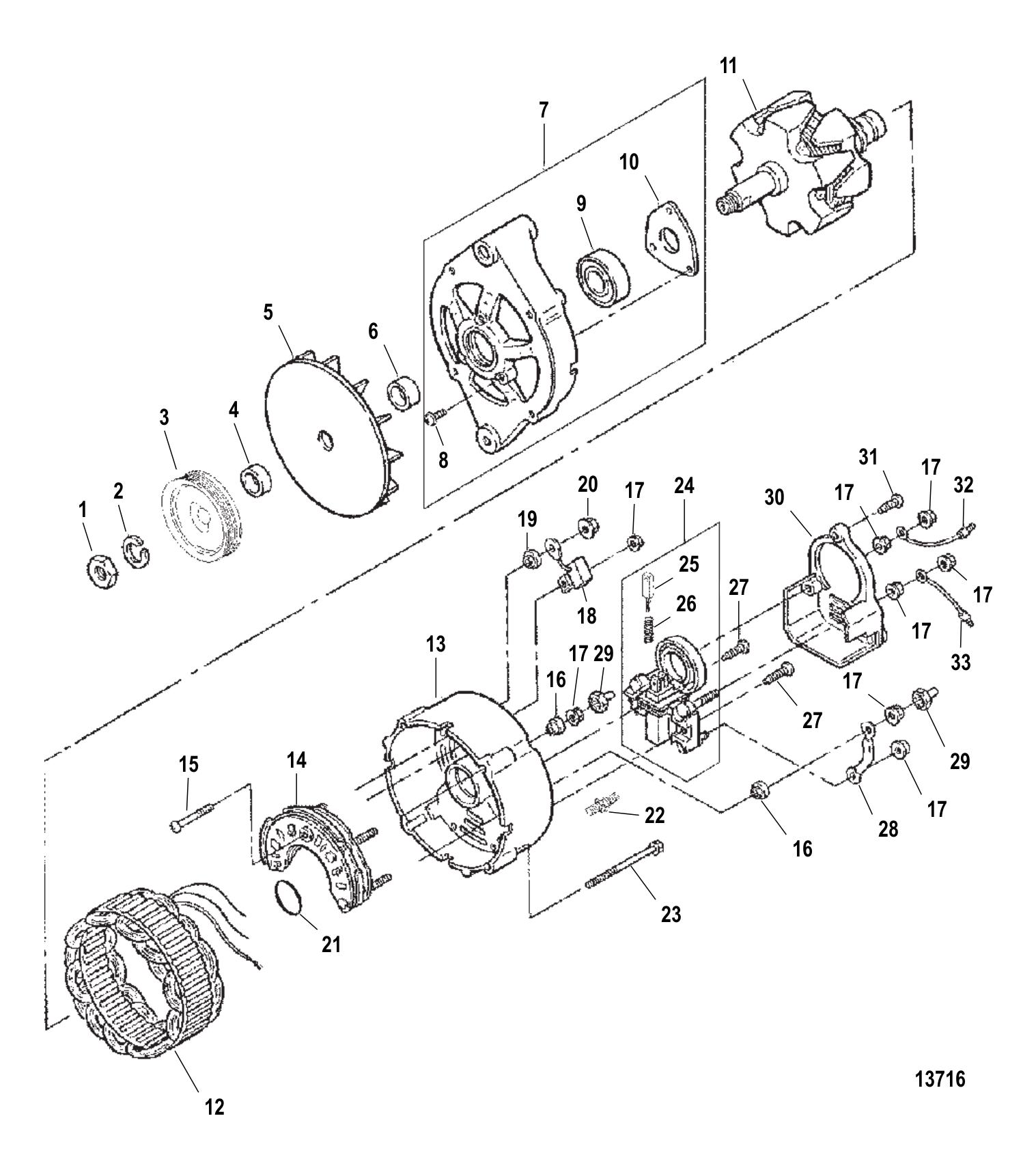

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 807653T | ALT ASSY-BLACK (1 required per assembly) |
  |
|
807653T - Alternator Assembly - Black [ More info ]
|
  |
|
18-5960 - Alternator, 807653T [ More info ]
|
  |
|
60060 - Alternator, 807653T, 65 Amp [ More info ]
|
| #1 | 809136 | NUT (1 required per assembly) |
  |
|
11-809136 - Nut [ More info ] Unavailable |
| #2 | 809137 | LOCKWASHER (1 required per assembly) |
  |
|
13-809137 - LockWasher [ More info ] Unavailable |
| #3 | 834990T | PULLEY (1 required per assembly) |
  |
|
834990T - Serpentine Pulley [ More info ]
|
| #4 | 809135 | SPACER (1 required per assembly) |
  |
|
23-809135 - Spacer [ More info ] Unavailable |
| #5 | 809139 | FAN ASSEMBLY (1 required per assembly) |
  |
|
809139 - Fan Assembly [ More info ]
|
| #6 | 809140 | SPACER (1 required per assembly) |
  |
|
23-809140 - Spacer [ More info ]
|
| #7 | 809151 | BRACKET ASSEMBLY (1 required per assembly) |
  |
|
809151 - Bracket - Front [ More info ]
|
| #8 | 809154 | SCREW (3 required per assembly) |
  |
|
10-809154 - Screw [ More info ]
|
| #9 | 809153 | BEARING (1 required per assembly) |
  |
|
30-809153 - Ball Bearing [ More info ] Unavailable |
| #10 | 809152 | RETAINER (1 required per assembly) |
  |
|
NLA [ More info ] Unavailable |
| #11 | 809150 | ROTOR (1 required per assembly) |
  |
|
809150 - ROTOR ASSY,NLA [ More info ] Unavailable |
| #12 | 809133T | STATOR (1 required per assembly) |
  |
|
809133T - Stator Assembly [ More info ] Unavailable |
| #13 | 809155 | BRACKET ASSEMBLY (1 required per assembly) |
  |
|
809155 - Bracket - Rear, NLA [ More info ] Unavailable |
| #14 | 809162 | RECTIFIER (1 required per assembly) |
  |
|
809162 - Rectifier Assembly [ More info ]
|
| #15 | 809160 | SET SCREW (1 required per assembly) |
  |
|
10-809160 - Screw -set, NLA [ More info ]
|
| #16 | 809146 | MOLD (2 required per assembly) |
  |
|
809146 - Hold, NLA [ More info ] Unavailable |
| #17 | 809143 | NUT (8 required per assembly) |
  |
|
0809143 - L/P .75 [ More info ] Unavailable |
| #18 | 809161 | CONDENSER (1 required per assembly) |
  |
|
809161 - Cond Assembly - Priced Individually [ More info ]
|
| #19 | 809158 | MOLD (1 required per assembly) |
  |
|
809158 - Hold [ More info ] Unavailable |
| #20 | 809157 | NUT (1 required per assembly) |
  |
|
11-809157 - Nut [ More info ] Unavailable |
| #21 | 809156 | O-RING (1 required per assembly) |
  |
|
25-809156 - O-Ring [ More info ]
|
| #22 | 809159 | BOLT (1 required per assembly) |
  |
|
10-809159 - Bolt, NLA [ More info ]
|
| #23 | 809138 | BOLT (4 required per assembly) |
  |
|
10-809138 - Bolt -thru, NLA [ More info ]
|
| #24 | 811883T | REGULATOR ASSEMBLY (1 required per assembly) |
  |
|
811883T - Regulator Assembly [ More info ]
|
| #25 | 811884 | BRUSH (2 required per assembly) |
  |
|
|
| #26 | 811885 | SPRING (2 required per assembly) — Replaces: 809165 |
  |
|
24-811885 - Spring, Brush,NLA [ More info ] Unavailable |
| #27 | 809141 | SCREW (2 required per assembly) |
  |
|
10-809141 - SCREW,NLA [ More info ] Unavailable |
| #28 | 809142 | TERMINAL (1 required per assembly) |
  |
|
809142 - Terminal, NLA [ More info ] Unavailable |
| #29 | 809149 | CAP (2 required per assembly) |
  |
|
809149 - Cap - Insulator [ More info ] Unavailable |
| #30 | 809144 | COVER (1 required per assembly) |
  |
|
809144 - Cover [ More info ] Unavailable |
| #31 | 809145 | SET SCREW (1 required per assembly) |
  |
|
10-809145 - Screw -set, NLA [ More info ]
|
| #32 | 809148 | LEAD WIRE (BLACK) (1 required per assembly) |
  |
|
84-809148 - Wire - Lead, NLA [ More info ]
|
| #33 | 809147 | LEAD WIRE (RED) (1 required per assembly) |
  |
|
84-809147 - Wire - Lead, NLA [ More info ]
|
