Parts for 525 Sc (Gen. V) GM 454 V-8 7.4L (454 Cu In) V8 GM MerCruiser Engines - Gas Oil Cooler, Oil Filter & Adaptor

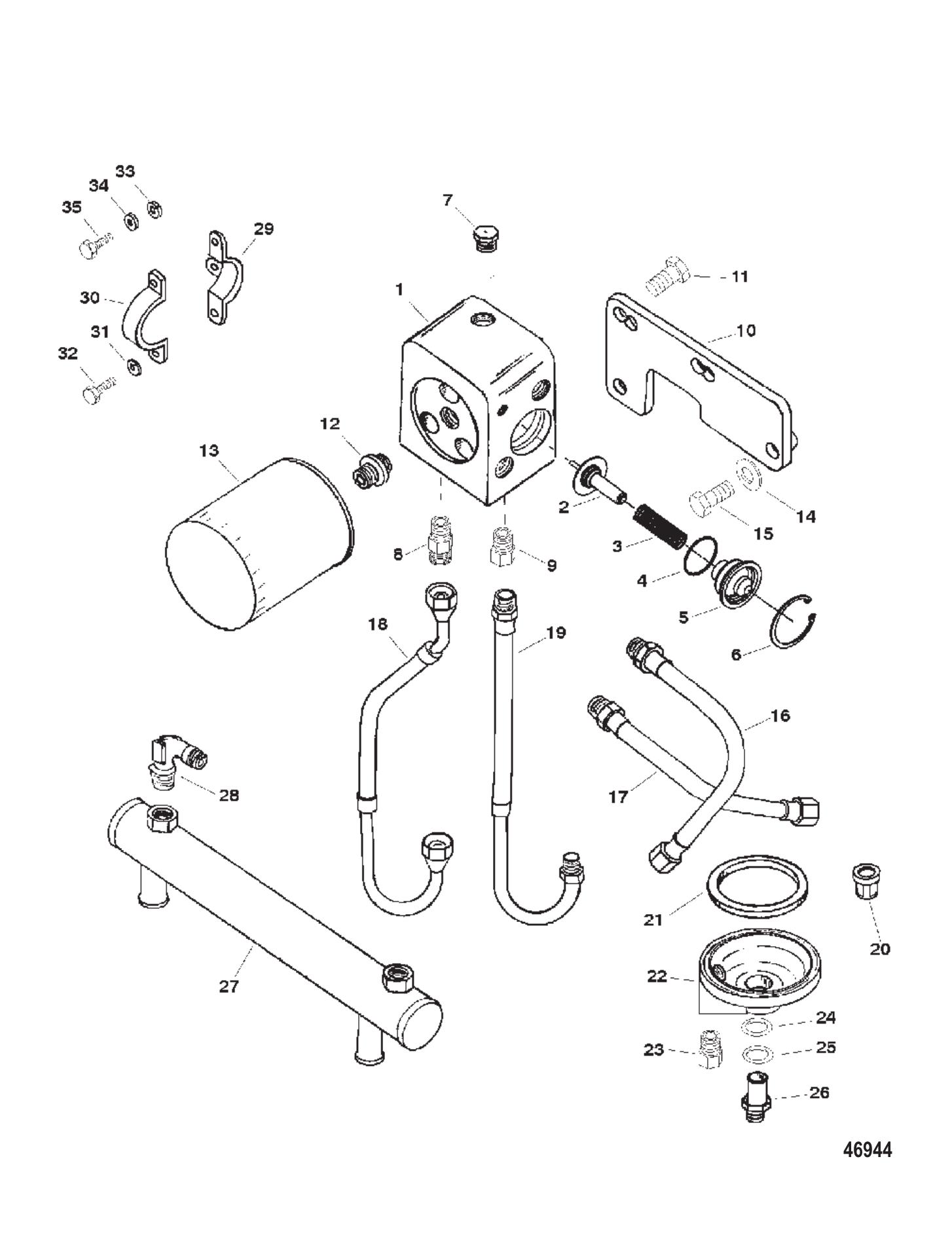

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 827014A98 | GASKET SET ENGINE OVERHAUL (1 required per assembly) — Replaces: 827014A96, 827014A97 |
  |
|
27-827014A98 - Gasket Set [ More info ] Unavailable |
| #1 | 848555T | ADAPTER OIL FILTER (1 required per assembly) — Replaces: 848555 |
  |
|
848555T - Adaptor [ More info ] Unavailable |
| #2 | 816163 | THERMOSTAT-OIL (1 required per assembly) |
  |
|
816163 - Oil Thermostat [ More info ]
|
| #3 | 816162 | SPRING (1 required per assembly) |
  |
|
24-816162 - Spring [ More info ]
|
| #4 | 864701 | O RING @2 (1 required per assembly) — Replaces: 47632 |
  |
|
25-864701 - O-ring, (1.112 X .103) [ More info ]
|
| #5 | 8161651 | COVER OIL THERMOSTAT OIL THERMOSTAT (1 required per assembly) — Replaces: 816165, 816165T |
  |
816165 1 - Cover [ More info ] Unavailable |
|
  |
|
8M0096522 - Cover [ More info ]
|
| #6 | 848571 | RING RETAINING SNAP (1 required per assembly) |
  |
|
53-848571 - Ring - Retaining [ More info ]
|
| #7 | 32804 | PLUG (1 required per assembly) |
  |
|
|
| #8 | 806186 | FITTING (1 required per assembly) |
  |
|
22-806186 - Fitting [ More info ]
|
| #9 | 805563 | FITTING (1 required per assembly) |
  |
|
22-805563 - Fitting [ More info ]
|
| #10 | 8485562 | BRACKET OIL ADAPTOR (1 required per assembly) |
  |
|
848556 2 - Bracket [ More info ]
|
| #11 | 825427 | SCREW (2 required per assembly) |
  |
|
10-825427 - Screw [ More info ]
|
| #12 | 805632 | CONNECTOR OIL FILTER (1 required per assembly) |
  |
|
22-805632 - Connector [ More info ]
|
| #13 | 16595Q | FILTER-OIL (1 required per assembly) — Replaces: 16595, 16595T |
  |
|
35-16595Q - Oil Filter [ More info ]
|
  |
|
18-7876-1 - Oil Filter - GM/Chevy Long [ More info ]
|
  |
|
35-881126K01 - Oil Filter [ More info ]
|
| #14 | 45176 | WASHER @5 (2 required per assembly) |
  |
|
12-45176 - Washer, (.453 X .812 X .105) [ More info ]
|
| #15 | 825427 | SCREW (2 required per assembly) |
| #16 | 8485742 | HOSE ASSEMBLY (14.500 IN.) (1 required per assembly) |
  |
|
32-848574 2 - Hose Assembly [ More info ]
|
| #17 | 8485741 | HOSE ASSEMBLY (13.380 IN.) (1 required per assembly) |
  |
|
32-848574 1 - Hose [ More info ] Unavailable |
| #18 | 848573 | HOSE ASSEMBLY REMOTE OIL TO ADAPTOR (1 required per assembly) |
  |
|
32-848573 - Hose - Remote Oil To Adaptor [ More info ] Unavailable |
| #19 | 848572 | HOSE ASSEMBLY REMOTE OIL TO ADAPTOR (1 required per assembly) |
  |
|
32-848572 - Hose - Remote Oil To Adaptor [ More info ] Unavailable |
| #20 | 99889 | VALVE BY PASS (1 required per assembly) |
  |
|
99889 - By Pass Valve [ More info ]
|
| #21 | 91892 | GASKET @2 (1 required per assembly) |
  |
27-91892 - Adaptor Gasket [ More info ] Unavailable |
|
  |
|
27-8M0188440 - GASKET Note: Must be ordered in multiples of 2 [ More info ] Unavailable |
| #22 | 818400A1 | ADAPTOR KIT (1 required per assembly) |
  |
|
35-818400A 1 - ADAPTER [ More info ] Unavailable |
| #23 | 805563 | CONNECTOR (.500 INCH NPTF TO .500 INCH INVERTED FLARE) (1 required per assembly) |
| #24 | 8M0204673 | O RING (1 required per assembly) — Replaces: 90196 |
  |
|
258M0204673 - O RING [ More info ]
|
| #25 | 55822 | WASHER (1 required per assembly) |
  |
|
12-55822 - Washer [ More info ]
|
| #26 | 806121 | FITTING (1 required per assembly) |
  |
|
22-806121 - Fitting [ More info ]
|
| #27 | 848192T | COOLER OIL (1 required per assembly) — Replaces: 848192 |
  |
|
848192T - Oil Cooler [ More info ] Unavailable |
| #28 | 8M0186076 | ELBOW (2 required per assembly) — Replaces: 706811 |
  |
|
22-8M0186076 - ELBOW [ More info ] Unavailable |
| #29 | 8161951 | BRACKET OIL COOLER (2 required per assembly) |
  |
|
816195 1 - Bracket [ More info ] Unavailable |
| #30 | 56328A1 | BRACKET OIL COOLER (1 required per assembly) |
  |
|
56328A 1 - Bracket [ More info ]
|
| #31 | 26992 | LOCKWASHER @5 (4 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #32 | 49668 | SCREW @5 (4 required per assembly) |
  |
|
10-49668 - Screw - Priced Individually [ More info ]
|
| #33 | 20553 | WASHER @5 (2 required per assembly) |
  |
|
12-20553 - Washer - Priced Individually [ More info ]
|
| #34 | 35048 | LOCKWASHER @5 (2 required per assembly) |
  |
|
13-35048 - LockWasher - Priced Individually [ More info ]
|
| #35 | 34353 | SCREW @5 (2 required per assembly) |
  |
|
10-34353 - Screw - Priced Individually [ More info ]
|
