Parts for 440 Trs GM 454 V-8 7.4L (454 Cu In) V8 GM MerCruiser Engines - Gas Starter Motor Assembly

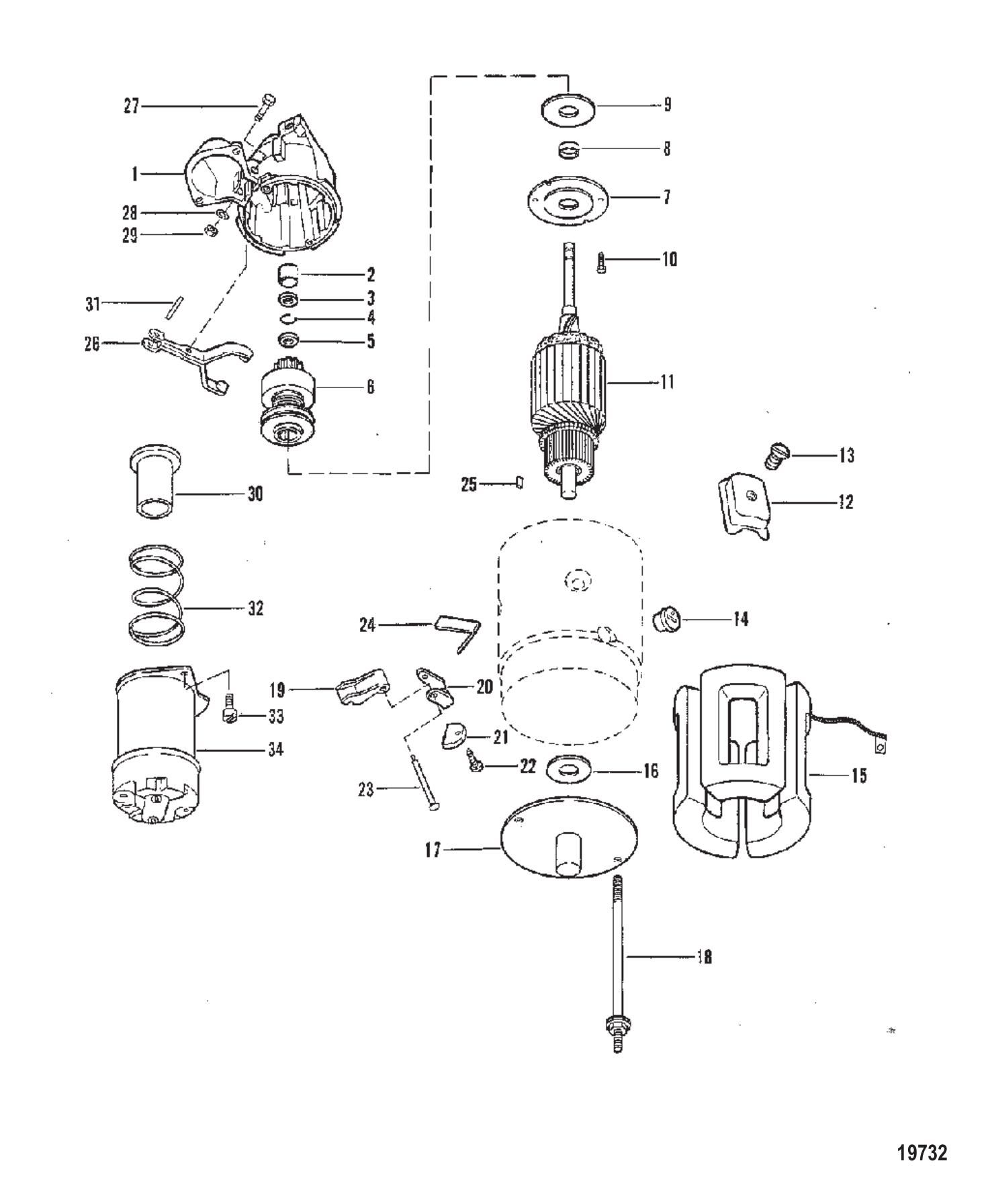

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 808011A1 | STARTER ASSY (1 required per assembly) — Replaces: 99419A3, 17251A3 |
  |
50-808011A 1 - Starter Assembly [ More info ] Unavailable |
|
  |
50-808011A 4 - Starter Motor ASY [ More info ] Unavailable |
|
  |
|
50-808011A05 - Starter Motor Assembly [ More info ]
|
  |
|
18-5911 - Starter, 60-5119 [ More info ]
|
  |
|
18-5908 - Starter, 50-808011A1, New [ More info ]
|
  |
|
18-5603-1 - Mercury/Pleasurecraft Starter [ More info ]
|
  |
|
30459 - Starter, 50-808011A4, 3862985 [ More info ]
|
  |
|
|
| #1 | 71696 | HOUSING DRIVE END (1 required per assembly) |
  |
|
71696 - Drive Housing, NLA [ More info ] Unavailable |
| #2 | 33369 | BUSHING DRIVE END HOUSING (1 required per assembly) |
  |
|
23-33369 - Bushing, NLA [ More info ]
|
| #3 | 809457 | THRUST COLLAR THRUST (1 required per assembly) — Replaces: 33292, 814474 |
  |
|
23-809457 - Thrust Collar, NLA [ More info ]
|
| #4 | 33290 | RING RETAINING PINION STOP COLLAR (1 required per assembly) |
  |
|
53-33290 - Ring - Retaining - Priced Individually [ More info ]
|
| #5 | 33291 | COLLAR PINION STOP (1 required per assembly) |
  |
|
|
| #6 | 68608 | DRIVE ASSEMBLY CLUTCH (1 required per assembly) |
  |
|
68608 - Drive Assembly, NLA [ More info ]
|
| #7 | N.S.S. | NOT SOLD SEPARATE PLATE-BEARING (DELCO REMY #1956939) (1 required per assembly) |
  |
|
N.S.S. - Not Sold Separate [ More info ] Unavailable |
| #8 | 71694 | BUSHING BEARING PLATE (1 required per assembly) |
  |
|
23-71694 - Bushing, NLA [ More info ]
|
| #9 | 68614 | WASHER BEARING PLATE (2 required per assembly) |
  |
|
12-68614 - WASHER,NLA [ More info ] Unavailable |
| #10 | 79209 | SCREW (2 required per assembly) |
  |
|
10-79209 - Screw, NLA [ More info ]
|
| #11 | 75665 | ARMATURE (1 required per assembly) |
  |
|
75665 - Armature, NLA [ More info ] Unavailable |
| #12 | N.S.S. | NOT SOLD SEPARATE SHOE, POLE-FIELD COIL (DELCO REMY #810601) (4 required per assembly) |
| #13 | N.S.S. | NOT SOLD SEPARATE SCREW, POLE SHOE TO FIELD COIL (DELCO REMY #1968396) (4 required per assembly) |
| #14 | 79208 | GROMMET FIELD COIL- FIELD FRAME (1 required per assembly) |
  |
|
25-79208 - Grommet, NLA [ More info ] Unavailable |
| #15 | 75664 | COIL ASSEMBLY (1 required per assembly) |
  |
|
75664 - Field Coil ASSY,NLA [ More info ] Unavailable |
| #16 | 33258 | WASHER LEATHER COMMUTATOR END FRAME (1 required per assembly) |
  |
|
12-33258 - Washer, Leather - Commutator End Frame, NLA [ More info ]
|
| #17 | 79211 | FRAME COMMUTATOR END-LOWER (1 required per assembly) |
  |
|
79211 - Frame, NLA [ More info ] Unavailable |
| #18 | N.S.S. | NOT SOLD SEPARATE THRU BOLT (DELCO REMY #1939970) (1 required per assembly) |
| #19 | 33284 | HOLDER INSULATED- FIELD FRAME BRUSH (2 required per assembly) |
  |
|
33284 - Insulated Holder, NLA [ More info ] Unavailable |
| #20 | 33283 | HOLDER FIELD FRAME BRUSH GROUND (2 required per assembly) |
  |
|
33283 - Holder, NLA [ More info ]
|
| #21 | 33270 | BRUSH FIELD FRAME (4 required per assembly) |
  |
|
|
| #22 | N.S.S. | NOT SOLD SEPARATE SCREW-BRUSH LEAD (DELCO REMY #443527) (2 required per assembly) |
| #23 | 33294 | SUPPORT GROUND AND INSULATED HOLDERS (2 required per assembly) |
  |
|
33294 - Support, NLA [ More info ]
|
| #24 | 33258 | WASHER LEATHER FIELD FRAME BRUSH (4 required per assembly) |
| #25 | N.S.S. | NOT SOLD SEPARATE DOWEL PIN-FIELD FRAME (DELCO REMY #809593) (1 required per assembly) |
| #26 | 33297 | LEVER SHIFT (1 required per assembly) |
  |
|
|
| #27 | N.S.S. | NOT SOLD SEPARATE STUD-SHIFT LEVER (DELCO REMY #1814529) (1 required per assembly) |
| #28 | 68615 | WASHER SHIFT LEVER STUD (1 required per assembly) |
  |
|
12-68615 - Washer, Shift Lever Screw, NLA [ More info ]
|
| #29 | 8M0204646 | NUT @5 SHIFT LEVER STUD (1 required per assembly) — Replaces: 26484 |
  |
|
11-8M0204646 - NUT @5 [ More info ] Unavailable |
| #30 | 33317 | PLUNGER SHIFT LEVER (1 required per assembly) |
  |
|
33317 - Plunger, NLA [ More info ]
|
| #31 | 79207 | PIN PLUNGER TO SHIFT LEVER (1 required per assembly) |
  |
|
17-79207 - PIN,NLA [ More info ] Unavailable |
| #32 | N.S.S. | NOT SOLD SEPARATE SPRING-PLUNGER RETURN (DELCO REMY #1958679) (1 required per assembly) |
| #33 | N.S.S. | NOT SOLD SEPARATE SCREW-SOLENOID SWITCH (DELCO REMY #9413260) (2 required per assembly) |
| #34 | 33261 | SOLENOID SWITCH ASSEMBLY (1 required per assembly) |
  |
|
|
  |
|
18-5838 - Solenoid 89902 [ More info ]
|
  |
|
18-5837 - Solenoid 89-99253, 38538 [ More info ]
|
  |
|
SW975 - Solenoid [ More info ]
|
