Parts for 350 Mag. Bravo MPI GM 350 V-8 5.7L (350 Cu In) V8 GM MerCruiser Engines - Gas Crankshaft Pistons & Conn. Rods

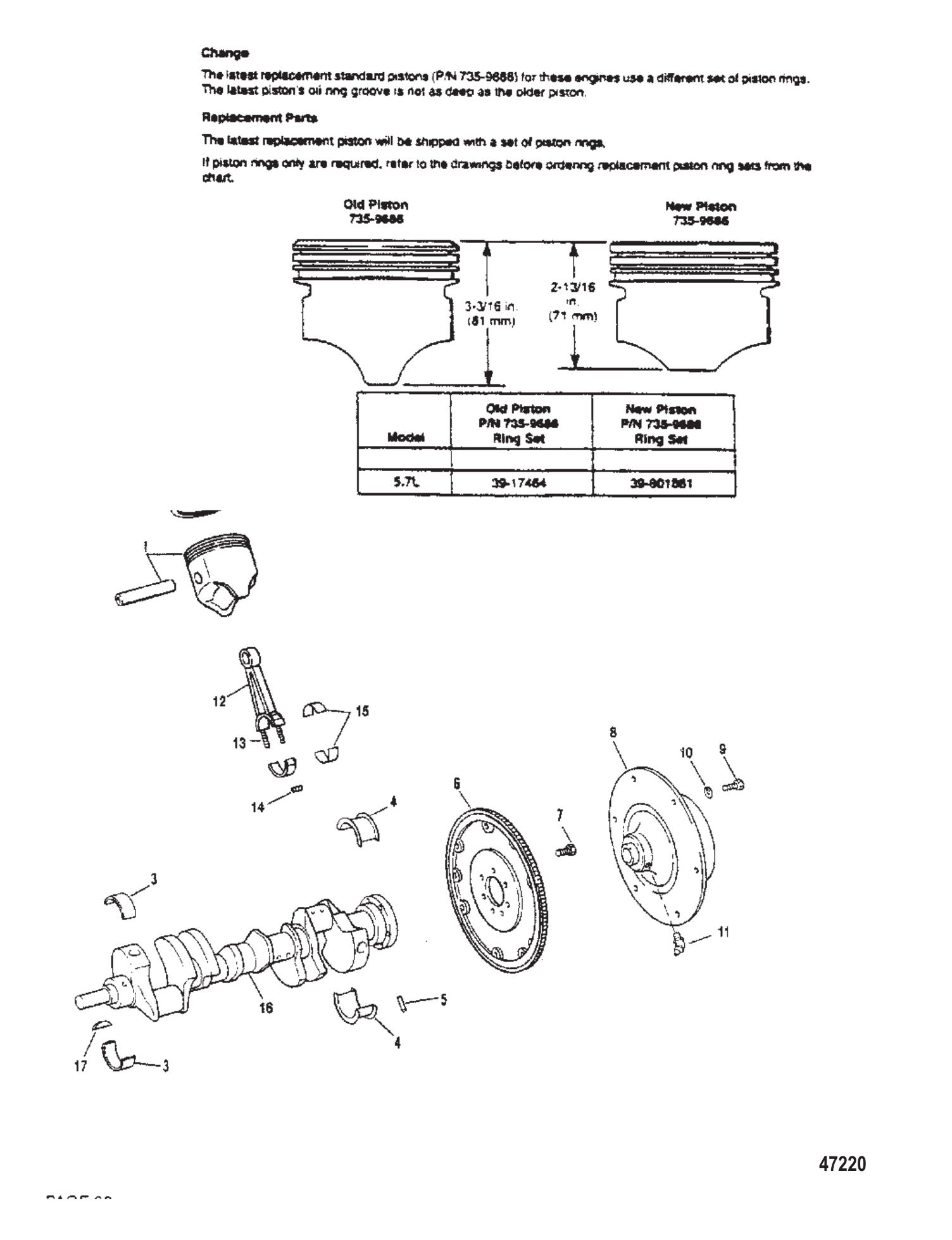

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 850097 | PISTON ASSEMBLY (STANDARD) (8 required per assembly) — Replaces: 808674, 808674A1 |
  |
|
735-850097 - Piston/Ring - Std [ More info ] Unavailable |
| #1 | 850098 | PISTON ASSEMBLY (.030 O.S.) (AR required per assembly) — Replaces: 9687 |
  |
|
735-850098 - Piston/Ring -.030 [ More info ] Unavailable |
| #2 | 801861 | RING PISTON (STANDARD) (SEE NOTE) (8 required per assembly) |
  |
|
39-801861 - Piston Ring-STD [ More info ] Unavailable |
| #2 | 17465 | RING PISTON (.030 O.S.) (AR required per assembly) |
  |
|
39-17465 - Rings - .030 Oversize [ More info ]
|
| #5 | 843378 | PIN DOWEL (1/4" DIA.) (1 required per assembly) — Replaces: 35312 |
  |
|
17-843378 - Pin, Dowel (.250) [ More info ]
|
| #6 | 8M0047213 | FLYWHEEL (1 required per assembly) — Replaces: 9520, 9520001 |
  |
|
222-8M0047213 - Flywheel [ More info ]
|
| #7 | 845757 | SCREW (6 required per assembly) — Replaces: 49845 |
  |
|
10-845757 - Screw [ More info ]
|
  |
|
10-8M0214958 - Flywheel MOUNTING SCREW ZZ [ More info ]
|
| #8 | 8M0098795 | COUPLER ASSY (1 required per assembly) — Replaces: 18311A17, 861523A9 |
  |
|
8M0098795 - Coupler Assembly [ More info ]
|
| #9 | 8M0204643 | SCREW (6 required per assembly) — Replaces: 14883 |
  |
|
10-8M0204643 - SCREW [ More info ] Unavailable |
| #10 | 20572 | WASHER (.390 X .750 X .093) (6 required per assembly) |
  |
|
12-20572 - Washer, (.390 X .750 X .093) [ More info ]
|
| #11 | 8M0169590 | FITTING (2 required per assembly) — Replaces: 49099 |
  |
|
22-8M0169590 - FITTING [ More info ] Unavailable |
| #12 | 8164T | CONN ROD ASSY (8 required per assembly) — Replaces: 8164 |
  |
|
614-8164T - Connecting Rod Assembly [ More info ]
|
| #13 | 85802 | SCREW (.375-24 X SPECIAL) (16 required per assembly) |
  |
|
10-85802 - Screw [ More info ] Unavailable |
| #14 | 37493 | NUT (.375-24) (16 required per assembly) |
  |
|
11-37493 - Nut, (.375-24) [ More info ]
|
| #15 | 85701 | BEARING (PAIR - STANDARD) (8 required per assembly) |
  |
|
23-85701 - Bearing - Std [ More info ]
|
| #15 | 85702 | BEARING (PAIR - .001 USA) (AR required per assembly) |
  |
|
23-85702 - Bearing - Connecting Rod - .001 US [ More info ]
|
| #15 | 85703 | BEARING (PAIR - .002 USA) (AR required per assembly) |
  |
|
23-85703 - Bearing - .002 US [ More info ]
|
| #15 | 85704 | BEARING (PAIR - .010 USA) (AR required per assembly) |
  |
|
23-85704 - Bearing -.010 Us [ More info ]
|
| #15 | 85705 | BEARING (PAIR - .020 USA) (AR required per assembly) |
  |
|
23-85705 - Bearing -.020 Us [ More info ]
|
| #16 | 9521T | CRANKSHAFT (1 required per assembly) — Replaces: 9521 |
  |
|
429-9521T - CrankShaft, NLA [ More info ] Unavailable |
| #17 | 34466 | KEY (2 required per assembly) |
  |
|
|
| #3/4 | 818465 | BEARING SET 5 PAIR (STANDARD) (1 required per assembly) |
  |
|
23-818465 - Bearing Set - Standard [ More info ]
|
| #3/4 | 818466 | BEARING SET 5 PAIR (.001 USA) (AR required per assembly) |
  |
|
23-818466 - Bearing Set - Crankshaft - .001 Undersize [ More info ]
|
| #3/4 | 818467 | BEARING SET 5 PAIR (.010 USA) (AR required per assembly) |
  |
|
23-818467 - Bearing Set -.010 Undersized [ More info ]
|
| #3/4 | 818468 | BEARING SET 5 PAIR (.020 USA) (AR required per assembly) |
  |
|
23-818468 - Bearing Set - Crankshaft - .020 Undersize [ More info ]
|
