Parts for 5.0Lx (4 BBL.) GM 305 V-8 5.0L (305 Cu In) V8 GM MerCruiser Engines - Gas Standard Cooling System (Design III - Alpha)

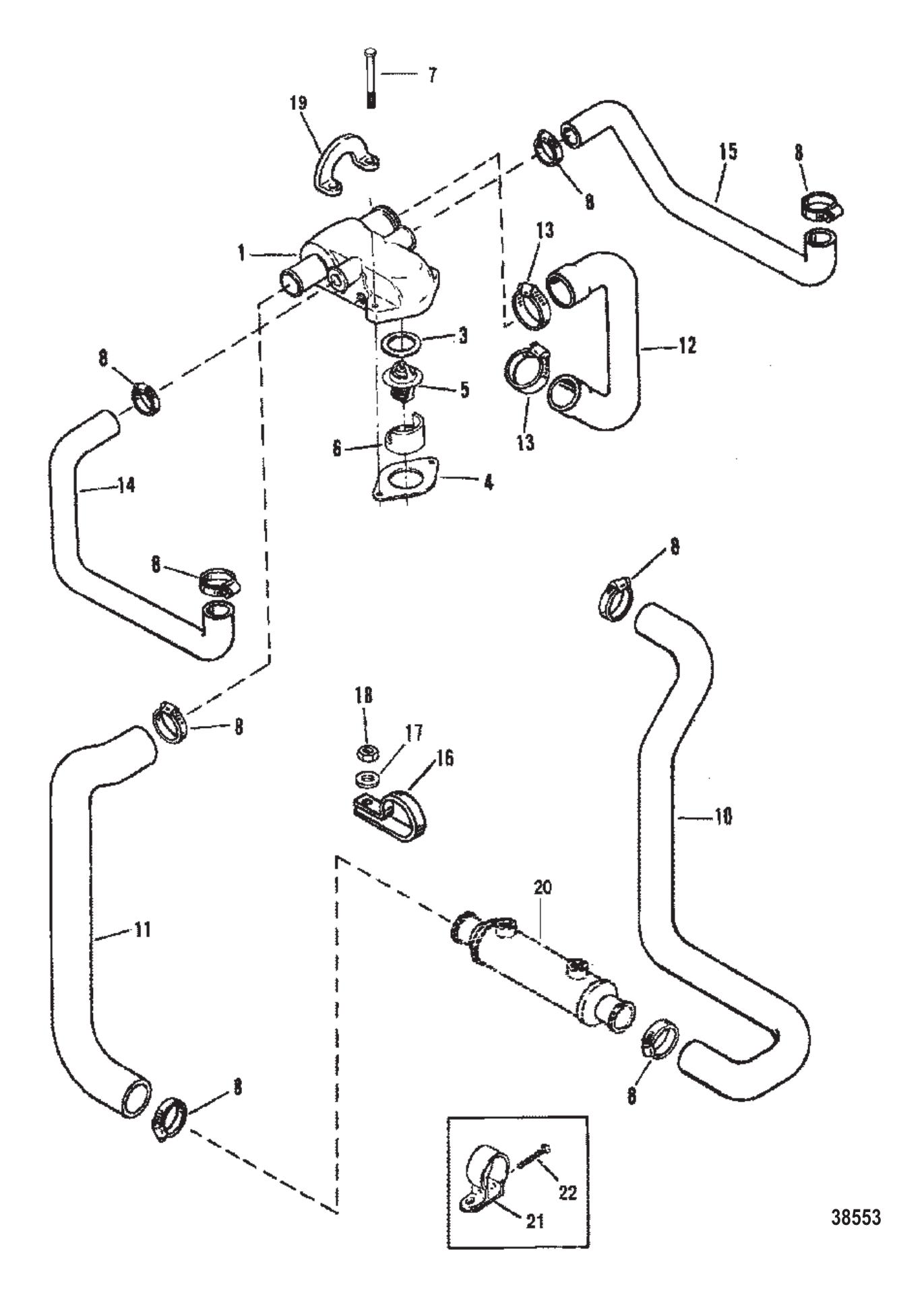

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 860256A3 | HOUSING-THERMOST (1 required per assembly) — Replaces: 860256A1 |
  |
|
860256A 3 - Thermostat Housing [ More info ]
|
  |
|
MC-29-860256 - Thermostat Housing [ More info ]
|
| #3 | 8M0204687 | GASKET @5 (1 required per assembly) — Replaces: 806871 |
  |
27-8M0204687 - Thermostat Gasket, Priced Individually [ More info ] Unavailable |
|
  |
|
27-8M0238323 - Gasket, Priced Individually [ More info ]
|
| #4 | 530451 | GASKET (1 required per assembly) |
  |
|
27-53045 1 - Gasket - Priced Individually [ More info ]
|
  |
|
18-2917-9 - Gasket 27-530451 2-Pack [ More info ]
|
  |
|
27-53045Q01 - Gasket [ More info ]
|
| #5 | 8M0091470 | THERMOSTAT-160 (1 required per assembly) — Replaces: 8072522, 807252T2 |
  |
8M0091470 - Thermostat, 160 Degrees [ More info ] Unavailable |
|
  |
|
18-3649 - Thermostat, 160 Degree, 807252T2 [ More info ]
|
  |
|
8M0109441 - Thermostat, 160 Degree [ More info ]
|
  |
|
75-03058 - Thermostat 807252T2, 8M0109441 160 Degree [ More info ]
|
| #6 | 806922 | SLEEVE (1 required per assembly) |
  |
23-806922 - Sleeve [ More info ] Unavailable |
|
  |
|
23-8M0214947 - Thermostat Housing Sleeve, Plastic [ More info ]
|
| #7 | 8M0113179 | SCREW (2 required per assembly) — Replaces: 98508 |
  |
|
108M0113179 - Screw [ More info ]
|
| #8 | 815504220 | CLAMP (AR required per assembly) |
  |
|
54-815504220 - Clamp [ More info ]
|
| #10 | 96246A4 | HOSE (1 required per assembly) |
  |
|
32-96246A 4 - Hose - Oil Cooler To Drive Unit [ More info ]
|
  |
|
18-70958 - Hose, 32-96246A4 (5/8ID) [ More info ]
|
| #11 | 806856 | HOSE (1 required per assembly) |
  |
|
32-806856 - Hose [ More info ]
|
  |
|
18-70935 - Molded Hose [ More info ]
|
| #12 | 861590A05 | HOSE ASSY-DRAIN (1 required per assembly) — Replaces: 806825 |
  |
|
32-861590A05 - Drain Hose Assembly [ More info ]
|
  |
|
18-71337 - Hose, 32-87108, 32-806825 [ More info ]
|
| #13 | 815504232 | CLAMP (2 required per assembly) |
  |
|
54-815504232 - Clamp [ More info ]
|
| #14 | 8066351 | HOSE (PORT) (1 required per assembly) |
  |
|
32-806635 1 - Molded Hose [ More info ]
|
| #15 | 8066361 | HOSE (STARBOARD) (1 required per assembly) |
  |
|
32-806636 1 - Hose [ More info ]
|
| #16 | 47715 | CLIP (1 required per assembly) |
  |
|
54-47715 - Clip [ More info ] Unavailable |
| #17 | 39107 | LOCKWASHER @5 (1 required per assembly) |
  |
|
13-39107 - LockWasher - Priced Individually [ More info ]
|
| #18 | 29250 | NUT @5 (1 required per assembly) |
  |
|
11-29250 - Nut (5/16-24) [ More info ]
|
| #19 | 12552 | LIFTING EYE (1 required per assembly) |
  |
|
12552 - Lifting Eye [ More info ]
|
| #20 | 8M0181740 | OIL COOLER (1 required per assembly) — Replaces: 99356A2, 8M0152028 |
  |
|
8M0181740 - Oil Cooler POWER STEERING [ More info ]
|
  |
|
18-2587 - Oil Cooler [ More info ]
|
| #21 | 65970T1 | BRACKET (1 required per assembly) |
  |
|
65970T 1 - Bracket [ More info ]
|
| #22 | 41408 | SCREW (1 required per assembly) |
  |
|
10-41408 - Screw [ More info ]
|
