Parts for Mercury 210 Carb M2 Jet Drive (Powerhead) Nozzle & Rudder Components

Revise Search: Mercury Jet Drive & SportJet > 210 Carb M2 Jet Drive (Powerhead) > 0E373939 - 0E426999 - USA > Nozzle & Rudder Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

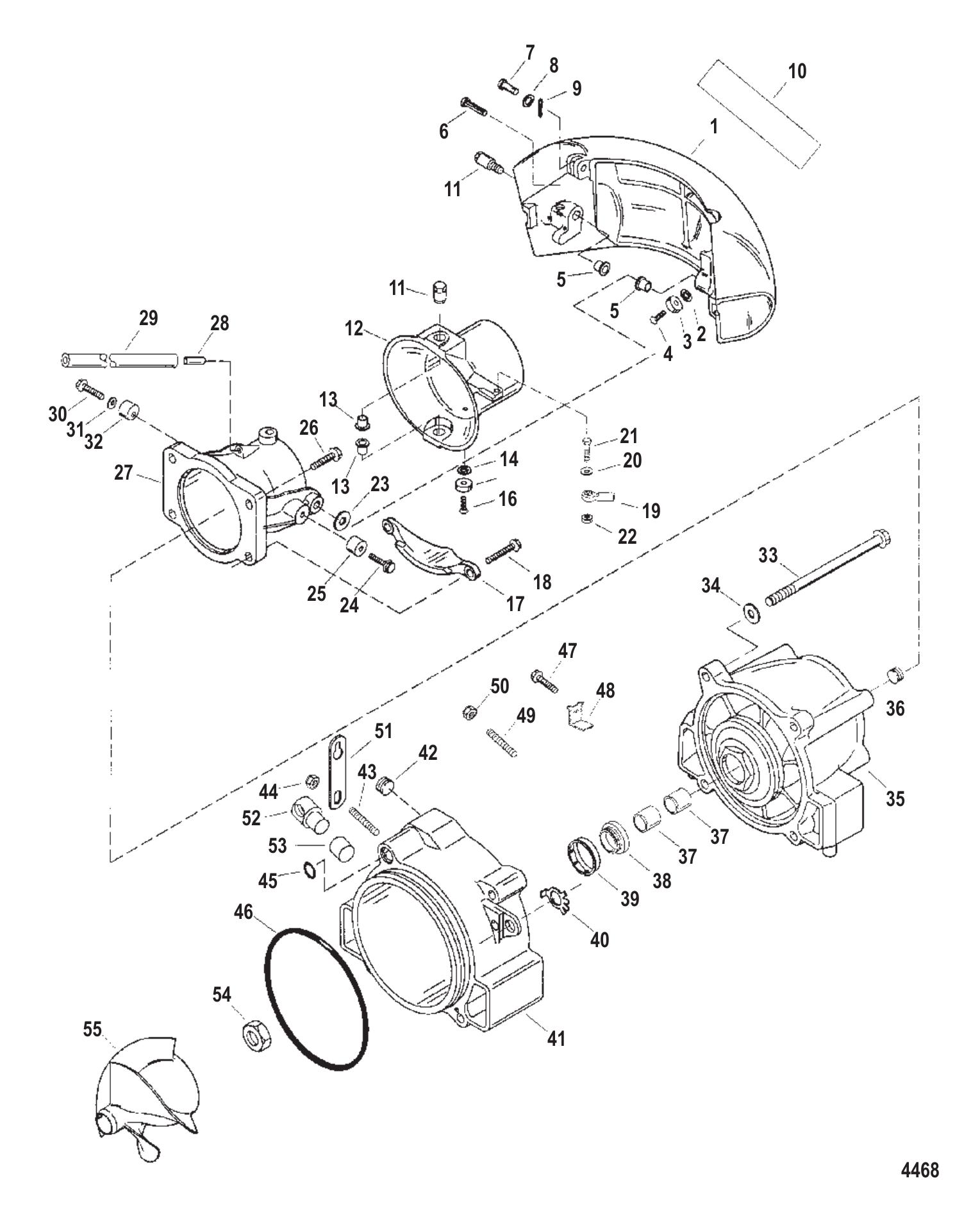

Nozzle & Rudder Components

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	859438A2	HOUSING KIT COMPLETE JET DRIVE - NO IMPELLER (1 required per assembly)
		859438A 2 - Housing Assembly - Comp Sj [ More info ] Unavailable
#-	883264A1	SEAL/GASKET SET JET DRIVE HOUSING - NOTE: See Seal/Gasket Set - Jet Drive Housing Section For Parts Breakdown (1 required per assembly) — Replaces: 877896A1
		26-883264A 1 - Seal/Gasket Set [ More info ] $357.99 Available to Order: Shipping delay up to 10 days.
#1	878071A1	REVERSE GATE KIT (1 required per assembly)
		878071A 1 - Reverse Gate Kit [ More info ] $724.49 Available to Order: Shipping delay up to 10 days.
#2	78968	LOCKWASHER INTERNAL (.250) (1 required per assembly)
		13-78968 - LockWasher - Priced Individually [ More info ] $1.80 10+ In Stock.
#3	8205031	ANODE (1 required per assembly)
		978205031 - Anode [ More info ] $11.89 Available to Order: Shipping delay up to 10 days.
#4	832838	SCREW (M6 X 20) (1 required per assembly)
		10-832838 - Screw [ More info ] Unavailable
		108M0199587 - SCREW [ More info ] $1.20 Available to Order: Shipping delay up to 10 days.
#5	832048	BUSHING PIVOT (2 required per assembly)
		23-832048 - Bushing [ More info ] $16.49 Available to Order: Shipping delay up to 10 days.
#6	821539	PIN TRILOBE (2 required per assembly)
		17-821539 - Pin, Trilobe, Groove [ More info ] $6.29 10+ In Stock.
#7	68402	PIN (.250 X 1.13) CLEVIS (1 required per assembly)
		17-68402 - Pin, (.250 X 1.13) [ More info ] $10.69 Available to Order: Shipping delay up to 10 days.
#8	8M0204649	WASHER @10 (1 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#9	210711	COTTER PIN @2 (1 required per assembly) — Replaces: 21071
		0210711 [ More info ] Unavailable Replaced by 0210710
		[ More info ] Unavailable
#10	875280	DECAL POWERED BY MERCURY - REVERSE GATE (1 required per assembly)
		37-875280 - Decal [ More info ] $26.69 Available to Order: Shipping delay up to 10 days.
#11	831922	BOLT SPECIAL PIVOT (4 required per assembly)
		10-831922 - Bolt [ More info ] $22.09 Available to Order: Shipping delay up to 10 days.
#12	831241A1	RUDDER KIT (1 required per assembly)
		831241A 1 - Rudder Kit [ More info ] $452.49 Available to Order: Shipping delay up to 10 days.
#13	832048	BUSHING PIVOT (2 required per assembly)
#14	78968	LOCKWASHER INTERNAL (.250) (1 required per assembly)
#15	8205031	ANODE (1 required per assembly)
#16	832838	SCREW (M6 X 20) (1 required per assembly)
#17	856581C	ANODE WITH BUSHINGS IN CASTING (1 required per assembly)
		97856581C - Anode Assembly [ More info ] $88.49 Available to Order: Shipping delay up to 10 days.
#18	4010845	SCREW (2 required per assembly)
		10-40108 45 - Screw [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#19	883053A1	END KIT SWIVEL (1 required per assembly)
		883053A 1 - End Kit - (.312) [ More info ] $89.38 Available to Order: Shipping delay up to 10 days.
#20	56720	WASHER (.330 X .750 X .060) STAINLESS STEEL (1 required per assembly)
		12-56720 - Washer, (.330 X .750 X .060) Stainless Steel [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#21	859766A1	SCREW AND NUT KIT (1 required per assembly)
		10-859766A 1 - Screw/Nut Kit [ More info ] $12.99 Available to Order: Shipping delay up to 10 days.
#22	8267098	NUT (.250-20) STAINLESS STEEL (1 required per assembly)
		11-826709 8 - Nut - Priced Individually [ More info ] $6.89 $1.38 10+ In Stock.
#23	878072	WASHER (2 required per assembly)
		12-878072 - Washer [ More info ] $4.49 $0.90 10+ In Stock.
#24	4010725	SCREW (1 required per assembly)
		10-40107 25 - Screw [ More info ] $5.79 Available to Order: Shipping delay up to 10 days.
#25	856772	STOP NON ADJUSTABLE (1 required per assembly)
		856772 - Stop [ More info ] $19.69 1 In Stock.
#26	4010835	SCREW (2 required per assembly)
		10-40108 35 - Screw [ More info ] $7.29 Available to Order: Shipping delay up to 10 days.
#27	878080A1	NOZZLE ASSEMBLY WITH PIVOT BUSHINGS (1 required per assembly)
		878080A 1 - Nozzle Assembly [ More info ] $637.99 Available to Order: Shipping delay up to 10 days.
#28	826701	FITTING NOZZLE (1 required per assembly)
		22-826701 - Fitting - Priced Individually [ More info ] $15.19 Available to Order: Shipping delay up to 10 days.
#29	8M0105443	HOSE-12.25 INCH SYPHON (1 required per assembly) — Replaces: 877861
		328M0105443 - Hose-12.25 INCH [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#30	4007154	SCREW (1 required per assembly)
		10-40071 54 - Screw [ More info ] $3.04 $0.88 5 In Stock.
#31	36001	WASHER @3 (1 required per assembly)
		12-36001 - Washer - Priced Individually [ More info ] $1.50 10+ In Stock.
		18-4270 - Washer 12-36001 [ More info ] $1.25 $0.91 2 In Stock.
#32	820564	STOP REVERSE GATE (1 required per assembly)
		820564 - Stop [ More info ] $37.04 4 In Stock.
#33	8M0051562	SCREW (4 required per assembly) — Replaces: 859436
		10-8M0051562 - Screw [ More info ] $30.99 Available to Order: Shipping delay up to 10 days.
#34	34931	WASHER (4 required per assembly)
		12-34931 - Washer, (.406 X .734 X .063 - Stainless Steel) [ More info ] $2.59 10+ In Stock.
#35	855257A8	STATOR ASSY (1 required per assembly)
		855257A 8 - Stator Assembly [ More info ] $1,422.49 Available to Order: Shipping delay up to 10 days.
#36	8M0180564	PLUG @5 (2 required per assembly) — Replaces: 73379
		22-8M0180564 - Plug, Sold Individually [ More info ] $7.59 3 In Stock.
#37	835473	BUSHING STATOR REAR (2 required per assembly)
		23-835473 - Bushing [ More info ] $24.39 Available to Order: Shipping delay up to 10 days.
#38	14381	SEAL (1 required per assembly)
		26-14381 - Seal [ More info ] $30.29 Available to Order: Shipping delay up to 10 days.
#39	853950	PROTECTOR SEAL (1 required per assembly)
		853950 - Seal Protector [ More info ] $30.29 Available to Order: Shipping delay up to 10 days.
#40	832983	TAB WASHER (1 required per assembly)
		14-832983 - Tab Washer [ More info ] $18.59 Available to Order: Shipping delay up to 10 days.
#41	856814A2	WEAR RING KIT IMPELLER (1 required per assembly)
		856814A 2 - Wear Ring Kit [ More info ] $1,030.49 Available to Order: Shipping delay up to 10 days.
#42	8M0204679	PLUG-PIPE (1 required per assembly) — Replaces: 428611
		22-8M0204679 - Exhaust Manifold Pipe Plug [ More info ] $10.99 Available to Order: Shipping delay up to 10 days.
#43	8161948	STUD (M6 X 36) - Version I - Top And Bottom Holes (2 required per assembly)
		16-816194 8 - Stud [ More info ] $51.99 Available to Order: Shipping delay up to 10 days.
#44	401386	NUT (M6) STAINLESS STEEL - Version I - Top And Bottom Holes (2 required per assembly) — Replaces: 8268336, 40144
		11-40138 6 - Nut - Priced Individually [ More info ] $5.09 9 In Stock.
#45	38101	O-RING (.674 X .103) (1 required per assembly)
		25-38101 - O-ring, (.674 X .103) [ More info ] $1.80 10+ In Stock.
#46	832062	O-RING (7.487 X .103) (1 required per assembly)
		25-832062 - O-ring, (7.487 X .103) [ More info ] $18.17 1 In Stock.
#47	8M0204707	SCREW @5 - Version II - Bottom Hole (1 required per assembly) — Replaces: 4000330
		108M0204707 - SCREW Note: Priced Individually [ More info ] $3.99 4 In Stock.
#48	BOATPART	SEE BOAT MANUFACTURER TAB - SPECIAL - Version II - Bottom Hole (1 required per assembly)
		BOATPART - SEE BOAT MANUFACT [ More info ] Unavailable
#49	8161948	STUD - Version II - Top Hole (1 required per assembly)
#50	401386	NUT @5 - Version II - Top Hole (1 required per assembly) — Replaces: 8268336, 40144
#51	856997T	LATCH RETAINER SHIFT CABLE (1 required per assembly)
		856997T - Latch [ More info ] $31.69 Available to Order: Shipping delay up to 10 days.
#52	856998T	RETAINER SHIFT CABLE (1 required per assembly)
		856998T - Retainer [ More info ] $27.39 Available to Order: Shipping delay up to 10 days.
#53	824015	CUP BARREL RETAINER SHIFT CABLE (1 required per assembly)
		824015 - Barrel Retainer Cup [ More info ] $6.99 4 In Stock.
#54	835464	NUT (1.250-12) IMPELLER SHAFT (1 required per assembly)
		11-835464 - Nut, (1.250-12), Impeller Shaft [ More info ] $46.99 Available to Order: Shipping delay up to 10 days.
#55	877326T	IMPELLER (1 required per assembly)
		47-877326T - Impeller [ More info ] $867.09 Available to Order: Shipping delay up to 10 days.
