Active Trim Kit_w / O Key Pad Single-multiple Installation Dts

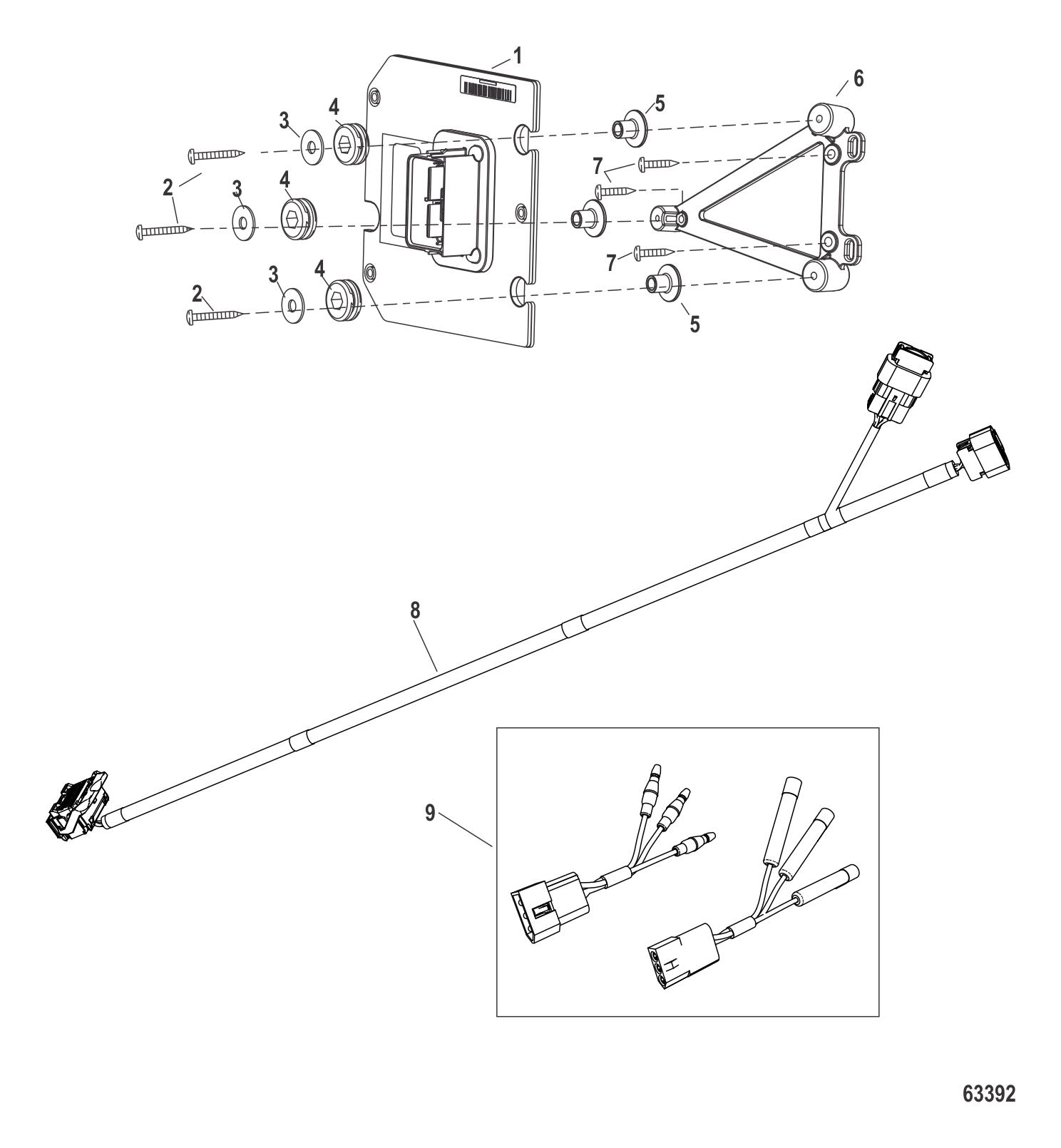

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0129437	ACT TRIM W/OP DTS (1 required per assembly)
		8M0129437 - ACT TRIM W/OP DTS [ More info ] $655.61 Available to Order: Shipping delay up to 10 days.
#1	8M0161638	ECU-ACTIVE TRIM (1 required per assembly) — Replaces: 8M0111847, 8M0134019
		778M0161638 - ECU-ACTIVE TRIM [ More info ] Unavailable
#2	8M0113585	SCREW (#10-16 X 1.75) STAINLESS STEEL SELF TAPPING (3 required per assembly)
		108M0113585 - Screw - Priced Individually [ More info ] $7.63 Available to Order: Shipping delay up to 10 days.
#3	4002316	WASHER (6.60 X 17.0 X 1.5SS) (3 required per assembly)
		12-40023 16 - Washer - Priced Individually [ More info ] $1.17 2 In Stock.
		128M0214930 - WASHER Note: Must be ordered in multiples of 5 [ More info ] $1.00 1 In Stock.
#4	834985	GROMMET (3 required per assembly)
		25-834985 - Grommet [ More info ] Unavailable
		25-8M0190980 - GROMMET Note: Must be ordered in multiples of 5 [ More info ] $3.89 Available to Order: Shipping delay up to 10 days.
#5	856954	BUSHING (3 required per assembly)
		23-856954 - Bushing [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#6	8M0113978	BRACKET ECM (1 required per assembly)
		8M0113978 - ACT TRIM-ECMBracket [ More info ] $12.72 Available to Order: Shipping delay up to 10 days.
#7	69013	SCREW (#10-16 X .880) (3 required per assembly)
		10-69013 - Screw [ More info ] $1.80 $1.44 10+ In Stock.
#8	8M0111839	HARNESS DTS ACTIVE TRIM (1 required per assembly)
		848M0111839 - Harness [ More info ] $116.79 Available to Order: Shipping delay up to 10 days.
#9	8M0114502	ACT TRIM-SMC ADPT (1 required per assembly)
		848M0114502 - ACT TRIM-SMC ADPT [ More info ] $21.42 Available to Order: Shipping delay up to 10 days.
