Mercury Marine Mechanical Console Mount Remote Controls & Components Remote Control-4500 Gen II (Single) (Console)

Revise Search: Accessories 1994 & Up > Remote Controls & Components > Console Mount > Mechanical > 1994 & Up > Remote Control-4500 Gen II (Single) (Console)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Remote Control-4500 Gen II (Single) (Console)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M4507540	RC SGL NO TRIM (1 required per assembly) — Replaces: 8M0041430, 8M0060782
		8M4507540 - RC SGL NO TRIM [ More info ] Unavailable
#-	8M4507538	RC SGL OB TRIM (1 required per assembly) — Replaces: 8M0041431, 8M0059686
		8M4507538 - RC SGL OB TRIM ZZ [ More info ] $534.80 In Stock
#-	8M4507539	RC SGL MCM TRIM (1 required per assembly) — Replaces: 8M0041433, 8M0060783
		8M4507539 - RC SGL MCM TRIM [ More info ] In Stock
#-	897978A_	CABLE ASSEMBLY SERIES THROTTLE/SHIFT, PLATINUM (See Accessories Guide for Correct Length Cable) (AR required per assembly)
		897978A_ - CABLE ASSEMBLY SE [ More info ] Unavailable
#1	877710T1	HANDLE ASSEMBLY CHROME TRIM (Port) (Non Trim) (1 required per assembly)
		877710T 1 - Handle Assembly -notrim [ More info ] $128.05 Available to Order: Shipping delay up to 10 days.
#1	877710T2	HANDLE ASSEMBLY CHROME TRIM (Outboard) (1 required per assembly)
		877710T 2 - Handle Assembly -obm [ More info ] $148.68 Available to Order: Shipping delay up to 10 days.
#1	877710T3	HANDLE ASSEMBLY CHROME TRIM (Mercruiser) (1 required per assembly)
		877710T 3 - Handle Assembly -mcm [ More info ] $148.68 Available to Order: Shipping delay up to 10 days.
#2	858679T2	SWITCH/HARNESS ASSEMBLY TRAILERING (Mercruiser) (1 required per assembly)
		87-858679T 2 - Switch and Harness, Mercruiser [ More info ] $98.49 Available to Order: Shipping delay up to 10 days.
#3	859032T3	SWITCH /HARNESS ASSEMBLY TRIM (Outboard) (1 required per assembly)
		87-859032T 3 - Switch and Harness, Outboard [ More info ] $95.49 Available to Order: Shipping delay up to 10 days.
#4	877720	PLUG (Non Trim) (1 required per assembly)
		877720 - Plug [ More info ] $3.06 Available to Order: Shipping delay up to 10 days.
#5	NSS	NOT SOLD SEPARATE GRIP, BACK (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#6	NSS	NOT SOLD SEPARATE GRIP, FRONT (1 required per assembly)
#7	88533516	SCREW PAN HEAD (K30-1.34 X 16MM) (5 required per assembly) — Replaces: 858687
		10-885335 16 - Screw - Priced Individually [ More info ] $1.82 Available to Order: Shipping delay up to 10 days.
#8	877711	COVER HANDLE HUB (1 required per assembly)
		877711 - Cover [ More info ] $4.29 Available to Order: Shipping delay up to 10 days.
#9	858686	SCREW (#8) (1 required per assembly)
		10-858686 - Screw [ More info ] $1.20 Available to Order: Shipping delay up to 10 days.
#10	877717	BUTTON THROTTLE ONLY (1 required per assembly)
		877717 - Throttle Button [ More info ] $4.37 2 In Stock.
#11	8222131	BOLT LOCKING, SPECIAL (1 required per assembly)
		10-822213 1 - Bolt [ More info ] Unavailable
#12	859016	BUSHING HANDLE (1 required per assembly)
		23-859016 - Bushing [ More info ] $8.69 3 In Stock.
#13	8M0061334	CONVERSION KIT REMOTE CONTROL COVER (1 required per assembly) — Replaces: 8M0060358
		8M0061334 - Conversion Kit - Cover [ More info ] $132.85 Available to Order: Shipping delay up to 10 days.
#14	8M0038307	DECAL (F-N-R) TOP COVER, SINGLE (1 required per assembly)
		378M0038307 - Decal -f/N/R Stbd [ More info ] Unavailable
#15	8M0041409	NUT (#8-32) SPEED (2 required per assembly)
		118M0041409 - Nut, #8-32 [ More info ] $1.43 Available to Order: Shipping delay up to 10 days.
#16	881107	SCREW (#8-32 X .500) (2 required per assembly)
		10-881107 - Screw [ More info ] $1.82 Available to Order: Shipping delay up to 10 days.
#17	877705T1	BASE ASSEMBLY (1 required per assembly)
		877705T 1 - Base Assembly -single [ More info ] $51.36 2 In Stock.
#18	877705T1	BASE ASSEMBLY (1 required per assembly) — Replaces: 877719
#19	42290	WELL NUT (#10-32) (4 required per assembly)
		11-42290 - Well Nut [ More info ] $2.37 3 In Stock.
#20	89044	SCREW (#10-32 X 2.25) (2 required per assembly)
		10-89044 - Screw [ More info ] $1.87 1 In Stock.
#21	8M0059444	BRACKET (2 required per assembly) — Replaces: 877714
		8M0059444 - Bracket [ More info ] $33.24 Available to Order: Shipping delay up to 10 days.
#22	66687	SCREW (#10-32 X 1.50) (4 required per assembly)
		10-66687 - Screw - Priced Individually [ More info ] $1.82 Available to Order: Shipping delay up to 10 days.
#23	8M0204718	NUT (2 required per assembly) — Replaces: 826709106
		11-8M0204718 - NUT [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#24	822434	ANCHOR CABLE TIE (1 required per assembly)
		822434 - Anchor [ More info ] $1.58 Available to Order: Shipping delay up to 10 days.
#25	859671	TIE STRAP (8.00 INCHES) (1 required per assembly)
		54-859671 - Cable Tie [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.

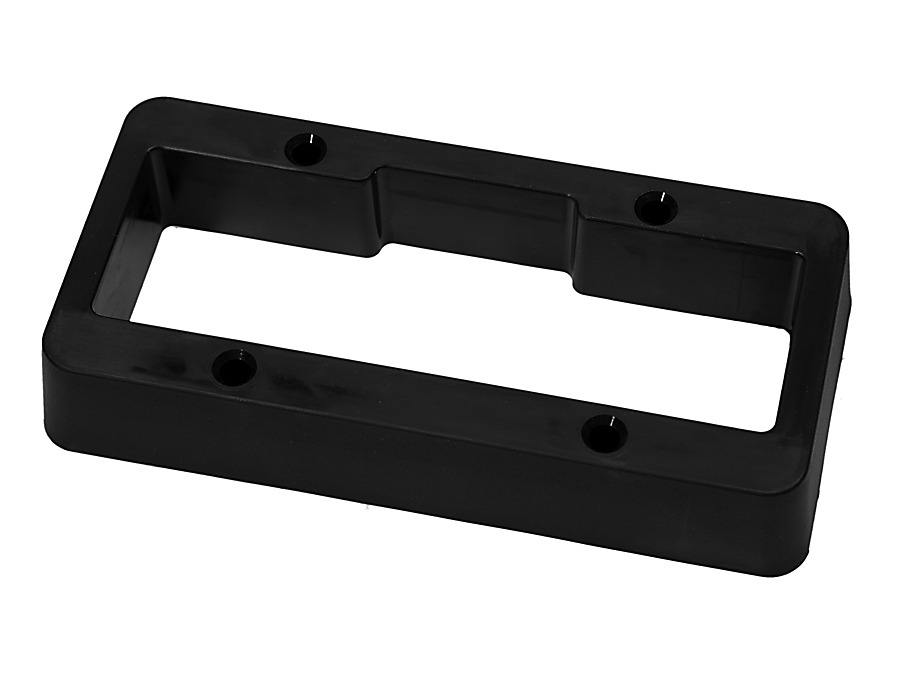

#26	889220A01	SPACER KIT-SINGLE (1 required per assembly)
		889220A01 - Spacer - Single [ More info ] $45.81 Available to Order: Shipping delay up to 10 days.
#27	8M0204672	SCREW (4 required per assembly) — Replaces: 89043
		10-8M0204672 - SCREW [ More info ] Unavailable
#28	8M0204718	NUT (4 required per assembly) — Replaces: 29488, 826709106
#29	8M0204666	WASHER @5 (4 required per assembly) — Replaces: 56681
		128M0204666 - WASHER Note: Priced Individually [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
