Mercury Marine Mechanical Console Mount Remote Controls & Components Commander Console (Single) (88688A25 - A27)

Revise Search: Accessories 1994 & Up > Remote Controls & Components > Console Mount > Mechanical > 1994 & Up > Commander Console (Single) (88688A25 - A27)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

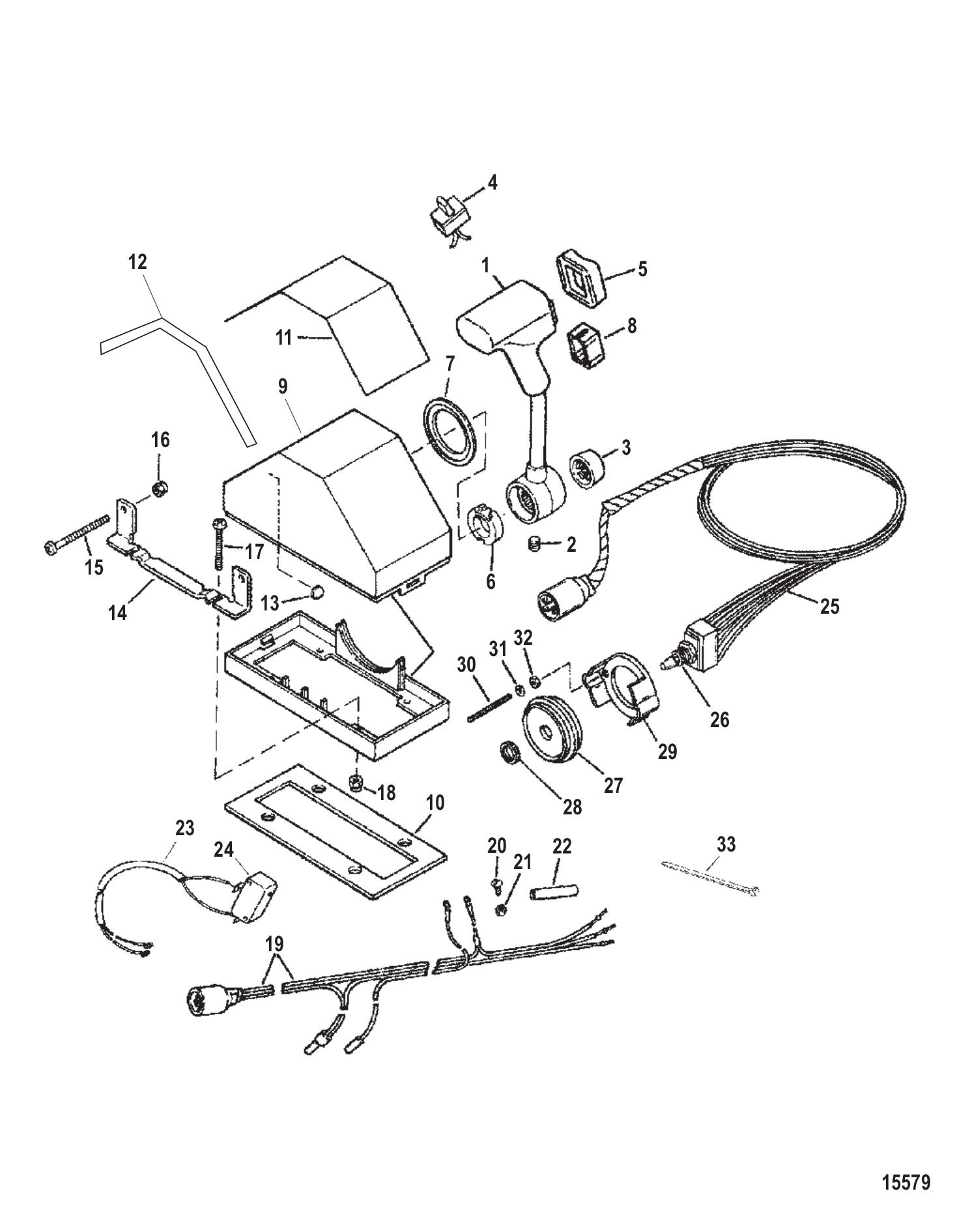

Commander Console (Single) (88688A25 - A27)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	88688A25	REMOTE CONTROL (Outboard) (1 required per assembly)
		88688A25 - Remote Control [ More info ] $780.35 $770.87 In Stock
#-	88688A26	REMOTE CONTROL (Mercruiser) (1 required per assembly)
		88688A26 - Remote Control [ More info ] $902.44 1 In Stock.
#-	88688A27	REMOTE CONTROL (Non Trim) (1 required per assembly)
		88688A27 - Remote Control [ More info ] Unavailable
#1	815544A2	HANDLE ASSEMBLY CONTROL (1 required per assembly)
		815544A 2 - Handle Assembly C [ More info ] $123.63 In Stock
#2	43490	SCREW (.312-18 X .375) (1 required per assembly)
		10-43490 - Screw -set [ More info ] $3.06 Available to Order: Shipping delay up to 10 days.
#3	89018T	BUTTON (1 required per assembly) — Replaces: 89018
		89018T - Button [ More info ] $4.65 4 In Stock.
#4	8M0046008	SWITCH (Outboard and Mercruiser) (1 required per assembly) — Replaces: 92484
		87-8M0046008 - Switch [ More info ] $37.59 2 In Stock.
#5	19029T05	COVER (Outboard and Mercruiser) (1 required per assembly) — Replaces: 190295
		19029T05 - Remote Control PRT Cover [ More info ] $13.05 1 In Stock.
#5	190294	COVER KNOB (Non Trim) (1 required per assembly)
		19029 4 - Cover [ More info ] $6.97 Available to Order: Shipping delay up to 10 days.
#6	814322	ROTATOR (Outboard and Mercruiser) (1 required per assembly)
		814322 - Rotator [ More info ] $5.29 Available to Order: Shipping delay up to 10 days.
#7	88568	DISC (1 required per assembly)
		88568 - Disc [ More info ] $22.99 Available to Order: Shipping delay up to 10 days.
#8	19027	PLUG KNOB (Quanitity 2 for Non Trim) (1 required per assembly)
		19-19027 - Plug [ More info ] $7.25 1 In Stock.
#9	14389A2	COVER ASSEMBLY (1 required per assembly)
		14389A 2 - Cover Assembly [ More info ] $55.05 In Stock
#10	143861	GASKET (1 required per assembly) — Replaces: 14386
		27-14386 1 - Gasket [ More info ] $5.43 Available to Order: Shipping delay up to 10 days.
#11	1353037	DECAL-MERCURY PORT MOUNTED (1 required per assembly) — Replaces: 1353024
		37-13530 37 - Decal - Mercury [ More info ] $11.22 Available to Order: Shipping delay up to 10 days.
#12	14517	DECAL SHIFT INDICATOR (1 required per assembly)
		37-14517 - Decal - Shift Indct, NLA [ More info ] Unavailable
#13	98529	BUMPER (1 required per assembly)
		98529 - Bumper [ More info ] $3.99 $3.37 10 In Stock.
#14	14385	BRACKET CONSOLE MOUNT (2 required per assembly)
		14385 - Bracket [ More info ] Unavailable
#15	89044	SCREW (#10-32 X 2.25) (2 required per assembly)
		10-89044 - Screw [ More info ] $1.87 1 In Stock.
#16	8M0204718	NUT (2 required per assembly) — Replaces: 29488, 826709106
		11-8M0204718 - NUT [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#17	66687	SCREW (#10-32 X 1.50) (4 required per assembly)
		10-66687 - Screw - Priced Individually [ More info ] $1.82 Available to Order: Shipping delay up to 10 days.
#18	42290	WELL NUT (#10-32) (Outboard and Mercruiser) (4 required per assembly)
		11-42290 - Well Nut [ More info ] $2.37 3 In Stock.
#19	812605A1	HARNESS ASSEMBLY WIRING (Outboard) (1 required per assembly)
		84-812605A 1 - Harness Assembly [ More info ] $42.01 Available to Order: Shipping delay up to 10 days.
#20	24231	SCREW (#10-32 X .250) (2 required per assembly)
		10-24231 - Screw - Priced Individually [ More info ] $1.10 $0.88 5 In Stock.
#21	27164	NUT AND LOCKWASHER (#10-32) (2 required per assembly)
		11-27164 - Nut And Lockwasher (#10-32) [ More info ] $1.00 1 In Stock.
#22	623594	INSULATOR (2.00 INCH) (2 required per assembly)
		85-62359 4 - Insulator [ More info ] $0.40 $0.32 10 In Stock.
#23	817724A2	SWITCH ASSEMBLY NEUTRAL START NEUTRAL START (1 required per assembly) — Replaces: 86320A7
		87-817724A 2 - Switch & Harness [ More info ] $49.88 3 In Stock.
#24	817724	SWITCH MICRO (1 required per assembly)
		87-817724 - Switch [ More info ] Unavailable
#25	812606A1	HARNESS ASSEMBLY WIRING (Mercruiser) (1 required per assembly)
		84-812606A 1 - Harness, NLA [ More info ] Unavailable
#26	19731	SWITCH TOGGLE (Mercruiser) (1 required per assembly)
		87-19731 - Switch [ More info ] $45.81 $43.97 2 In Stock.
#27	85218A5	PLATE ASSEMBLY SWITCH MOUNTING (Mercruiser) (1 required per assembly)
		85218A 5 - Plate Assembly [ More info ] Unavailable
#28	49440	NUT (.468-32) (Mercruiser) (1 required per assembly)
		49440 - Lock Nut [ More info ] $8.99 $7.20 2 In Stock.
#29	76424	BRACKET SWITCH MOUNTING (Mercruiser) (1 required per assembly)
		76424 - Bracket [ More info ] $15.69 Available to Order: Shipping delay up to 10 days.
#30	55422	STUD (#10-32 X 2.00) (Mercruiser) (2 required per assembly)
		16-55422 - Stud - Priced Individually [ More info ] $6.79 10+ In Stock.
#31	24676	WASHER (.200 X .440 X .032) (Mercruiser) (2 required per assembly)
		12-24676 - Washer, (.200 X .440 X .032) [ More info ] $1.50 10+ In Stock.
#32	68219	NUT (#10-32) STAINLESS STEEL (Mercruiser) (2 required per assembly)
		11-68219 - Nut (#10-32) [ More info ] $2.99 10+ In Stock.
#33	816311T	TIE STRAP (8.00 INCHES) (1 required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
