Mercury Marine Mechanical Console Mount Remote Controls & Components Commander 3000 Console (Single) (88688A60 - A64)

Revise Search: Accessories 1994 & Up > Remote Controls & Components > Console Mount > Mechanical > 1994 & Up > Commander 3000 Console (Single) (88688A60 - A64)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Commander 3000 Console (Single) (88688A60 - A64)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	88688A80	REF SOB 03-06 (Non Trim) (1 required per assembly) — Replaces: 88688A60
		88688A80 - REF OB SB 03-0,NLA [ More info ] Unavailable
#-	88688A82	REMOTE CONTROL (Outboard) (1 required per assembly) — Replaces: 88688A62
		88688A82 - Remote Control,NLA [ More info ] Unavailable
#-	88688A84	REF SMC 03-08 (Mercruiser) (1 required per assembly) — Replaces: 88688A64
		88688A84 - Remote Control, Console Mount MCM S.B.03-0, NLA [ More info ] Unavailable
#1	824044A3	HANDLE ASSEMBLY (Outboard and Mercruiser) (1 required per assembly)
		824044A 3 - Handle Assembly C [ More info ] Unavailable
#1	824044A1	HANDLE ASSEMBLY (Non Trim) (1 required per assembly)
		824044A 1 - Handle Assembly C [ More info ] Unavailable
#2	824042	GRIP UPPER (Outboard and Mercruiser) (1 required per assembly)
		824042 - Grip- Upper [ More info ] Unavailable
#3	824041	GRIP UPPER (Non Trim) (1 required per assembly)
		824041 - Grip- Upper [ More info ] Unavailable
#4	72415	SCREW (#10-16 X 1.00) (2 required per assembly)
		10-72415 - SCREW,NLA [ More info ] Unavailable
#5	18286A41	SWITCH ASSEMBLY (Outboard and Mercruiser) (1 required per assembly)
		87-18286A41 - Switch Assembly [ More info ] $71.68 1 In Stock.
#6	824048	CAP (Outboard and Mercruiser) (1 required per assembly)
		824048 - Cap [ More info ] $8.03 Available to Order: Shipping delay up to 10 days.
#7	824028	CARRIER SWITCH (Outboard and Mercruiser) (1 required per assembly)
		824028 - Carrier [ More info ] $5.65 Available to Order: Shipping delay up to 10 days.
#8	8229802	BUSHING FLEX BLACK (1 required per assembly)
		23-822980 2 - Bushing [ More info ] $3.14 Available to Order: Shipping delay up to 10 days.
#9	8229811	SET SCREW (.250-20 X .187) (1 required per assembly)
		10-822981 1 - Screw -set [ More info ] Unavailable
#10	824045T01	BUTTON ASSY (1 required per assembly) — Replaces: 824045A1
		824045T01 - Button Assembly [ More info ] $14.74 Available to Order: Shipping delay up to 10 days.
#11	824033A4	COVER ASSEMBLY (1 required per assembly)
		824033A 4 - Cover Assembly - Single [ More info ] Unavailable

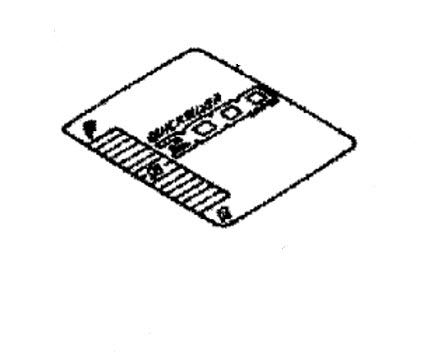

#12	8307551	DECAL (1 required per assembly)
		37-830755 1 - Decal -Console [ More info ] Unavailable
#13	824035A1	BASE ASSEMBLY (1 required per assembly)
		824035A 1 - Base Assembly [ More info ] Unavailable
#14	8240301	GASKET (1 required per assembly)
		27-824030 1 - Gasket [ More info ] $8.71 2 In Stock.
#15	824031T	BRACKET (2 required per assembly) — Replaces: 824031
		824031T - Bracket [ More info ] Unavailable
#16	66687	SCREW (#10-32 X 1.50) (4 required per assembly)
		10-66687 - Screw - Priced Individually [ More info ] $1.82 Available to Order: Shipping delay up to 10 days.
#17	42290	WELL NUT (#10-32) (4 required per assembly)
		11-42290 - Well Nut [ More info ] $2.37 3 In Stock.
#18	89044	SCREW (#10-32 X 2.25) (2 required per assembly)
		10-89044 - Screw [ More info ] $1.87 1 In Stock.
#19	8M0204718	NUT (2 required per assembly) — Replaces: 29488, 826709106
		11-8M0204718 - NUT [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#20	822434	ANCHOR CABLE TIE (1 required per assembly)
		822434 - Anchor [ More info ] $1.58 Available to Order: Shipping delay up to 10 days.
#21	816311T	TIE STRAP (8.00 INCHES) (2 required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#22	76424	BRACKET SWITCH MOUNTING (Mercruiser) (1 required per assembly)
		76424 - Bracket [ More info ] $15.69 Available to Order: Shipping delay up to 10 days.
#23	85218A5	PLATE ASSEMBLY SWITCH MOUNTING (Mercruiser) (1 required per assembly)
		85218A 5 - Plate Assembly [ More info ] Unavailable
#24	49440	NUT (.468-32) (Mercruiser) (1 required per assembly)
		49440 - Lock Nut [ More info ] $8.99 $7.20 2 In Stock.
#25	55422	STUD (#10-32 X 2.00) (Mercruiser) (2 required per assembly)
		16-55422 - Stud - Priced Individually [ More info ] $6.79 10+ In Stock.
#26	24676	WASHER (.200 X .440 X .032) (Mercruiser) (2 required per assembly)
		12-24676 - Washer, (.200 X .440 X .032) [ More info ] $1.50 10+ In Stock.
#27	68219	NUT (#10-32) STAINLESS STEEL (Mercruiser) (2 required per assembly)
		11-68219 - Nut (#10-32) [ More info ] $2.99 10+ In Stock.
#28	824783A1	HARNESS ASSEMBLY EXTENSION (Outboard) (1 required per assembly)
		84-824783A 1 - Harness Assembly [ More info ] $49.02 Available to Order: Shipping delay up to 10 days.
#29	824783A6	HARNESS ASSEMBLY EXTENSION (Mercruiser) (1 required per assembly)
		84-824783A 6 - Harness Assembly [ More info ] Unavailable
