Mercury Marine Joystick Piloting (Design I) Outboard Joystick Piloting Systems Power Steering Current Sensor Kit

Revise Search: Accessories 1994 & Up > Joystick Piloting Systems > Outboard > Joystick Piloting (Design I) > All & Up > Power Steering Current Sensor Kit

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

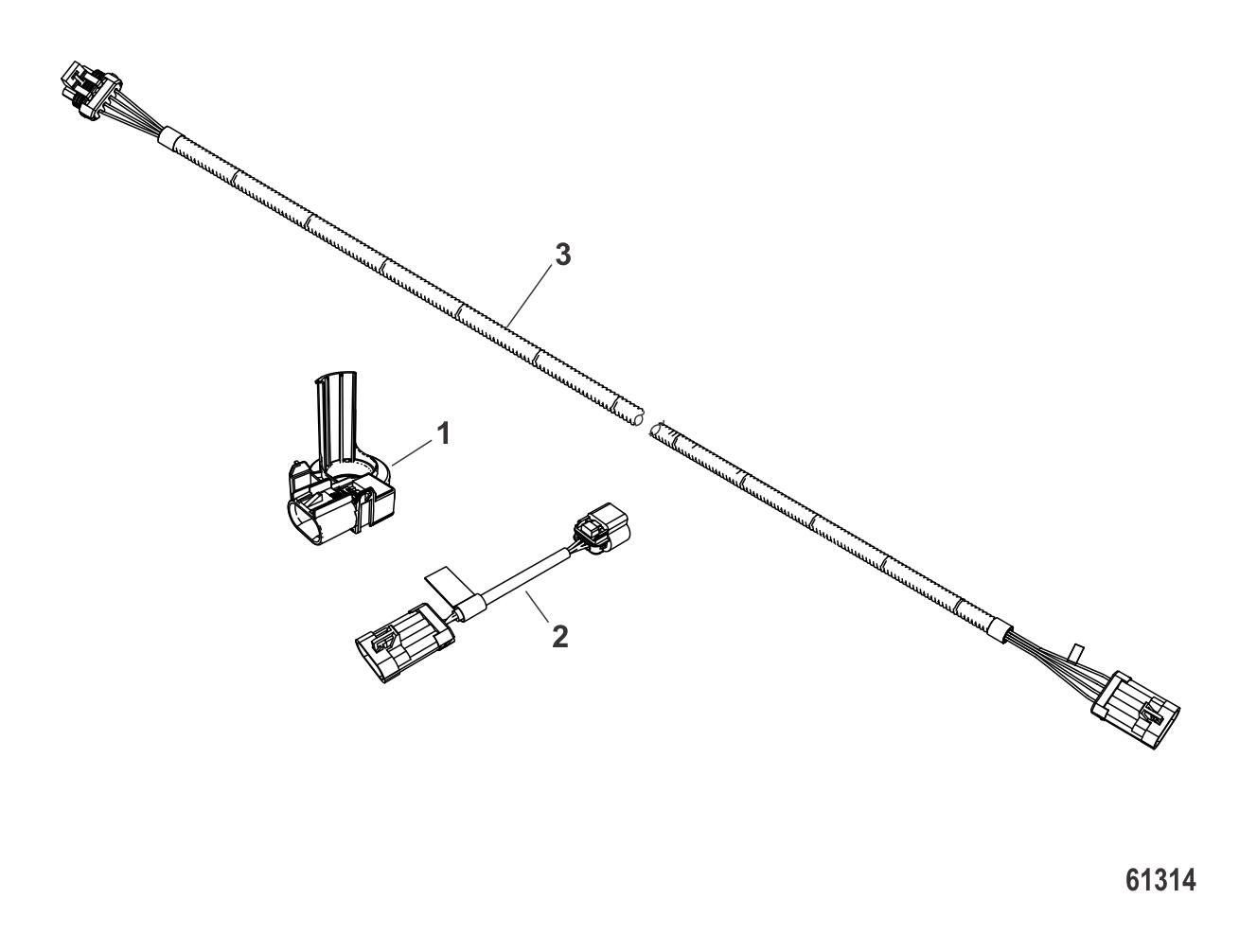

Power Steering Current Sensor Kit

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0115125	KIT-SENSOR DIAGNS (AR required per assembly)
		8M0115125 - KIT-Sensor DIAGNS [ More info ] Unavailable
#1	8M6004035	SENSOR CURRENT (1 required per assembly)
		8M6004035 - Sensor [ More info ] $89.44 Available to Order: Shipping delay up to 10 days.
#2	8M0110673	EXTENSION HARNESS (1 required per assembly)
		848M0110673 - Harness [ More info ] $35.00 Available to Order: Shipping delay up to 10 days.
#3	864988	EXTENSION HARNESS (10 FT) PADDLE WHEEL (1 required per assembly)
		84-864988 - Harness [ More info ] $68.96 Available to Order: Shipping delay up to 10 days.
#3	8M0122787	HARNESS 5FT Order Separate - Not included in Kit. (AR required per assembly)
		848M0122787 - Harness 5FT [ More info ] $82.64 Available to Order: Shipping delay up to 10 days.
#3	8M0122618	HARNESS 15FT Order Separate - Not included in Kit (AR required per assembly)
		848M0122618 - Harness 15FT [ More info ] $75.01 Available to Order: Shipping delay up to 10 days.
#3	8M0122619	HARNESS 20FT Order Separate - Not included in Kit. (AR required per assembly)
		848M0122619 - Harness 20FT [ More info ] Unavailable
