Parts for Mercury Marine Steering Systems & Components Rack & Pinion Assembly (66800A5)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 66800A 5 | RACK AND PINION ASSEMBLY (1 required per assembly) |
  |
|
66800A 5 - Rack/Pinion Assembly, NLA [ More info ]
|
| #1 | 16540A 1 | HOUSING ASSEMBLY, (20.250 Inches) (1 required per assembly) |
  |
|
16540A 1 - Housing,NLA [ More info ] Unavailable |
| #2 | 22-26000 | FITTING, Grease (1 required per assembly) |
  |
|
22-26000 - Fitting, NLA [ More info ] Unavailable |
| #3 | 19-77633 | LUBRICAP (1 required per assembly) |
  |
|
19-77633 - Cap - Priced Individually [ More info ]
|
  |
|
19-77633Q - Cap - Pack of 5 as shown [ More info ]
|
| #4 | NSS | NOT SOLD SEPARATE, HOUSING (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #5 | 10-21091 | SCREW (4 required per assembly) |
  |
|
10-21091 - Screw, NLA [ More info ]
|
| #6 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel (4 required per assembly) |
  |
|
12-29245 - Washer [ More info ]
|
  |
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
| #7 | 11-20361 | NUT, (.250-28) (4 required per assembly) |
  |
|
|
  |
|
11-826708 9 - Nut - Priced Individually [ More info ]
|
  |
|
18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ]
|
| #8 | 16538 | BRACKET (1 required per assembly) |
  |
|
16538 - Bracket [ More info ] Unavailable |
| #9 | 10-60300 | SCREW, (.250-28 x .750) (2 required per assembly) |
  |
|
10-60300 - Screw - Priced Individually [ More info ]
|
| #11 | 66802T | RACK (1 required per assembly) |
  |
|
66802T - Rack, NLA [ More info ] Unavailable |
| #12 | 66803 | BUSHING (1 required per assembly) |
  |
|
|
| #13 | 66804 | GUIDE (2 required per assembly) |
  |
|
|

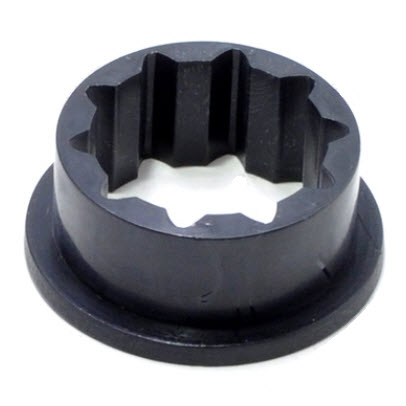

| #14 | 23-25901 | BUSHING (2 required per assembly) |
  |
|
23-25901 - Bushing [ More info ]
|
| #15 | 12-25897 | WASHER (1 required per assembly) |
  |
|
12-25897 - Washer [ More info ]
|
| #16 | 25898 | PINION (1 required per assembly) |
  |
|
25898 - Pinion, Gear Rack, NLA [ More info ] Unavailable |
| #17 | 11-20088 | NUT (.250-28) (2 required per assembly) |
  |
|
11-20088 - Nut (.250X28) [ More info ]
|
| #18 | 11-25899 | NUT (.562-18) (1 required per assembly) |
  |
|
11-25899 - Nut (.562-18) [ More info ]
|
