Parts for Mercury Marine Remote Controls & Components Remote Control Assembly (Compact - Console Mount) (68831A1)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 68831A 1 | REMOTE CONTROL ASSEMBLY, COMPLETE (SINGLE INSTALLATION) SEE NOTE (1 required per assembly) |
  |
|
68831A 1 - Remote Control, NLA [ More info ] Unavailable |
| # | 54-20387 | CLAMP, SAFETY SWITCH (1 required per assembly) |
  |
|
54-20387 - Fuel Line Clamp [ More info ]
|
| #1 | 38749 | COVER, CONTROL HOUSING (STARBOARD) (1 required per assembly) |
  |
|
|
| #2 | 18-32857 | COTTER PIN, CONTROL CABLE TO CONTROL HOUSING (2 required per assembly) |
  |
|
18-32857 - Cotter Pin , Priced Individually [ More info ]
|
  |
|
18-32857 1 - Cotter Pin [ More info ]
|
  |
|
18-8M0214922 - PIN-COTTER [ More info ] Unavailable |
| #11 | 23-37593 | BUSHING, NYLON-THROTTLE/SHIFT CAMS TO CONTROL HSG. (11/16" I. D. ) (2 required per assembly) |
  |
|
23-37593 - Bushing [ More info ]
|
| #12 | 37607 | CAM, SHIFT (1 required per assembly) |
  |
|
37607 - Cam, NLA [ More info ]
|
| #13 | 17-37599A 2 | PIN ASSEMBLY, BLOCKING - SHIFT CAM (1 required per assembly) |
  |
|
17-37599A 2 - Pin, NLA [ More info ]
|
| #14 | 24-38872 | SPRING, COMPRESSION - BLOCKING PIN (1 required per assembly) |
  |
|
24-38872 - Spring, Compression,NLA [ More info ]
|
| #15 | 13-39317 | FASTENER, BLOCKING PIN TO SHIFT CAM (1 required per assembly) |
  |
|
13-39317 - LockWasher [ More info ]
|
| #16 | 68844A 2 | SHAFT ASSEMBLY, CONTROL (1 required per assembly) |
  |
|
68844A 2 - Shaft Assembly, NLA [ More info ]
|
| #17 | 37608 | CAM, THROTTLE (1 required per assembly) |
  |
|
37608 - Cam, NLA [ More info ]
|
| #18 | 10-37942 | SCREW, SET - THROTTLE CAM (1 required per assembly) |
  |
|
10-37942 - Screw, NLA [ More info ] Unavailable |
| #19 | 58777A 3 | LEVER ASSEMBLY, THROTTLE (1 required per assembly) |
  |
58777A 3 - Lever Assembly [ More info ] Unavailable |
|
  |
70135A 1 - THOTTLE LEVER [ More info ] Unavailable |
|
  |
|

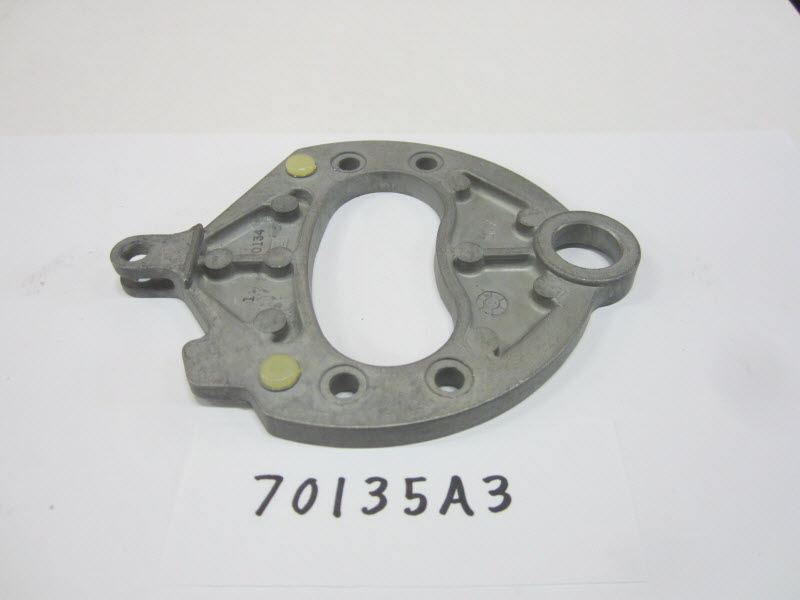

70135A 3 - Lever Assembly [ More info ]
|
| #20 | 19-58776 | PLUG, THROTTLE LEVER (1 required per assembly) |
  |
|
19-58776 - Plug, NLA [ More info ] Unavailable |
| #21 | 23-33589 | BUSHING, NYLON - THROTTLE LEVER (5/8" I. D.) (1 required per assembly) |
  |
|
23-33589 - Bushing - Priced Individually [ More info ]
|
  |
|
23-33589 1 - Bushing [ More info ]
|
| #22 | 12-34675 | WASHER, RETAINING - THROTTLE LEVER SCREW (1 required per assembly) |
  |
|
12-34675 - Washer, NLA [ More info ]
|
| #23 | 10-34676 | SCREW, THROTTLE LEVER TO CONTROL HOUSING AND CENTER HOUSING (1/2 ) (1 required per assembly) |
  |
10-34676 - Screw - Priced Individually [ More info ] Unavailable |
|
  |
|
10-85072 - Screw - Priced Individually [ More info ]
|
| #24 | 60784 | CAM ROLLER, THROTTLE LEVER (1 required per assembly) |
  |
|
60784 - Cam Roller, NLA [ More info ] Unavailable |

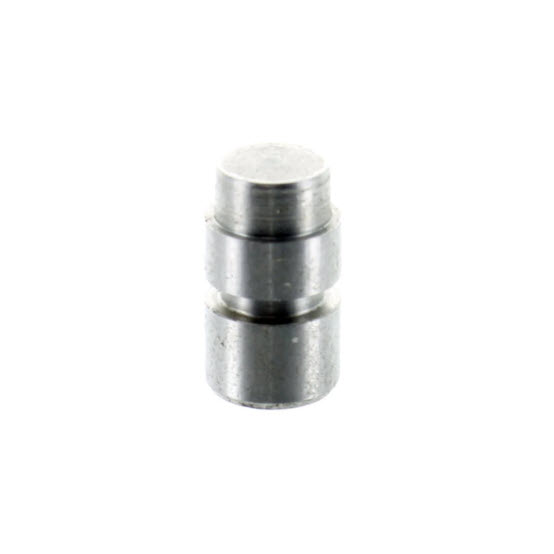

| #25 | 17-37603 | PIN, CAM ROLLER TO THROTTLE LEVER (1 required per assembly) |
  |
|
17-37603 - Pin, NLA [ More info ] Unavailable |
| #26 | 12-35950 | WASHER, CAM ROLLER PIN (1 required per assembly) |
  |
|
12-35950 - Washer, (.273 X .437 X .031) Stainless Steel [ More info ]
|

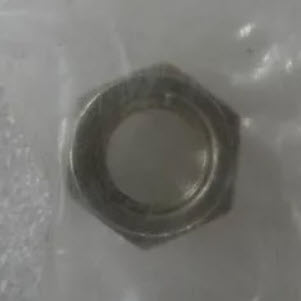

| #27 | 11-37800 | NUT, CAM ROLLER PIN (1 required per assembly) |
  |
|
11-37800 - Nut, Cam Roller Pin,NLA [ More info ] Unavailable |
| #28 | 17-37801 | PIN, CONTROL CABLE TO THROTTLE AND SHIFT LEVERS (2 required per assembly) |
  |
|
17-37801 - Pin, Control Cable [ More info ]
|
| #29 | 18-37809 | PIN (HAIR), CONTROL CABLE PIN (3 required per assembly) |
  |
|
18-37809 - Pin (hair), Control Cable Pin [ More info ]
|
| #30 | 36004A 4 | SWITCH AND HARNESS ASSEMBLY, SAFETY (1 required per assembly) |
  |
|
36004A 4 - Switch Assembly, NLA [ More info ]
|
| #31 | 36286 | TAB RECEPTACLE, SAFETY SWITCH (2 required per assembly) |
  |
|
36286 - TAB,NLA [ More info ] Unavailable |
| #32 | 10-36003 | SCREW, SAFETY SWITCH TO CONTROL HOUSING (5/8") (2 required per assembly) |
  |
|
10-36003 - Screw, NLA [ More info ]
|
| #33 | 38750 | COVER, CONTROL HOUSING (PORT) (1 required per assembly) |
  |
|
|
| #34 | 10-37803 | SCREW, CONTROL HOUSING CLAMPING (1 3/4") (4 required per assembly) |
  |
|
10-37803 - Screw, NLA [ More info ] Unavailable |
| #35 | 10-68848 | SCREW, REMOTE CONTROL TO BOAT (1 1/2") (4 required per assembly) |
  |
|
10-68848 - SCREW,NLA [ More info ] Unavailable |
| #36 | 12-24664 | WASHER, REMOTE CONTROL SCREW (4 required per assembly) |
  |
|
12-24664 - Washer, (M4 X 20) [ More info ]
|
| #37 | 11-20361 | NUT, REMOTE CONTROL SCREW (4 required per assembly) |
  |
|
|
  |
|
11-826708 9 - Nut - Priced Individually [ More info ]
|
  |
|
18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ]
|
| #38 | 37812A 1 | HANDLE, CONTROL (1 required per assembly) |
  |
|
37812A 1 - Lever Assembly [ More info ] Unavailable |
| #39 | 37813 | GRIP, CONTROL HANDLE (BLACK) (1 required per assembly) |
  |
37813 - Grip [ More info ] Unavailable |
|
  |
|
98530 - Knob [ More info ] Unavailable |
| #40 | 10-37805 | SCREW, SET - CONTROL HANDLE TO CONTROL SHAFT (1 required per assembly) |
  |
|
10-37805 - Screw [ More info ]
|
| #41 | 62231 | BUTTON, CONTROL HANDLE (1 required per assembly) |
  |
62231 - Button [ More info ] Unavailable |
|
  |
|
74326 - Control Handle Button [ More info ]
|
| #42 | 65444 | CONTROL COVER (1 required per assembly) |
  |
|
65444 - Cover, NLA [ More info ] Unavailable |
| #43 | 10-68849 | SCREW, COVER TO CONTROL HOUSING (1/4") (4 required per assembly) |
  |
|
10-68849 - Screw, NLA [ More info ] Unavailable |
