Parts for Mercury Marine Electrical Side Shift Kit
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.

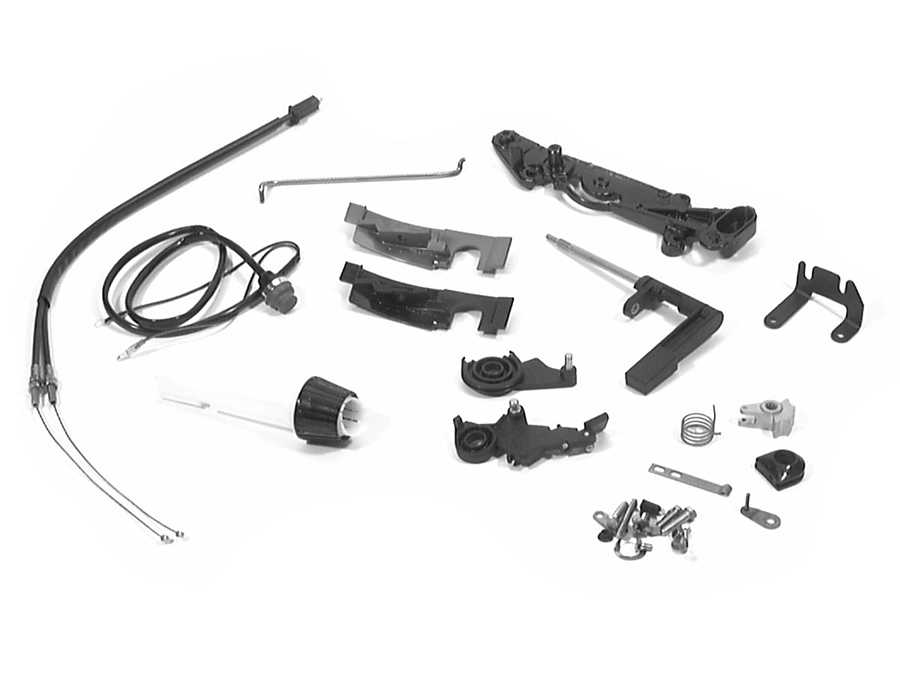

| # | 42026A 6 | SIDE SHIFT CONVERSION KIT (1 required per assembly) |
  |
|
42026A 6 - SideShift Conversion Kit, NLA [ More info ] Unavailable |
| #1 | 17234F 5 | COVER (BLACK) (1 required per assembly) |
  |
|
17234F 5 - Cover [ More info ]
|
| #1 | 17234F 2 | COVER (GRAY) (1 required per assembly) |
  |
|
17234F 2 - Ord 17234F 5, NLA [ More info ] Unavailable |

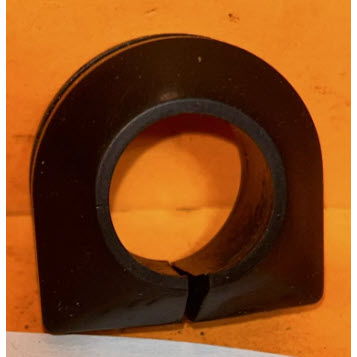

| #2 | 25-17227 | GROMMET (1 required per assembly) |
  |
|
25-17227 - Grommet, NLA [ More info ]
|
| #3 | 10-11859 1 | SCREW (1 required per assembly) |
  |
|
10-11859 1 - Screw, NLA [ More info ]
|
| #4 | 48039 | CAP (1 required per assembly) |
  |
|
48039 - Nylon Cap [ More info ]
|
| #5 | 24-89540 | SPRING (1 required per assembly) |
  |
|
24-89540 - Spring, Spark Advance [ More info ]
|
| #6 | 42343 | ACTUATING LEVER (1 required per assembly) |
  |
|
42343 - Actuating Lever [ More info ] Unavailable |
| #7 | 11038 3 | CONTROL LEVER (1 required per assembly) |
  |
|
11038 3 - Control Lever [ More info ] Unavailable |
| #8 | 87-823609A10 | THROTTLE HANDLE/STOP SWITCH KIT (1 required per assembly) |
  |
|
87-823609A10 - Switch Kit [ More info ]
|

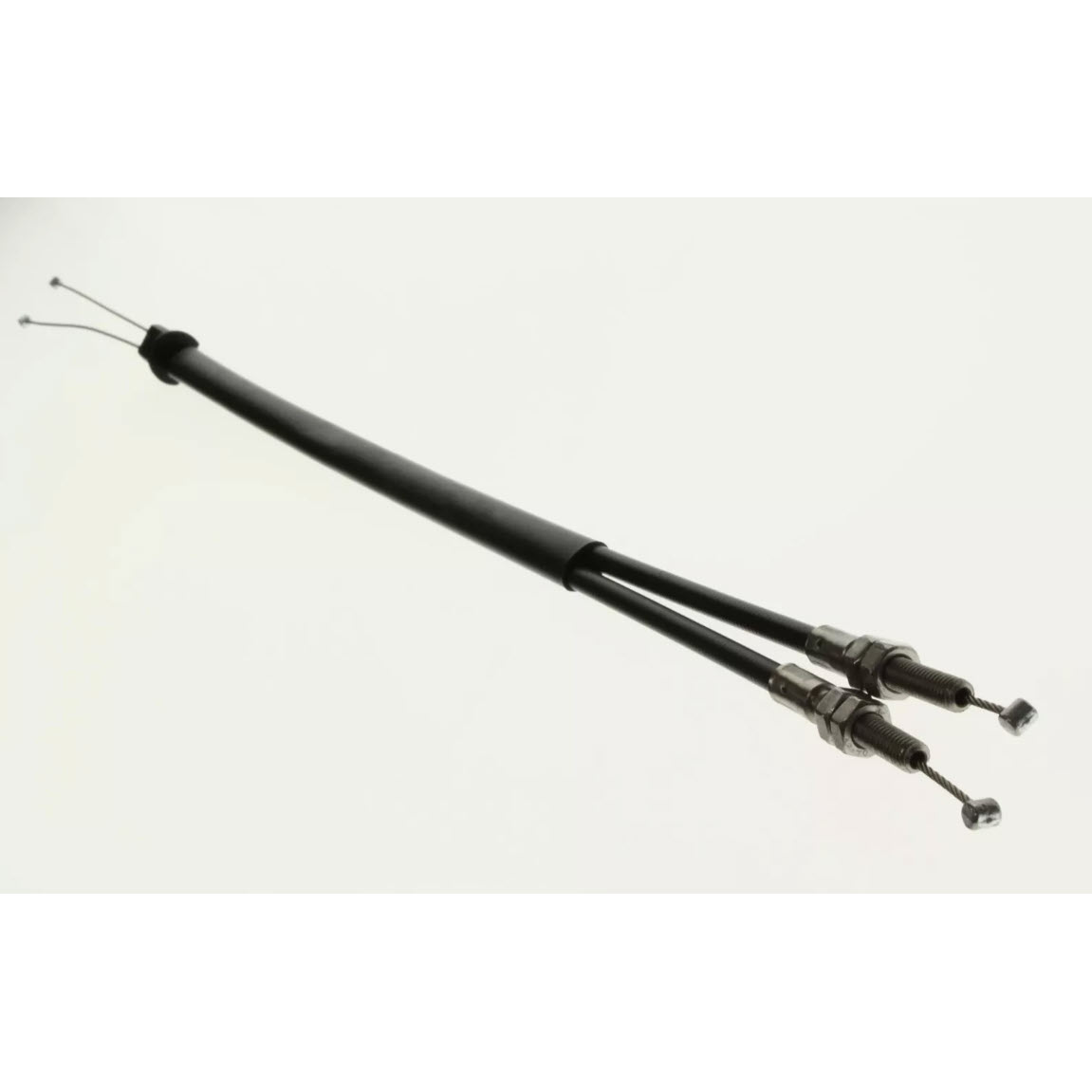

| #9 | 43242 2 | THROTTLE CABLE (1 required per assembly) |
  |
|
43242 2 - Cable Assembly [ More info ]
|
| #10 | 42026A 2 | CONTROL PLATFORM (1 required per assembly) |
  |
|
42026A 2 - Platform Assembly [ More info ]
|
| #11 | 12-40023 16 | WASHER (1 required per assembly) |
  |
|
12-40023 16 - Washer - Priced Individually [ More info ]
|
| #12 | 13-69708 | WAVE WASHER (1 required per assembly) |
  |
|
13-69708 - Wave Washer [ More info ]
|
| #13 | 10-16955 | SCREW (1 required per assembly) |
  |
|
10-16955 - Screw [ More info ]
|
| #14 | 10-40019127 | SCREW (1 required per assembly) |
  |
|
10-40019127 - Screw [ More info ]
|
| #15 | 17848 | CABLE BRACKET (1 required per assembly) |
  |
|
17848 - Bracket-Cable, NLA [ More info ] Unavailable |
| #16 | 10-40003 30 | SCREW (2 required per assembly) |
  |
|
10-40003 30 - Screw - Priced Individually [ More info ]
|
| #17 | 42330 1 | SHIFT HANDLE (1 required per assembly) |
  |
|
42330 1 - Handle, NLA [ More info ]
|
| #18 | 10-40001 1 | SCREW (2 required per assembly) |
  |
|
10-40001 1 - Screw [ More info ]
|
| #19 | 23-96202 | BUSHING (1 required per assembly) |
  |
|
23-96202 - Bushing, NLA [ More info ] Unavailable |
| #21 | 18-21071 | COTTER PIN (1 required per assembly) |
  |
18-21071 - Cotter Pin - Priced Individually [ More info ] Unavailable |
|
  |
|
18-21071 1 - Cotter Pin - Priced Individually [ More info ]
|
| #22 | 11042 | SHIFT LINK (1 required per assembly) |
  |
|
11042 - Shift Link, NLA [ More info ] Unavailable |
| #23 | 11050 1 | THROTTLE LIMIT LEVER (1 required per assembly) |
  |
|
|
| #24 | 10-40003 6 | SCREW (1 required per assembly) |
  |
|
10-40003 6 - Screw - Priced Individually [ More info ] Unavailable |
| #25 | 23-85095 | BUSHING (1 required per assembly) |
  |
23-85095 - Bushing - Priced Individually [ More info ] Unavailable |
|
  |
|
238M0214959 - Bushing Note: Priced Individually [ More info ] Unavailable |
| #26 | 12-89302 | WASHER (2 required per assembly) |
  |
|
12-89302 - Washer (.203 X .406 X .040) [ More info ]
|
| #28 | 42329 1 | SHIFT LEVER (1 required per assembly) |
  |
|
|
| #29 | 42358 | BACK PLATE (1 required per assembly) |
  |
|
42358 - Back Plate, NLA [ More info ] Unavailable |
| #30 | 11-40063 3 | NUT (1 required per assembly) |
  |
11-40063 3 - NUT [ More info ] Unavailable |
|
  |
|
11-40138 5 - Nut [ More info ] Unavailable |
| #31 | 24-39627 | SPRING (1 required per assembly) |
  |
|
24-39627 - Spring, Detent [ More info ]
|
