Parts for MerCruiser Vazer Drive Trim Pump Assembly (Complete)

Revise Search: All Models > Vazer Drive > 0W995000 & Up > Trim Pump Assembly (Complete)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

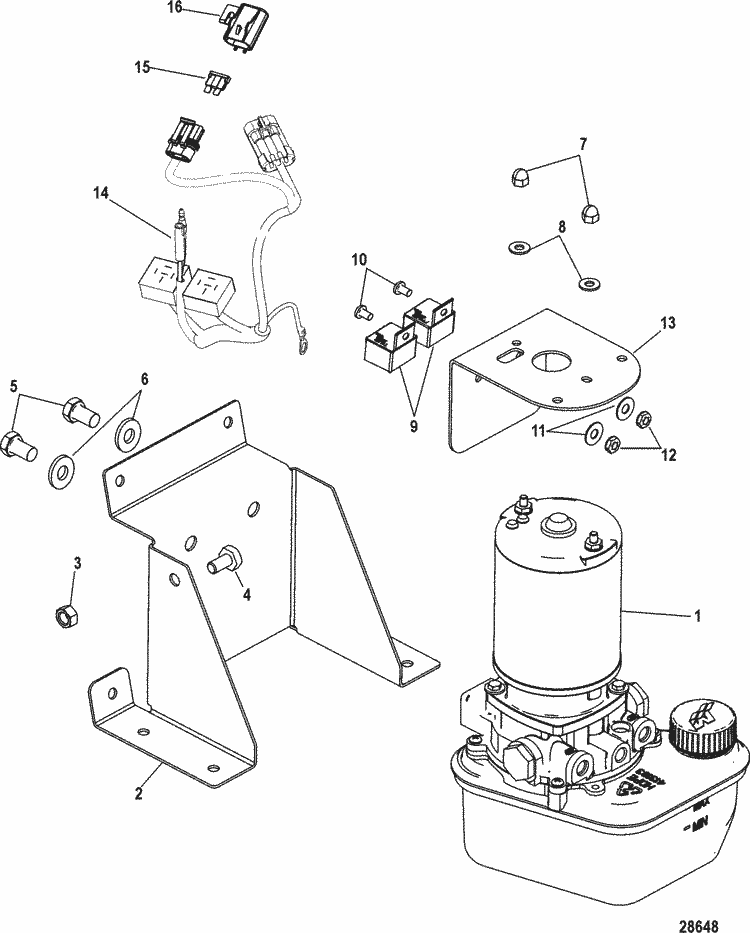

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

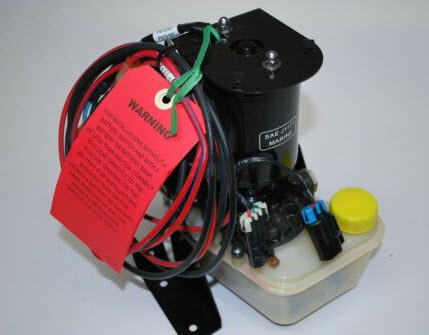

#	866565T02	PUMP ASSEMBLY, Complete (1 required per assembly)
		866565T02 - Trim Pump [ More info ] Unavailable
#1	866565T	PUMP/MOTOR ASSEMBLY, Trim - 12 Volt (1 required per assembly)
		866565T - Pump/Motor Assembly [ More info ] $299.99 $254.08 10+ In Stock.
#2	866521T	BRACKET (1 required per assembly)
		866521T - Bracket [ More info ] $36.00 $30.49 1 In Stock.
#3	11-68292	NUT, (.312-18) (1 required per assembly)
		11-68292 - Nut (5/16 Inch) [ More info ] $1.50 10+ In Stock.
		11-8M0204668 - NUT @5 [ More info ] Unavailable
#4	10-90285	SCREW, (.312-18 x .625) (1 required per assembly)
		10-90285 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#5	10-98260	SCREW, (.375-16 x .620) (2 required per assembly)
		10-98260 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#6	13-35048	LOCKWASHER, (.375) (2 required per assembly)
		13-35048 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#7	11-866591	NUT, Acorn (12-24) (2 required per assembly)
		11-866591 - Acorn Nut [ More info ] Unavailable
#8	12-8M2000021	WASHER, (12-24) (2 required per assembly)
		12-8M2000021 - Washer [ More info ] Unavailable
#9	8M2001129	RELAY, Trim Pump (2 required per assembly)
		8M2001129 - Relay - Trim [ More info ] $24.99 $21.16 10 In Stock.
#10	10-42813	SCREW (3 required per assembly)
		10-42813 - Screw [ More info ] $0.20 $0.16 7 In Stock.
#11	12-69056	WASHER, (.255 x .620 x .030) Stainless Steel (2 required per assembly)
		12-69056 - Washer, (.255 X .620 X .030) Stainless Steel [ More info ] $1.80 2 In Stock.
#12	11-27164	NUT AND LOCKWASHER, (#10-32) (3 required per assembly)
		11-27164 - Nut And Lockwasher (#10-32) [ More info ] $1.00 1 In Stock.
#13	866522T	BRACKET (1 required per assembly)
		866522T - Bracket [ More info ] $6.00 $5.08 6 In Stock.
#14	866566T01	HARNESS ASSEMBLY, Trim Pump Assembly (1 required per assembly)
		84-866566T01 - Trim Harness Pump [ More info ] Unavailable
#15	88-832969 20	FUSE, Mini - Yellow - 20 Ampere (1 required per assembly)
		88-832969 20 - Fuse-Yellow-20AMP [ More info ] Unavailable
		88-832969T20 - Fuse - Yellow - 20 Amp [ More info ] $7.09 10+ In Stock.
#16	866065	COVER (1 required per assembly)
		866065 - Fuse Cover Holder [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
