Parts for MerCruiser Vazer Drive Transom Plate & Shift Cable

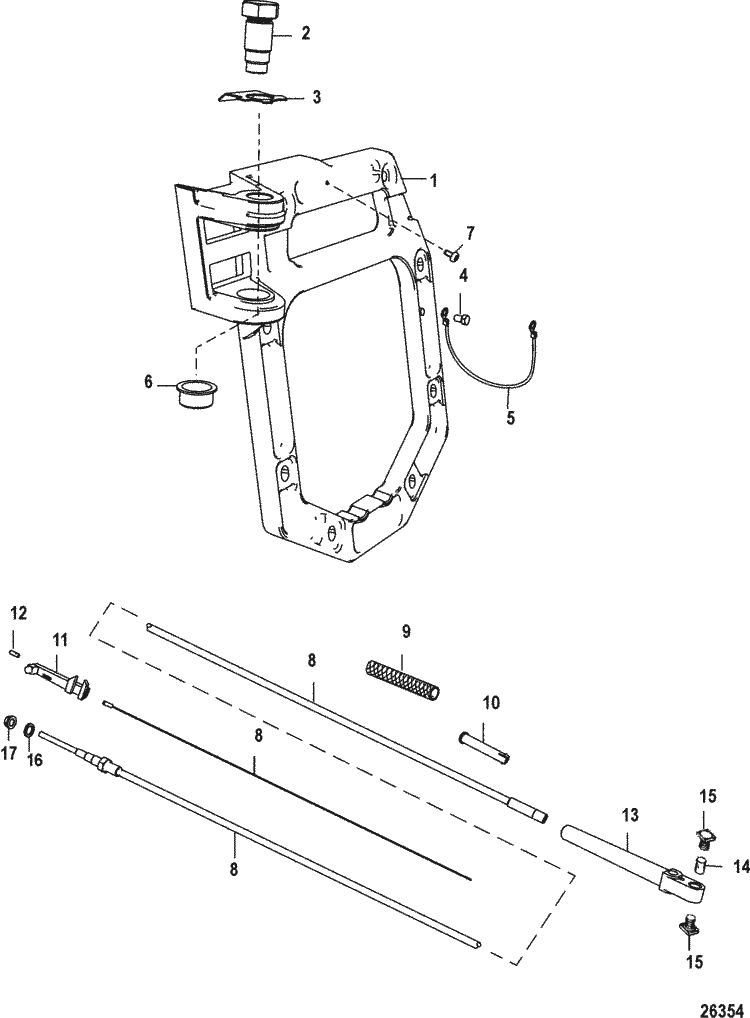

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 43433A01 | GUIDE KIT (1 required per assembly) |
  |
|
43433A01 - Guide Kit [ More info ]
|
| #1 | 866388A01 | PLATE ASSEMBLY, Transom (1 required per assembly) |
  |
|
866388A01 - Transom Plate [ More info ]
|
| #2 | 10-866580 | BOLT, Pivot (1 required per assembly) |
  |
|
10-866580 - Pivot Bolt [ More info ] Unavailable |
| #3 | 14-866581 | TAB WASHER (1 required per assembly) |
  |
|
14-866581 - Tab Washer [ More info ] Unavailable |
| #4 | 10-85486 | SCREW, (.250-20 x .380) Stainless Steel (1 required per assembly) |
  |
|
10-85486 - Screw [ More info ]
|
| #5 | 88238A 7 | CABLE ASSEMBLY (1 required per assembly) |
  |
|
88238A 7 - Cable Assembly [ More info ]
|
| #6 | 23-866504 | BUSHING (1 required per assembly) |
  |
|
23-866504 - Bushing [ More info ] Unavailable |
| #7 | 10-807754 | SCREW, (#10-24 x .38) (1 required per assembly) |
  |
10-807754 - Screw - Priced Individually [ More info ] Unavailable |
|
  |
|
108M0113176 - Screw - Priced Individually [ More info ]
|
| #8 | 33981A06 | SLIDE ASSEMBLY, Shifting (1 required per assembly) |
  |
|
33981A06 - Shift Cable Assembly [ More info ]
|
| #9 | 38473 | WRAPPING, Spiral (1 required per assembly) |
  |
|
38473 - Wrapping [ More info ]
|
| #10 | 861632T | INSERT (1 required per assembly) |
  |
|
861632T - Insert [ More info ]
|
| #11 | 33981 2 | SLIDE, Shifting (1 required per assembly) |
  |
33981 2 - SLIDE [ More info ] Unavailable |
|
  |
|
8M0046299 - Slide [ More info ] Unavailable |
| #12 | 10-31700 | SCREW, (.250-28 x .750) (1 required per assembly) |
  |
|
10-31700 - Screw - Priced Individually [ More info ]
|
  |
|
10-8M0214921 - SCREW @3 [ More info ] Unavailable |
| #13 | 43433 | GUIDE (1 required per assembly) |
  |
|
43433 - Guide - Priced Individually [ More info ]
|
  |
|
8M0204660 - SHIFT CABLE END GUIDE Note: Priced Individually ZZ [ More info ]
|
  |
|
18-2149 - Guide, 43433 [ More info ]
|
| #14 | 43436 | ANCHOR (1 required per assembly) |
  |
|
|
| #15 | 10-20518 | SET SCREW, (#8-32) (2 required per assembly) |
  |
|
10-20518 - Screw -set - Priced Individually [ More info ]
|
  |
|
10-8M0204644 - SCREW-SET @25 [ More info ] Unavailable |
  |
|
18-2303 - Cable Anchor Set Screw [ More info ]
|
| #16 | 12-815472 | WASHER (1 required per assembly) |
  |
12-815472 - Washer, Sealing [ More info ] Unavailable |
|
  |
|
12-8M0214950 - WASHER [ More info ] Unavailable |
| #17 | 11-49910 | NUT, (.375-24) (1 required per assembly) |
  |
|
11-49910 - Nut (3/8-24) [ More info ]
|
  |
|
11-8M0214936 - NUT Note: Must be ordered in multiples of 2 [ More info ]
|
| #NS | 91-8M2001196 | TOOL, Shift Slide (1 required per assembly) |
  |
|
91-8M2001196 - Shift Slide Stabilizer Tool [ More info ] Unavailable |
