Parts for MerCruiser Scorpion 350 EC Distributor & Ignition Components

Revise Search: All Models > Scorpion 350 EC > 0W698433 & Up > Distributor & Ignition Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

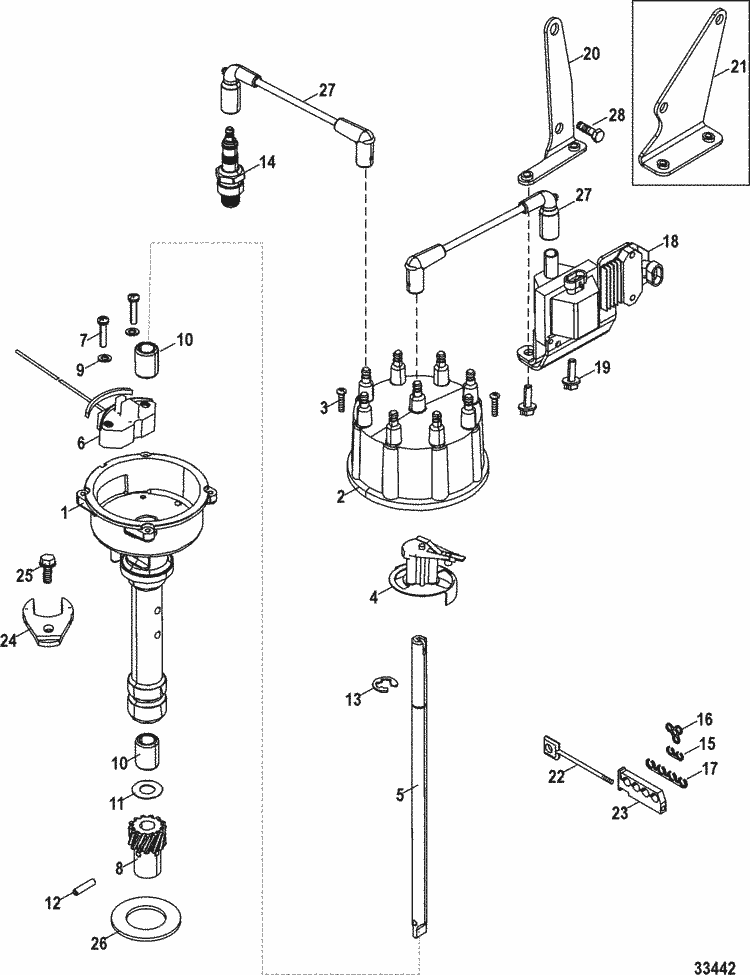

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

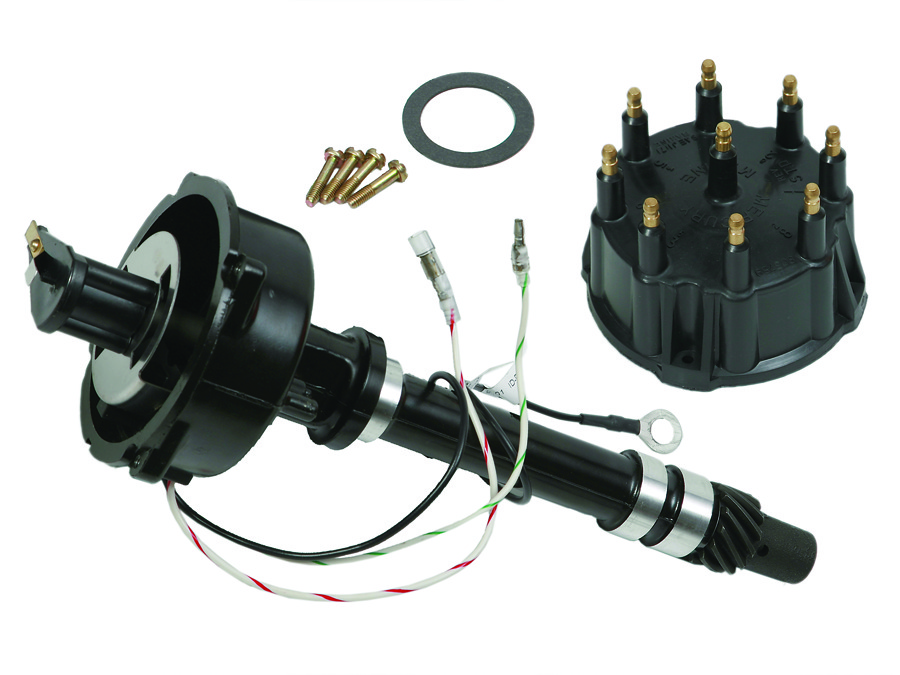

#1	862057A12	DISTRIBUTOR ASSEMBLY (1 required per assembly)
		862057A12 - Distributor [ More info ] $421.49 Available to Order: Shipping delay up to 10 days.
#2	805759T 1	CAP, Distributor (1 required per assembly)
		805759T 1 - Distributor Cap Assembly [ More info ] $65.49 $62.99 In Stock
		18-5395 - Cap, 805759A2, T2 [ More info ] $52.09 10 In Stock.
		805759T 3 - Cap & Rotor Kit [ More info ] $66.99 3 In Stock.
		805759Q 3 - Cap & Rotor Kit [ More info ] $60.99 1 In Stock.
		805759Q01 - Distributor Cap Assembly [ More info ] $65.49 Available to Order: Shipping delay up to 10 days.
#3	10-90926	SCREW, (#10-32 x .810) (4 required per assembly)
		10-90926 - Screw - Priced Individually [ More info ] $1.00 9 In Stock.
#4	879288T34	ROTOR (1 required per assembly)
		879288T34 - Rotor - Distributor [ More info ] $122.99 Available to Order: Shipping delay up to 10 days.
#5	806334	SHAFT (2 required per assembly)
		806334 - Shaft [ More info ] $29.34 Available to Order: Shipping delay up to 10 days.
#6	87-892150Q02	SENSOR ASSEMBLY (1 required per assembly)
		87-892150Q02 - Ignition Sensor Assembly [ More info ] $111.49 3 In Stock.
		18-5116-1 - Sensor, 87-892150Q02 [ More info ] $93.48 4 In Stock.
		87-892150K02 - Ignition Sensor Assembly [ More info ] $122.99 $122.58 Available to Order: Shipping delay up to 10 days.
		87-08107 - Sensor, 87-892150Q02 [ More info ] $93.99 $71.88 5 In Stock.
#7	10-66686	SCREW, (#10-32 x 1.00) (2 required per assembly)
		10-66686 - Screw - Priced Individually [ More info ] $1.80 $1.44 10+ In Stock.
#8	43-818807	GEAR (1 required per assembly)
		43-818807 - Distributor Gear [ More info ] $60.00 2 In Stock.
		43-8M0079425 - 43-8M0079425 - GEAR [ More info ] Unavailable Replaced by -8M0115498
		43-8M0115498 - Gear [ More info ] Unavailable
#9	13-F8058	LOCKWASHER, Internal (#10) (2 required per assembly)
		13-F8058 - LockWasher, NLA [ More info ] $1.09 10+ In Stock.
#10	23-90915	BUSHING, Sleeve (2 required per assembly)
		23-90915 - Bushing [ More info ] $9.89 $7.92 3 In Stock.
#11	12-90931	THRUST WASHER, Thrust (1 required per assembly)
		12-90931 - Washer, Thrust [ More info ] $1.00 Available to Order: Shipping delay up to 10 days.
#12	17-47617	PIN, Roll (1 required per assembly)
		17-47617 - Pin -roll [ More info ] $3.19 $2.56 6 In Stock.
#13	53-90916	RING (1 required per assembly)
		53-90916 - Ring - Retaining [ More info ] $0.60 $0.48 3 In Stock.
#14	33-884019001	SPARK PLUG (AC 41-993) (8 required per assembly) Scorpion 350
		33-884019001 - AC 41-993 Note: Priced Individually [ More info ] Unavailable
		33-8M2018369 - NGK Spark Plug ITR4A15, Priced Individually [ More info ] Unavailable
		33-8M0204739 - NGK ITR4A15 @4 [ More info ] Unavailable
		ITR4A15 - NGK Spark Plug, 5599 [ More info ] $17.62 10+ In Stock.
#14	33-816336Q	SPARK PLUG (8 required per assembly) Scorpion 377 HO
		33-816336Q - NGK Spark Plug BPR6EFS - Priced Individually [ More info ] Unavailable
		BPR6EFS - NGK Spark Plug, 3623 [ More info ] $7.12 10+ In Stock.
#15	54676	RETAINER, Two Wire (2 required per assembly)
		54676 - Retainer [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#16	32783	RETAINER, Three Wire (2 required per assembly)
		32783 - Retainer [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#17	32784	RETAINER, Four Wire (2 required per assembly)
		32784 - Retainer [ More info ] Unavailable
#18	392-863704T	COIL, Ignition (1 required per assembly)
		392-863704T - Ignition Coil [ More info ] Unavailable
		8M0054588 - COIL [ More info ] Unavailable
		392-8M0054588 - Ignition Coil [ More info ] $400.49 Available to Order: Shipping delay up to 10 days.
		300-30019 - Ignition Coil 8M0054588 [ More info ] $334.99 $256.14 1 In Stock.
#19	10-65746 1	SCREW AND LOCKWASHER, (.250-20 x .625) (2 required per assembly)
		10-65746 1 - Screw [ More info ] $1.70 5 In Stock.
#20	879288T68	BRACKET, Coil (1 required per assembly)
		879288T68 - Bracket-Coil [ More info ] $25.29 Available to Order: Shipping delay up to 10 days.
#21	865057T	BRACKET, Coil (1 required per assembly) (V-Drive)
		865057T - Coil Bracket [ More info ] $43.49 Available to Order: Shipping delay up to 10 days.
#22	16-90096A 1	STUD ASSEMBLY, (#10-32 x Special) (2 required per assembly)
		16-90096A 1 - Stud Kit -Special [ More info ] $15.59 Available to Order: Shipping delay up to 10 days.
#23	54-72821	RETAINER (4 required per assembly)
		54-72821 - Cable Retainer [ More info ] Unavailable
#24	54-88731	CLAMP (1 required per assembly)
		54-88731 - Clamp [ More info ] $9.99 Available to Order: Shipping delay up to 10 days.
#25	10-40011149	SCREW, (M8 x 25) Stainless Steel (1 required per assembly)
		10-40011149 - Screw [ More info ] $2.69 Available to Order: Shipping delay up to 10 days.
#26	27-34486 3	GASKET (1 required per assembly)
		27-34486 3 - Gasket [ More info ] $2.69 Available to Order: Shipping delay up to 10 days.
		18-0874-9 - Gasket 27-344863 2-Pack [ More info ] $3.99 $3.54 Available to Order: Shipping delay up to 10 days.
#27	84-863656A03	CABLE KIT, Ignition, Plug and Coil Wires (1 required per assembly)
		84-863656A03 - Spark Plug Wire Set [ More info ] $158.72 7 In Stock.
#28	10-98261	SCREW, (.375-16 x .750) (2 required per assembly)
		10-98261 - Screw [ More info ] $1.20 5 In Stock.
