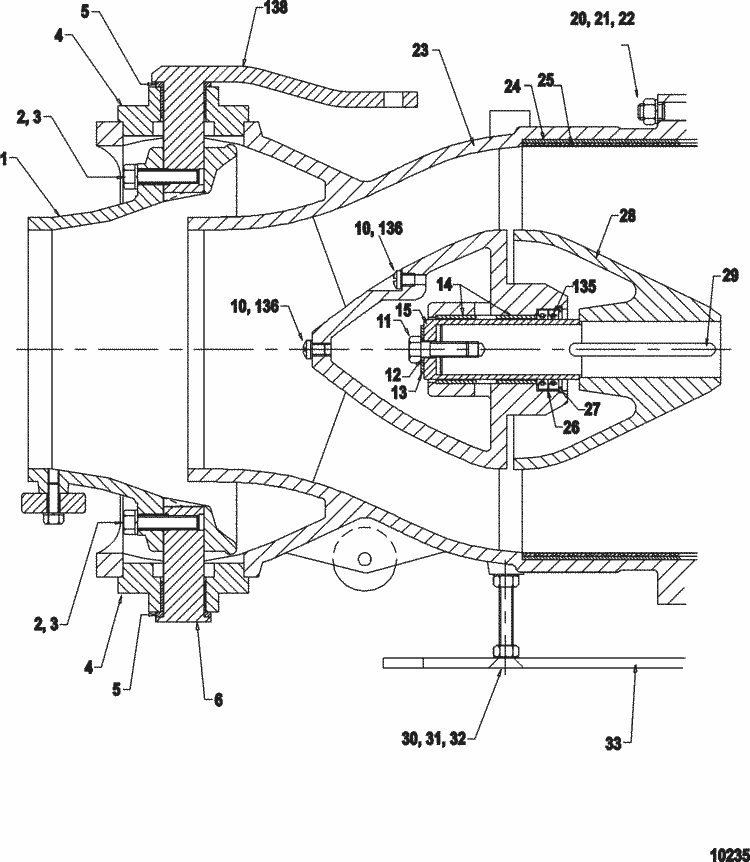

Parts for MerCruiser Jet Drive 2004 Nozzle Assembly (Cross Section A)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 64-886927 | NOZZLE, Steering (1 required per assembly) |
  |
|
64-886927 - Nozzle STEERING [ More info ] Unavailable |
| #2 | 10-887282 | SET SCREW, (M10 Coarse) 40 Per Package (2 required per assembly) |
  |
|
10-887282 - Set Screw [ More info ]
|
| #4 | 23-886931 | BUSHING, Steering Pivot (2 required per assembly) |
  |
|
23-886931 - PIVOT BUSH-STEER [ More info ] Unavailable |
| #5 | 23-887276 | BUSHING, Flanged (3 required per assembly) |
  |
|
23-887276 - Bushing- Flanged [ More info ] Unavailable |
| #6 | 64-887275 | PIN, Tiller - Upper Pivot (1 required per assembly) |
  |
|
64-887275 - Tiller Pin [ More info ] Unavailable |
| #10 | 10-79953Q 2 | SCREW KIT, (.375-16 x .250) Drain (2 required per assembly) |
  |
10-79953Q 2 - Screw Kit - Priced Individually [ More info ] Unavailable |
|
  |
|
10-79953Q04 - Screw Kit - Priced Individually [ More info ]
|
  |
|
18-2244 - Plug Kit, 10-79953A2 [ More info ]
|
  |
|
10-79953K04 - Drain Screw - Priced Individually [ More info ]
|
| #11 | 10-887216 | BOLT, (M10 x 30) (1 required per assembly) |
  |
|
10-887216 - Bolt [ More info ]
|
| #12 | 25-887201 | O-RING, Shaft Sleeve Bolt (1 required per assembly) |
  |
|
25-887201 - REF MCM SB 10-02 [ More info ] Unavailable |
| #13 | 12-887217 | WASHER, (M14) (1 required per assembly) |
  |
|
12-887217 - Washer, (M14) NLA [ More info ] Unavailable |
| #14 | 30-886877 | BEARING (2 required per assembly) |
  |
|
30-886877 - BearingS,NLA, SEE NOTE [ More info ] Unavailable |
| #15 | 23-886830 | SHAFT SLEEVE (1 required per assembly) |
  |
|
23-886830 - Shaft Sleeve [ More info ] Unavailable |
| #20 | 16-887250 | STUD, (M10) (6 required per assembly) |
  |
|
16-887250 - Stud [ More info ] Unavailable |
| #21 | 12-896379 | WASHER, (M10) (6 required per assembly) |
  |
|
12-896379 - Washer, (M10) [ More info ] Unavailable |
| #22 | 11-887223 | LOCKNUT, (M10) (6 required per assembly) |
  |
|
11-887223 - Nyloc Nut [ More info ]
|
| #23 | 886883 | DISCHARGE NOZZLE (1 required per assembly) |
  |
|
886883 - Nozzle - Discharge [ More info ]
|
| #24 | 886880 | LINER PLASTIC (1 required per assembly) |
  |
|
886880 - REF MCM SB 10-02 [ More info ] Unavailable |
| #25 | 886881 | LINER STAINLESS STEEL (1 required per assembly) |
  |
|
886881 - Liner Stainless Steel [ More info ] Unavailable |
| #26 | 26-886875 | SEAL (2 required per assembly) |
  |
|
26-886875 - REF MCM SB 10-02 [ More info ] Unavailable |
| #27 | 53-886878 | CIRCLIP (1 required per assembly) |
  |
|
53-886878 - Circlip [ More info ] Unavailable |
| #28 | 47-887494 | IMPELLER, Steel (1 required per assembly) |
  |
|
47-887494 - REF MCM SB 10-02 [ More info ] Unavailable |
| #29 | 28-887249 | KEY (1 required per assembly) |
  |
|
28-887249 - Key [ More info ] Unavailable |
| #30 | 10-887224 | SCREW, (M10 x 70) (2 required per assembly) |
  |
|
10-887224 - Screw [ More info ]
|
| #31 | 12-887281 | WASHER, (M10) (2 required per assembly) |
  |
|
12-887281 - Washer [ More info ] Unavailable |
| #32 | 12-887257 | WASHER, (M12) (4 required per assembly) |
  |
|
12-887257 - Washer, (M12) NLA [ More info ] Unavailable |
| #33 | 886853 | TRIM PLATE (1 required per assembly) |
  |
|
886853 - Trim Plate [ More info ] Unavailable |
| #135 | 25-886876 | O-RING, Lip Seal Spring (1 required per assembly) |
  |
|
25-886876 - O-RING [ More info ] Unavailable |
| #136 | 12-19183 2 | WASHER (2 required per assembly) |
  |
12-19183 2 - Washer - Priced Individually [ More info ] Unavailable |
|
  |
|
12-19183 3 - Seal -Blue - Priced Individually [ More info ] Unavailable |
  |
|
18-2945-9 - Gasket 12-19183 2-Pack [ More info ]
|
  |
|
12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ]
|
  |
|
12-19183K02 - Seal, Pack of 4 [ More info ]
|
| #138 | 17-886929 | PIN, Lower Pivot (1 required per assembly) |
  |
|
17-886929 - PIN [ More info ] Unavailable |
