Parts for MerCruiser Bravo XR One Universal Joint & Shift Components

Revise Search: All Models > Bravo XR One > 0W240000 & Up > Universal Joint & Shift Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

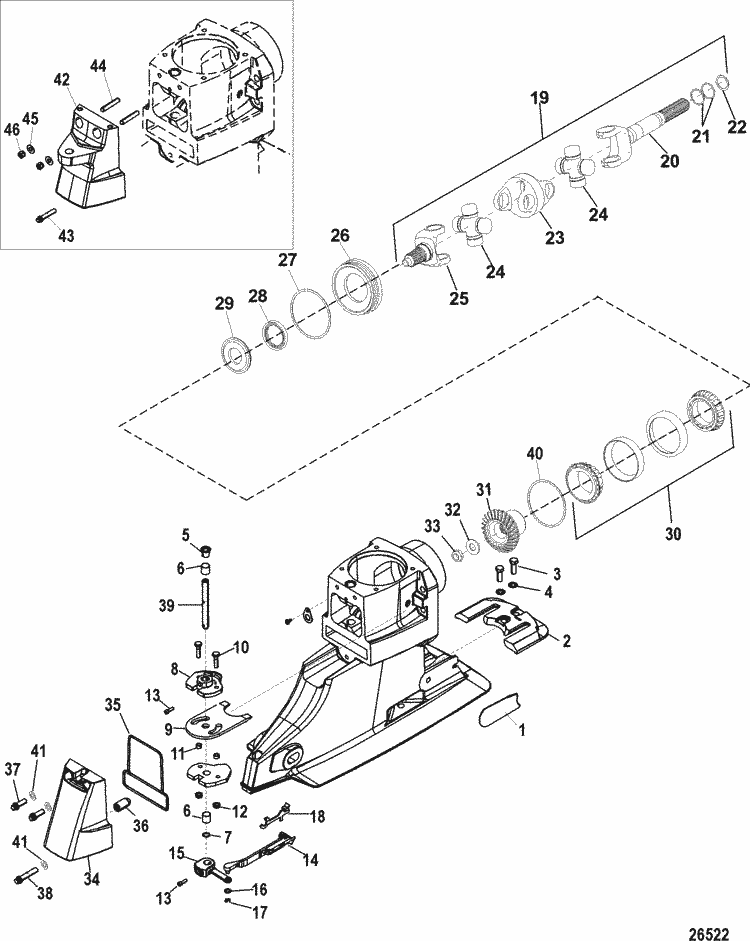

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	1589-865440H56	HOUSING ASSEMBLY, Driveshaft - Complete (16/19) (1 required per assembly) (Use With Magnum and Hi-Performance Transom)
		1589-865440H56 - Dsh Bravo XR16/19 [ More info ] Unavailable
#	1589-865440H70	HOUSING, Driveshaft - Basic (1 required per assembly)
		1589-865440H70 - Dsh Br X/Xr-Basic [ More info ] Unavailable
#	1589-865440H73	HOUSING ASSEMBLY, Driveshaft - Complete (16/19) (1 required per assembly) (Use With Integrated Transom)
		1589-865440H73 - Dsh Bravo Xr Its [ More info ] Unavailable
#	26-16709A 2	SEAL KIT, Driveshaft Housing (1 required per assembly)
		26-16709A 2 - Seal Kit [ More info ] $140.49 $138.46 In Stock
		18-2643 - Seal Kit, 26-16709A2 [ More info ] $120.02 9 In Stock.
		26-02388 - Seal Kit 26-16709A 2 [ More info ] $94.99 $85.01 2 In Stock.
#	1500-866459J00	HOUSING, Driveshaft - Basic (1 required per assembly) (SEACORE)
		1500-866459J00 - Dsh Brv X ScBasic [ More info ] Unavailable
#	1500-866459J04	HOUSING ASSEMBLY, Driveshaft - Complete (16/19) (1 required per assembly) (SEACORE)(Use With Magnum and Hi-Performance Transom)
		1500-866459J04 - Dsh Bravo Xr Sc [ More info ] Unavailable
#1	805261A 1	WEAR PAD KIT (1 required per assembly)
		805261A 1 - Wear Pad Kit [ More info ] $31.83 4 In Stock.
#2	821630Q 1	ANODE ASSEMBLY (1 required per assembly)
		97-821630Q 1 - Anode Kit -Drive Shaft Housing Bravo [ More info ] $45.49 10+ In Stock.
		18-6240 - Anode, Magnesium, 821630 [ More info ] $27.99 $27.82 In Stock
		18-6094 - Anode, Zinc, 821630A1 [ More info ] $35.69 $32.77 In Stock
		97-821630T 1 - Aluminun Anode-Drive Shaft Housing Bravo [ More info ] $49.99 $49.58 Available to Order: Shipping delay up to 10 days.
#3	10-65210	SCREW, (.375-16 x 1.00) (2 required per assembly)
		10-65210 - Screw - Priced Individually [ More info ] $2.89 3 In Stock.
#4	13-35479	LOCKWASHER, (.375) (2 required per assembly)
		13-35479 - LockWasher - Priced Individually [ More info ] $1.80 $1.01 10+ In Stock.
#5	19-865866	PLUG, Shift Shaft Oil Seal (1 required per assembly)
		19-865866 - Plug [ More info ] $7.09 Available to Order: Shipping delay up to 10 days.
#6	23-861209A 1	BUSHING KIT (1 required per assembly)
		23-861209A 1 - Bushing Kit [ More info ] $40.49 In Stock
#7	26-12709 1	SEAL (1 required per assembly)
		26-12709 1 - Seal [ More info ] $8.79 2 In Stock.
#8	806552A 1	YOKE AND CAM ASSEMBLY (1 required per assembly)
		806552A 1 - Yoke & Cam Assembly [ More info ] $293.49 In Stock
#9	806552	YOKE, Shifter (1 required per assembly)
		806552 - Shifter Yoke [ More info ] $165.49 Available to Order: Shipping delay up to 10 days.
#10	10-805733	SCREW, (.250-28 x 1.00) (2 required per assembly)
		10-805733 - Screw [ More info ] $1.80 1 In Stock.
#11	23-12706	SPACER, (.194 x .375) (2 required per assembly)
		23-12706 - Spacer - .194 X .375 [ More info ] $5.69 10 In Stock.
#12	11-826713 9	NUT, (.250-28) (2 required per assembly)
		11-826713 9 - Nut [ More info ] $2.59 4 In Stock.
#13	10-865712	SCREW, (.250-28 x .930) (2 required per assembly)
		10-865712 - SCREW Note: Priced Individually [ More info ] Unavailable
		10-865900 - Screw [ More info ] $1.20 Available to Order: Shipping delay up to 10 days.
#14	861175A 2	SHIFT LINKAGE ASSEMBLY, High Bump Shift Lever (1 required per assembly)
		861175A 2 - Shift Linkage Kit [ More info ] Unavailable
		8M0185784 - Shift Linkage Kit [ More info ] $155.49 $149.49 In Stock
#15	NSS	NOT SOLD SEPARATE, SHIFT LEVER (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#16	12-20583	WASHER (1 required per assembly)
		12-20583 - Washer - Priced Individually [ More info ] $1.50 10+ In Stock.
#17	18-26953	COTTER PIN (1 required per assembly)
		18-26953 - Cotter Pin - Priced Individually [ More info ] $4.19 8 In Stock.
#18	86776	LATCH (1 required per assembly)
		86776 - Latch [ More info ] $9.79 Available to Order: Shipping delay up to 10 days.
#19	865425A03	UNIVERSAL JOINT ASSEMBLY (1 required per assembly)
		865425A03 - Universal Joint Assembly [ More info ] $1,256.49 In Stock
#19	865425T02	UNIVERSAL JOINT ASSEMBLY (1 required per assembly) (Use With Integrated Transom Assemblies)
		865425T02 - Universal Joint Assembly [ More info ] $1,360.99 In Stock
#20	866133A01	YOKE, Splined, Coupler End (1 required per assembly)
		866133A01 - Yoke -Splined [ More info ] $352.99 Available to Order: Shipping delay up to 10 days.
#20	866135A01	YOKE, Splined, Coupler End (1 required per assembly) (Integrated Transom Assembly)
		866135A01 - Yoke -Splined Its [ More info ] $772.49 Available to Order: Shipping delay up to 10 days.
#21	25-29845	O-RING, (.924 x .103) (2 required per assembly)
		25-29845 - O-ring, (.924 X .103) [ More info ] $2.21 10+ In Stock.
		25-8M0204650 - O RING @3 Q=T [ More info ] Unavailable
#22	25-35027	O-RING, (1.046) (1 required per assembly)
		25-35027 - O-ring (1.046 I.d.) [ More info ] Unavailable
		25-8M0204654 - O RING @10 [ More info ] Unavailable
		18-7117 - O-Ring 303360, 25-35027 [ More info ] $1.43 5 In Stock.
#23	866137T	SOCKET, Center (1 required per assembly)
		866137T - Center Socket [ More info ] $223.49 Available to Order: Shipping delay up to 10 days.
#24	866136A01	CROSS AND BEARING (1 required per assembly)
		866136A01 - Cross And Bearing [ More info ] $379.99 In Stock
#25	866134T	YOKE, Gear End (1 required per assembly)
		866134T - Yoke -stub [ More info ] Unavailable

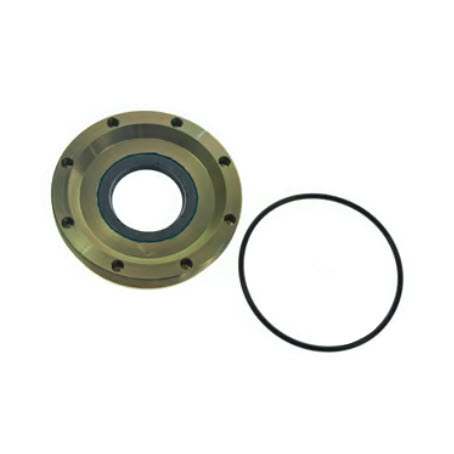

#26	11-841026A 2	RETAINER/SEAL KIT (1 required per assembly)
		11-841026A 2 - Retainer/Seal Kit [ More info ] Unavailable
#27	25-861844	O-RING (1 required per assembly)
		25-861844 - O-Ring [ More info ] Unavailable
		25-8M0214974 - O-Ring [ More info ] $8.19 2 In Stock.
		18-7961 - O-Ring 25-97386 [ More info ] $4.41 6 In Stock.
#28	26-43993	SEAL, Oil (1 required per assembly)
		26-43993 - Seal [ More info ] Unavailable
		26-8M0214932 - Crankshaft OIL SEAL O/B [ More info ] $26.09 In Stock
		18-0523 - Seal, 26-43993 [ More info ] $22.99 $22.17 2 In Stock.

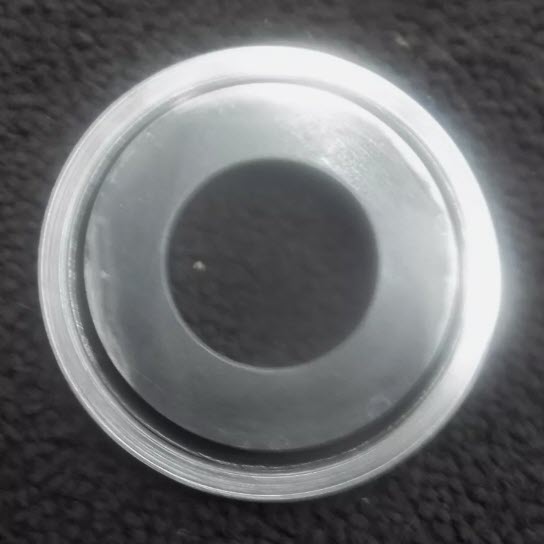

#29	12-862134	WASHER (1 required per assembly)
		12-862134 - Washer [ More info ] Unavailable
		12-8M0173219 - Washer [ More info ] $50.99 In Stock
#30	31-86763A04	BEARING ASSEMBLY, Tapered Roller (1 required per assembly)
		31-86763A04 - Bearing - Tapered Roller [ More info ] Unavailable
		31-8M0104358 - Bearing Assembly [ More info ] $346.49 In Stock
#31	43-849320T	GEAR, (16 Teeth) (1 required per assembly)
		43-849320T - Gear, (16 Teeth) [ More info ] $819.49 In Stock
#32	12-861832	WASHER (1 required per assembly)
		12-861832 - Washer [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#33	11-97522	NUT, (.625-18) (1 required per assembly)
		11-97522 - Nut (5/8-18) [ More info ] Unavailable
		11-22339 - Nut (5/8x18) [ More info ] Unavailable
		11-8M0214915 - NUT Note: Priced Individually [ More info ] $11.69 9 In Stock.
		18-3713 - Nut, 11-22339 [ More info ] $5.98 5 In Stock.
		11-01817 - Nut 11-22339 [ More info ] $5.99 $4.59 Available to Order: Shipping delay up to 10 days.
#34	865441A02	COVER ASSEMBLY, Back (1 required per assembly) (Use With Magnum and Hi-Performance Transom)
		865441A02 - Cover Assembly [ More info ] Unavailable
		865441A04 - Cover Assembly [ More info ] $180.00 2 In Stock.
		8M0157710 - COVER ASSEMBLY [ More info ] $496.99 Available to Order: Shipping delay up to 10 days.
#34	866463A02	COVER ASSEMBLY, Back (1 required per assembly) (SEACORE)(Use With Magnum and Hi-Performance Transom)
		866463A02 - Cover Assembly [ More info ] Unavailable
		8M0157428 - COVER ASSEMBLY [ More info ] $486.99 Available to Order: Shipping delay up to 10 days.
#35	12708	SEAL (1 required per assembly)
		12708 - Seal [ More info ] $15.99 Available to Order: Shipping delay up to 10 days.
		18-1240 - Seal, 12708 [ More info ] $12.77 2 In Stock.
#36	14497A 2	DETENT ASSEMBLY (1 required per assembly)
		14497A 2 - Detent Assembly [ More info ] Unavailable
		865711A02 - Detent Assembly [ More info ] Unavailable
		8M0157700 - Detent Assembly [ More info ] $86.99 $83.49 In Stock
#37	10-98794	SCREW, (.375-16 x 1.00) (2 required per assembly)
		10-98794 - Screw [ More info ] Unavailable
		10-8M0113180 - Mouting Screw AL/BRAV TOP Cover, priced individually [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#38	10-87158	SCREW, (.375-16 x 1.875) (1 required per assembly)
		10-87158 - Screw [ More info ] $13.49 Available to Order: Shipping delay up to 10 days.
#39	12711	SHAFT (1 required per assembly)
		12711 - Shaft [ More info ] $83.99 Available to Order: Shipping delay up to 10 days.
#40	15-888927028	SHIM, (.028) (1 required per assembly)
		15-888927028 - Shim [ More info ] $5.59 1 In Stock.
#40	15-888927029	SHIM, (.029) (1 required per assembly)
		15-888927029 - Shim [ More info ] $5.99 3 In Stock.
#40	15-888927030	SHIM, (.030) (1 required per assembly)
		15-888927030 - Shim [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#40	15-888927031	SHIM, (.031) (1 required per assembly)
		15-888927031 - Shim [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#40	15-888927032	SHIM, (.032) (1 required per assembly)
		15-888927032 - Shim [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#40	15-888927033	SHIM, (.033) (1 required per assembly)
		15-888927033 - Shim [ More info ] $7.99 3 In Stock.
#40	15-888927034	SHIM, (.034) (1 required per assembly)
		15-888927034 - Shim [ More info ] $5.49 Available to Order: Shipping delay up to 10 days.
#40	15-888927035	SHIM, (.035) (1 required per assembly)
		15-888927035 - Shim [ More info ] $5.19 3 In Stock.
#40	15-888927036	SHIM, (.036) (1 required per assembly)
		15-888927036 - Shim [ More info ] $5.49 1 In Stock.
#40	15-888927037	SHIM, (.037) (1 required per assembly)
		15-888927037 - Shim [ More info ] $6.79 2 In Stock.
#40	15-888927038	SHIM, (.038) (1 required per assembly)
		15-888927038 - Shim [ More info ] $6.79 Available to Order: Shipping delay up to 10 days.
#40	15-888927039	SHIM, (.039) (1 required per assembly)
		15-888927039 - Shim [ More info ] $6.09 $1.22 4 In Stock.
#40	15-888927040	SHIM, (.040) (1 required per assembly)
		15-888927040 - Shim [ More info ] $5.09 10 In Stock.
#41	12-37828	WASHER, (.390 x .625 x .062) Stainless Steel (3 required per assembly) SEACORE
		12-37828 - Washer, (.390 X .625 X .062) Stainless Steel [ More info ] $0.80 2 In Stock.
#42	842783T01	COVER ASSEMBLY (1 required per assembly)
		842783T01 - Cover Assembly [ More info ] $434.99 Available to Order: Shipping delay up to 10 days.
#44	16-57932	STUD, (.375-16/.375-24 x 1.750) (2 required per assembly)
		16-57932 - STUD [ More info ] Unavailable
		16-8M0022145 - Stud [ More info ] $12.49 Available to Order: Shipping delay up to 10 days.
#46	11-34932	NUT, (.375-24) (2 required per assembly)
		11-34932 - Nut (3/8-24) [ More info ] $1.50 6 In Stock.
		11-826710 13 - Nut, (.375-24) Stainless Steel [ More info ] $4.69 10+ In Stock.
		18-3720-9 - Lock Nut, 11-34932, 5PK [ More info ] $16.40 Available to Order: Shipping delay up to 10 days.
