Parts for MerCruiser Bravo X Two Steering Actuator, Axius (Sensors Screw In)

Revise Search: All Models > Bravo X Two > 0W250000 & Up > Steering Actuator, Axius (Sensors Screw In)

NEED PARTS OR KITS?

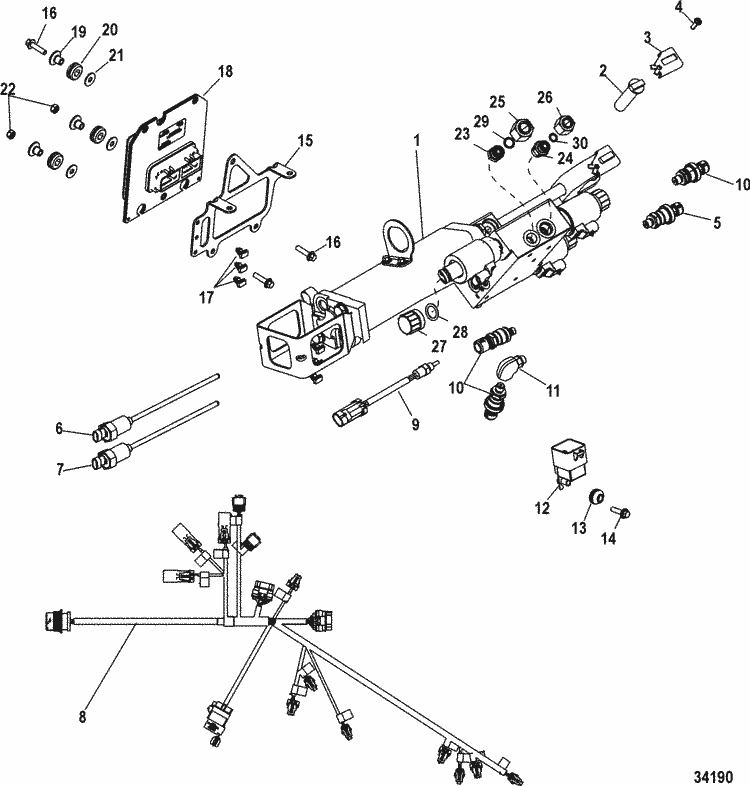

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

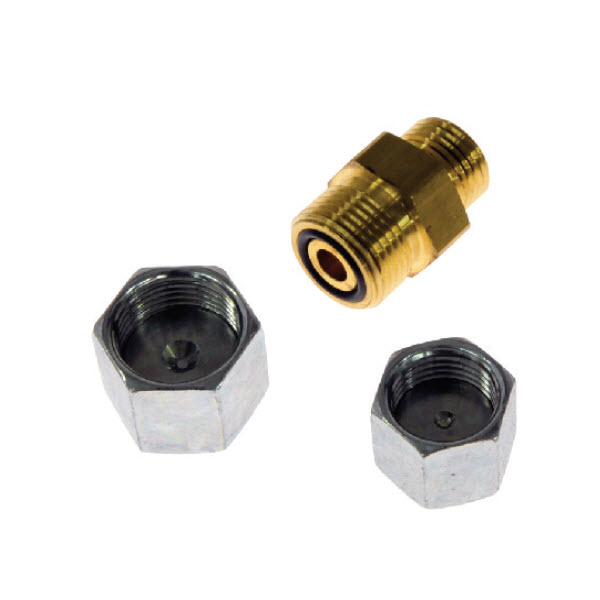

#	879172A19	DUST CAP KIT (1 required per assembly) (Refer to Service Bulletin SMC-09-06)
		879172A19 - DUST CAP Kit [ More info ] $70.75 Available to Order: Usually ships within 10 days.
#1	8M2008525	STEERING ACTUATOR ASSEMBLY, Starboard (1 required per assembly) (Gas) (Refer to Service Bulletin SMC-09-06)
		8M2008525 - STEERING CYLINDER [ More info ] Unavailable
		8M2016465 - STEERING CYLINDER [ More info ] Unavailable
#1	8M2008524	STEERING ACTUATOR ASSEMBLY, Port (1 required per assembly) (Gas) (Refer to Service Bulletin SMC-09-06)
		8M2008524 - Steering Cylinder [ More info ] Unavailable
		8M2016466 - 8M0057416 [ More info ] Unavailable
#1	8M2016016	STEERING ACTUATOR ASSEMBLY, Starboard (1 required per assembly) (Diesel)
		8M2016016 - CYLINDER-STEERING [ More info ] Unavailable
		8M2016605 - CYLINDER-STEERING [ More info ] Unavailable
		8M0048425 - ORD 8M0057413 NLA [ More info ] Unavailable
#1	8M2016017	STEERING ACTUATOR ASSEMBLY, Port (1 required per assembly) (Diesel)
		8M2016017 - CYLINDER-STEERING [ More info ] Unavailable
		8M2016606 - CYLINDER-STEERING [ More info ] Unavailable
		8M0048426 - ORD 8M0057413 NLA [ More info ] Unavailable
#2	NSS	NOT SOLD SEPARATE, CLEVIS PIN (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#3	8M2010043	RETAINER (1 required per assembly)
		8M2010043 - Clevis Retainer [ More info ] $37.58 Available to Order: Usually ships within 10 days.
#4	10-40003 28	SCREW, (M6 x 16) (1 required per assembly)
		10-40003 28 - Screw [ More info ] Unavailable
#5	8M0007568	TRANSDUCER, 500 PSI (1 required per assembly)
		8M0007568 - Transducer [ More info ] $266.08 Available to Order: Usually ships within 10 days.
#6	897345T14	SENSOR, Position, Secondary-Decreasing (1 required per assembly)
		897345T14 - Position Sensor [ More info ] $854.64 Available to Order: Usually ships within 10 days.
#7	897345T15	SENSOR, Position, Primary-Increasing (1 required per assembly)
		897345T15 - Position Sensor [ More info ] $819.86 Available to Order: Usually ships within 10 days.
#8	84-897345T13	HARNESS (1 required per assembly)
		84-897345T13 - Harness [ More info ] $498.50 Available to Order: Usually ships within 10 days.
#9	8M0010146	SENSOR ASSEMBLY (1 required per assembly)
		8M0010146 - Sensor [ More info ] Unavailable
		8M0142542 - Sensor TEMPERATUR [ More info ] Unavailable
#10	8M0007569	TRANSDUCER (3 required per assembly)
		8M0007569 - Transducer [ More info ] Unavailable
		8M6001284 - Transducer [ More info ] $331.58 Available to Order: Usually ships within 10 days.

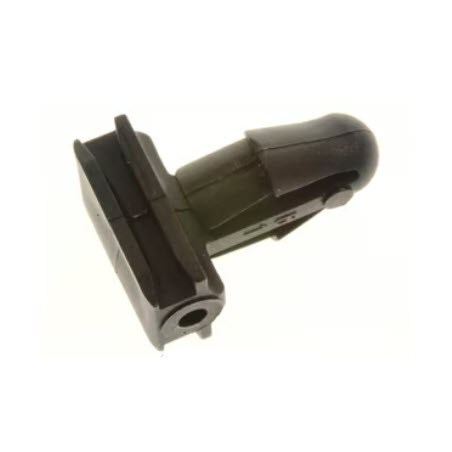

#17	54-804352	CLIP (3 required per assembly)
		54-804352 - Clip- Fuse Block [ More info ] $1.80 Available to Order: Usually ships within 10 days.

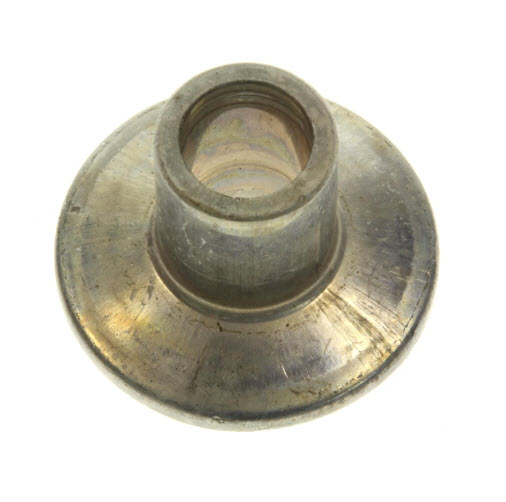

#19	23-856954	BUSHING (3 required per assembly)
		23-856954 - Bushing [ More info ] $7.00 1 In Stock.

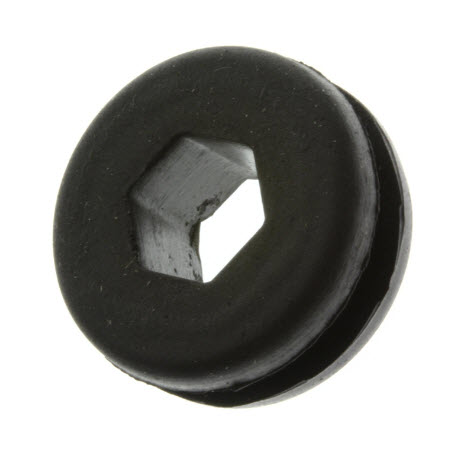

#20	25-834985	GROMMET (3 required per assembly)
		25-834985 - Grommet [ More info ] Unavailable
		25-8M0190980 - GROMMET Note: Must be ordered in multiples of 5 [ More info ] $3.60 Available to Order: Usually ships within 10 days.

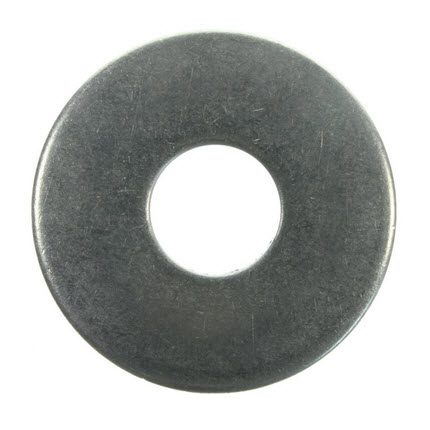

#21	12-65567	WASHER, (.265 x .750 x .048) Stainless Steel (3 required per assembly)
		12-65567 - Washer, (.265 X .750 X .048) Stainless Steel [ More info ] $2.90 Available to Order: Usually ships within 10 days.
#23	22-8M2007090	FITTING, (-6ORF TO -8ORB) Straight (1 required per assembly) (Gas)
		22-8M2007090 - Fitting [ More info ] $57.08 Available to Order: Usually ships within 10 days.
#23	22-8M2008375	FITTING, Adapter (-6ORF TO -8ORB), 90 Degree (1 required per assembly) (Diesel)
		22-8M2008375 - Fitting [ More info ] $93.08 Available to Order: Usually ships within 10 days.
#24	22-8M2015982	FITTING, Adapter (-6ORF TO -8ORB) (1 required per assembly)
		22-8M2015982 - Fitting [ More info ] $67.50 Available to Order: Usually ships within 10 days.
#25	19-8M2013299	CAP (1 required per assembly)
		19-8M2013299 - Cap [ More info ] $14.40 Available to Order: Usually ships within 10 days.
#26	19-8M2013298	CAP (1 required per assembly)
		19-8M2013298 - Cap [ More info ] $17.50 Available to Order: Usually ships within 10 days.
#27	11-8M2013313	NUT (3 required per assembly)
		11-8M2013313 - Nut [ More info ] $9.40 Available to Order: Usually ships within 10 days.
#28	25-8M2013312	O-RING (3 required per assembly)
		25-8M2013312 - O-Ring [ More info ] Unavailable
#29	25-8M2001117	O-RING (10 required per assembly)
		258M2001117 - O-Ring - Priced Individually [ More info ] $5.30 Available to Order: Usually ships within 10 days.
#30	22-8M2004603	O-RING (10 required per assembly)
		25-8M2004603 - O-Ring - Priced Individually [ More info ] $9.80 Available to Order: Usually ships within 10 days.
