Parts for MerCruiser Bravo Two Transom Plate & Shift Cable
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.

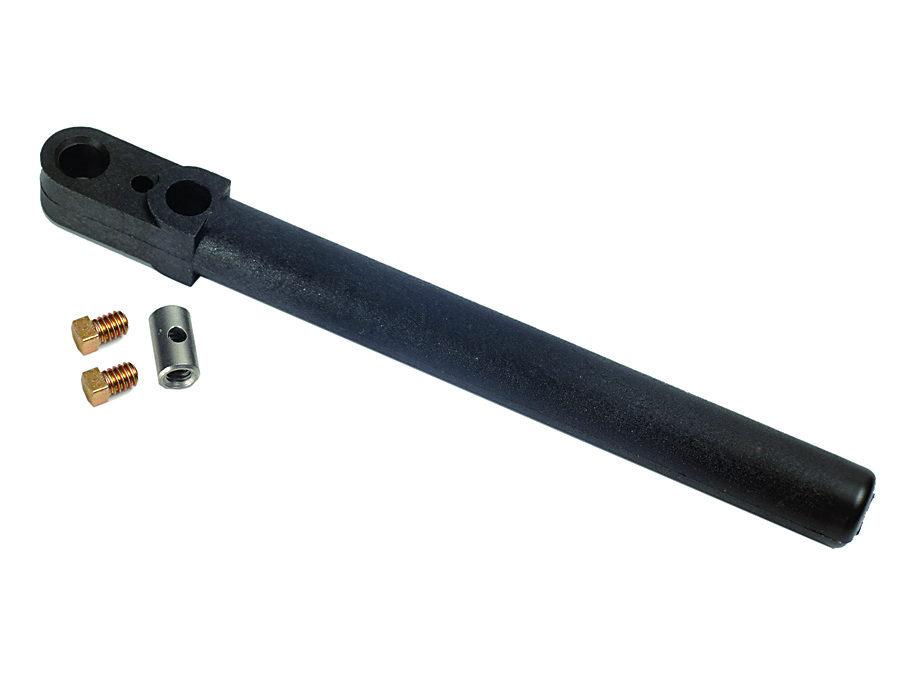

# | 43433A01 | GUIDE KIT (1 required per assembly) |
#1 | 44117A 8 | PLATE ASSEMBLY, Transom (1 required per assembly) |

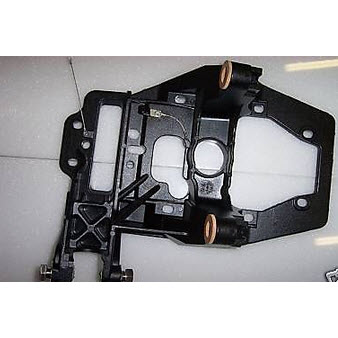

44117A 8 - Transom Plate Assembly [ More info ] Unavailable |
||
8M0095951 - 8M0095951 - PLATE ASSEMBLY Tr [ More info ] Unavailable Replaced by -8M0114816 |
||

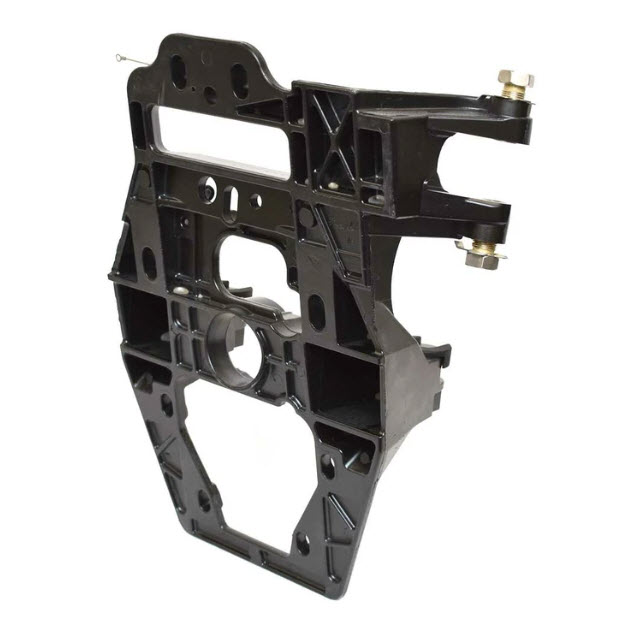

8M0114816 - 8M0114816 - PLATE ASSEMBLY Tr [ More info ] Unavailable Replaced by -8M0138839 |
||
#2 | 10-42253 | BOLT, Pivot (2 required per assembly) |
10-42253 - Pivot Bolt [ More info ] Unavailable |
||
#3 | 14-42254 | WASHER (2 required per assembly) |
#4 | 10-97934 | SCREW, (.500-20 x 5.370) Special (2 required per assembly) |

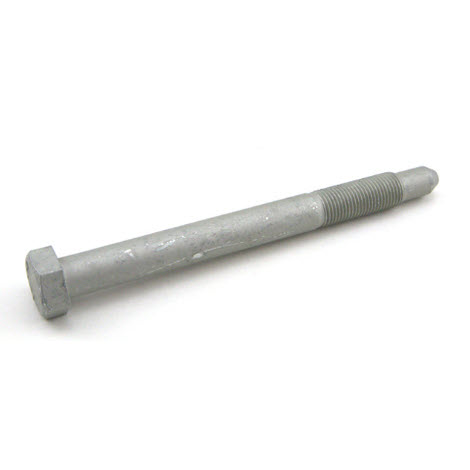

10-8M0215010 - SCREW [ More info ] Unavailable |
||
#5 | 12-35777 | WASHER, (.5156 x 1.375 x .125) Aluminum (2 required per assembly) |
12-35777 - Washer, (.5156 X 1.375 X .125) Aluminum [ More info ] |
||
#6 | 23-99299 | SPACER, (.520 x .870 x .630) (2 required per assembly) |
#7 | 12-32834 | WASHER, (.9375 x 1.750 x .172) (2 required per assembly) |

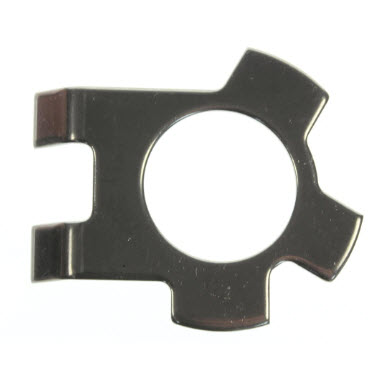

#8 | 13-33734 | LOCKWASHER, (.500) (2 required per assembly) |
#9 | 11-863332 | NUT, (.500-20) Aluminum (2 required per assembly) |

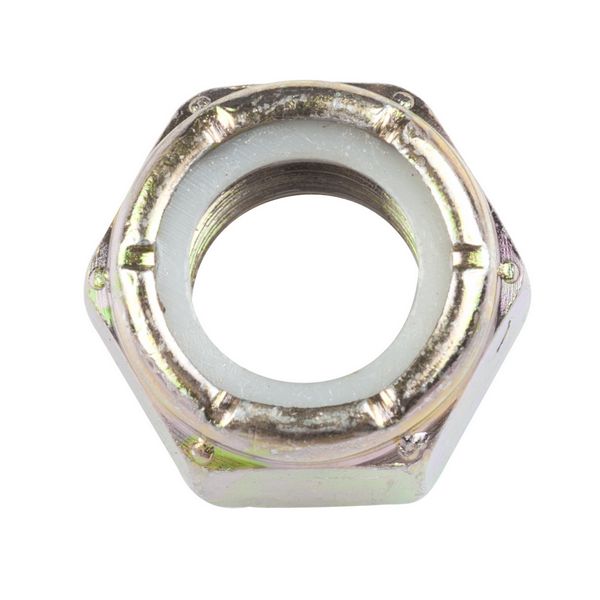

18-3728 - Nut, 11-99298, 11-863332 [ More info ]
$4.79 $4.05 |
||

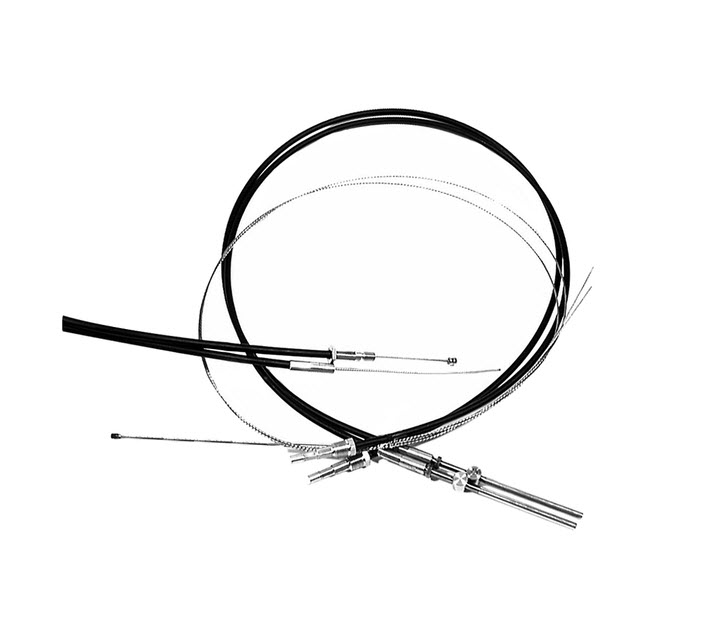

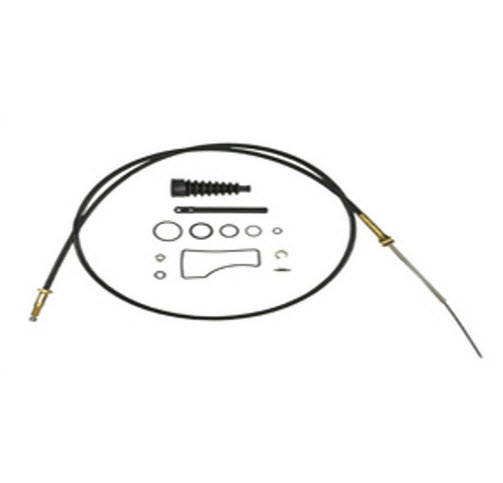

#10 | 815471A 6 | CABLE KIT, Shift (1 required per assembly) |

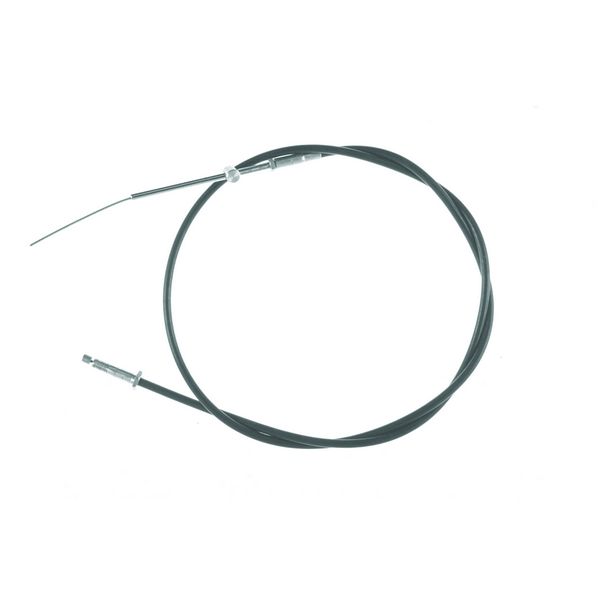

815471A 6 - Shift Cable Kit [ More info ] Unavailable |
||
865437A02 - Shift Cable Assembly [ More info ] Unavailable |
||

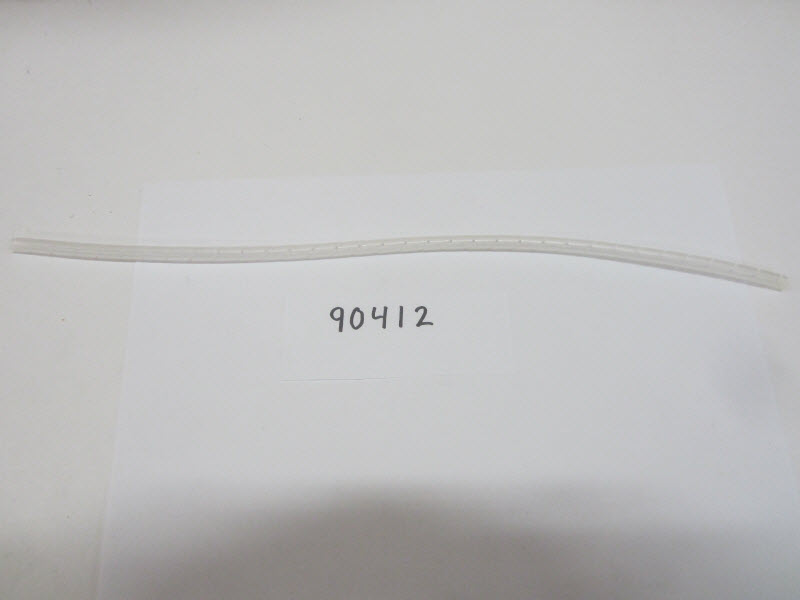

#11 | 90412 | WRAPPING, (1.16 Feet Bulk) (1 required per assembly) (Cut As Required) |
#12 | 12-815472 | WASHER, Sealing (1 required per assembly) |
12-815472 - Washer, Sealing [ More info ] Unavailable |
||
12-8M0214950 - WASHER [ More info ] Unavailable |
||
#13 | 11-49910 | NUT, (.375-24) (1 required per assembly) |
11-8M0214936 - NUT @2 [ More info ] Unavailable |
||
#14 | 43433 | GUIDE (1 required per assembly) |

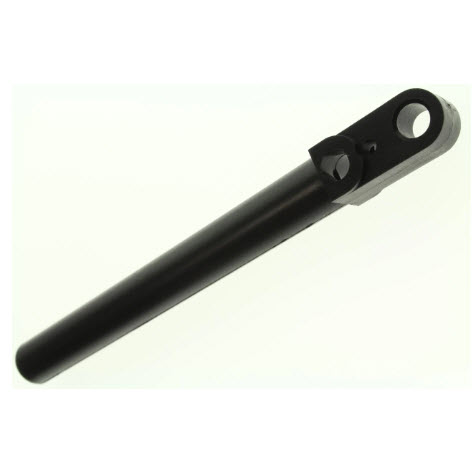

8M0204660 - SHIFT CABLE END GUIDE Note: Priced Individually ZZ [ More info ] |
||

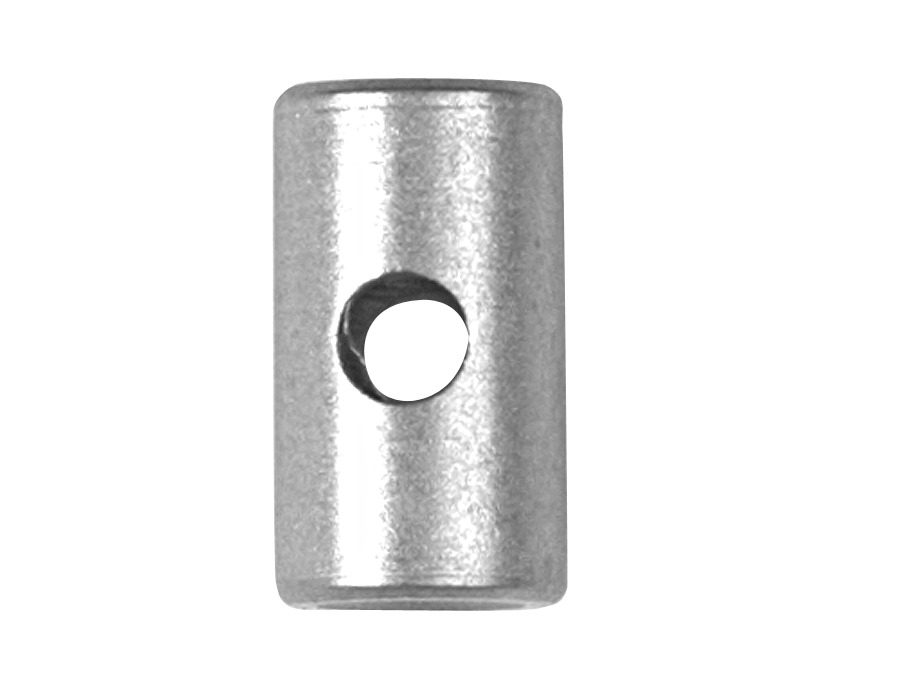

#15 | 43436 | ANCHOR (1 required per assembly) |
#16 | 10-20518 | SET SCREW, (#8-32) (2 required per assembly) |
10-8M0204644 - SCREW-SET @25 [ More info ] Unavailable |
||
18-2303 - Cable Anchor Set Screw [ More info ]
$1.26 $1.04 |
||
#17 | 861632 | INSERT (1 required per assembly) |
861632 - INSERT [ More info ] Unavailable |
||
#18 | NSS | NOT SOLD SEPARATE, CABLE ASSEMBLY-Grounding (1 required per assembly) |
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
||
#20 | 10-24231 | SCREW, (#10-32 x .250) (1 required per assembly) |

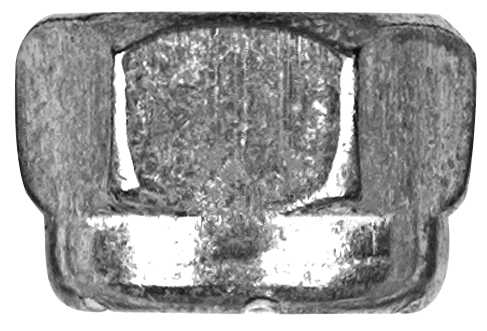

#21 | 11-826710 15 | NUT, (.437-20) Stainless Steel (1 required per assembly) |
11-34933 - Nut (7/16-20) [ More info ] Unavailable |
||
11-8M0204653 - Prop Lock Nut 7/16-20 , Priced Individually [ More info ] |
||
18-3721-9 - Lock Nut, 11-34933, 5PK [ More info ]
$19.49 $16.48 |
||
#22 | 10-41508 | SCREW, (.250-20 x .500) Stainless Steel (1 required per assembly) |
