Parts for MerCruiser Bravo Two Power Trim Cylinder Repair Kits

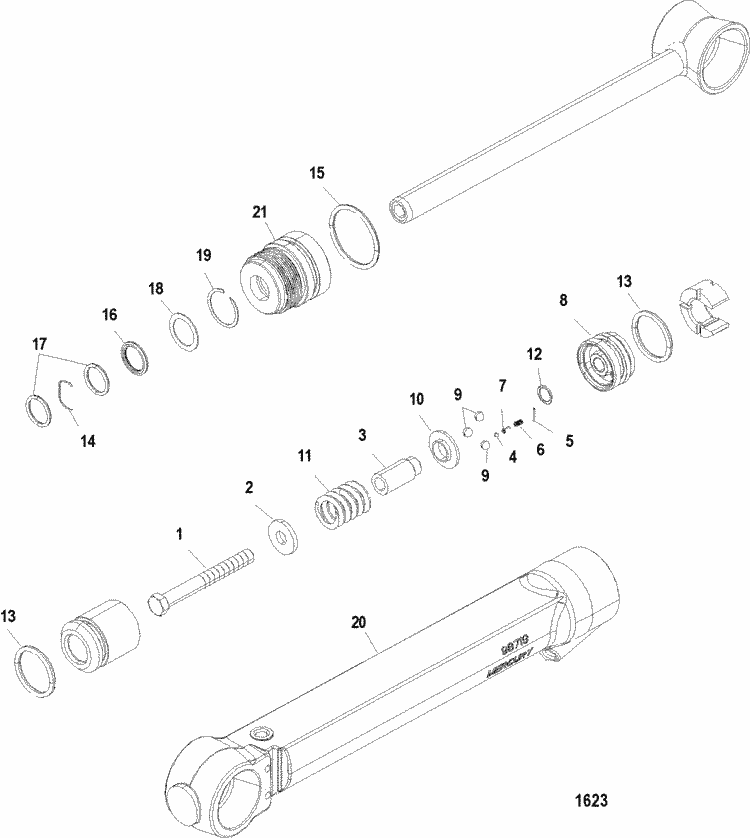

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.

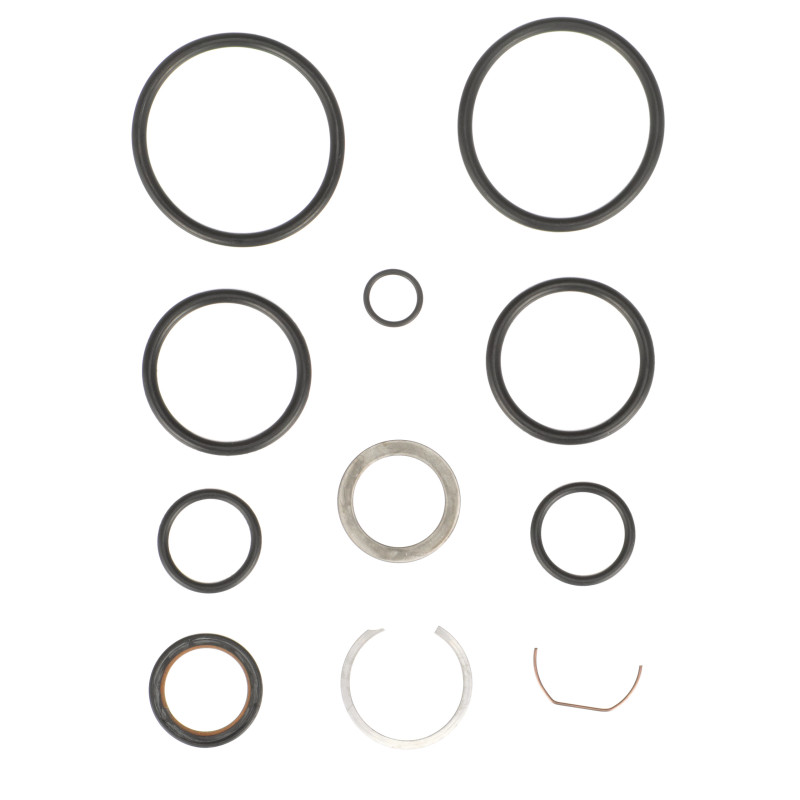

| # | 25-87400A 2 | SEAL KIT (1 required per assembly) |
  |
|
25-87400A 2 - O-Ring Kit [ More info ]
|
  |
|

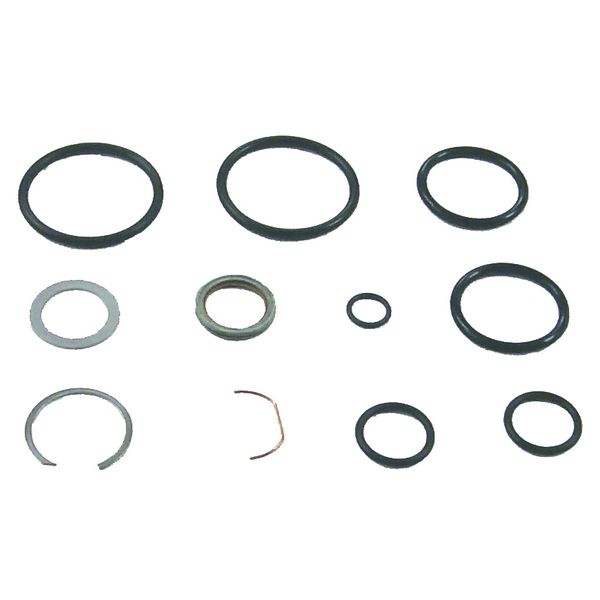

18-2649 - Seal Kit 25-87400A2 [ More info ]
|

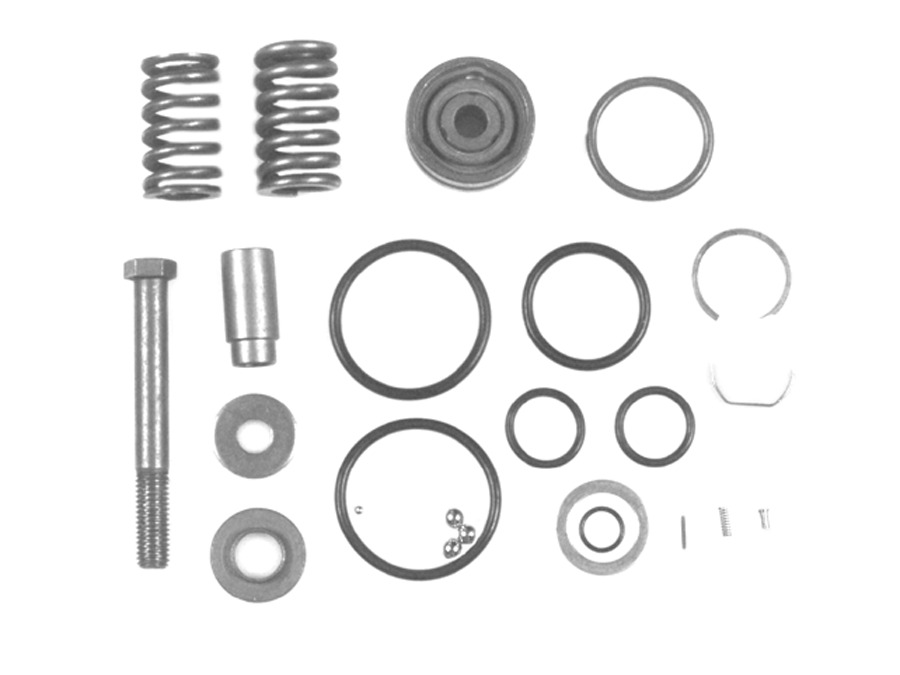

| #_ | 87399A 2 | OVERHAUL KIT (1 required per assembly) |
  |
|
87399A 2 - Overhaul Kit [ More info ]
|
| #1 | NSS | NOT SOLD SEPARATE, SCREW (M10 x 85) (1 required per assembly) |
 |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |

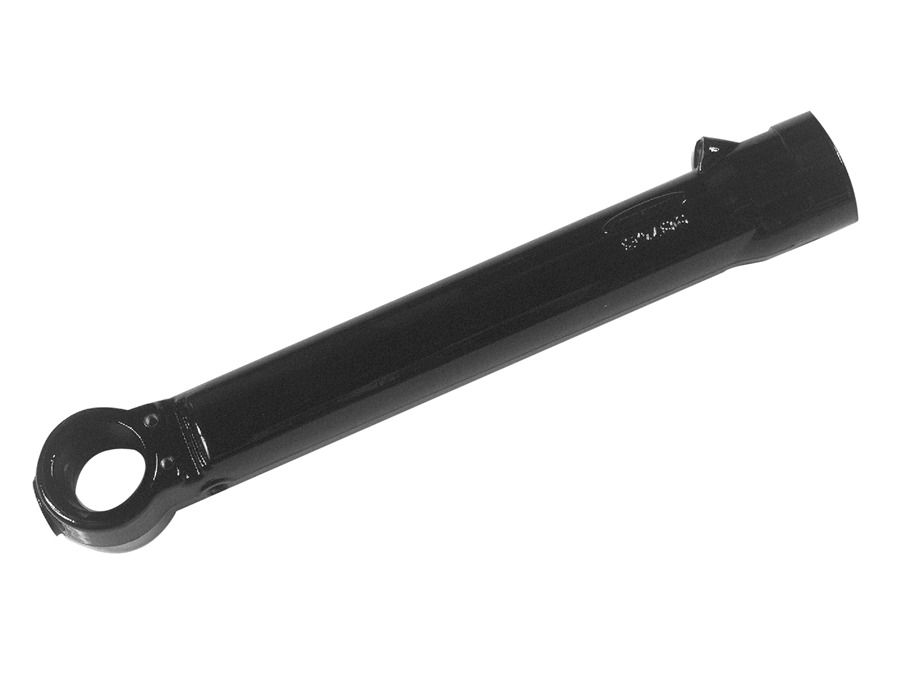

| #20 | 98703T | TUBE (PORT CYLINDER) (1 required per assembly) (CASTING # 98703 OR 98718) |
  |
|
98703T - Tube - Outer- Port [ More info ] Unavailable |

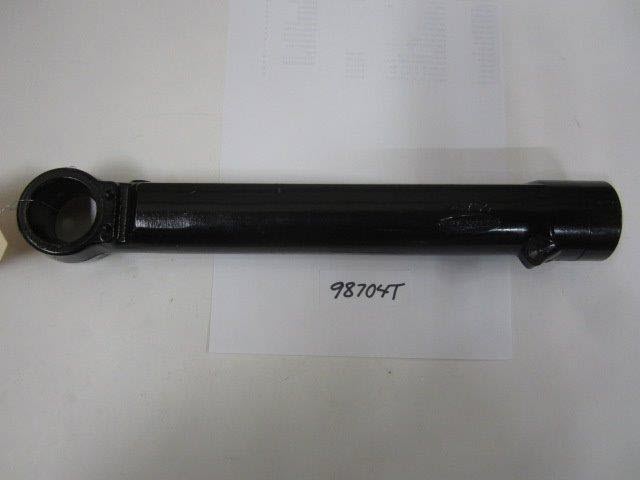

| #20 | 98704T | TUBE (STARBOARD CYLINDER) (1 required per assembly) (CASTING # 98704 OR 98719) |
  |
|
98704T - Tube - Outer- Stbd [ More info ] Unavailable |

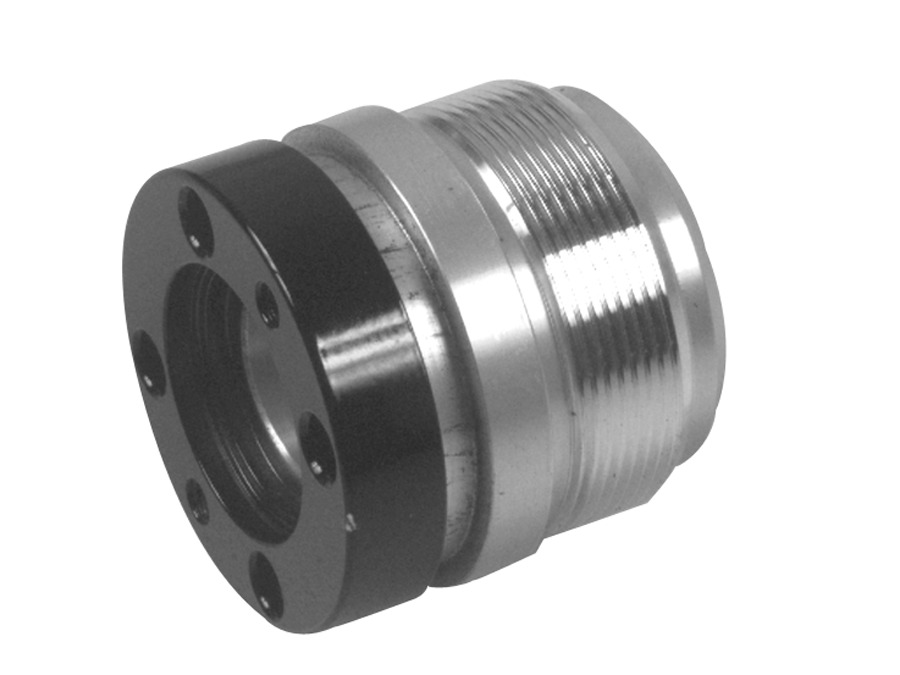

| #21 | 806191T | CAP (2 required per assembly) |
  |
|
806191T - End Cap Assembly [ More info ]
|
|
8M0110717 - End Cap Kit [ More info ] Unavailable |
|
|
988M0115362 - End Cap Kit [ More info ] Unavailable |
|
  |
|

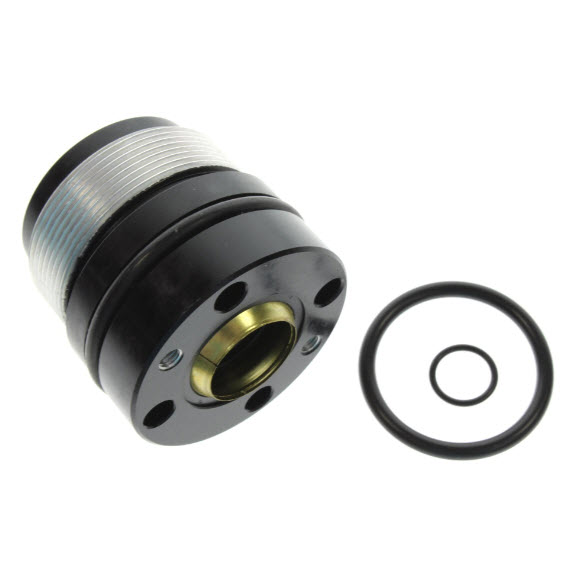

98-8M0118340 - End Cap Kit [ More info ]
|
