Parts for MerCruiser Bravo Three Transom Plate & Shift Cable
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 43433A01 | GUIDE KIT (1 required per assembly) |
  |
|
43433A01 - Guide Kit [ More info ]
|
| #1 | 44117A 8 | PLATE ASSEMBLY, Transom (1 required per assembly) |
  |
44117A 8 - Transom Plate Assembly [ More info ] Unavailable |
|
  |
|
8M0095951 - 8M0095951 - PLATE ASSEMBLY Tr [ More info ] Unavailable Replaced by -8M0114816 |
  |
|
8M0114816 - 8M0114816 - PLATE ASSEMBLY Tr [ More info ] Unavailable Replaced by -8M0138839 |
  |
|
8M0138839 - Transom Plate [ More info ]
|
| #2 | 10-42253 | BOLT, Pivot (2 required per assembly) |
  |
10-42253 - Pivot Bolt [ More info ] Unavailable |
|
  |
|

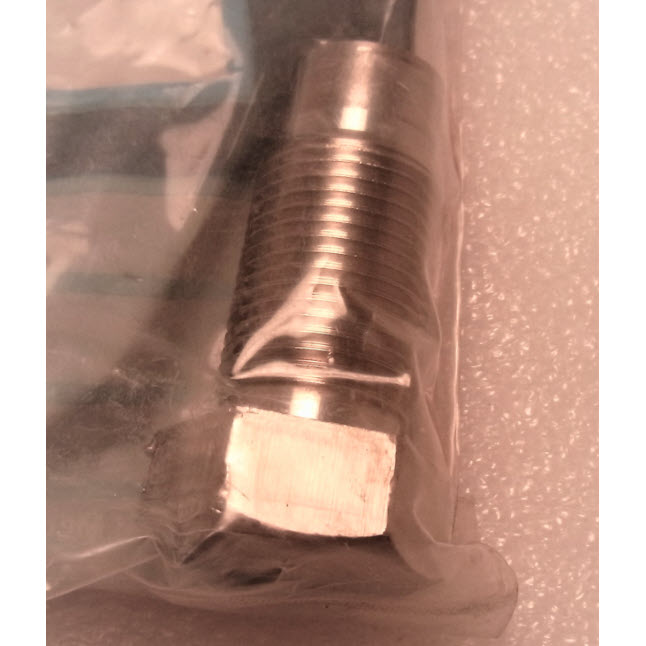

10-8M0113173 - Bolt Pivot [ More info ]
|
| #3 | 14-879150A34 | WASHER ASSEMBLY, Pivot (1 required per assembly) |
  |
|
14-879150A34 - Tab Washer [ More info ]
|
| #4 | 12-8M2010068 | WASHER, (.78 x 1.25 x .05) Stainless Steel, Pivot (Bottom) (1 required per assembly) |
  |
|
12-8M2010068 - Washer, (.78 X 1.25 X .05) Stainless Steel, Pivot (bottom) [ More info ]
|
| #5 | 12-35777 | WASHER, (.5156 x 1.375 x .125) Aluminum (2 required per assembly) |
  |
|
12-35777 - Washer, (.5156 X 1.375 X .125) Aluminum [ More info ]
|
| #6 | 23-99299 | SPACER, (.520 x .870 x .630) (2 required per assembly) |
  |
|
23-99299 - Spacer - .52 X .87 X .63 [ More info ]
|
| #7 | 12-32834 | WASHER, (.9375 x 1.750 x .172) (2 required per assembly) |
  |
|
12-32834 - Washer, (.9375 X 1.750 X .172) [ More info ]
|
| #8 | 12-54012 | WASHER, (.530 x .870 x .105) Stainless Steel (AR required per assembly) |
  |
12-54012 - Washer, (.530 X .870 X .105) Stainless Steel [ More info ] Unavailable |
|
  |
|
12-8M0204665 - WASHER Note: Priced Individually [ More info ]
|
| #9 | 11-863332 | NUT, (.500-20) Aluminum (2 required per assembly) |
  |
|
11-863332 - Nut, (.500-20) Aluminum [ More info ]
|
| #10 | 815471A 6 | CABLE KIT, Shift (1 required per assembly) |
  |
815471A 6 - Shift Cable Kit [ More info ] Unavailable |
|
  |
865437A02 - Shift Cable Assembly [ More info ] Unavailable |
|
  |
|
8M0176523 - Shift Cable, BRAVO [ More info ]
|
  |
|
18-2145E - Shift Cable, Xtreme [ More info ]
|
  |
|
18-2145 - Shift Cable, 815471A3 [ More info ]
|
  |
|
64-02387 - Shift Cable 815471A 6 [ More info ]
|
  |
|
8M0176522 - Shift Cable Kit, Bravo [ More info ]
|
| #11 | 90412 | WRAPPING, (1.16 Feet Bulk) (1 required per assembly) (Cut As Required) |
  |
|
90412 - Wrapping [ More info ]
|
| #12 | 12-815472 | WASHER, Sealing (1 required per assembly) |
  |
12-815472 - Washer, Sealing [ More info ] Unavailable |
|
  |
|
12-8M0214950 - WASHER [ More info ] Unavailable |
| #13 | 11-49910 | NUT, (.375-24) (1 required per assembly) |
  |
|
11-49910 - Nut (3/8-24) [ More info ]
|
  |
|
11-8M0214936 - NUT Note: Must be ordered in multiples of 2 [ More info ]
|
| #14 | 43433 | GUIDE (1 required per assembly) |
  |
|
43433 - Guide - Priced Individually [ More info ]
|
  |
|
8M0204660 - SHIFT CABLE END GUIDE Note: Priced Individually ZZ [ More info ]
|
  |
|
18-2149 - Guide, 43433 [ More info ]
|
| #15 | 43436 | ANCHOR (1 required per assembly) |
  |
|
|
| #16 | 10-20518 | SET SCREW, (#8-32) (2 required per assembly) |
  |
|
10-20518 - Screw -set - Priced Individually [ More info ]
|
  |
|
10-8M0204644 - SCREW-SET @25 [ More info ] Unavailable |
  |
|
18-2303 - Cable Anchor Set Screw [ More info ]
|
| #17 | 861632 | INSERT (1 required per assembly) |
  |
861632 - INSERT [ More info ] Unavailable |
|
  |
|
861632T - Insert [ More info ]
|
| #18 | NSS | NOT SOLD SEPARATE, CABLE ASSEMBLY-Grounding (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #20 | 10-24231 | SCREW, (#10-32 x .250) (1 required per assembly) |
  |
|
10-24231 - Screw - Priced Individually [ More info ]
|
| #21 | 11-826710 15 | NUT, (.437-20) Stainless Steel (1 required per assembly) |
  |
|
11-826710 15 - Nut (7/16-20) Stainless Steel [ More info ]
|
  |
|
11-34933 - Nut (7/16-20) [ More info ]
|
  |
|
11-8M0204653 - Prop Lock Nut 7/16-20 , Priced Individually [ More info ]
|
  |
|
11-00118 - Nut, Sold Individually [ More info ]
|
| #22 | 10-41508 | SCREW, (.250-20 x .500) Stainless Steel (1 required per assembly) |
  |
|
10-41508 - Screw [ More info ]
|
| #23 | 10-97934 | SCREW, (.500-20 x 5.370) Special (2 required per assembly) |
  |
10-97934 - Screw [ More info ] Unavailable |
|
  |
|
10-8M0215010 - Screw [ More info ]
|
