Parts for MerCruiser Alpha One SS 1986-1989 Control Panel (Iii-iv-v)
Tap to zoom. Scroll down to order.

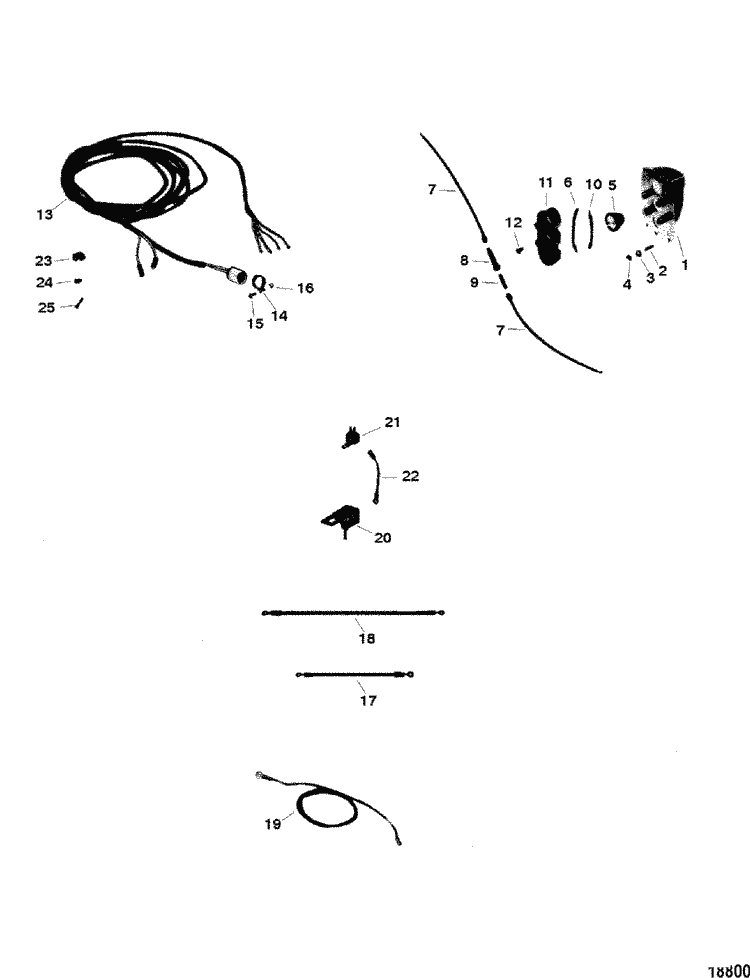

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
# | 55642A13 | CONTROL PANEL ASSEMBLY, Control (COMPLETE) (1 required per assembly) |
55642A13 - Control Panel Assembly [ More info ] Unavailable |
||
#1 | 55642A17 | PANEL KIT (1 required per assembly) |
#NS | 37-57577 | DECAL, Power Trim (1 required per assembly) |
#2 | 16-55422 | STUD, (#10-32 x 2.00) (4 required per assembly) |
#3 | 12-24676 | WASHER, (.200 x .440 x .032) (4 required per assembly) |
#4 | 11-27164 | NUT AND LOCKWASHER, (#10-32) (4 required per assembly) |
#5 | 55738A 1 | SWITCH ASSEMBLY (3 required per assembly) |
#6 | 48078 | WIRE, Jumper (Red) (3.250 In.) (Use Without Fuse) (1 required per assembly) |
48078 - Jumper Wire, NLA [ More info ] Unavailable |
||
#7 | 84-69174A 2 | WIRE, (24.00 Inches) (Red) (2 required per assembly) |
#8 | 88-69358A 1 | CAP ASSEMBLY (1 required per assembly) |
88-69358A 1 - SOCKET,NLA [ More info ] Unavailable |
||
#9 | 88-79091 | FUSE, 20 Ampere (1 required per assembly) |
88-79091 - Fuse - 20 Amp - Priced Individually [ More info ] |
||
888M0207796 - FUSE-20 AMP Note: Priced Individually [ More info ] |
||
#10 | 53107 | WIRE, Jumper (3.00 Inches) (Purple) (1 required per assembly) |
#11 | 55641 | RETAINER (1 required per assembly) |
#12 | 10-62568 | SCREW, (#10-16 x .375) (4 required per assembly) |
#13 | 84-87394A20 | HARNESS ASSEMBLY (1 required per assembly) |
#14 | 54-46770 | CLAMP (1 required per assembly) |
54-46770 - Clamp [ More info ] Unavailable |
||
#15 | 10-29227 | SCREW, (#8-32 x 0.50) (1 required per assembly) |
#16 | 11-34388 | NUT (#8-32) (1 required per assembly) |
#17 | 84-79139A 2 | WIRE ASSEMBLY, Jumper (Red) (1 required per assembly) |
#18 | 84-65999A 4 | WIRE ASSEMBLY (Black) (5.00 In.) (1 required per assembly) |
84-65999A 4 - Wire Assembly, NLA [ More info ] Unavailable |
||
#18 | 84-65999A10 | CABLE ASSEMBLY (Black) (6.00 In.) (1 required per assembly) |
#18 | 84-65999A 6 | WIRE ASSEMBLY (Black) (12.00 In.) (1 required per assembly) |
84-65999A 6 - WIRE ASSY,NLA [ More info ] Unavailable |
||
#19 | 84-79139A 9 | CABLE ASSEMBLY, Battery (Red) (Positive) (1 required per assembly) |
#19 | 84-79138A 1 | CABLE ASSEMBLY (Black) (Negative) (1 required per assembly) |
#20 | 88-79023A90 | FUSE ASSEMBLY, 90 Ampere (1 required per assembly) |
88-79023A90 - Fuse Assembly -90 AMP [ More info ] Unavailable |
||
#21 | 88-79137 1 | BREAKER, Circuit (1 required per assembly) |
#22 | 84-79148A 1 | WIRE ASSEMBLY, Jumper, Jumper (Red) (1 required per assembly) |
#23 | 54-24836 | CLIP (4 required per assembly) |
#24 | 69205 | C WASHER (4 required per assembly) |
69205 - C Washer [ More info ] Unavailable |
||
#25 | 10-35401 | SCREW, (#10 x 1.00), Wood (4 required per assembly) |
